PC21 Pilatus MK2 from Phoenix Model

Details

From November 1997, Pilatus flew a modified PC-7 Mk.II to test various improvements for a next generation turboprop trainer. In November 1998, Pilatus decided to privately fund the development of the PC-21 training system. Full-scale development was launched in January 1999. Extensive wind tunnel tests were performed to validate the CAD/CAM design. A PC-7 MK.II was converted into a proof of concept aircraft to test higher wing loadings, spoilers, the 1600 shp engine and power management system. Roll out of the first PC-21 prototype was on 30 April 2002 at the Stans factory. The aircraft will be certified in 2004, with first deliveries possible from late that year, it was said at the roll out.

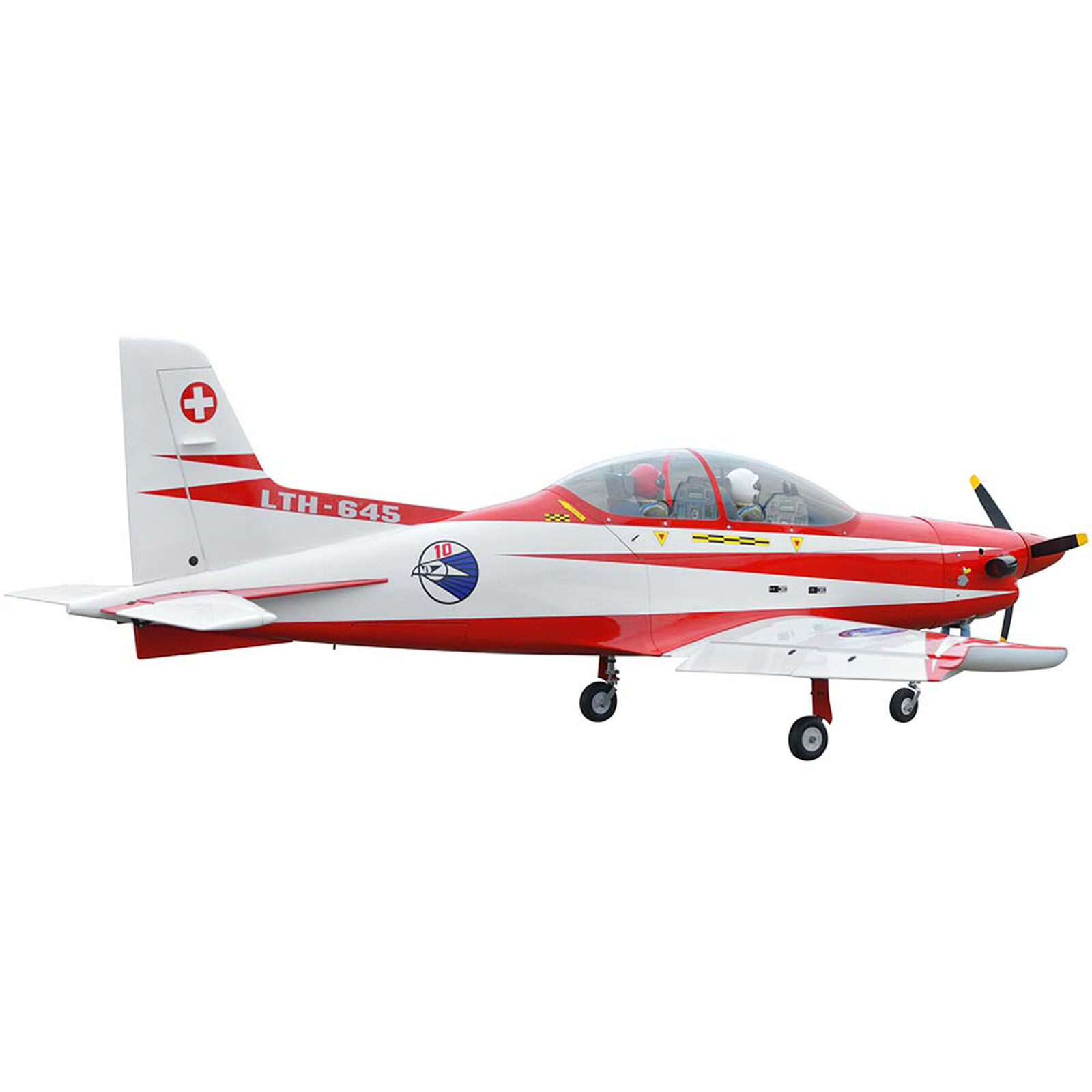

Now you can experience the spirit of the PILATUS in this giant-scale dream, PHOENIX MODEL's 1.20 sized replica of he real thing. The PILATUS PC21 ARF, based on the most recent version of the PC21, is an easy-to-assemble, easy -to-fly blast for any pilot interested in large-scale flight. Functioning scale flaps make takeoffs and landings a breeze.

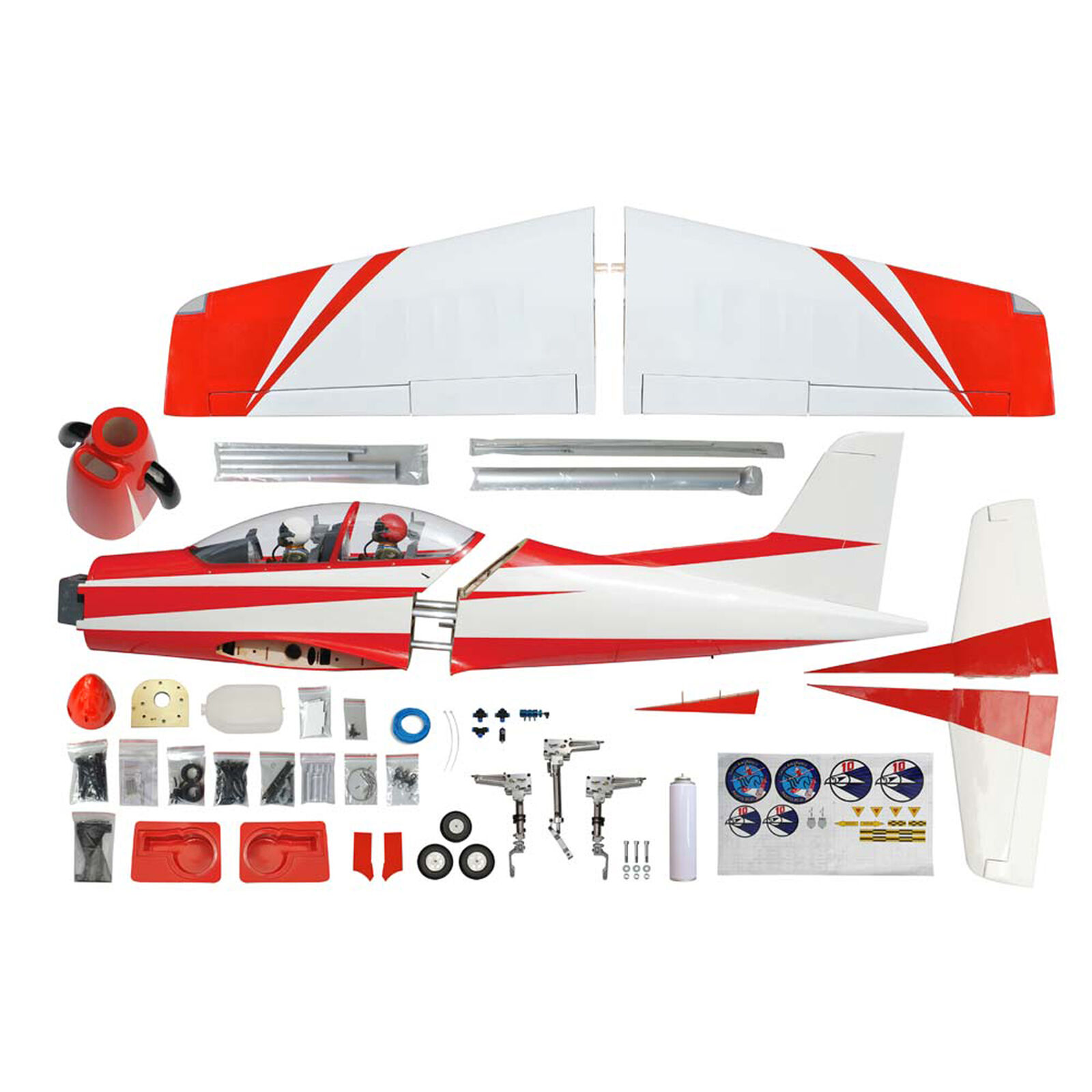

Features:

  • Designed for compatibility with both GP and EP flight
  • Top quality balsa/light plywood construction
  • Electric Retract With CNC Suspension Metal Struts included
  • Full-depth cockpit and instrument panel and pilot included

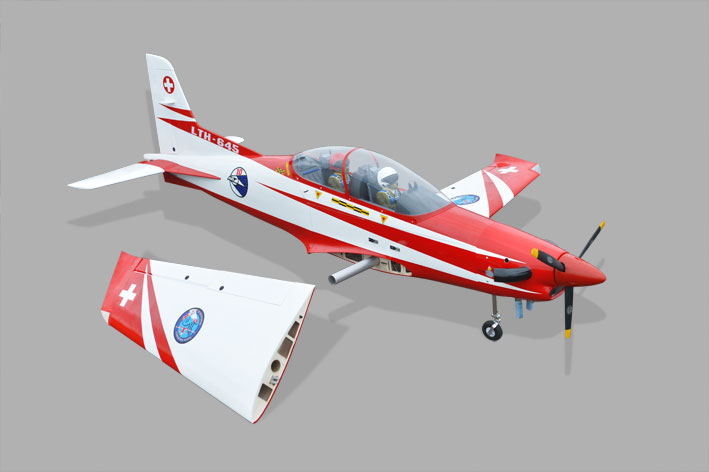

  • Bolt-on two-piece wing for easy transport and setup at the field

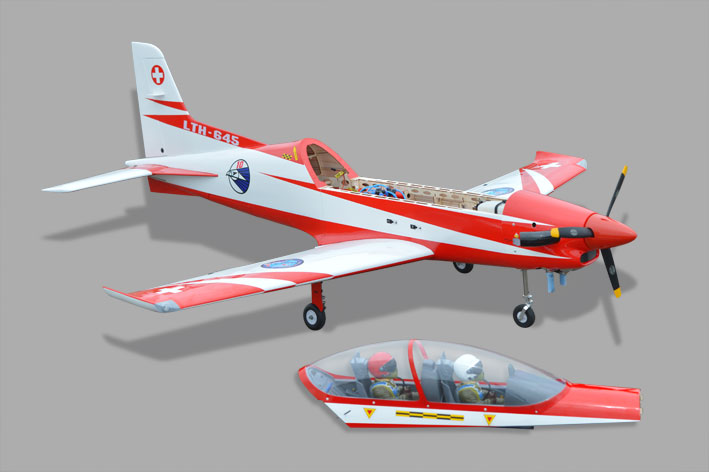

  • Removable canopy for easy change lipo battery and set up radio

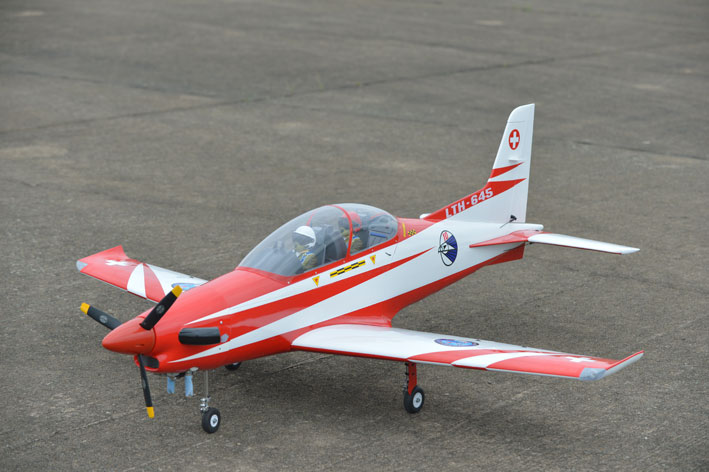

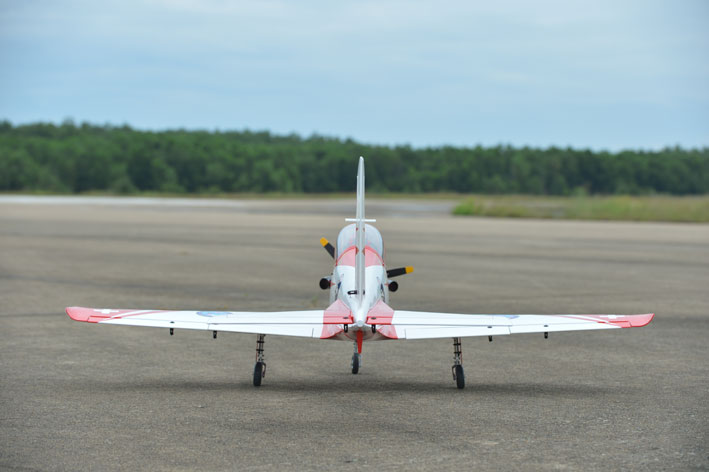

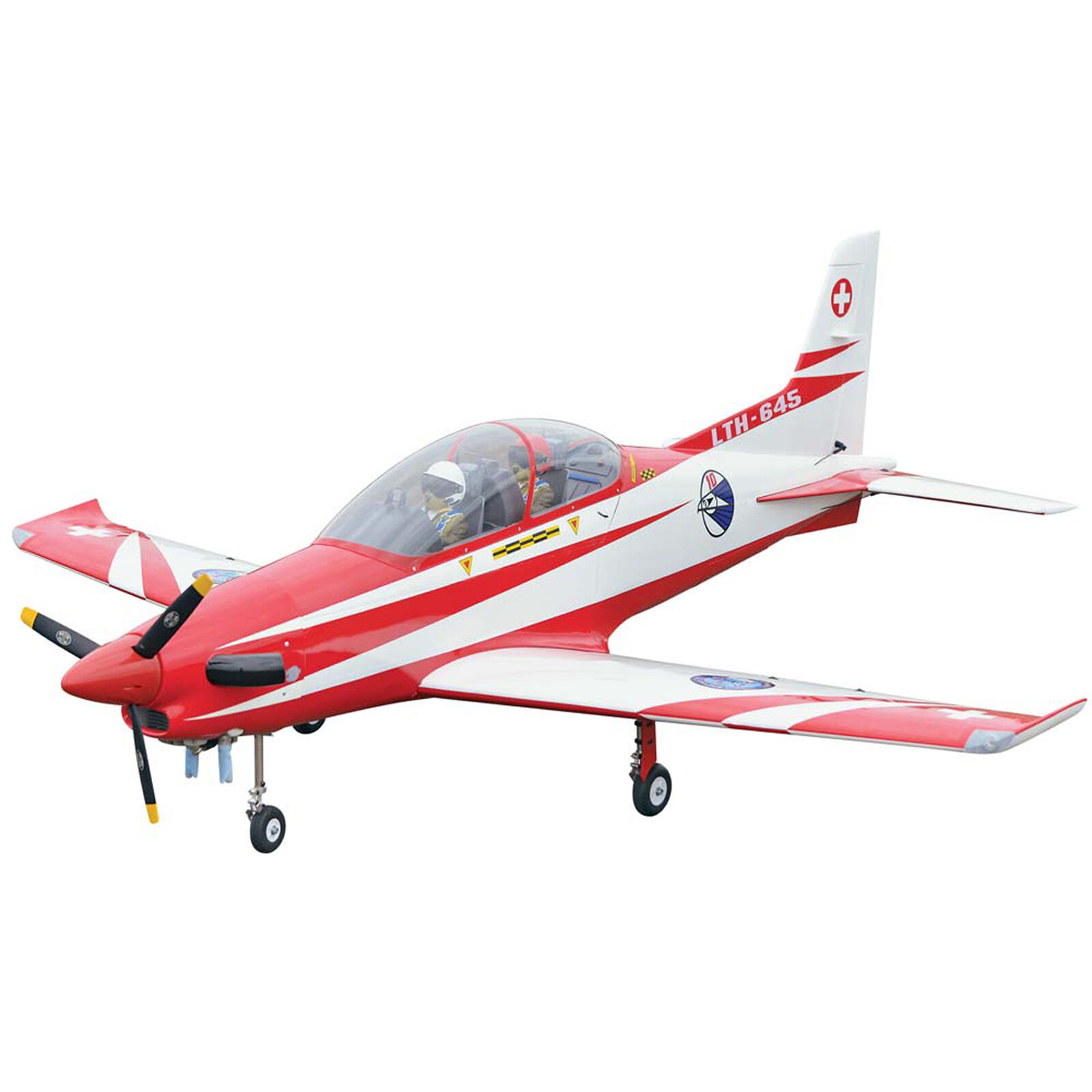

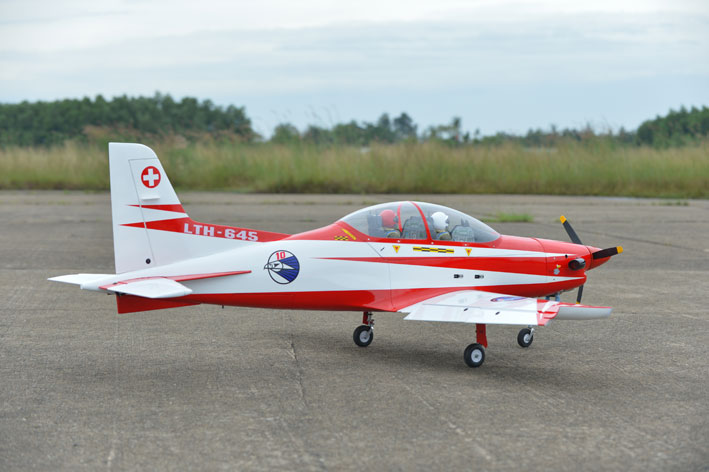

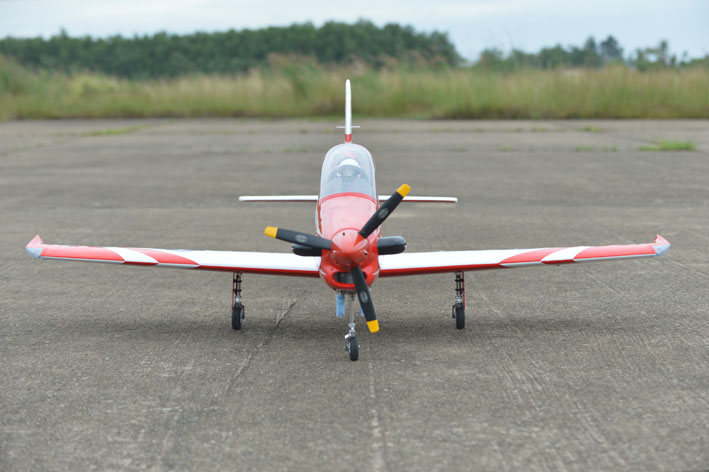

Pictures

Manual

Radio icons

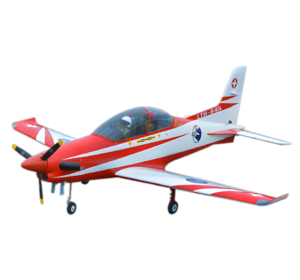

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1772mm (69.8 in)
Length: 2019mm (79.5 in)

Weight: 7500 g (16.5 lbs)
  • Wingspan: 1772mm (69.72in)
  • Length: 2019mm (79.5 in)
  • Flying weight: 7.3 - 7.5 kg
  • Wing area: 57.6 dm2
  • Wing loading: 113g/dm2
  • Wing type: Naca airfoils
  • Gear type: Electric Retract Gear (included) with controller box (included).
  • Spinner size: 86mm (included)
  • Servo: 9 standard servo: 2 aileron;2 flap; 2 elevator; 1 rudder; 1 steering nose; 1 throttle (not included)
  • Servo mount: 21mm x 42 mm
  • Propeller: suit with your engine
  • Engine: 1.20/ 2-stroke or 1.40/4-stroke glow engine or 20-30cc gas engine (not included)
  • Motor: brushless outrunner 1600-2200 W, 450 KV (not included)

Recommended motor and battery set up

  • Motor: RIMFIRE 1.20 (not included)
  • Lipo cell: 5-6 cells / 5500 – 6000mAh (not included)
  • Esc: 80A (not included)
