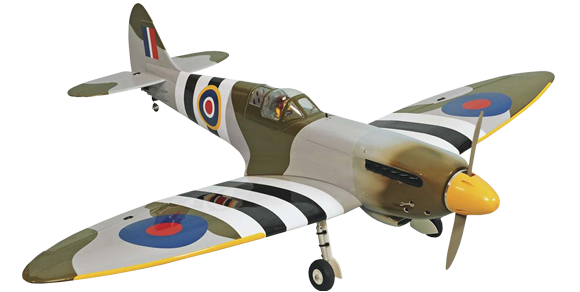

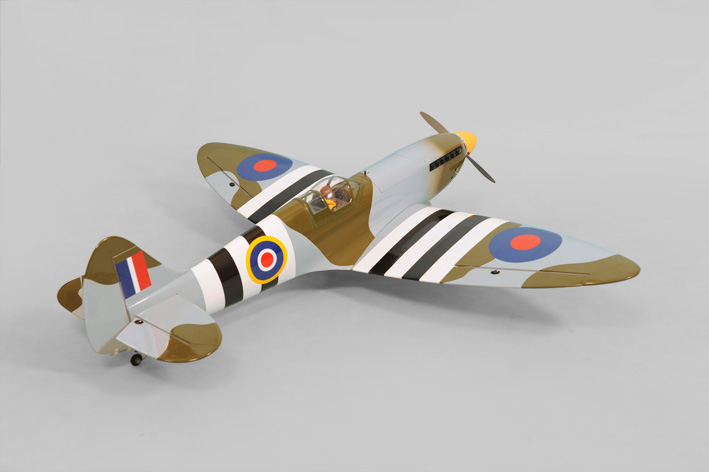

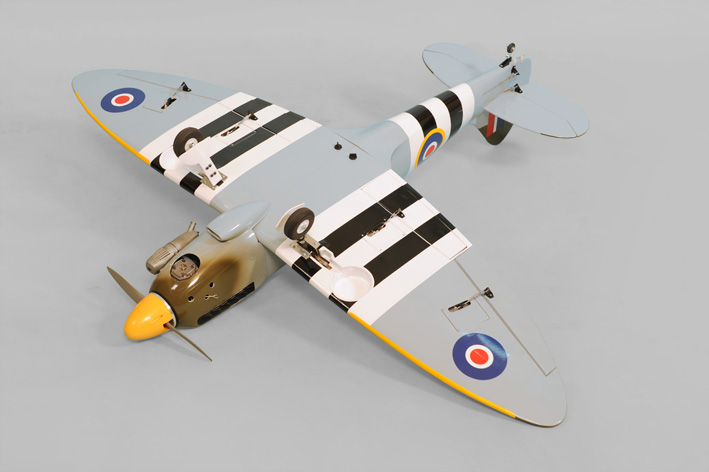

Spitfire Mk2 55" from Phoenix Model

Details

The Spitfire is the most famous warbird and the most popular radio controlled plane. Created with the scale enthusiast in mind, this almost-ready-to-fly airplane replicates the scale outline of its full-scale counterpart with accuracy. the Spitfire is packed with scale details. Including Retract landing gear and all the hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to separately purchase the nitro engine and radio system, and fly.

Features:

  • Designed for compatibility with both GP and EP flight
  • Removable top-hatch for easy change lipo battery and set up radio
  • Scale outline is enhanced by the lightweight fiberglass cowl

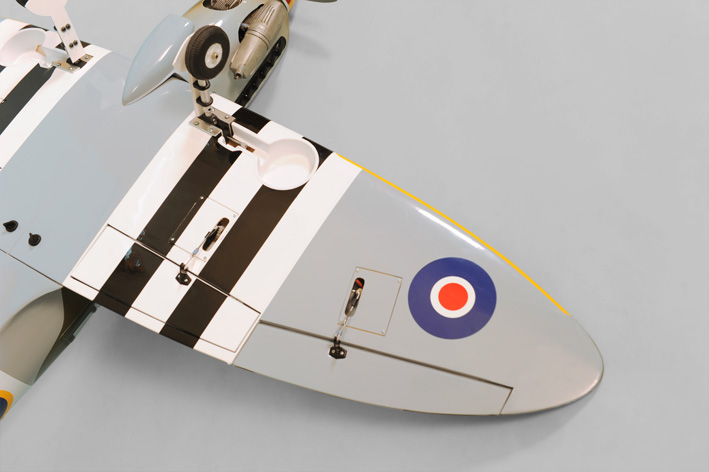

  • Retract gear With CNC Suspension Metal Struts included
  • High-quality hardware package included

Pictures

Manual

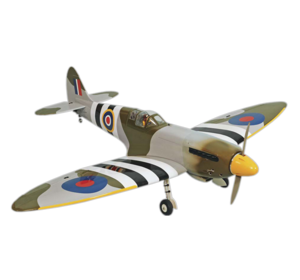

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.


Wingspan: 1400mm (55.1 in)
Length: 1240mm (48.8 in)

Weight: 3200 g (7.1 lbs)
  • Wingspan: 1400mm (55in)
  • Length: 1240mm (48.8 in)
  • Flying weight: 2800-3200 g
  • Wing area: 32.3 dm2
  • Wing loading: 86g/dm2
  • Wing type: Naca airfoils
  • Gear type: Mechanic retract (included)
  • Spinner size: 80mm  (included)
  • Radio: 6 channel minimum
  • Servo: 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle; and 1 low profile servo retract (not included)
  • Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
  • Servo mount: 16mm x 33.5mm
  • Propeller: suit with your engine
  • Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
  • Motor: brushless outrunner 1000-1400 W, 480 KV (not included)

Recommended motor and battery set up:

  • Motor: RIMFIRE .46-.55 (not included)
  • Lipo cell: 4-6 cells / 4000 – 5500mAh (not included)
  • Esc: 50-80A (not included)

Variants

PH120
Spitfire Mk2 55" (Camo Grey Khaki)
