T-6 TEXAN II from Phoenix Model

Details

A great airplane! Its semi symmetrical airfoil and long tail moment deliver precise aerobatic performance for experienced pilots, yet the T6 Texan II's superb stability make it an ideal first low–wing model. This ARF has been designed to keep building time to a minimum; it's 90% pre-built. The better you get the more fun it gives you!

Features:

  • Designed for compatibility with both GP and EP flight
  • Removable top hatch for easy change lipo battery and set up radio
  • Strong Light Weight Construction
  • Superb flying characteristics, plus an accurate scale outline
  • High-quality hardware package included

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the T-6 TEXAN II in particular but at least we know they do distribute Phoenix Model.

Where to buy

France
Flash RC
check web site
Ship to: Europe
USA
TOWER HOBBIES
check web site
Ship to: International
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
Belgium
Aerobertics
check web site
Ship to: Europe
France
PB Modélisme
check web site
Ship to: Europe
Austria
DMT
check web site
Ship to: Europe
France
Turbines RC
check web site
Ship to: Worldwide

Wingspan: 1490mm (58.7 in)
Length: 1270mm (50 in)

Weight: 3400 g (7.5 lbs)
  • Wingspan: 1490mm (58.6in)
  • Length: 1270mm (50in)
  • Flying weight: 3200gr-3400gr
  • Wing area: 39dm2
  • Wing loading: 82g/dm2
  • Wing type: Naca airfoils

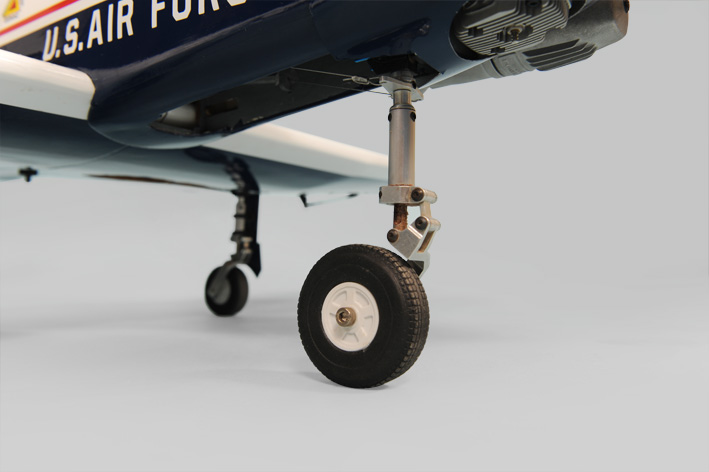

  • Gear type: Retract and CNC strut gear (included)
  • Spinner size: Plastic 58mm  (included)
  • Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
  • Servo mount: 21mm x 42 mm
  • Propeller: suit with your engine

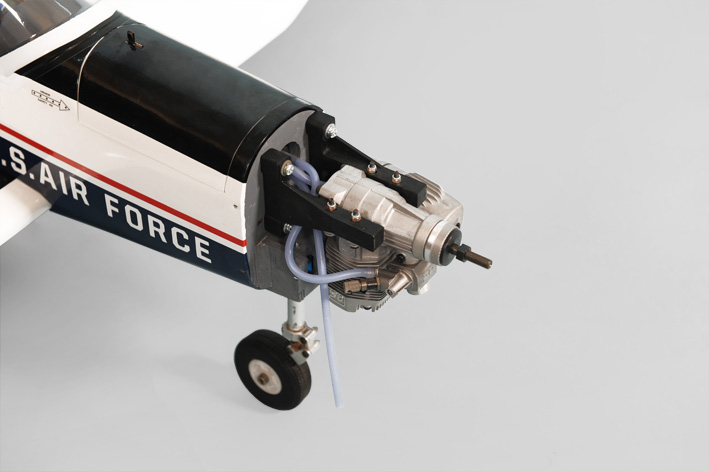

  • Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)

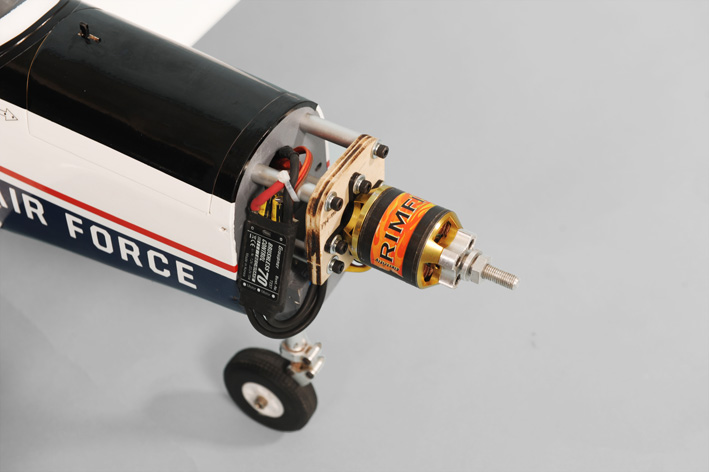

  • Motor: brushless outrunner 1000-1400 W, 480 KV (not included)

Recommended motor and battery set up

  • Motor: RIMFIRE .46-.55 (not included)
  • Lipo cell: 4-6 cells / 4000 – 5500mAh (not included)
  • Esc: 50-80A (not included)

Variants

PH128
T-6 TEXAN II (White Blue)
