Trainer 60 from Phoenix Model

Details

This plane is a well designed for .91-15cc size trainer for beginner pilots. It has sturdy all balsa/ply wood construction and is very stable in flight. Bigger wing and bigger wing area helps give a more stable flight. 3 degree wing dihedral gives a good balance flight stability and agility. All the hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to seperately purchase the nitro engine and radio system, and can fly this plane after 1-2 hours of installation.

Features:

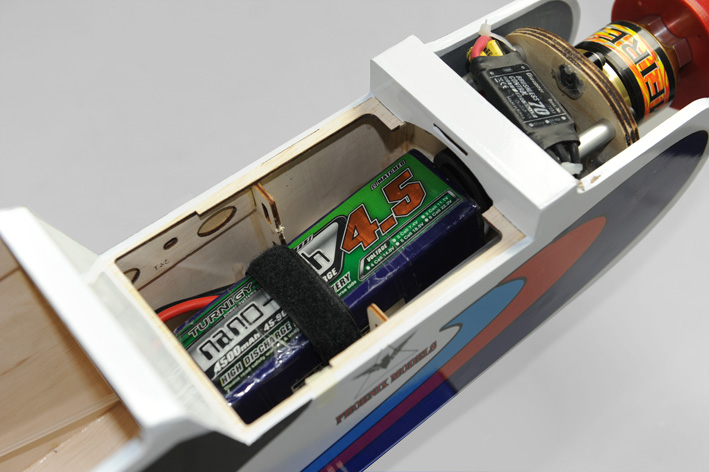

  • Designed for compatibility with both GP and EP flight
  • Extremely lightweight laser-cut all-wood construction

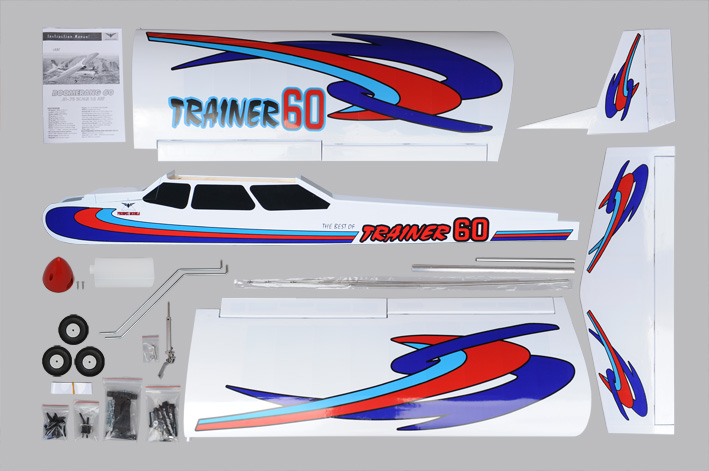

  • All hardware included

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1883mm (74.1 in)
Length: 1444mm (56.9 in)

Weight: 4200 g (9.3 lbs)
  • Wingspan: 1883mm (74.1 in)
  • Length: 1444mm (56.8 in)
  • Flying weight: 3500-4200 gr
  • Wing area: 64.7 dm2
  • Wing loading: 62g/dm2
  • Wing type: Naca airfoils
  • Covering type: V-kote film
  • Spinner size: Plastic 58mm (included)
  • Servo: 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (not included)
  • Servo mount: 21mm x 42 mm
  • Propeller: suit with your engine
  • Engine: .91/15cc / 2-stroke (not included)

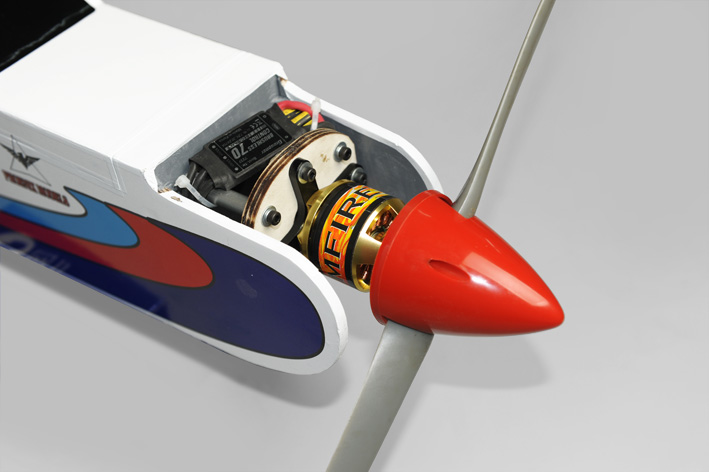

  • Motor: brushless out runner
