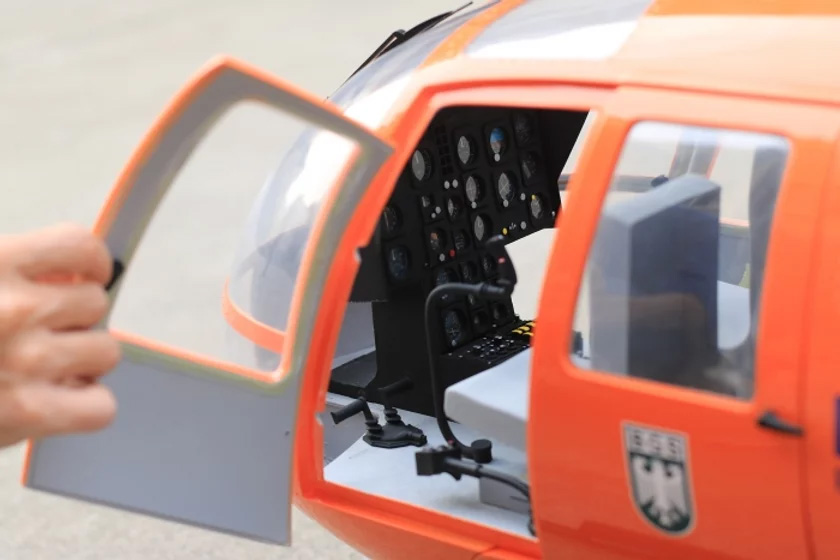

BO-105 from ROBAN

Details

Video

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the BO-105 in particular but at least we know they do distribute ROBAN.

Where to buy

France
Flash RC
check web site
Ship to: Europe

Wingspan: 1660mm (65.4 in)
Length: 1960mm (77.2 in)

Weight: 8000 g (17.6 lbs)
Body length: 1730mm
Length incl. rotors: 1960mm
Width: 465mm
Height: 560mm
Main rotor diameter 1660mm
Main blade length: 750mm

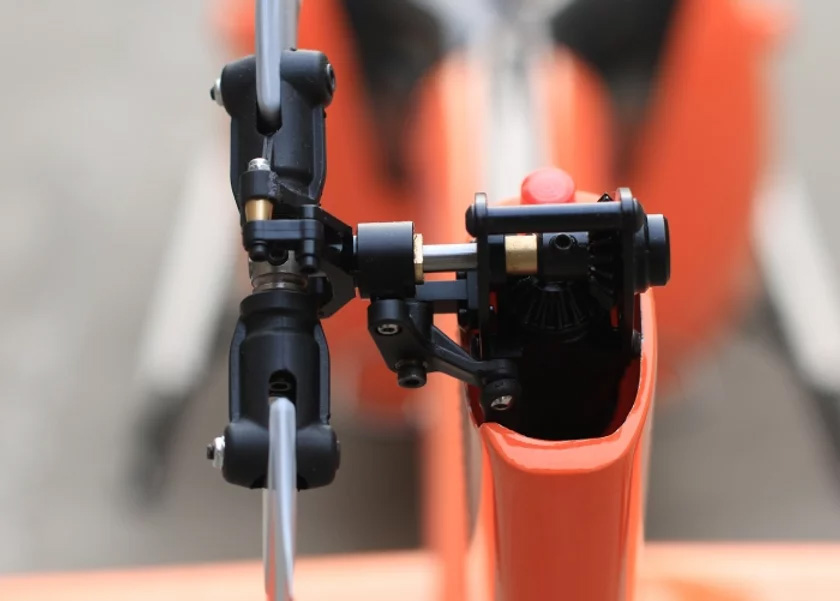

Fenstron diameter: 160mm
Tail blade length: 70mm
Main shaft diameter: 12mm
Tail shaft diameter: 5mm
Spindle diameter: 8mm
Main blade count: 2
Tail blade count: 9
Drive gear ratio: 1:13.8:4.7
Motor:* 1x 750MX 450KV brushless outrunner , 12S capable
Speed controller:* 1x 120A brushless, 12S capable
Servo:* 3x metal gear cyclic, 1x metal gear tail servo
Battery:* 44.4V 5000mAh 35C
Takeoff weight: 8000g
Flight Stabilization:* 3 axis flybarless gyro
Radio Control:* min. 6 channel with pitch and throttle curves



Variants

105RWBS8
BO-105 (Orange Blue)
