Cyclone XT from Robbe

Details

The CYCLONE XT is the consistent further development of its predecessor CYCLONE. With an incredible wingspan of 6,20m, it is the giant in the electric glider sky! The epithet XT stands for "extended". The model has a painted GRP fuselage and two 2-piece wings with Abachi planking and GRP carpet pad. Its new LS 6330-15 brushless drive is rated for 8S LiPo operation for powerful climbs and easy takeoff from the launch trolley.
The outer wing design, electrical wing mating using MPX connectors in mounting frames and the new LS 6330-15 long shaft drive motor are the main features of the new Cyclone XT, along with the increased wingspan. The canopy latch has been moved to the rear under the wing/fuselage moldings as is common with large scale model gliders.
The successful HQ/W airfoil has been left in place. It runs from an HQ/W-2.5/12 at the root rib to an HQ/W-2.5/11 in the center and finishes at the winglet with an HQ/W-3/10.5. This is an excellent way to fly extended thermal flights, as this is the CYCLONE XT's profession. The flight characteristics are as usual good-natured and quiet.

Features:

  • New Ro-Power Torque LS 6330-15 drive for 8S LiPo (PNP version only).
  • Two-piece fuselage made of GFRP/Kevlar reinforced with CFRP
  • Wings completely covered with abachi for high compressive strength
  • Ready covered with ORACOVER®
  • Four-part wing, separable
  • Wings pluggable with MPX connectors in mounting frame for electrical connection (PNP version only)
  • Solid 14x500mm round steel mating of the inner surfaces, 12x375mm carbon mating for the outer wings
  • Middle wings on the upper side completely underlaid with 200g carbon fabric, underside 80g glass fabric
  • Outer wings completely underlaid with 80g glass mat

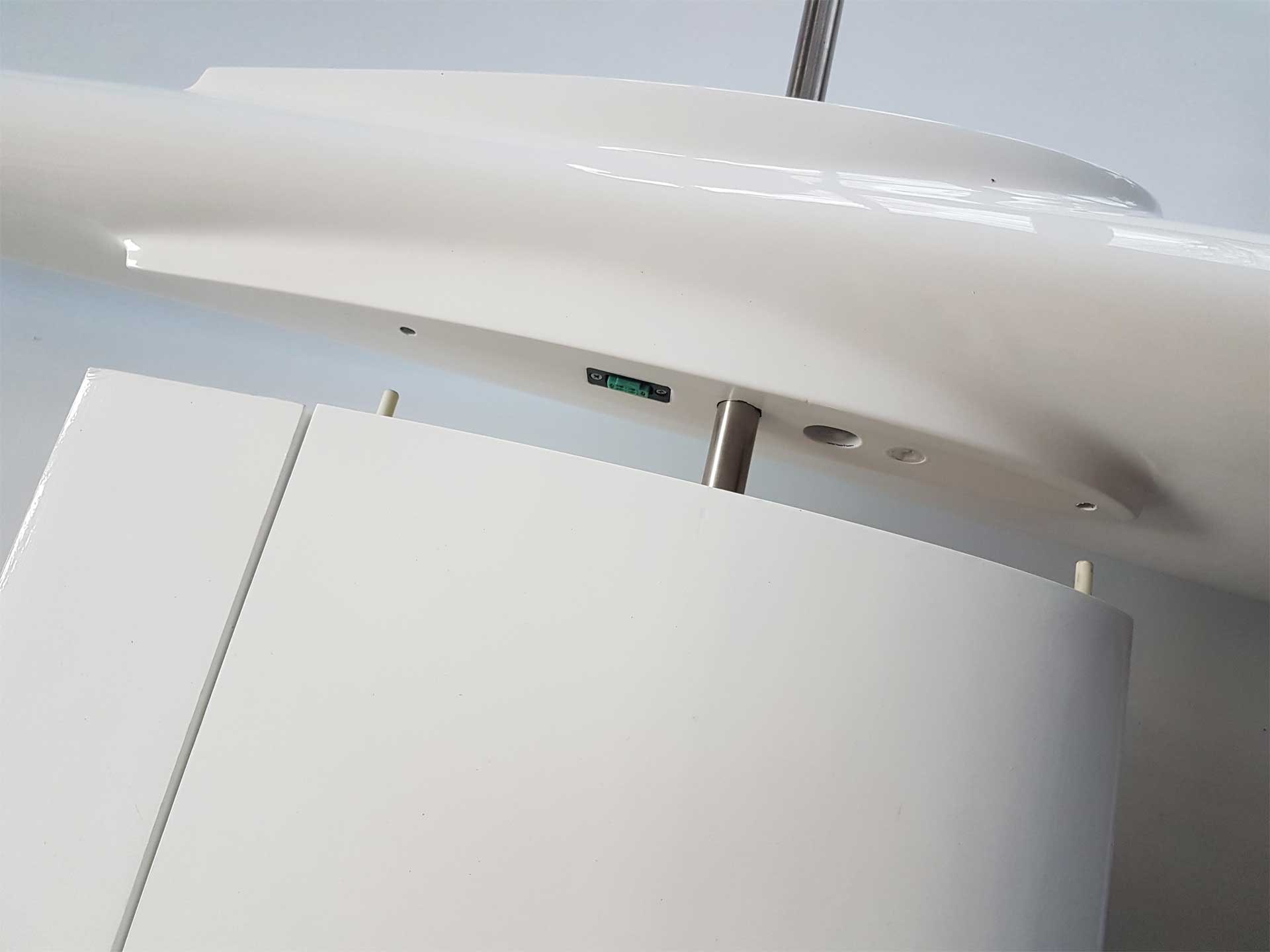

  • New canopy lock under wing
  • High quality M3 linkage accessories Made in Germany
  •  Stable elevator linkage with 5/3 mm CFRP tube and M3 clevises
  • Reinforced tail construction
  • Continuous sandwich spar (carbon-pine-carbon) for maximum bending stiffness
  • Precisely fitted anti-twist devices in all wing sections
  • High degree of prefabrication

Pictures

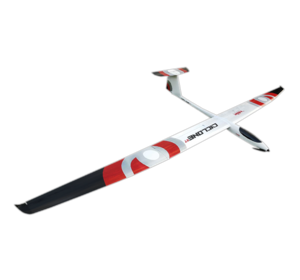

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 6200mm (244.1 in)
Length: unknown

Weight: 11400 g (25.1 lbs)
Flight weight approx. : 11400
Fuselage: Fiberglass/Carbon
Rec. Battery: 8S/5000-7000mAh LiXX
Wing-span 6200 mm
Wings Styro/Glass/Abachi
Motor: Ro-Power Torque LS 6330-15
