Monsun V2 from Robbe

Details

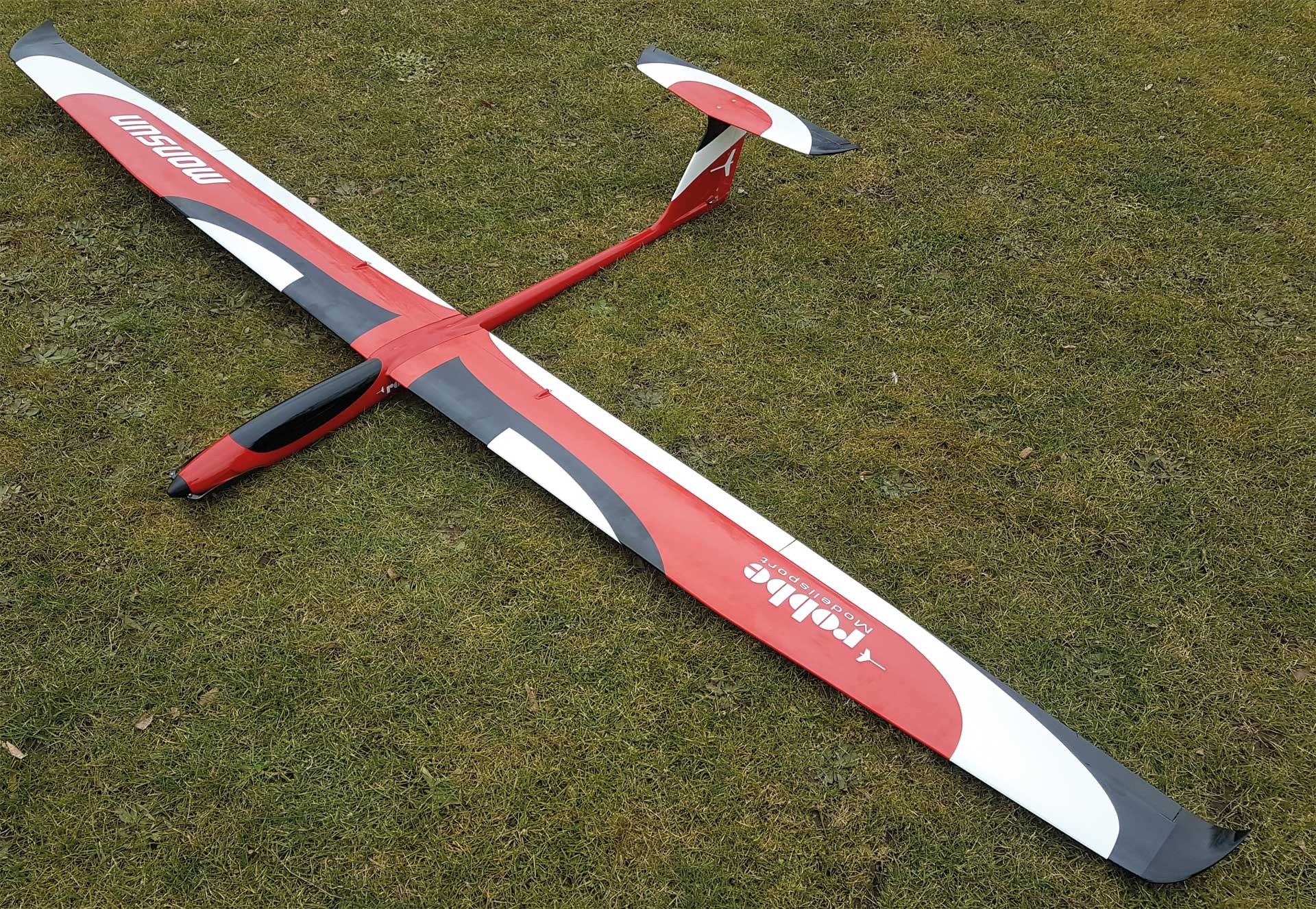

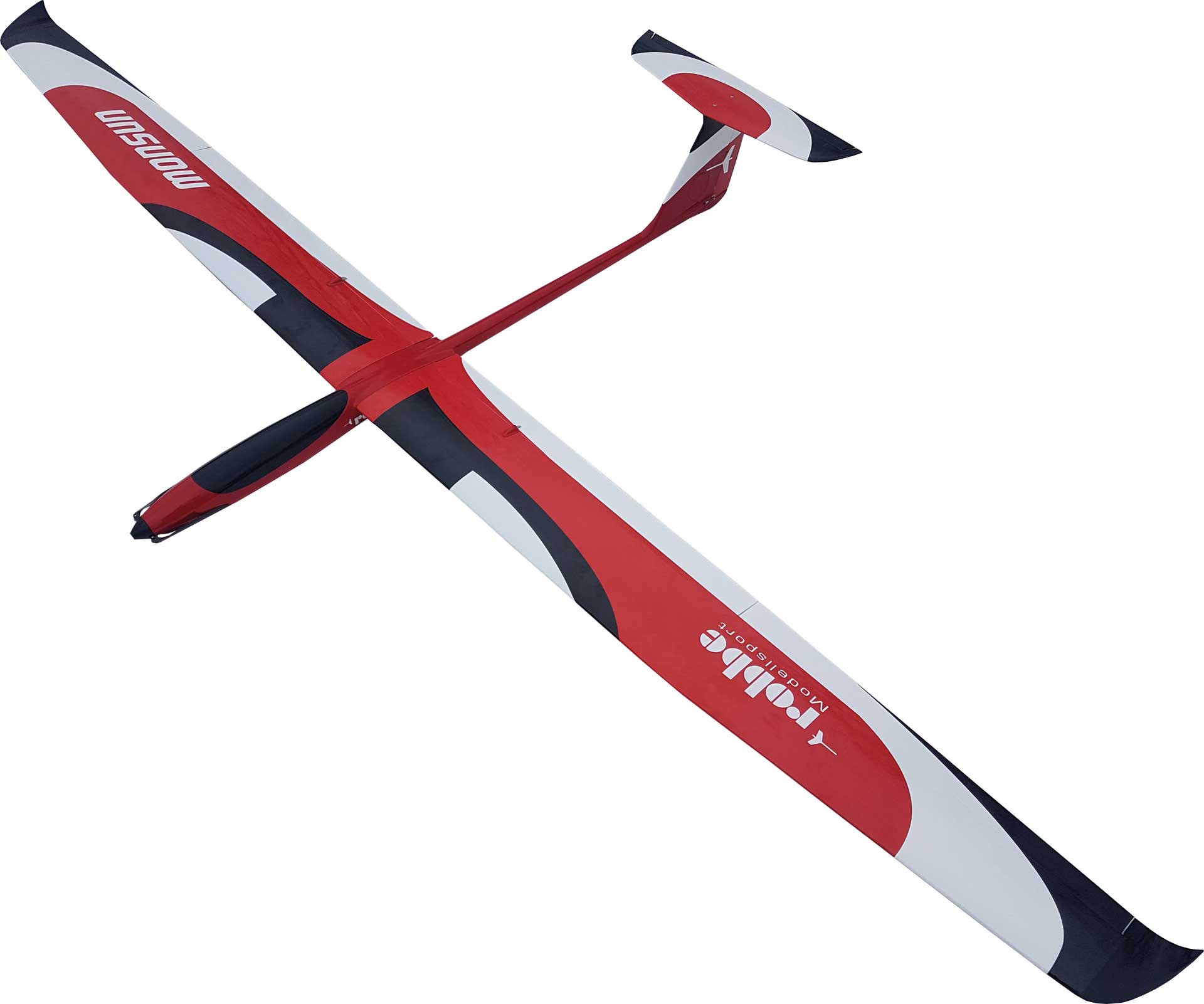

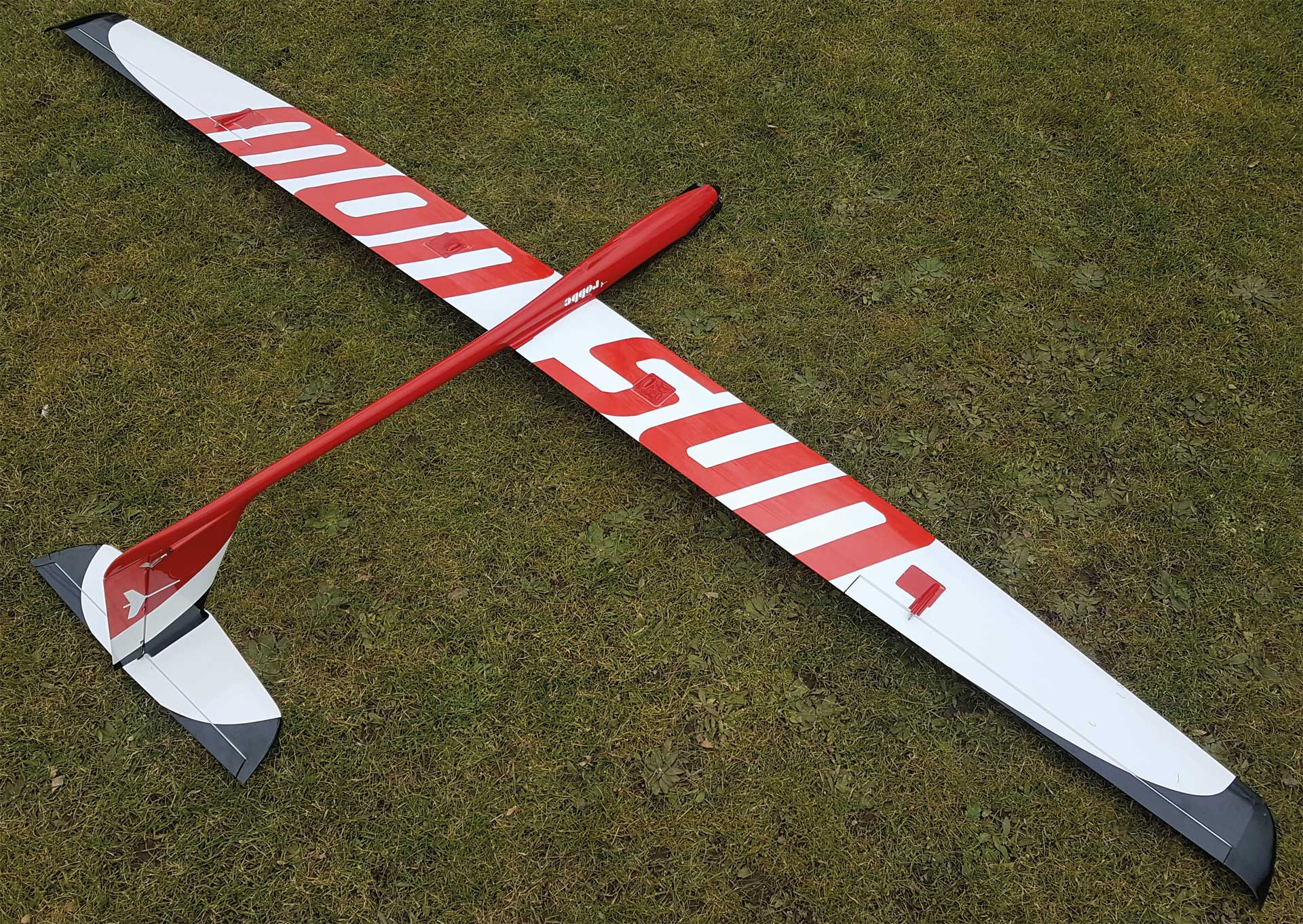

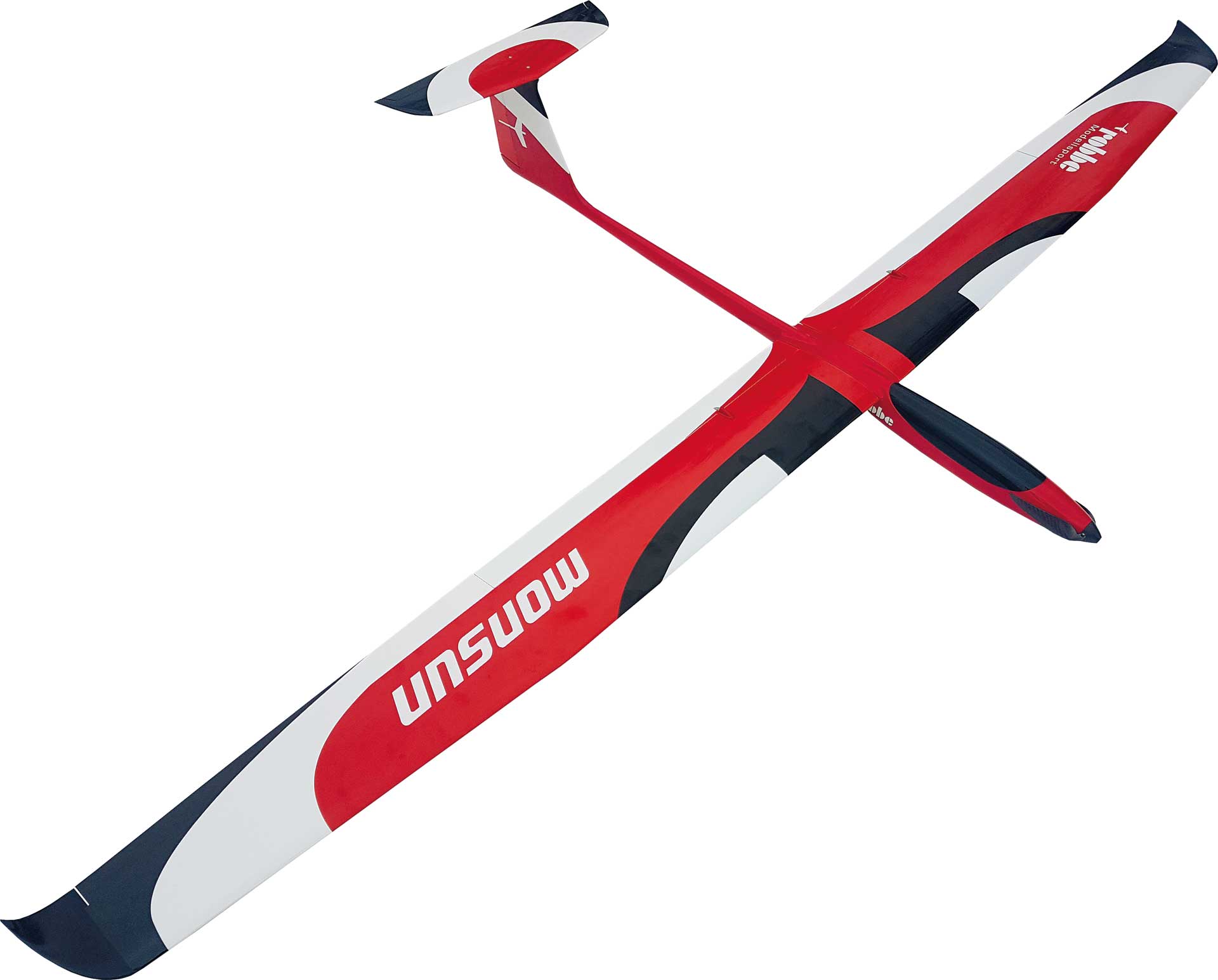

The MONSUN V2 is the successor and the further development of the famous MONSUN. It is a thermal and all-round glider in the compact 3m class with 4-flap wing. The T-tail is hinged backlash-free with a directly installed servo.
The PNP version has servos already installed, electrical connector and original multilocks as wing locks.
The flight characteristics are very good-natured. The MONSUN V2 can be flown as a slow thermal glider or as an all-rounder.
The ready-covered wings are constructed of styro core, glass fiber layers, abachi planking and a carbon fiber reinforced spar. The ratio of weight and strength has been optimally achieved.

The MONSUN V2 is suitable for advanced model pilots.

Features:

  • two-part, ready Oracovered Styro/GfK/Abachi surface with CfK connection
  • continuous sandwich spar (carbon-pine-carbon) for maximum bending stiffness
  • built-in digital Robbe servos FS-277 with ball bearings and metal gearbox (PNP only)
  • ready-made wiring of all servos with MPX 6-pin connectors between wing and fuselage (PNP only)
  • ready ironed rudder flaps with mounted rudder horns
  • painted GRP fuselage with built-in wooden formers and CfK reinforcements
  • powerful Ro-Power Torque 3526 870 K/V outrunner, optimized for 4S (PNP only)
  • large canopy for easy battery change and RC installation
  • ready hinged rudder flaps
  • prefabricated rudder linkages with linkage parts from German production
  • pre-cut servo well and linkage covers
  • anodized 38mm aluminum spinner with straight center section (PNP only)
  • high-strength carbon fiber airscrew 12x8" (PNP only)
  • modern, highly visible design

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 3000mm (118.1 in)
Length: 1480mm (58.3 in)

Weight: 2950 g (6.5 lbs)
Wingspan 3000 mm
Flight weight approx. 2950 g
Control: H,S,Q,M,WK
Length 1480 mm
Fuselage: Carbon/FiberGlass
Wings: Styro/Fiberglass/Abachi
Rec. engine: Ro-Power Torque 3526-870kv
Rec. Battery: 4S/4200mAh LiXX
Airfoil: HQ 2,5/9
Drive Type: Electric
