Goblin Kraken 700S from Sab Avio

Details

The Kraken 700 goes into the second round. The evergreen from SAB now comes with a lighter main gear from the RAW series. In addition, completely new 700S CFRP main rotor blades were developed, which further improve the flight characteristics in every respect and increase efficiency. These innovations are rounded off by new carbon trim parts with fresh paintwork and large areas of visible carbon.

Features

  • Encapsulated main gear of the 2nd generation - extremely quiet - extremely durable - extremely light
  • modular design - extremely easy to maintain
  • Main rotor shaft made from a new special steel alloy with flanged freewheel
  • Gear stage for rear belt drive derived from the main gearbox
  • New ultra-light rotor head made of 7075 aluminum
  • Rotor head damping freely selectable
  • new tail gear - 22% lighter than previous Goblin 700 versions
  • new rear and hood design with integrated frame structure
  • new rear attachment with quick attachment
  • the entire concept is extremely robust, maintenance-friendly and crash-resistant
  • Newly developed main and tail rotor blades of the 700S series for higher efficiency

Pictures

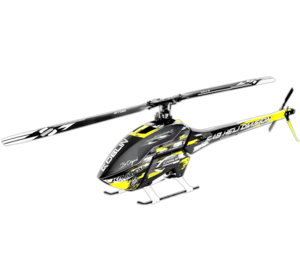

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Goblin Kraken 700S in particular but at least we know they do distribute Sab Avio.

Wingspan: 1600mm (63 in)
Length: 1600mm (63 in)

Weight: 3820 g (8.4 lbs)
  • Rotor diameter: 1600mm (with 700mm rotor blades)
  • Maximum usable blade length: 730mm
  • Tail rotor diameter: 284mm (with 105mm tail blades)
    Maximum length of the tail blades used 115mm
  • Weight: approx. 3820g ready to fly but without drive
    battery Weight airframe: 2700g (with rotor blades without drive & electronics)
  • Recommended drive battery: 12S LiPo with 4,200mAh to 6,000mAh
  • Required TS servos: 40mm
    Required tail servo: 40mm
  • Possible gear ratios: 11.8:1 to 8.4:1
    Reduction included in the kit: 21z - 10.1:1
  • Rear ratio: 4.9:1
  • Recommended motor/ESC setup: 4525/4530 series motor 480KV to 560KV / ESC approx. 130A to 200A
  • Maximum motor dimensions: diameter 62mm / height 70mm
  • Battery bay: 56mm x 60mm x 320mm
  • Recommended battery 12S (2x 6S) with 1400g to 1700g
