Goblin Raw 420 Competition from Sab Avio

Details

SAB introduced the Direct Drive on this class of helicopter and as you may know, we sold more than 2500 KITS.

However, in pursuit of improving performance, we determined that the Direct Drive could no longer be the correct solution. The evolution of the RAW 420 will use a motor belt drive.

This is how the RAW 420 Competition was born. Lighter, faster, more flexible in the selection of the desired head speed at a higher performance level.

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Goblin Raw 420 Competition in particular but at least we know they do distribute Sab Avio.

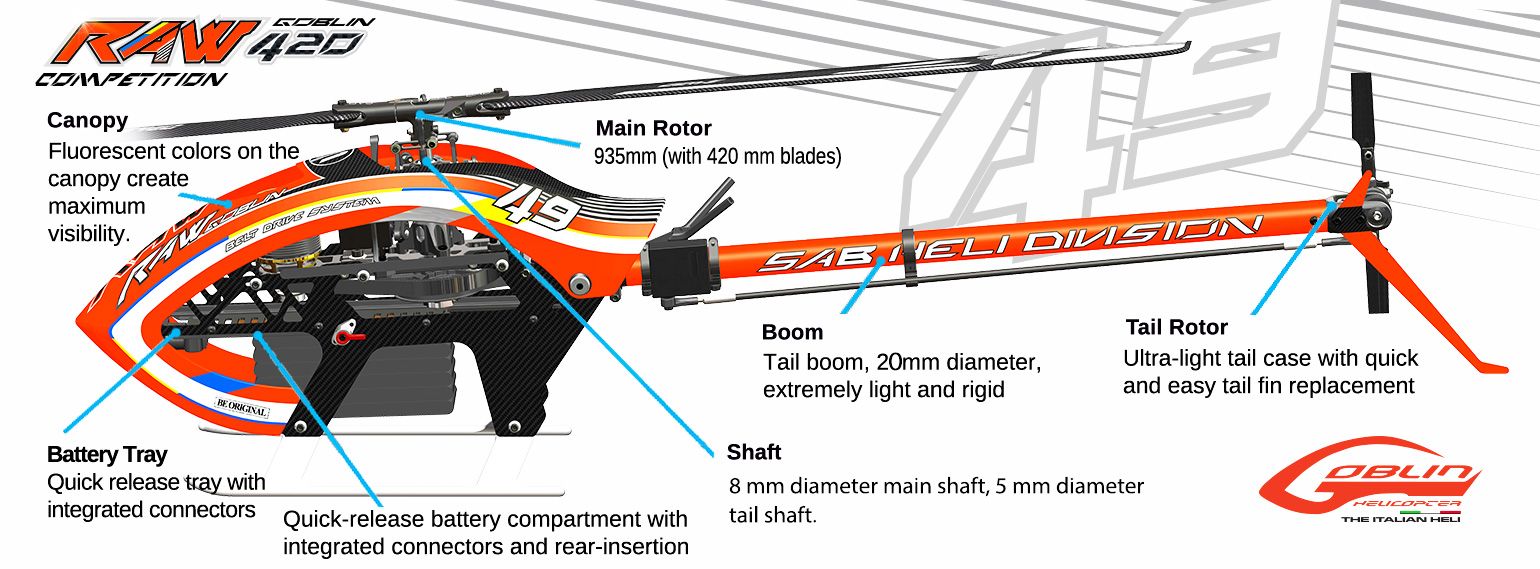

Wingspan: 935mm (36.8 in)
Length: 874mm (34.4 in)

Weight: 1000 g (2.2 lbs)

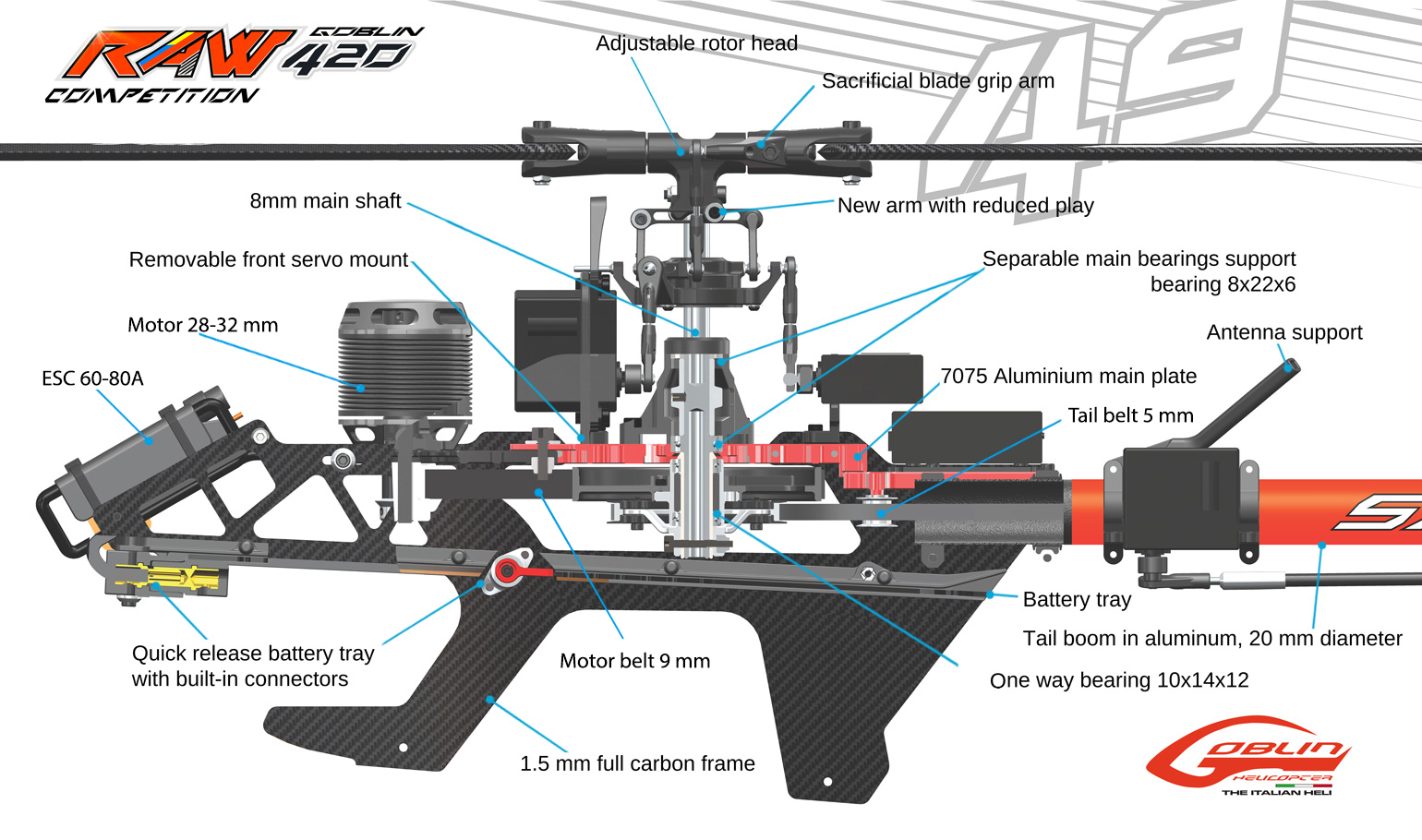

  • Airframe weight: 1000gr (with blades and motor, no battery and electronics).
  • Main rotor diameter: 935mm (with 420 mm blades).
  • Main blade length: 380 to 420 mm.
  • Tail rotor diameter: 190 mm (with 70 mm tail blades).
  • Tail blade length: 55 to 70 mm.
  • Cyclic Servos: Micro size 23 mm.
  • Tail Servo: Mini size 35 mm.
  • Main Rotor Ratio : 1 : 6,3 to 1 : 5.
  • Tail Rotor Ratio : 4 : 1.
  • Maximum battery size: 40x51x135mm.
  • Recommended battery: 6S 2200/2700 mAh.
  • Recommended battery weight: approximately 350-420gr.
