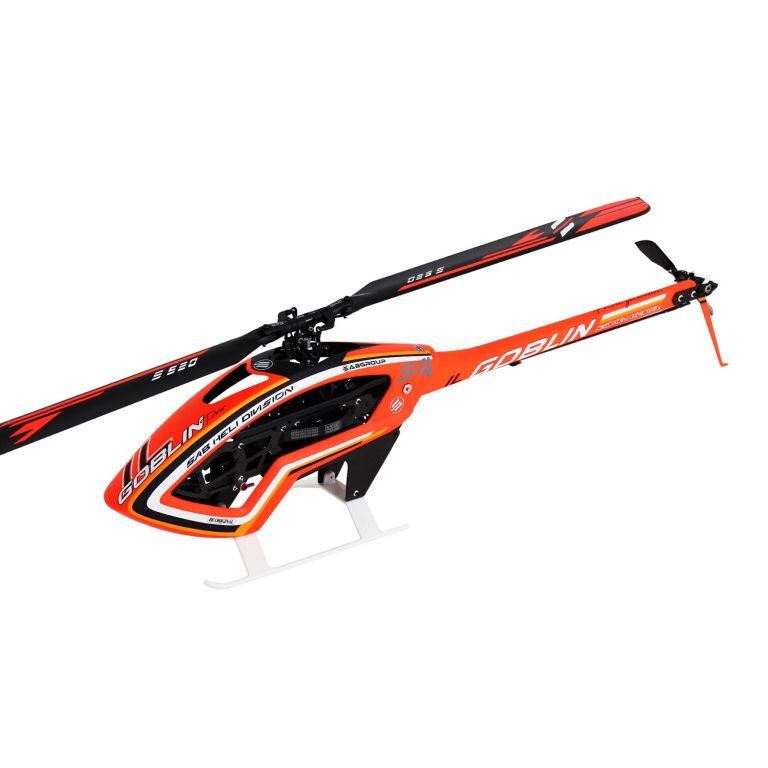

ILGoblin Pro 520 from Sab Avio

Details

SAB ILGoblin PRO 520 is based on the design of the Goblin Raw 500 with many shared spare parts, but with several important updates and improvements, including new 520 mm main blades and 82 mm tail blades.

Features:

ilGoblin Pro Canopy/Boom shape
New, stronger one way bearing
New, stronger motor belt transmission
New, smoother tail belt transmission
Full Size tail servo compatible
520mm main blades/82mm tail blades
The model supports a rear-inserting battery tray, allowing you to installbatteries without ever removing the canopy.

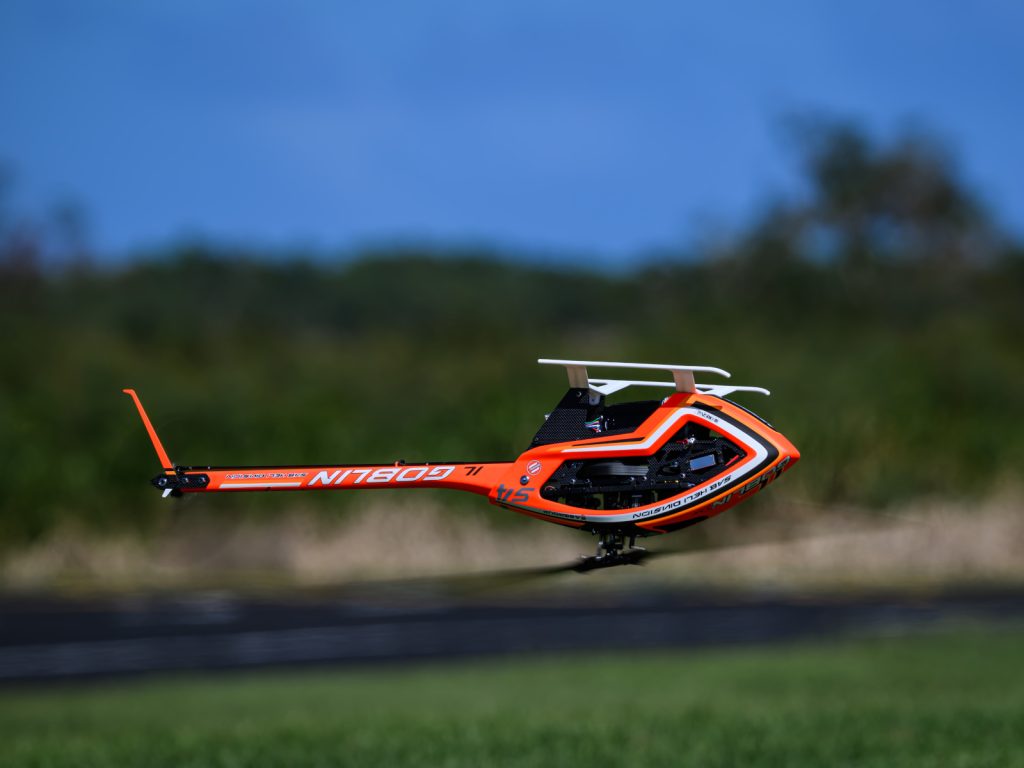

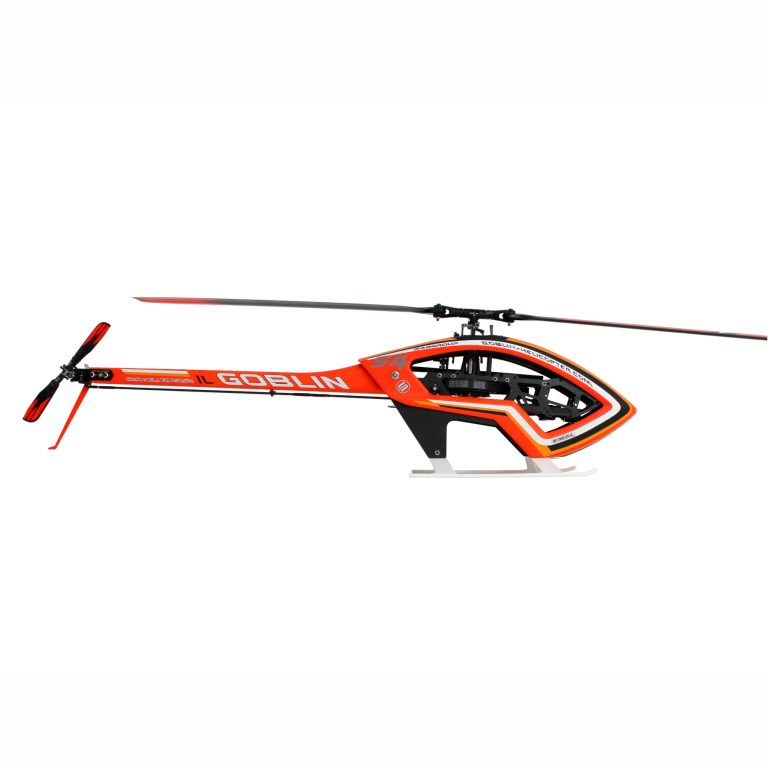

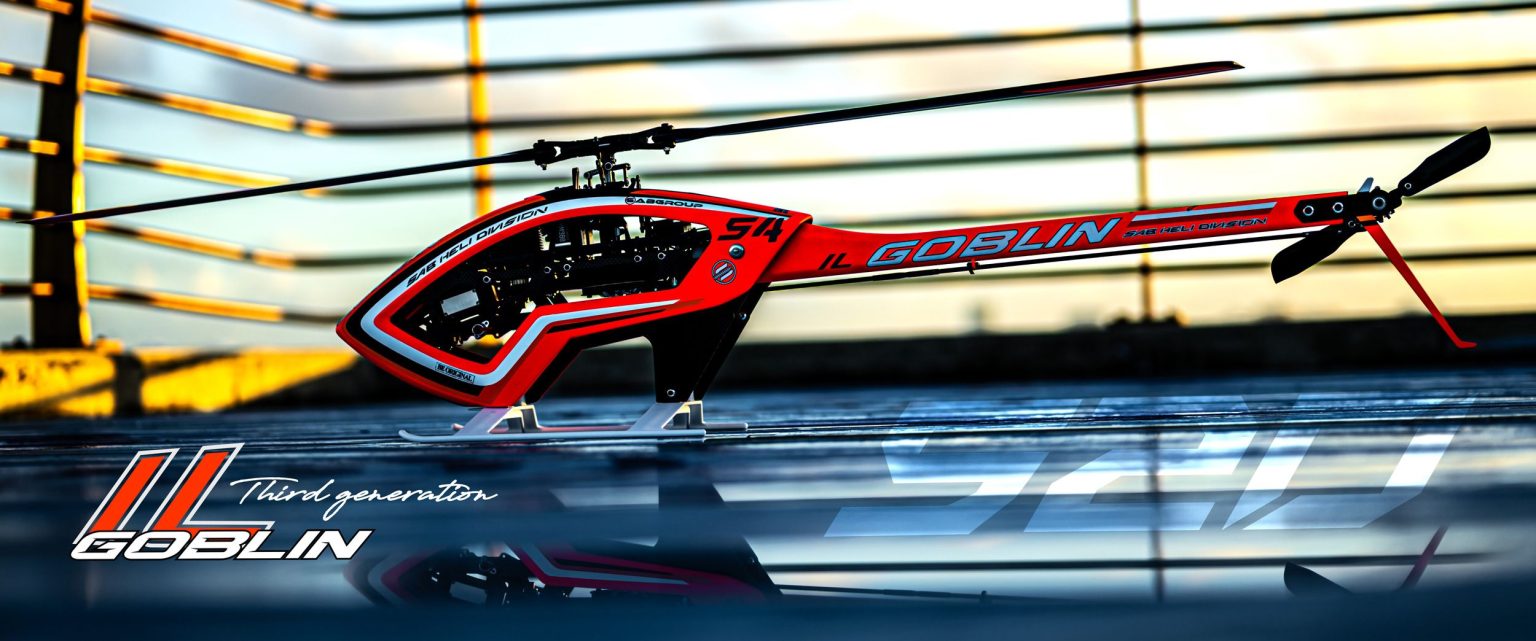

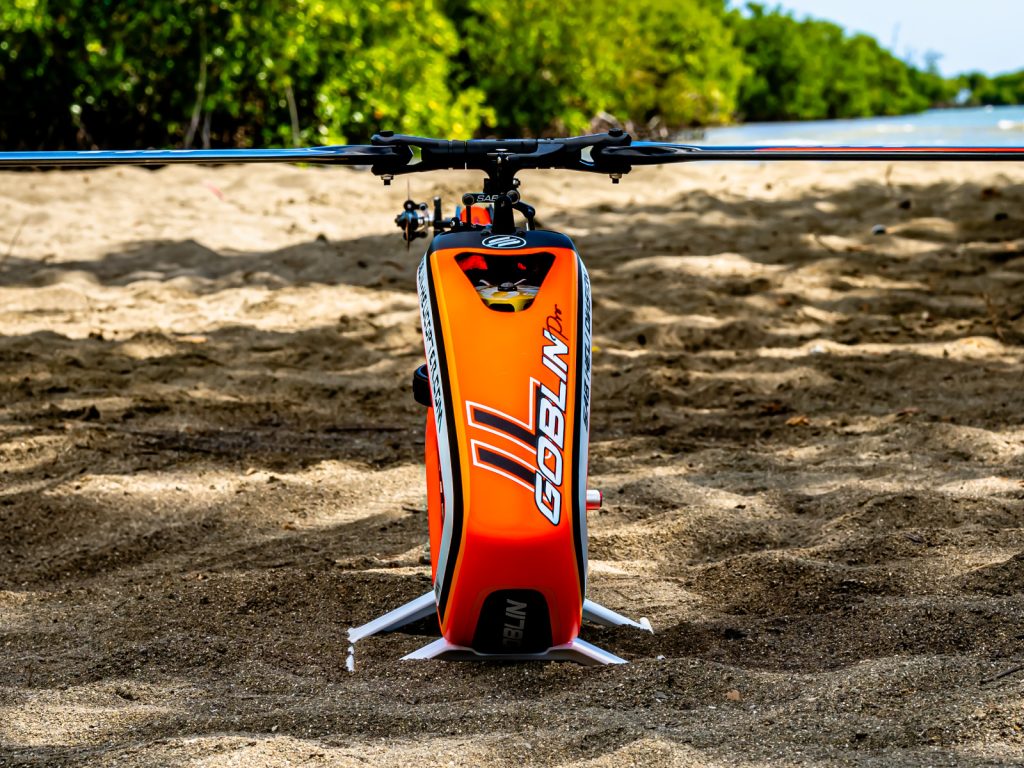

Pictures

Manual

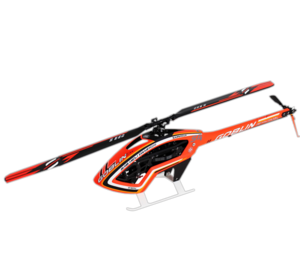

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the ILGoblin Pro 520 in particular but at least we know they do distribute Sab Avio.

Where to buy

USA
Helidirect
check web site
Ship to: USA

United Kingdom
Jettstreamuk
check web site
Ship to: United Kingdom

USA
BK Hobbies
check web site
Ship to: USA

France
Turbines RC
check web site
Ship to: Worldwide

UAE
Gonzo Hobbies
check web site
Ship to: UAE

Wingspan: 1220mm (48 in)
	Length: 1220mm (48 in)
Weight: 1894 g (4.2 lbs)

See more Details

Airframe weight: 1894 gr (no blades, no battery, no electronics)
Main rotor diameter: 1220 mm (with 520 mm main blades)
Main blade length: 480 to 530mm
Tail rotor diameter: 222 mm (with 82 mm tail blades)
Tail blade length: 80 to 85 mm
Cyclic Servos: Mini size 35mm
Tail Servo: Mini size 35mm/Standard size 40mm
Main Rotor Ratio: 1: 4.47 to 5.88 (17T Motor Pulley Includes)
Tail Rotor Ratio: 3.88.1
Main shaft: 8 mm, Tail shaft: 5 mm
Molded carbon tail boom
Typical motor: 6S, 800/900 KV
Battery room: 48x48x150mm

Recommended components:

Moteur: Scorpion HK5-4020-850kv, Xnova Lightning 4020-850kv
ESC: Scorpion Tribunus III 06-110A with Fan
Servos:
- 3x Cyclic Servos: KST X15-1208 HV Mini Cyclic Servo ou KST X15-1809 HV Mini Cyclic Servo
- Mini Tail Servo: KST X15-755X HV Mini Tail Servo ou KST X15-855X HV Mini Tail Servo
Batteriy: Gens Ace 6S 3700mAh, Gens Ace 6S 4000mAh ou Gens Ace 6S 4500mAh
