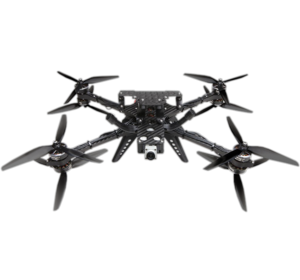

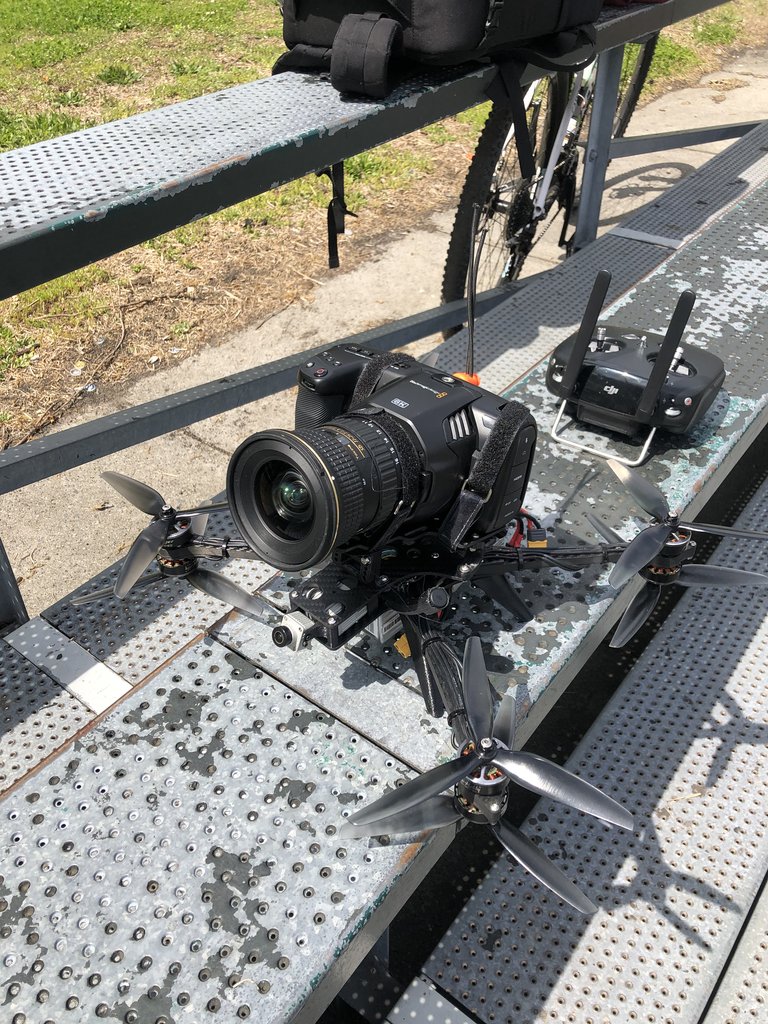

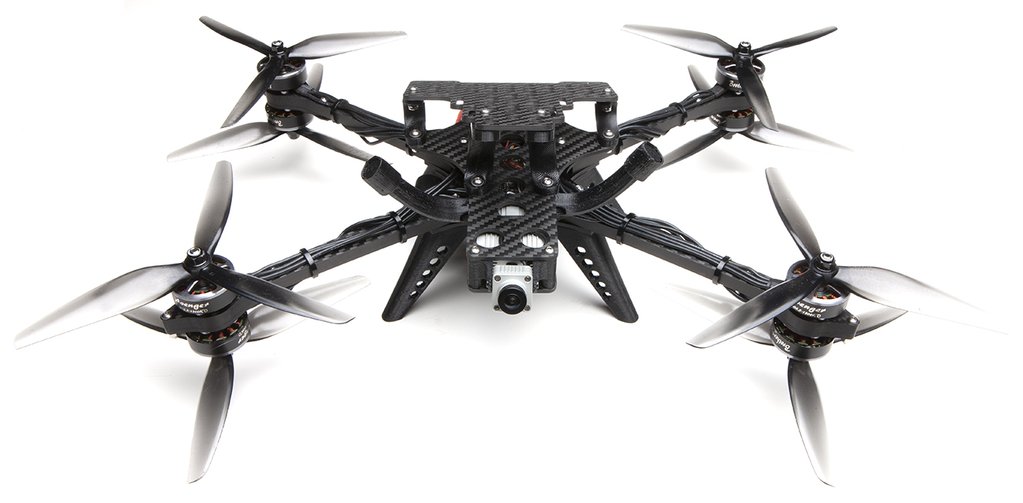

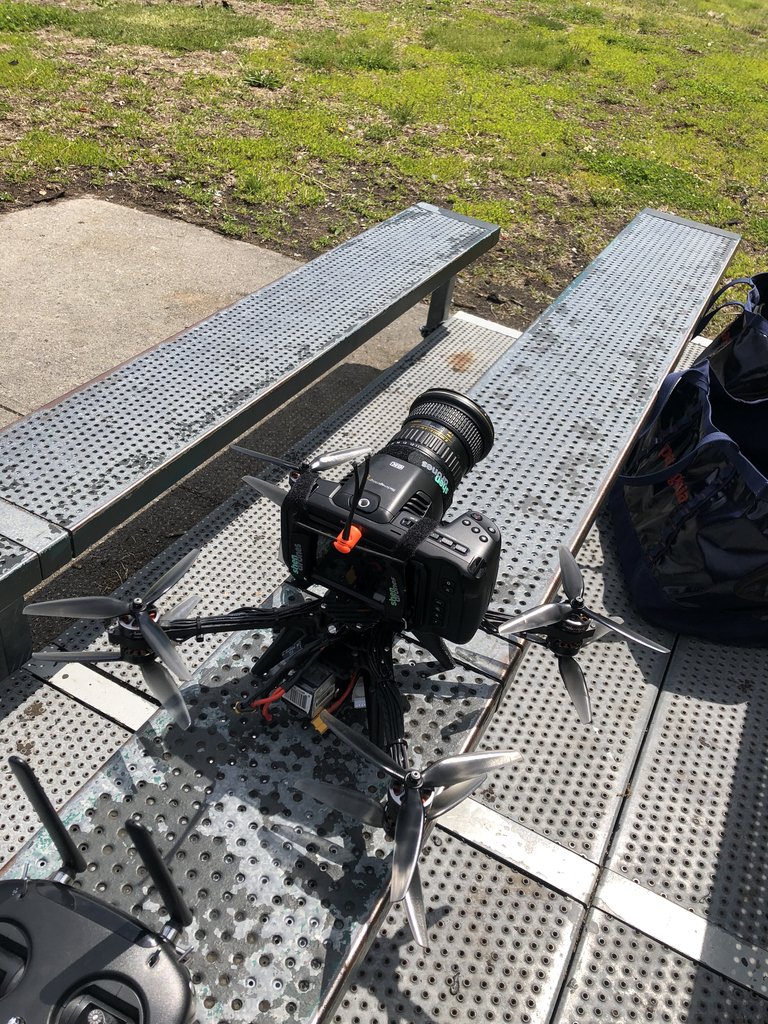

Thicc is a 390mm 7" X8 made to carry larger cameras like the Black Magic Pocket. The camera mounts with a 1/4-20 screw and straps.

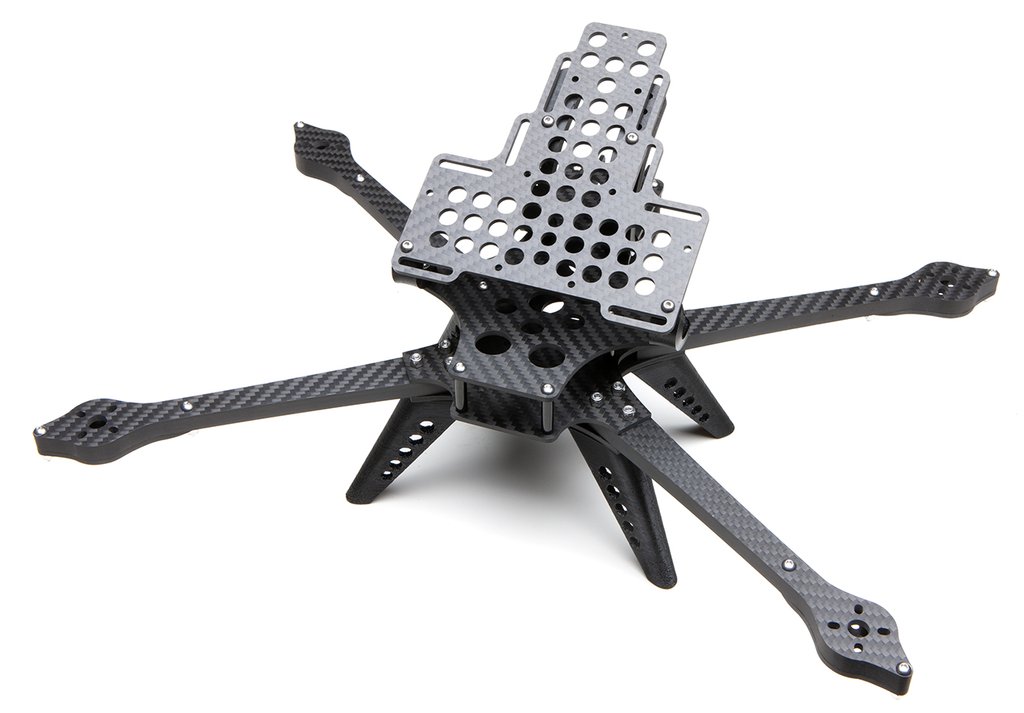

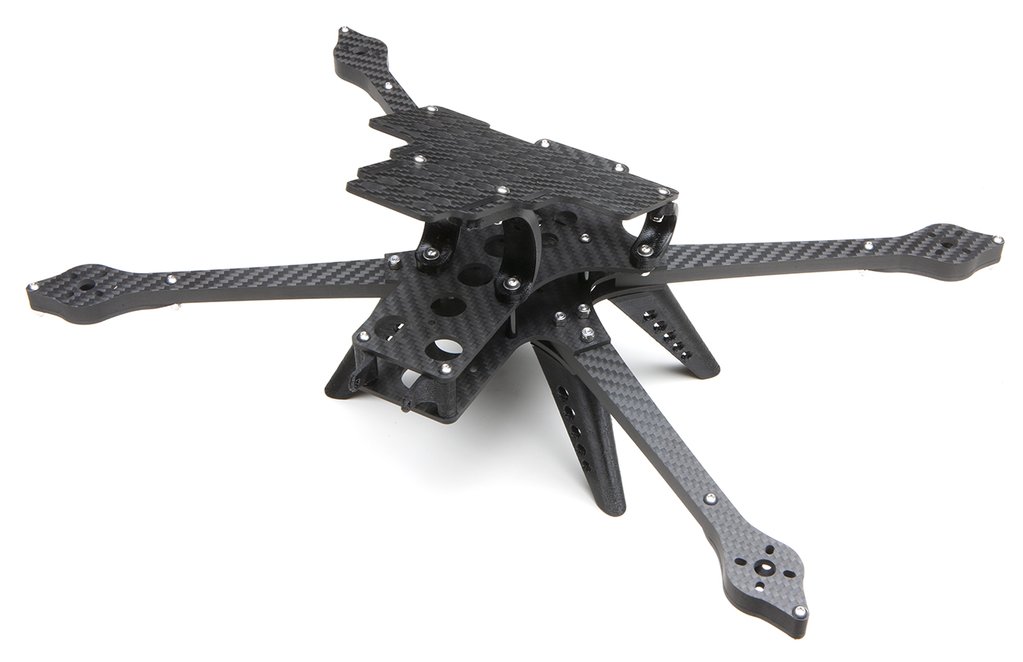

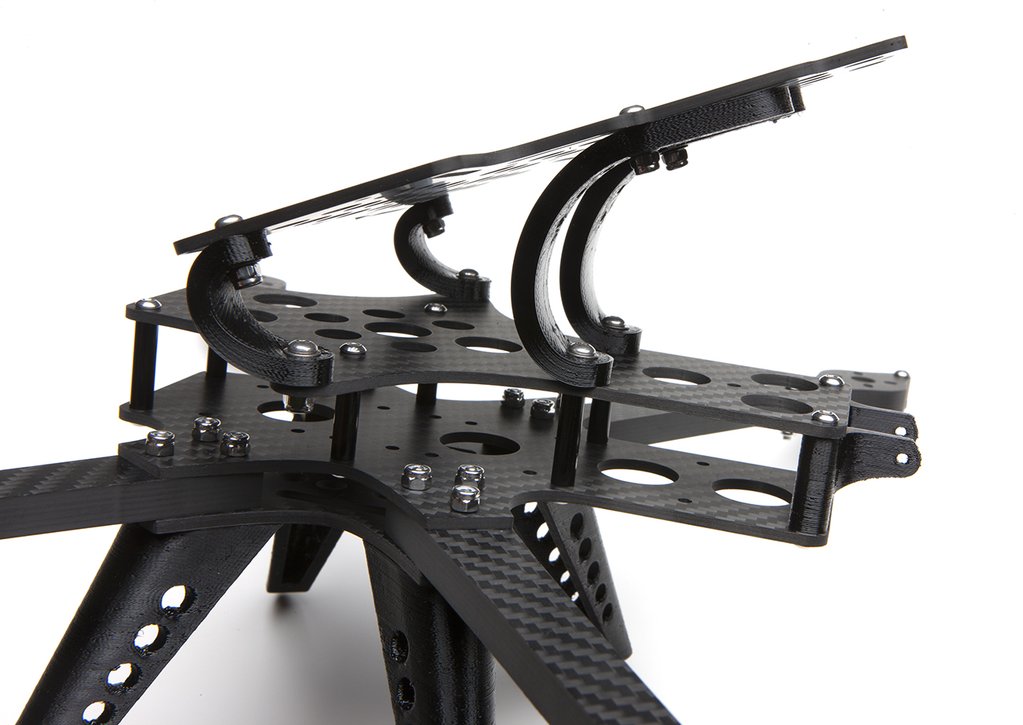

Arms are 8mm carbon, main body plates are 2.5mm, bottom plate is 3mm. With 2 spots for 30x30 fc stacks, standoff height is 20mm. Feel free to request 25 or 30mm standoffs instead.
Recommended build uses 2 4-in-1 esc's, the Lumenier Lux7, and Brotherhobby 2806.5 1300kv's.

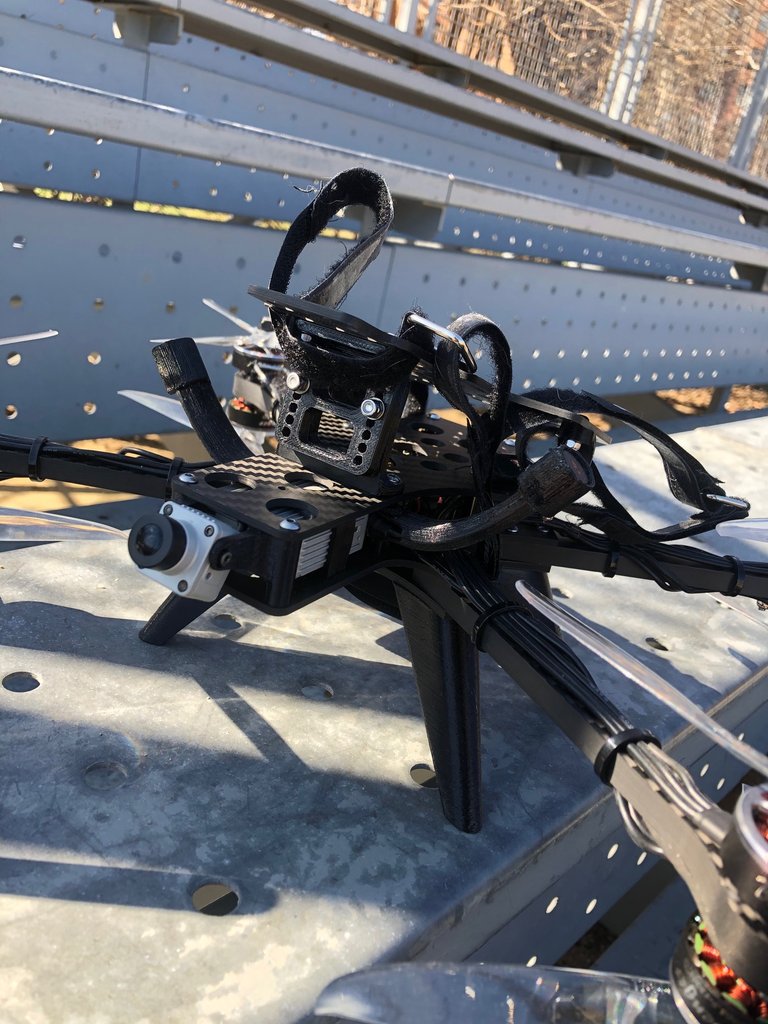

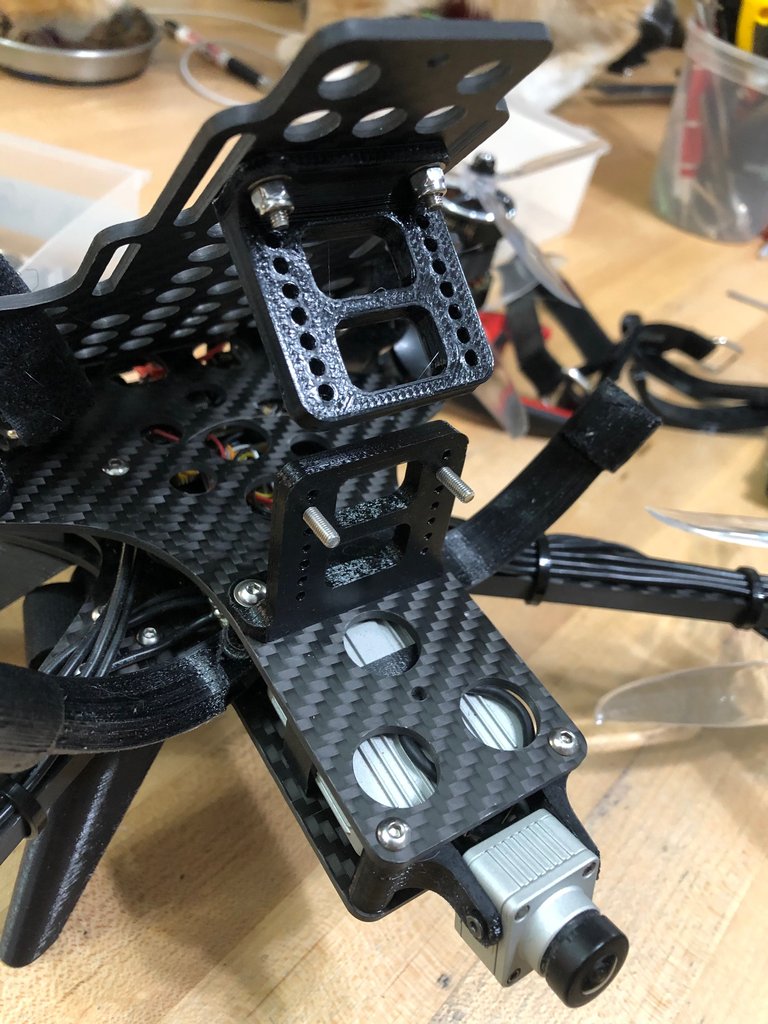

Full kit includes printed parts: landing gear, fpv cam mount, and cam mount dampers (both versions pictured). The DJI version also includes a sleeve for the air unit and antenna mounts.
