E-Ferret from Silence Model

Details

This version is the continuation of the famous Ferret but this time fully autonomous in an electric version equipped with a new spacious fuselage designed for propulsion.

Very versatile, scraper, aerobatic and precise for landings with its wings equipped with quadroflaps.

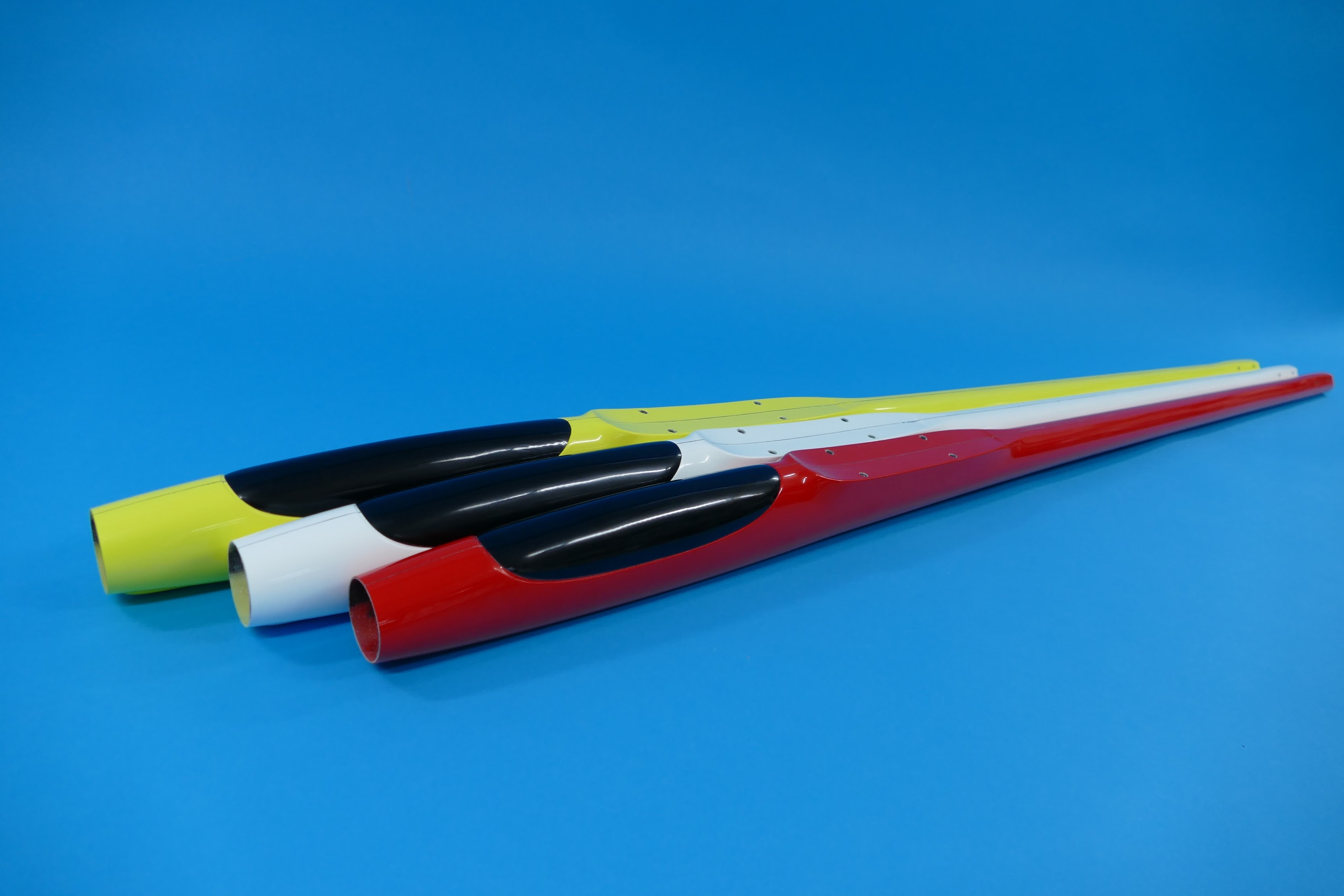

This new fuselage is made of epoxy fiberglass with carbon reinforcements at strategic locations, the nose is cut for a 40 mm cone and a dedicated space below allows the wires of the outrunner motor to be easily managed.
The black tinted fiberglass screen is already equipped with its lock.

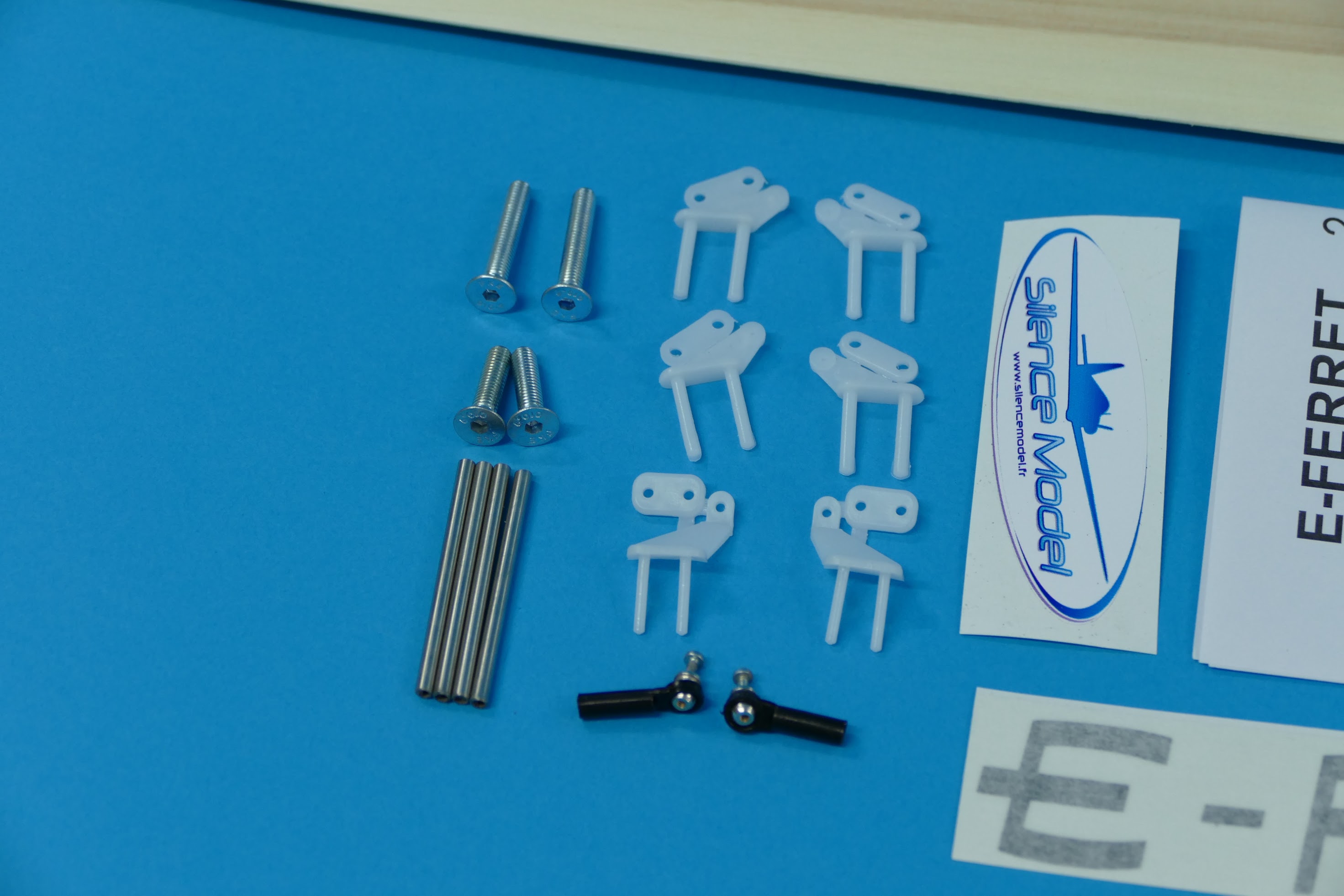

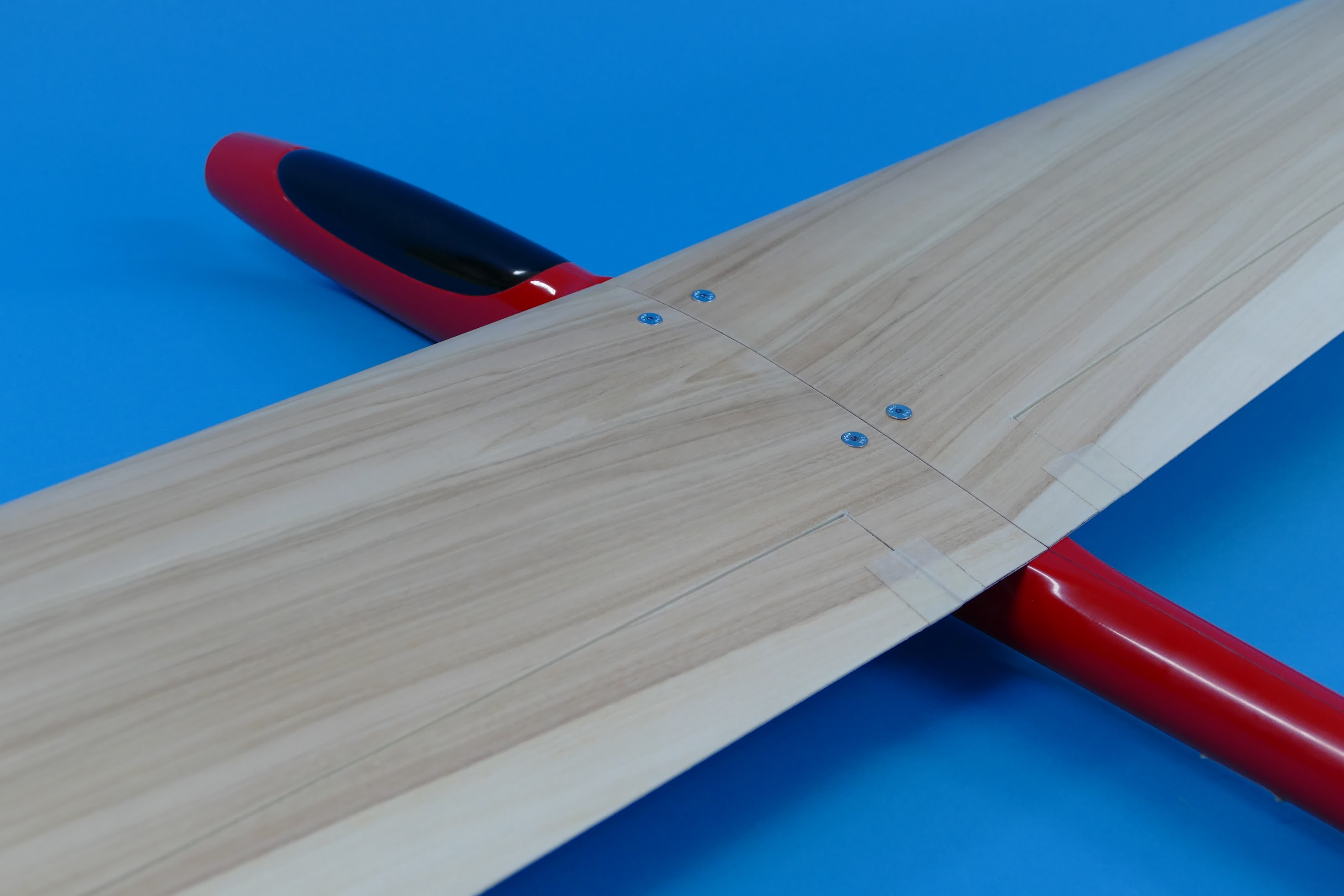

The fuselage is fitted with wing fasteners by steel screws, the stabs and the wing are already placed in factory.

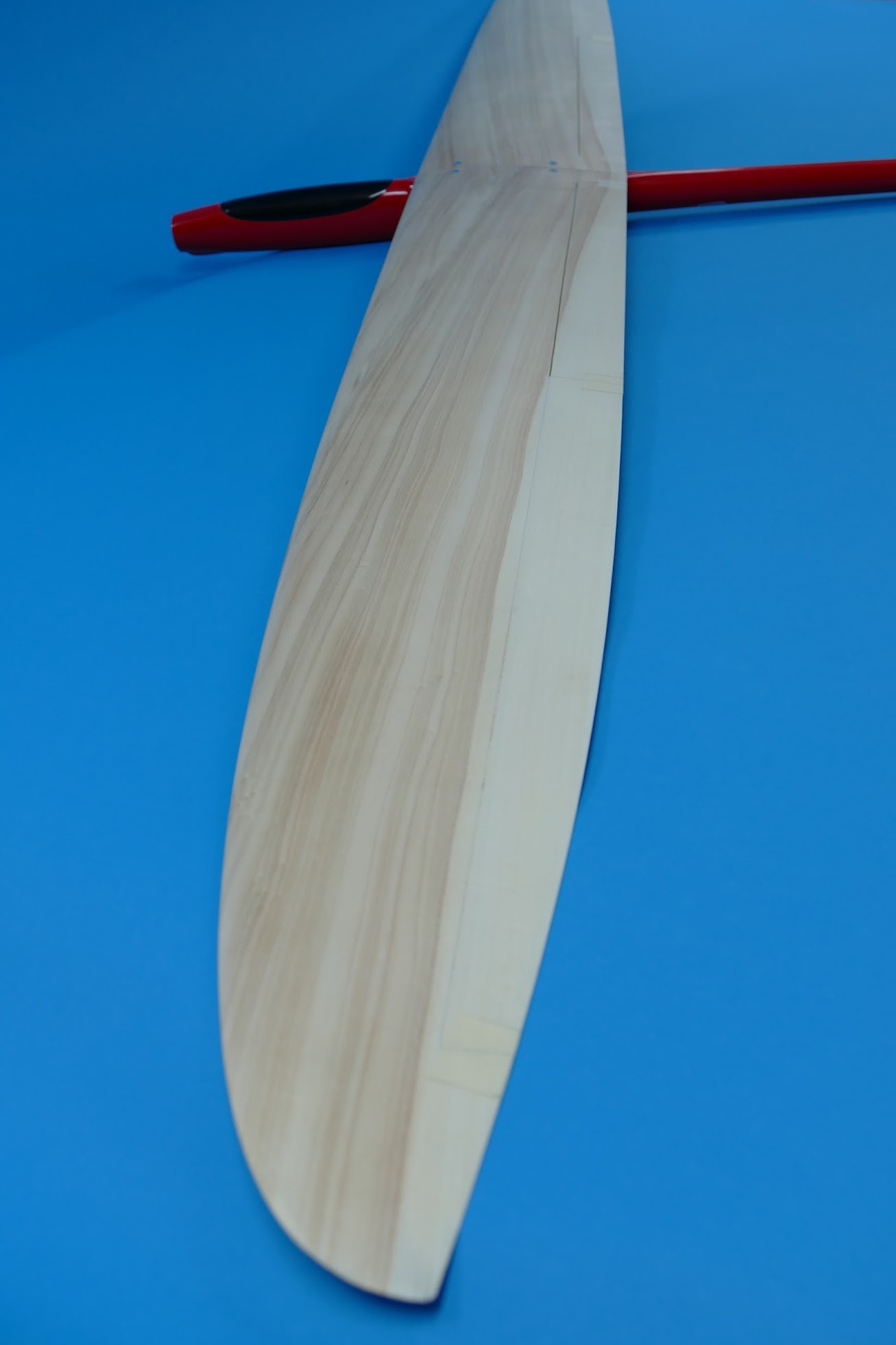

The quadroflap wings are made of black poplar, the ailerons and flaps are articulated to the tear-off fabric and the control surfaces are closed with resin / fabric and micro balloon.

The servo are pre-cut, the wing is finely sanded and the whole is varnished with a colorless acrylic varnish.

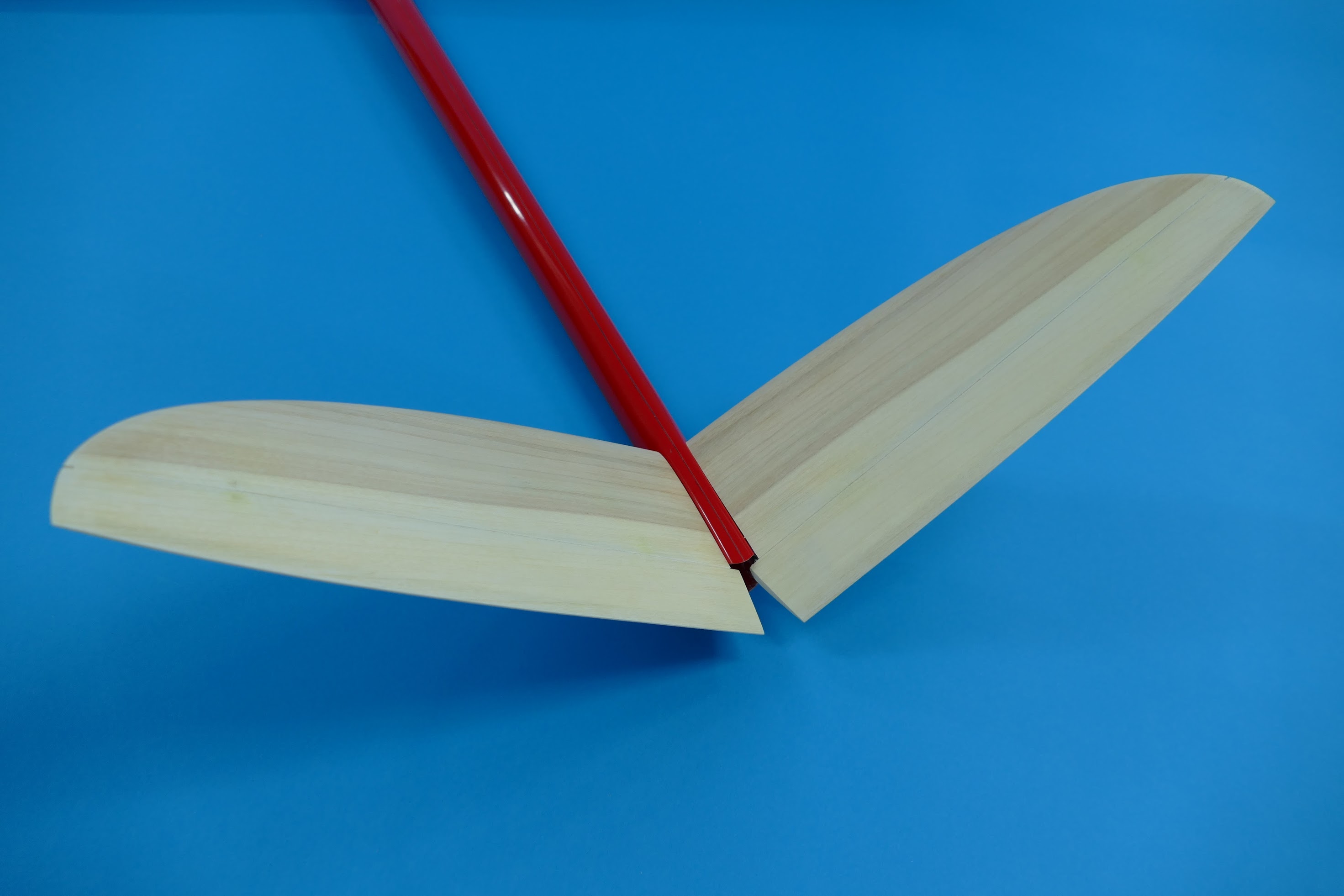

The output of the servo wires are already prepared at the root of the wings. The strong rectangular spar is a carbon composite. The stabilizers of the V-tail are identically made, articulated, fully finished, ready to install.

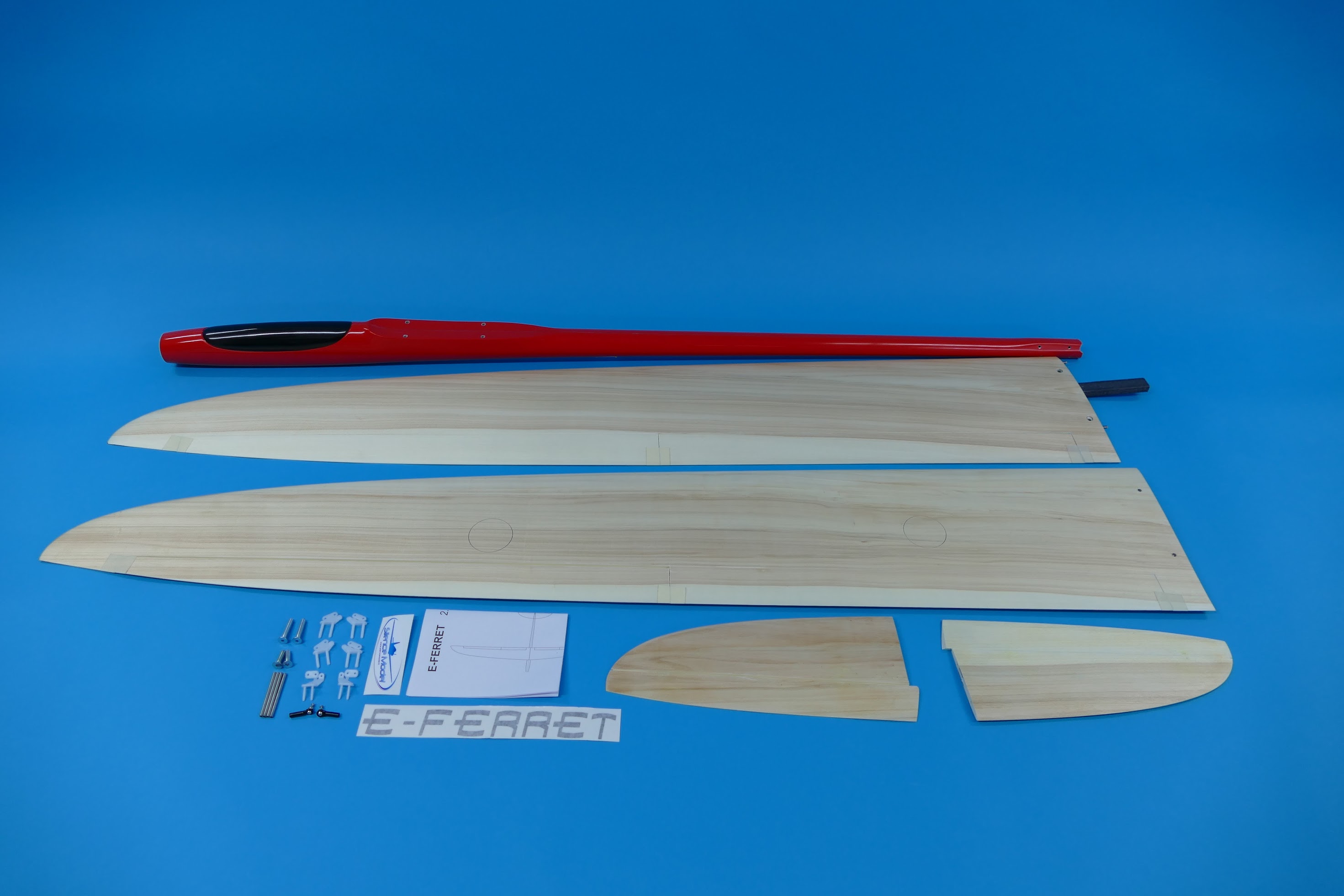

Assembly pictures

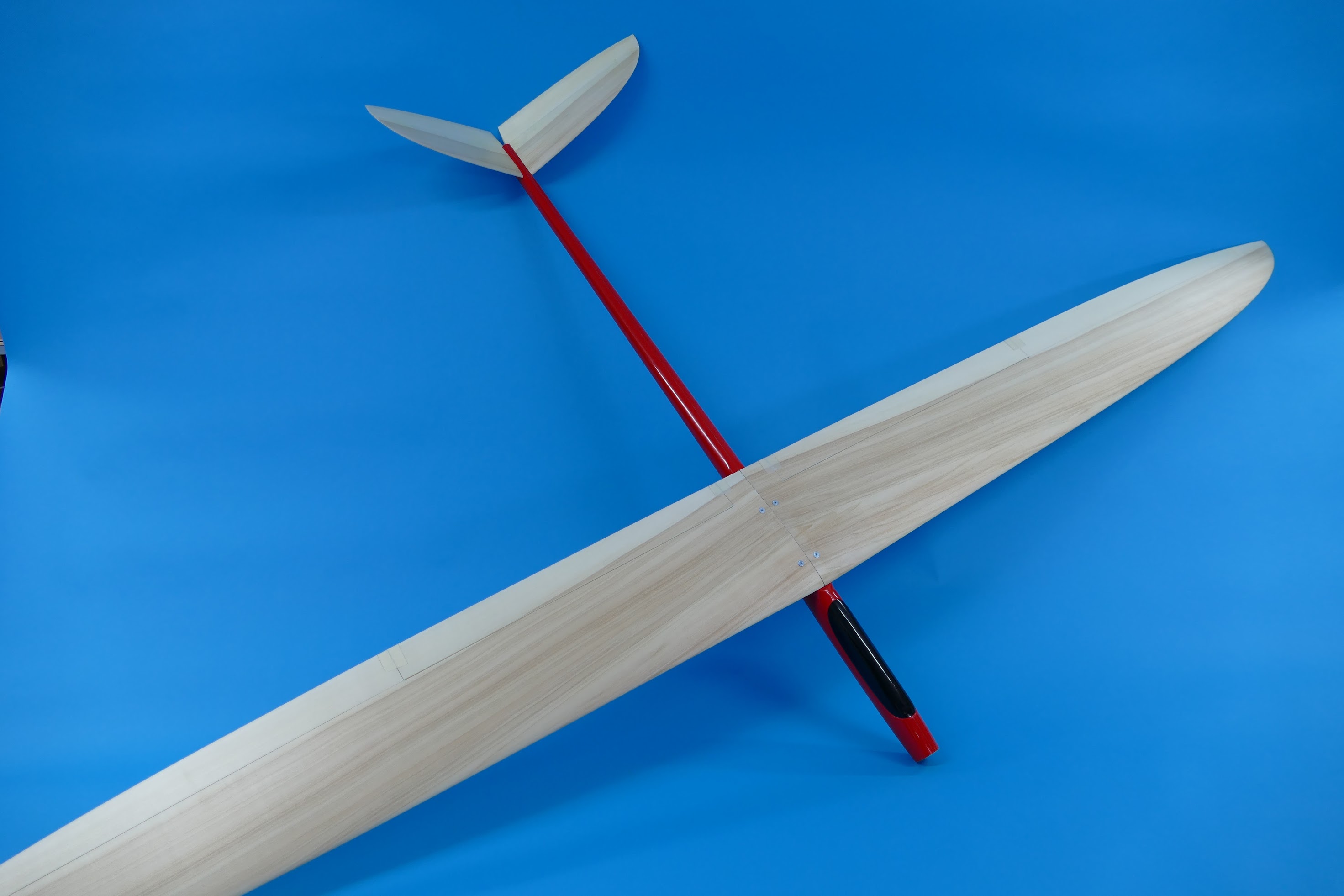

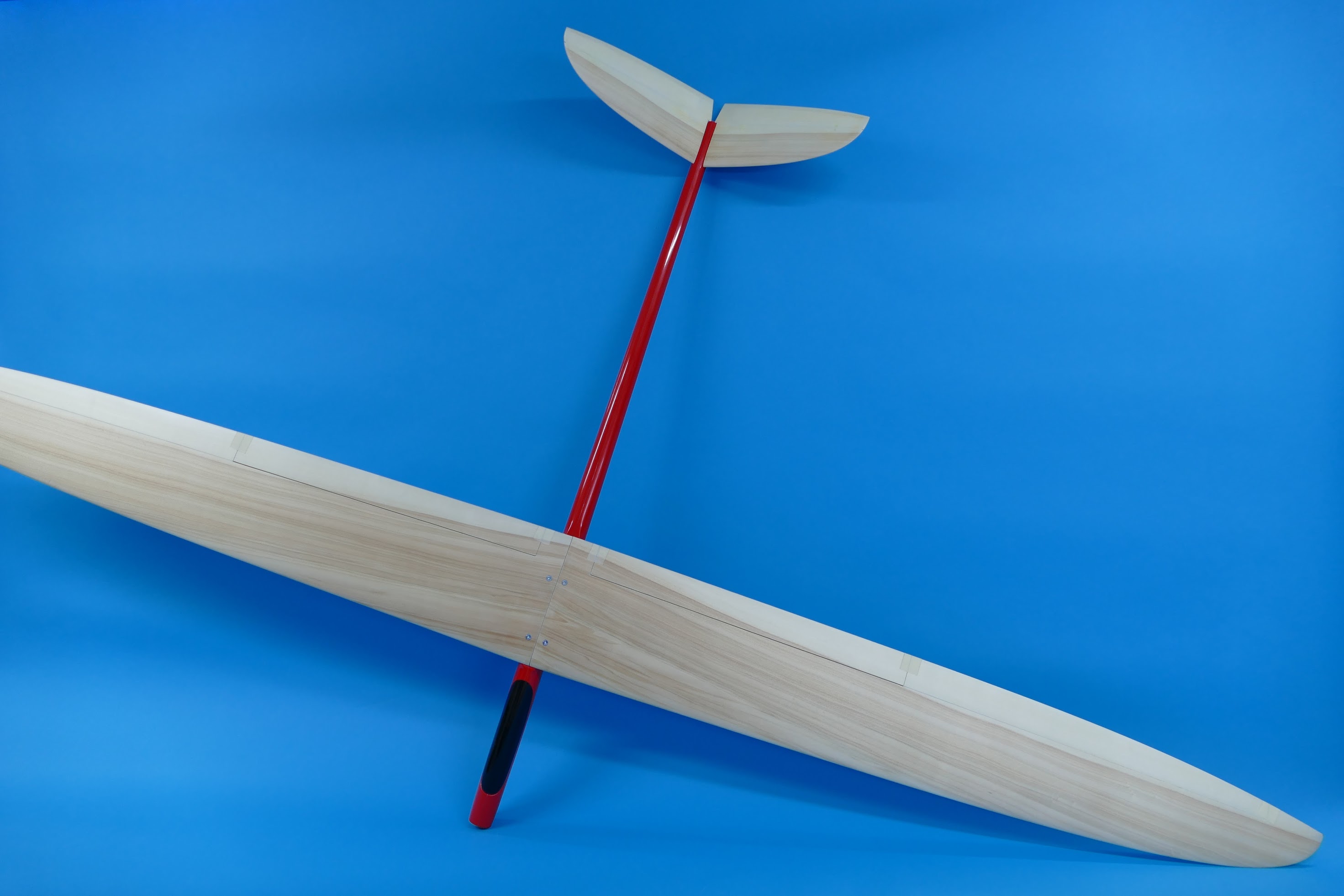

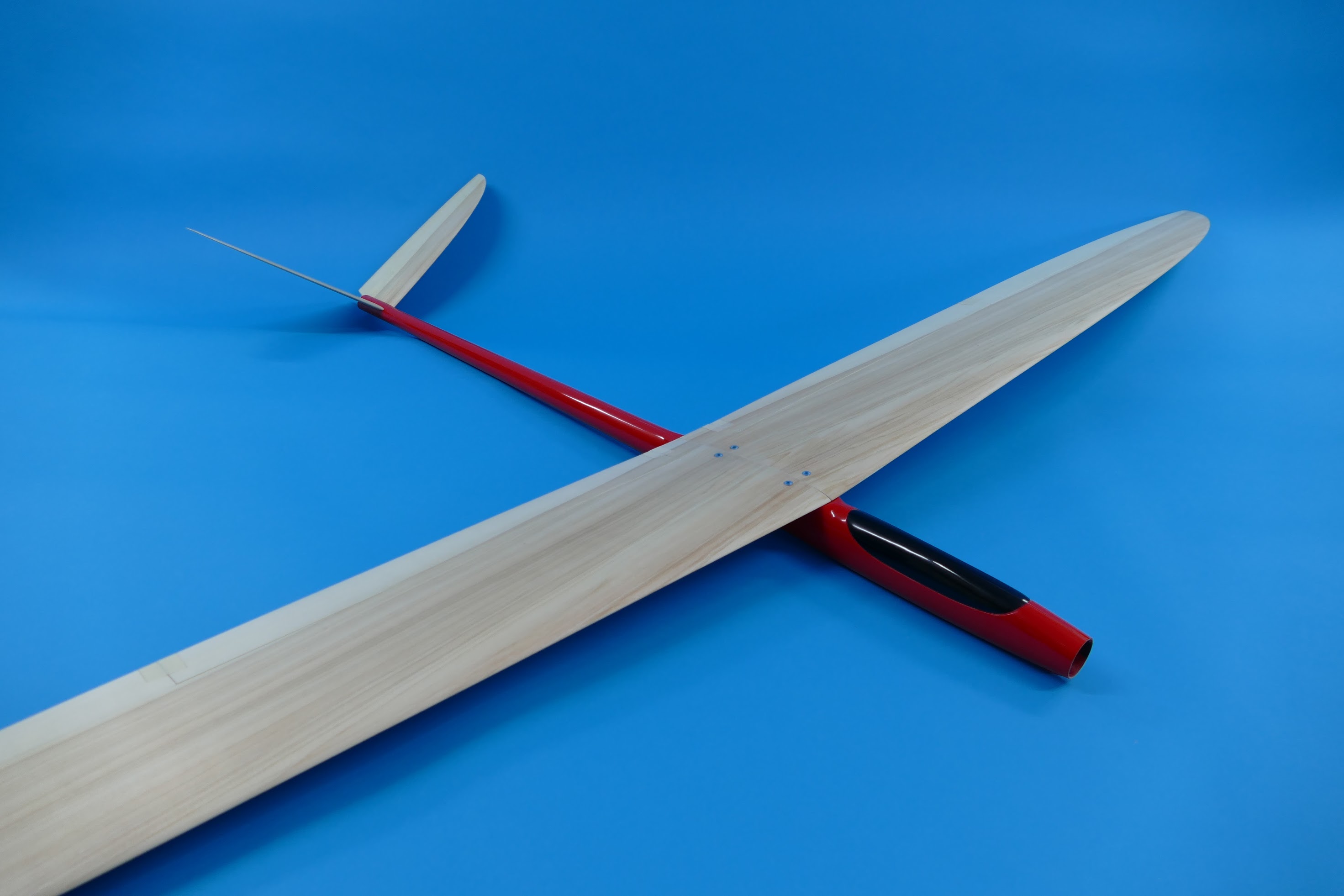

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the E-Ferret in particular but at least we know they do distribute Silence Model.

Where to buy

France
Silence Model
check web site
Ship to: France
Wingspan: 2600mm (102.4 in)
Length: 1200mm (47.2 in)

Weight: 2200 g (4.9 lbs)
  • Wingspan: 2600mm
  • Length: 1200 mm
  • Weight: about 2200 g
  • Profile: HN 352 SP
  • Wing Area: 42 dm²

Variants

eferret_r
E-Ferret (Red Beige)
