AR Wing from SonicModell

Details

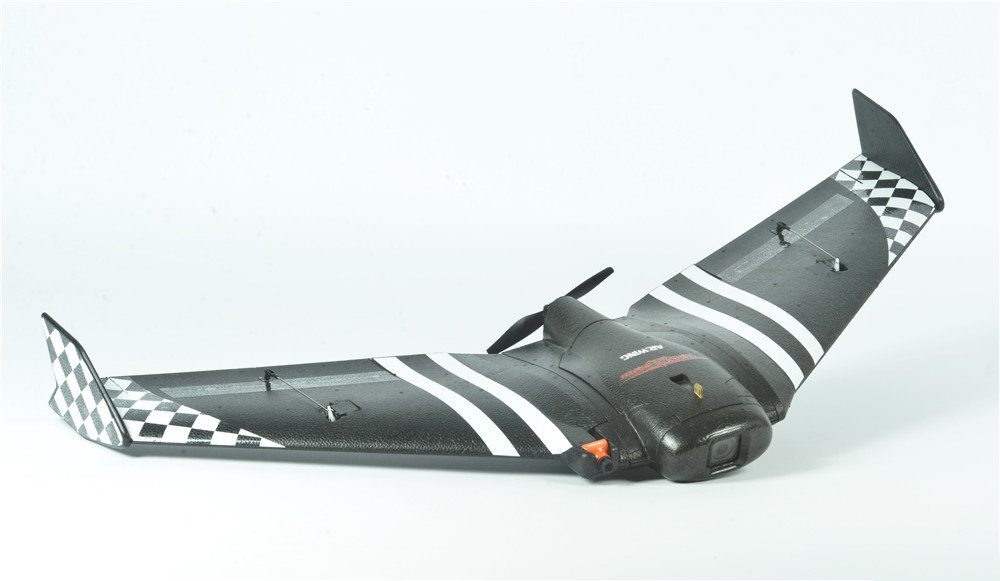

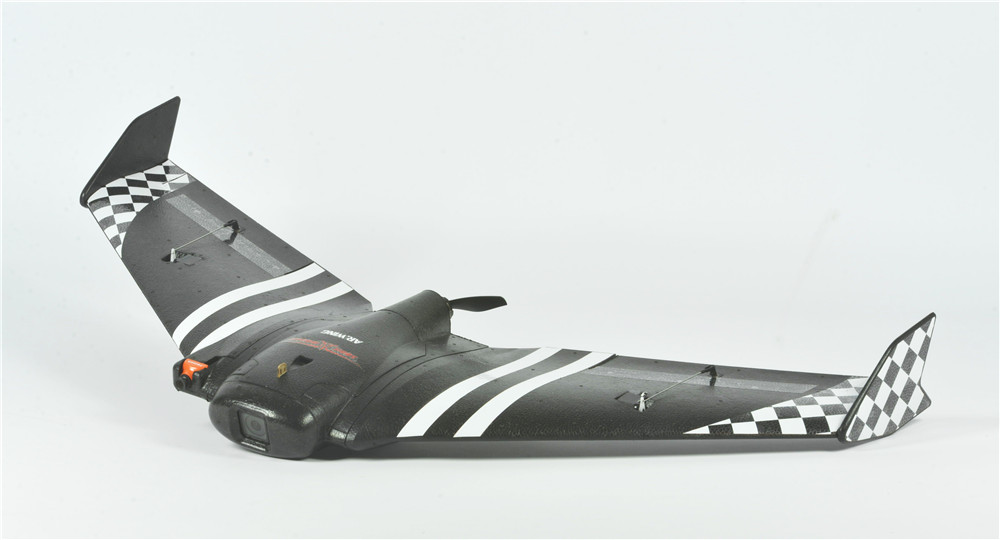

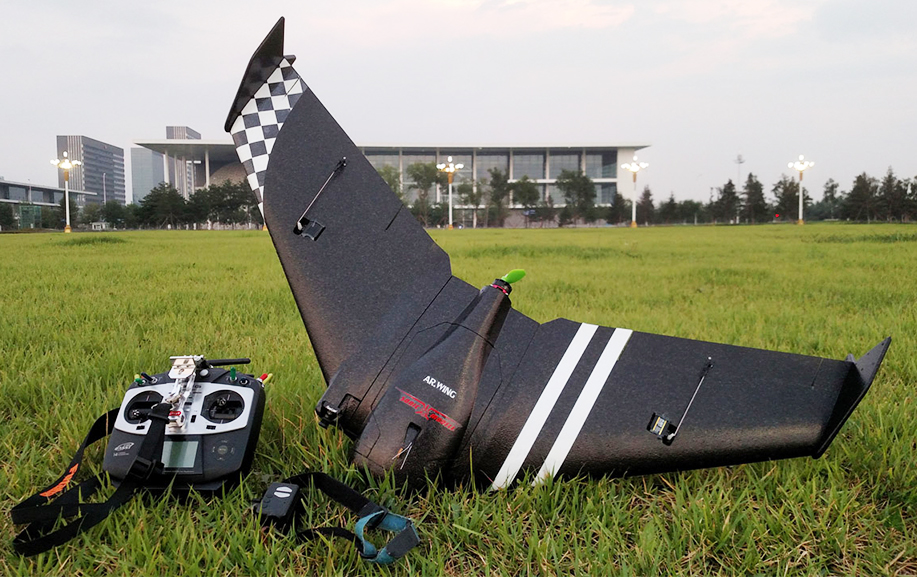

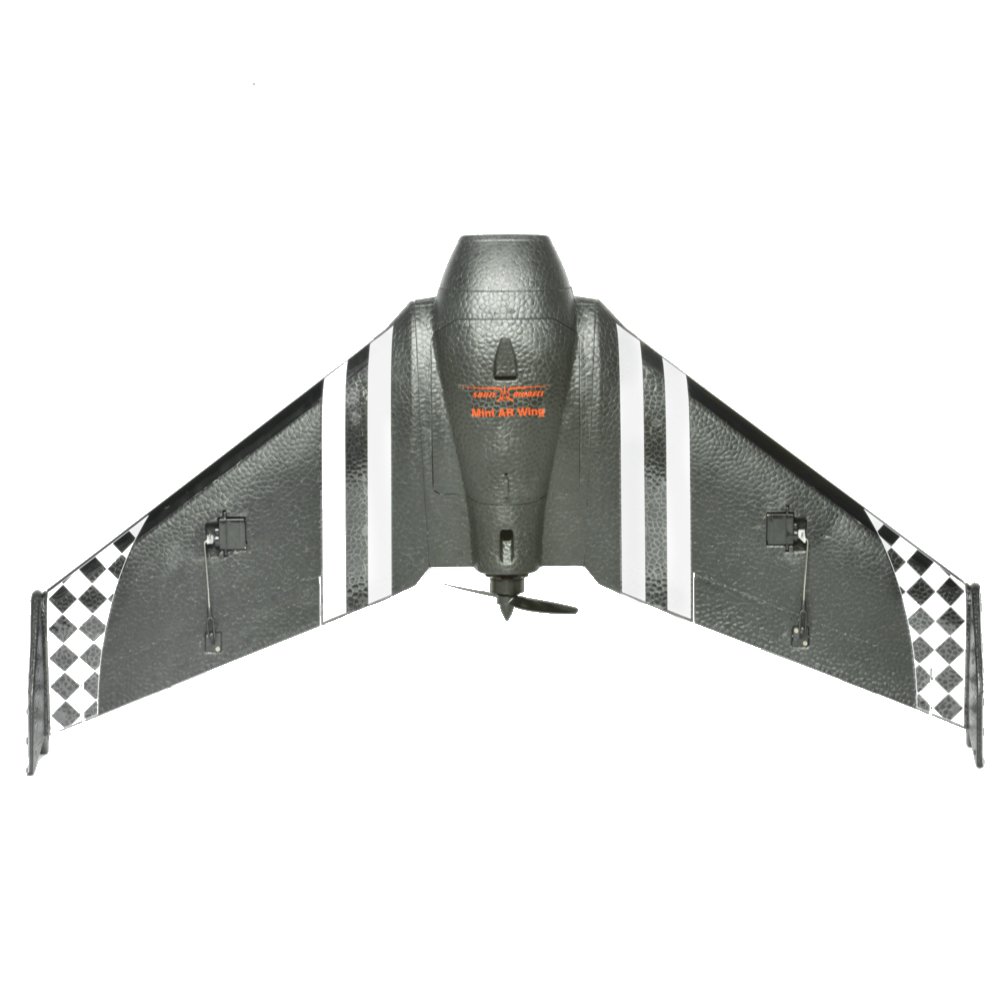

The SonicModell AR.Wing 900mm Drone FPV Flying Wing Kit (Frame Only)is a great all-around delta R/C wing which can be used as a standard plane or to do first person view flights (FPV) with video recording.
This AR.Wing with a detachable mainwing / wingtip structure, it’s compact size and pre-installed power system / highly integrated FPV gear (AIO FPV Camera with 200mW 5.8G Vtx) makes it very easy to assemble and portable for out door FPV flying, the high strength EPP material with built-in carbon fiber tube and strips makes it rigid and resistable in crash, 2pcs 9g digital servos will ensure it fly accurate and agile. You can put a lot of FPV gear and big battery inside the big fuselage for long time FPV flying too.

Features

  • Black EPP molded wing and fuselage, plus pre-built in carbon fiber spar, durable, light and flexible
  • Detachable wing and wingtip, portable and easy to take for out door FPV fly.
  • Multiple bonus camera mount, compatible for all FPV HD camera in the market
  • Easy to hand launch, super stable flying performance, 10km/h - 80km/h flying speed
  • Wingspan 900mm with high efficiency airfoil, create powerful elevating force.
  • “No-glue” required assembly, open box and fly in few seconds
  • Exactly the same motor / ESC / prop / camera with racing quads, exchangeable between each other.
  • Spacious equipment bay for more FPV gear.
  • Movable battery slot for better “CG” adjustment
  • With bump for “CG” mark under the mainwing.
  • With 2 skids for hand launch grip and landing
  • With "NACA" Air inlet and outlet for FPV gear cooling


Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the AR Wing in particular but at least we know they do distribute SonicModell.

Wingspan: 900mm (35.4 in)
Length: 482mm (19 in)

Weight: unknown

Flying Speed: 10km/h - 80+km/h

Recommended

ESC : 20A
Servos : 2x 9g
Propeller : 6x3
Motor : 2204 2200kV
Battery : 3S 2200mAh Lipo
