Skyhunter from SonicModell

Details

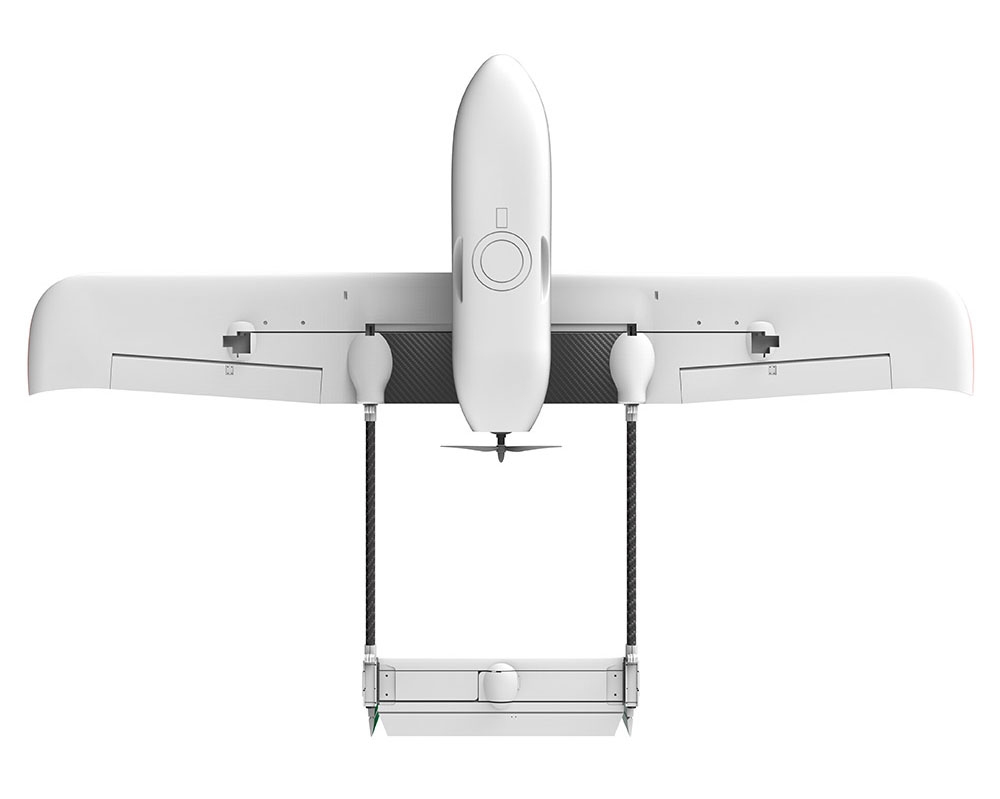

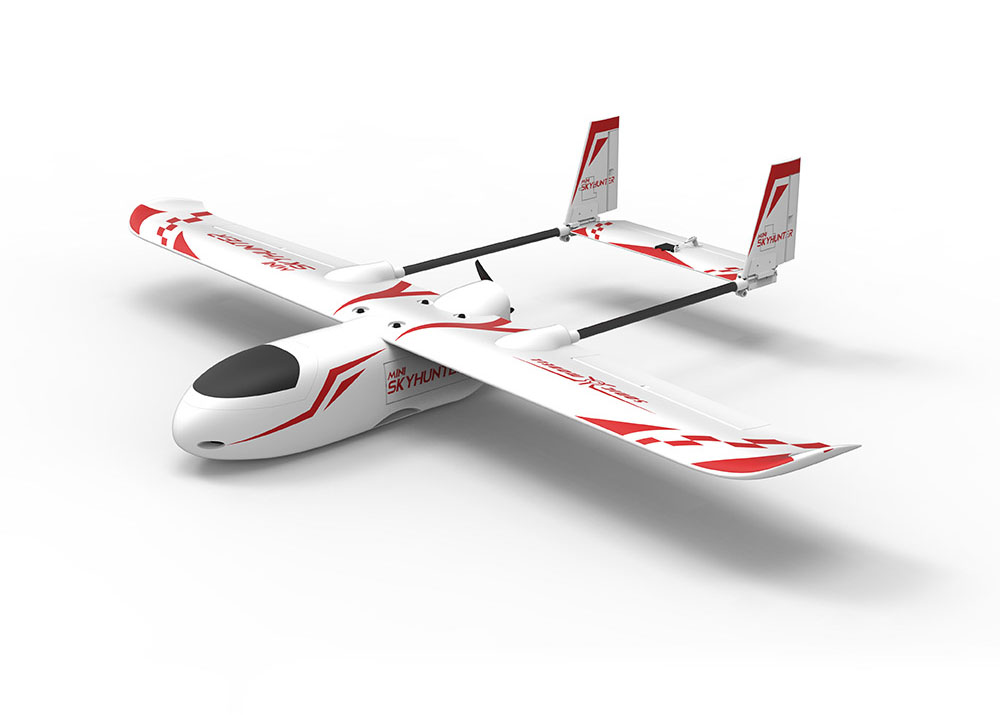

This 1238mm Wingspan Mini Skyhunter V2 PNP version with electronics but without assembling is a middle sized FPV plane of the legendary Skyhunter air frame series,
it’s unique twin-boom tail wing design makes it fly super stable and agile, the compact fuselage is easy for hand-launch by yourself. In order to decrease the tail weight,
we use high strength carbon fiber reelpipe instead of normal tube, the EPO molded wing and fuselage reinforced by carbon fiber tube and strips, is light in weight
but solid and strong in structure, pre-cut hatches for FPV gear offers multiple mounting choice for your camera, Vtx, GPS and battery.

Features

  • Middle size FPV plane for mid-range FPV flying
  • 1238mm wing span compact size offers the good portability and flexibility
  • Very big room inside fuselage with sliding equipment tray for FPV gear and big battery
  • Pre-molded 9g or 5g servos location for rudders if you plan on using them
  • Pre-cut hatches for gimbal / cameras / video transmitter / GPS / rudder servos
  • Multiple camera mount option, compatible for FPV and HD camera in the market
  • Molded hand grip for hand launch
  • Tail boom length adjustable for the best CG setting
  • CG: On the main spar (Slightly forward for maiden flight)
  • With electronics but without assembling for much better DIY experience

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Skyhunter in particular but at least we know they do distribute SonicModell.

Wingspan: 1238mm (48.7 in)
Length: 855mm (33.7 in)

Weight: 830 g (1.8 lbs)

Wingspan: 1238mm(48.74")
Length: 855mm(33.66")
Wing size: 19.5dm2
Flying Weight: 830g
Wing load: 42g/dm2
Motor: 2217 KV1250
ESC: 40A
Servo: 9g*3pcs
Propeller: 8*4E*2pcs,one for spare
Lipo Battery: 11.1V-14.8V(3-4s) 2200mAh-3300mAh
