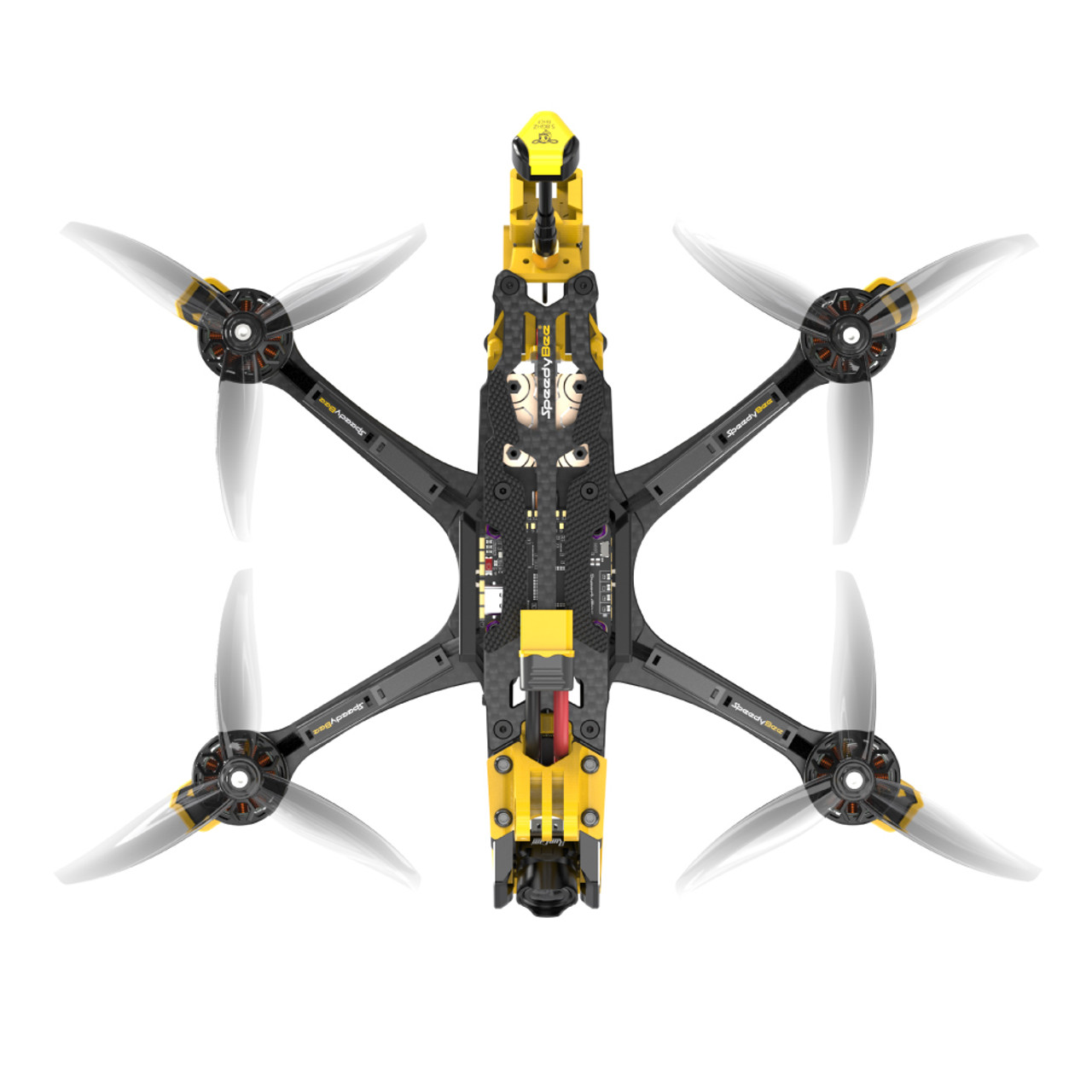

Master 5 V2 HD from Speedy Bee

Details

Exploring the world, all well in Master 5 V2! Brand new DJI 03 video transmission system gives your flying infinite reverie. Viewing in the air at 1080P for FPV, and recording up to 4K 120fps easily catch the moments, bring your FPV experience to a new height.

To enjoy the passion of full-speed flying, not only does it require the distance but also clear view. 03 FPV camera provides you with excellent high-definition video transmission with low latency. Go with Master 5 V2, enjoy the level-up images for both FPV flying and DJI 03 HD recording without vignetting.

Built with SpeedyBee F7 V3 stack, connecting the drone to the App via Bluetooth to modify configurations easily. Additionally, LED effect could be changed as you like, and flight time could be recorded automatically. Elevating your experience with more possibilities.

Equipped with SpeedyBee BL32 50A 4-in-1 ESC and 2306 1900KV motors, outputting up to 200A max. and thrust reaching 1.9kg per motor, is massively powerful and more fluent flight performance.

Features:

  • Every detail is for the better experience. Master 5 V2, designed for air journey, is your perfect choice!
  • Deadcat frame with innovative design, placing flight controller close to the center of drone, offer you the better flying experience with precise control.
  • Drone front side plates are made of 7075-T aluminum alloy. For both flying masters and amateurs, plates protect the camera in a better way. Plenty room for installing ND filters is reserved for DJI 03 camera, ensuring high image quality under different light environments.

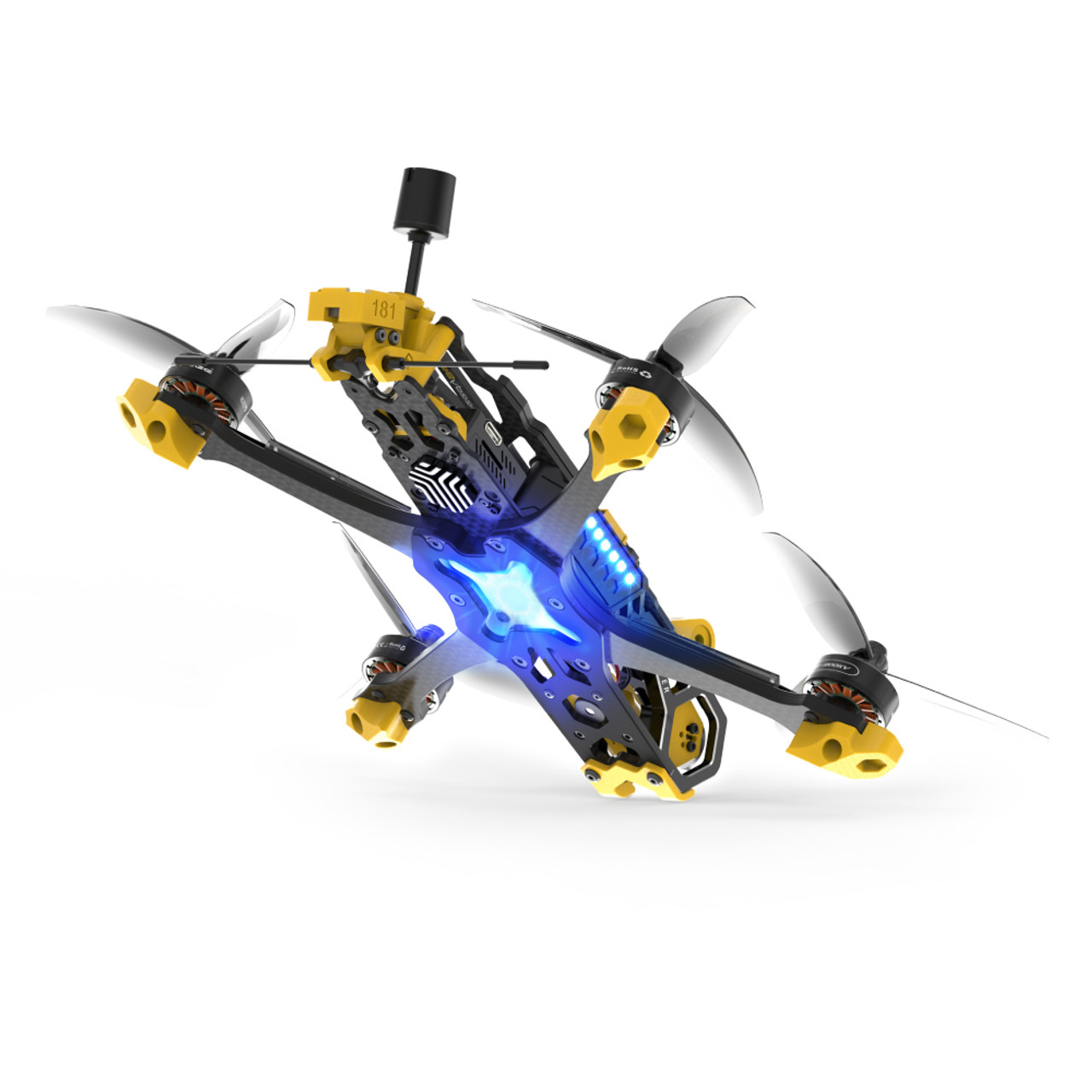

  • Applying the side protection plates that is embedded with programable RBG LED stripes, Master 5 V2 provides you well protection also fashion. You could change different colors and effects by simply pressing the BOOT. Long pressing BOOT button to swtich to BF control mode, and with SpeedyBee App, more colors and effects canv be modified wirelessly. Press to switch the On&Off of LED has been set by default.
  • Via the innovative anti-vibration stack design, let's fly more steadily and safely. And with the already tuned PID, you can fly easily when receive.
  • Overheating is a serious challenge for VTX. We customize a heat sink made of aluminum alloy, providing better cooling effect and improving the operation stability.
  • Arms with quick-release structure, the amount of screws averages 1.5 per arm. Thanks to the use of the flight stack shock-absorbing installing structure, the fixing screws of the arms are not associated with the flight stack, reducing the impact on the installation of the flight stack during disassembly and assembly of the arms.

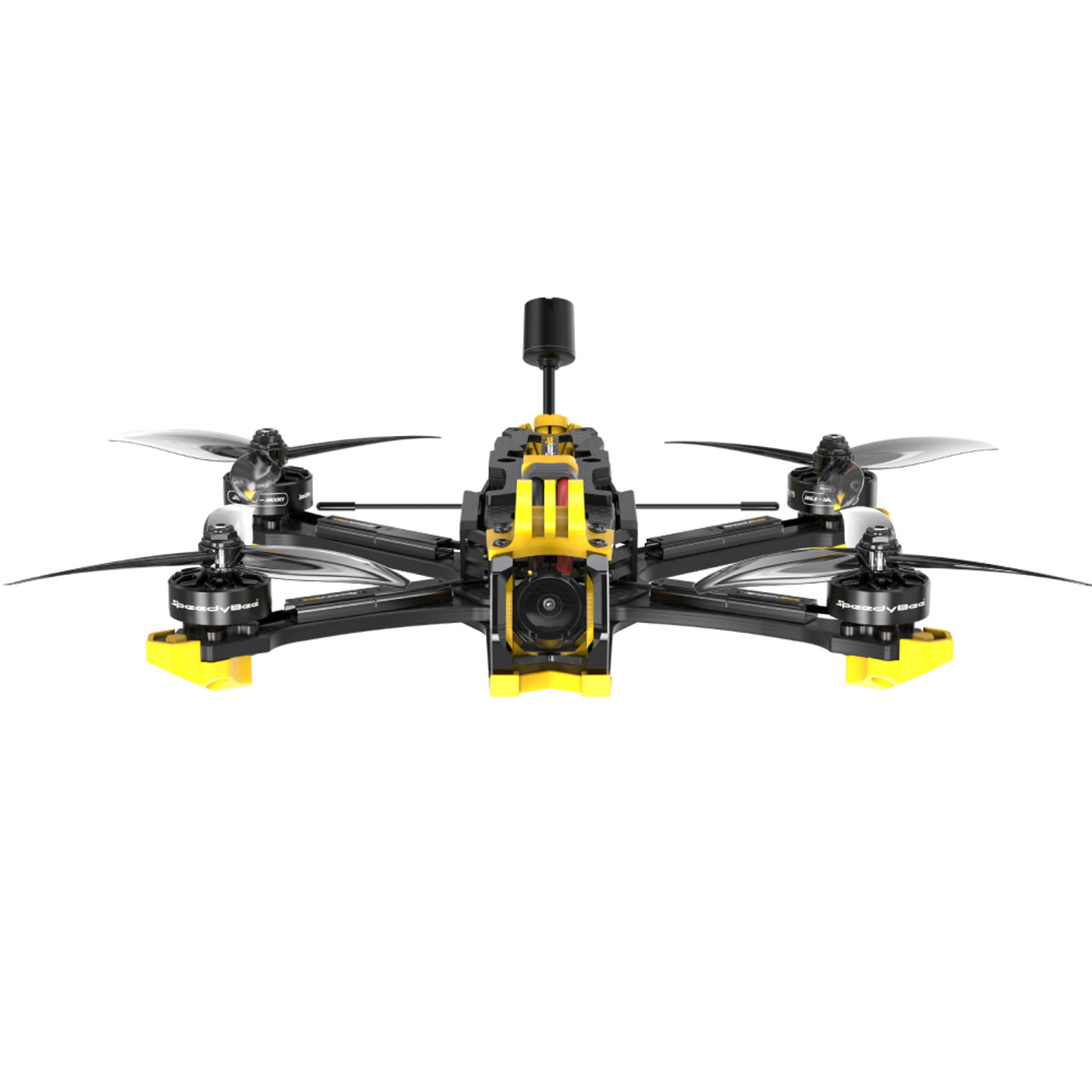

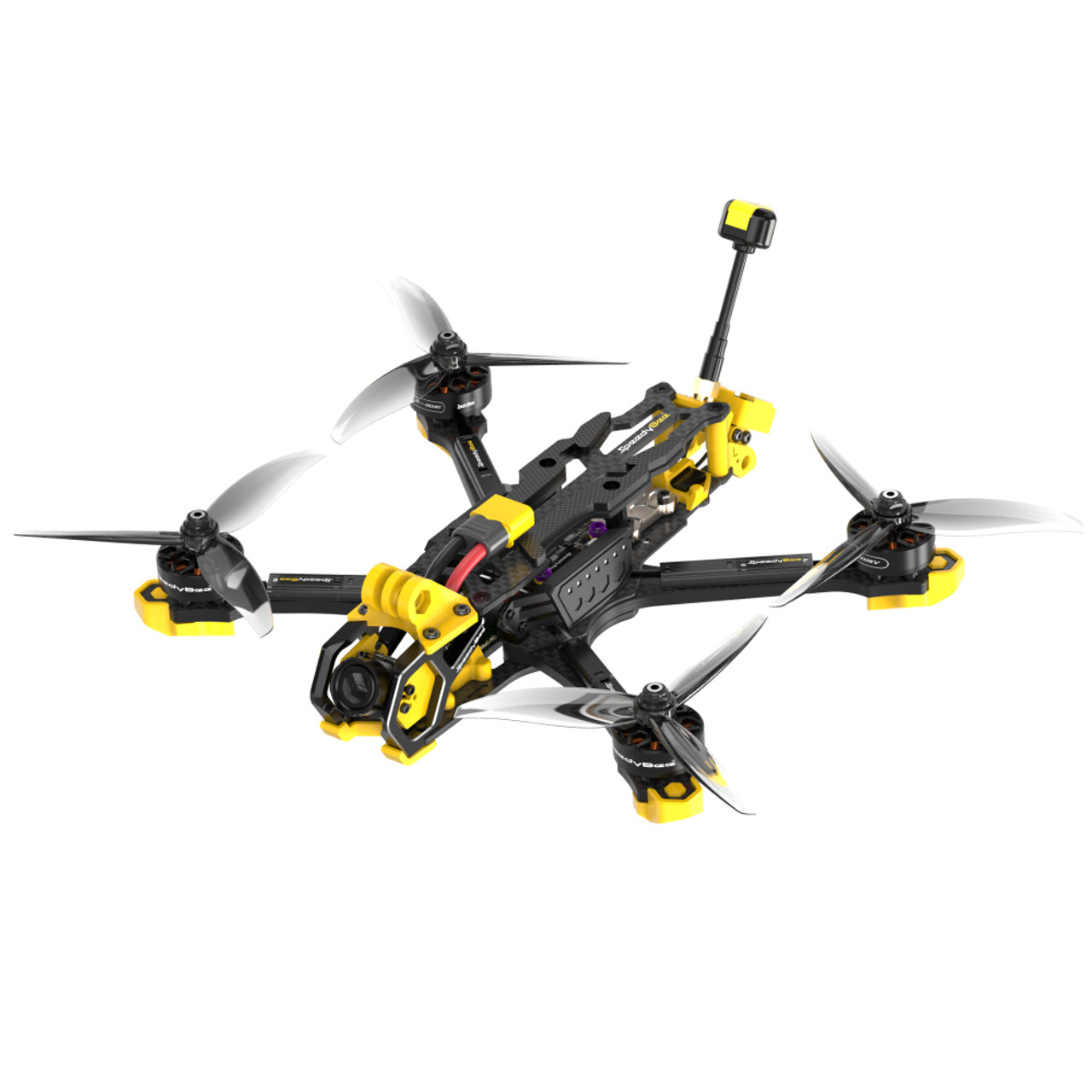

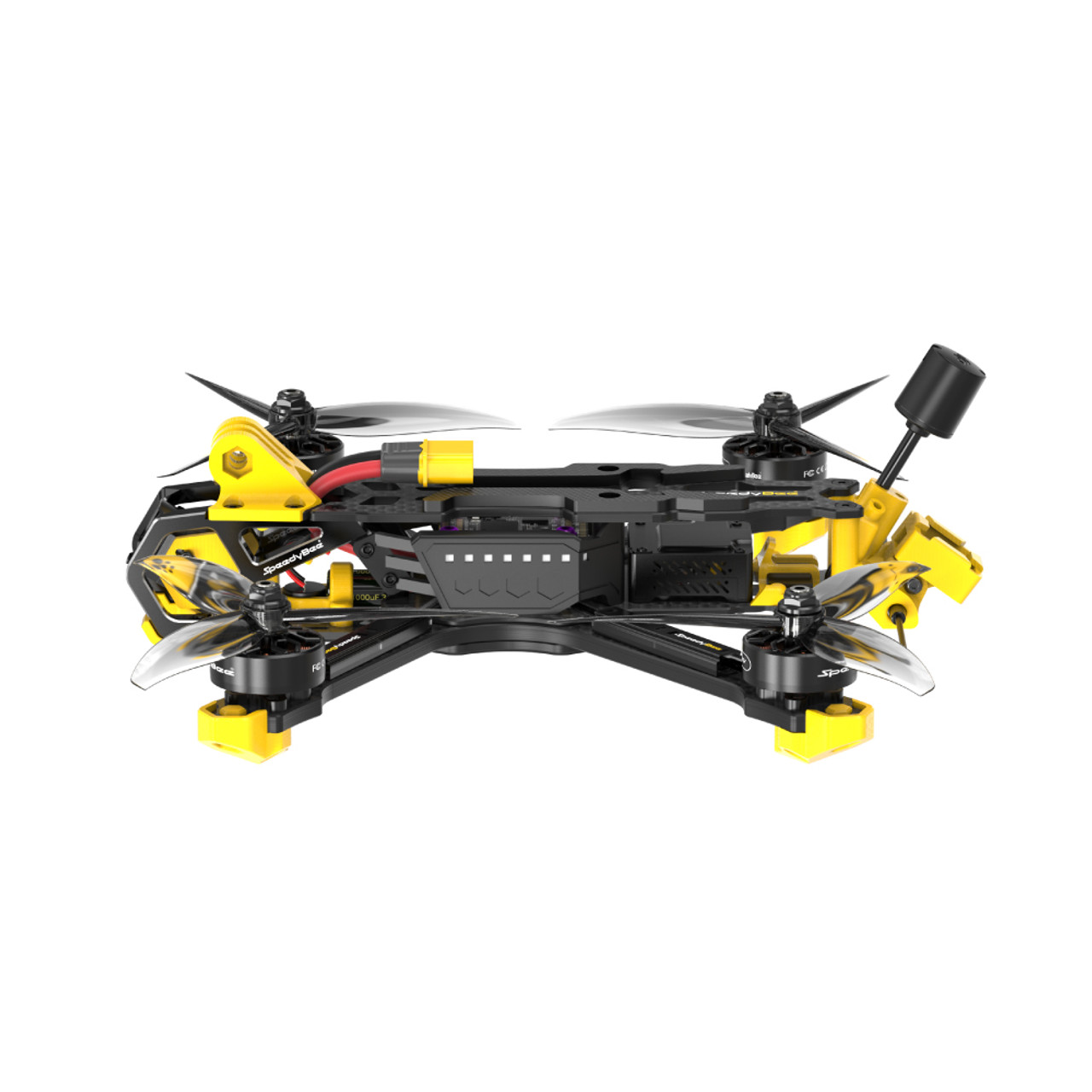

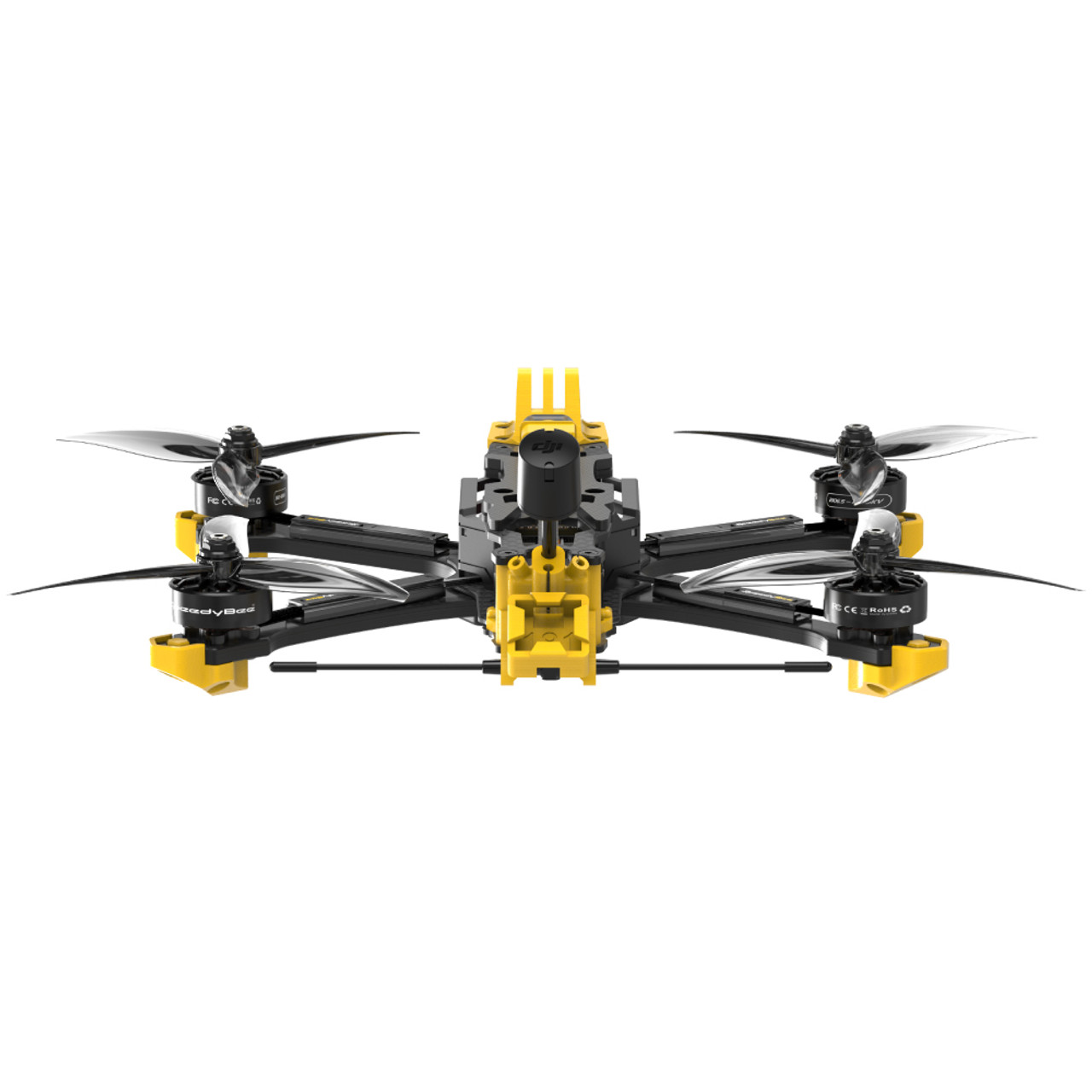

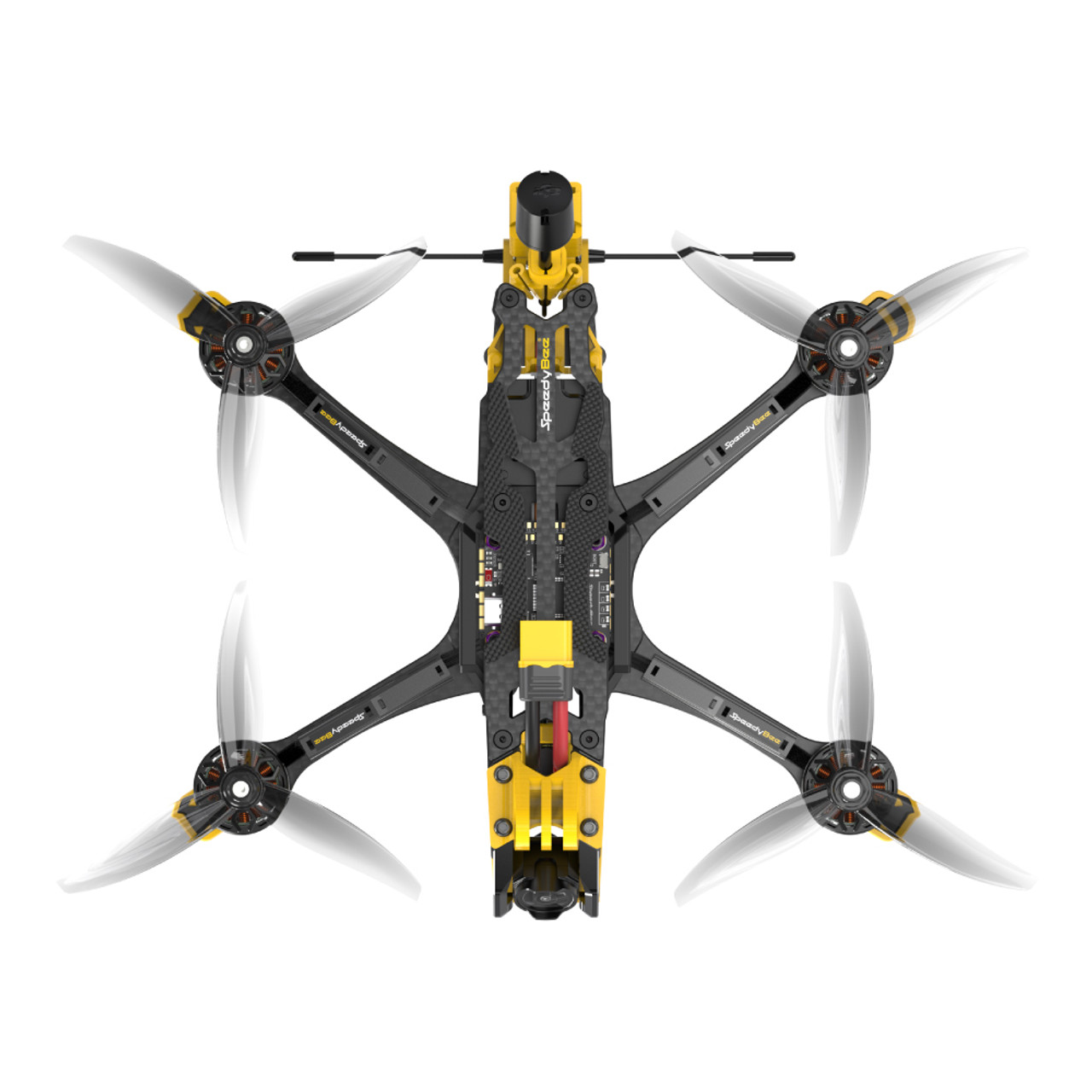

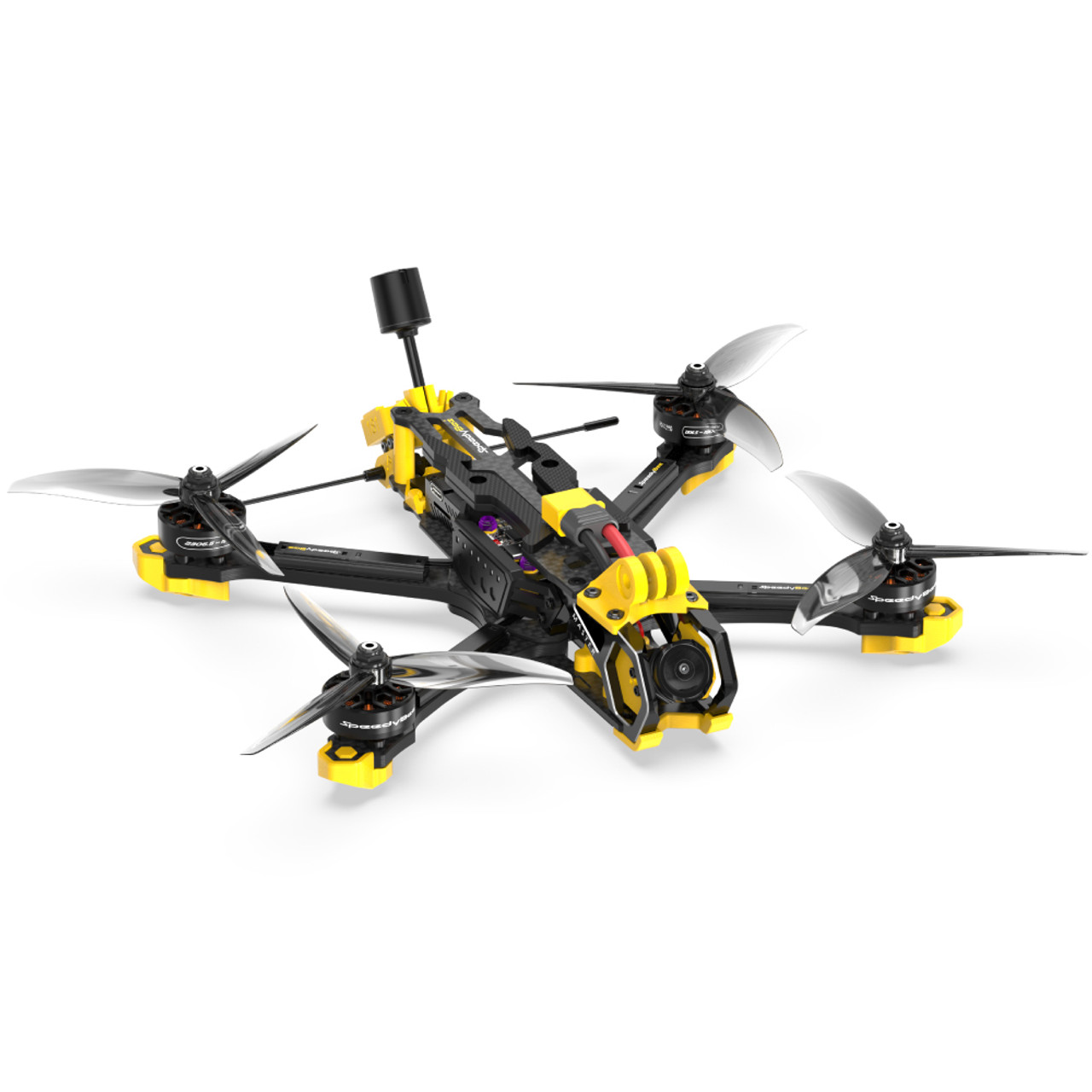

Pictures

Manual

Radio icons

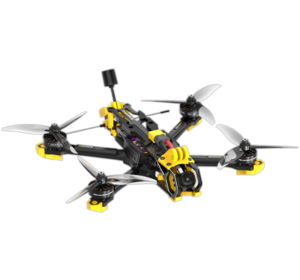

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Master 5 V2 HD in particular but at least we know they do distribute Speedy Bee.

Where to buy


Wingspan: 226mm (8.9 in)
Length: 226mm (8.9 in)

Weight: 420 g (14.8 oz)
Arms 5mm
Wheelbase 226mm
Micro contoller STM32F722
IMU BMI270
Bluetooth BLE Supported, for flight controller configuration
OSD chip AT7456E
ESC 50A 41N1 BL32 4-6S ESC
Motor 2306.5-1800KV
LED Underneath and side
Blackbox 500MB onboard memory(Type: SD_CARD)
Propellers 1 set of GEMFAN 51466 (Notice: 5.1”)
Buzzer TMB12A05
Power input 6S Lipo 25.2V (recommended: 1050mAh - 1500mAh)
Receiver
TBS Nano
ELRS (Default Firmware out of factory: HappyModel_EP_2400_RX V3.0.1 version)

O3 HD Version
HD Recording
Up to 4K 120fps
VTX
DJI O3 Air Unit
Camera
Camera of DJI O3 System
Weight (without battery)
420g (±10g)
