VA17 from T-Drones

Details

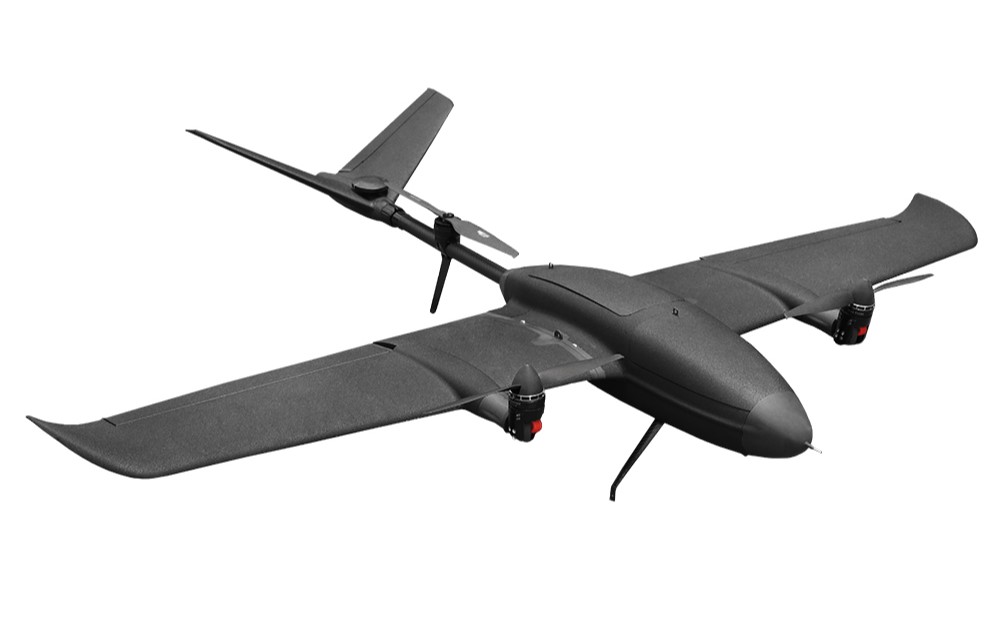

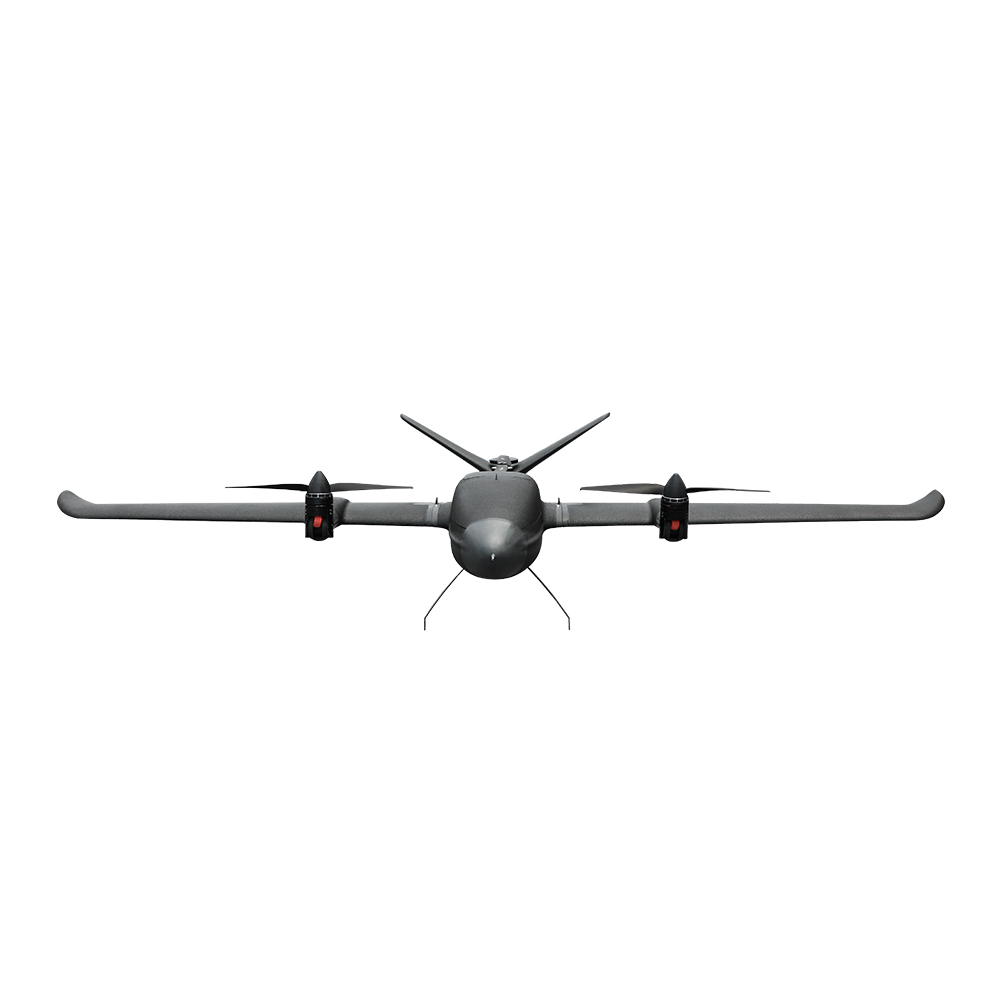

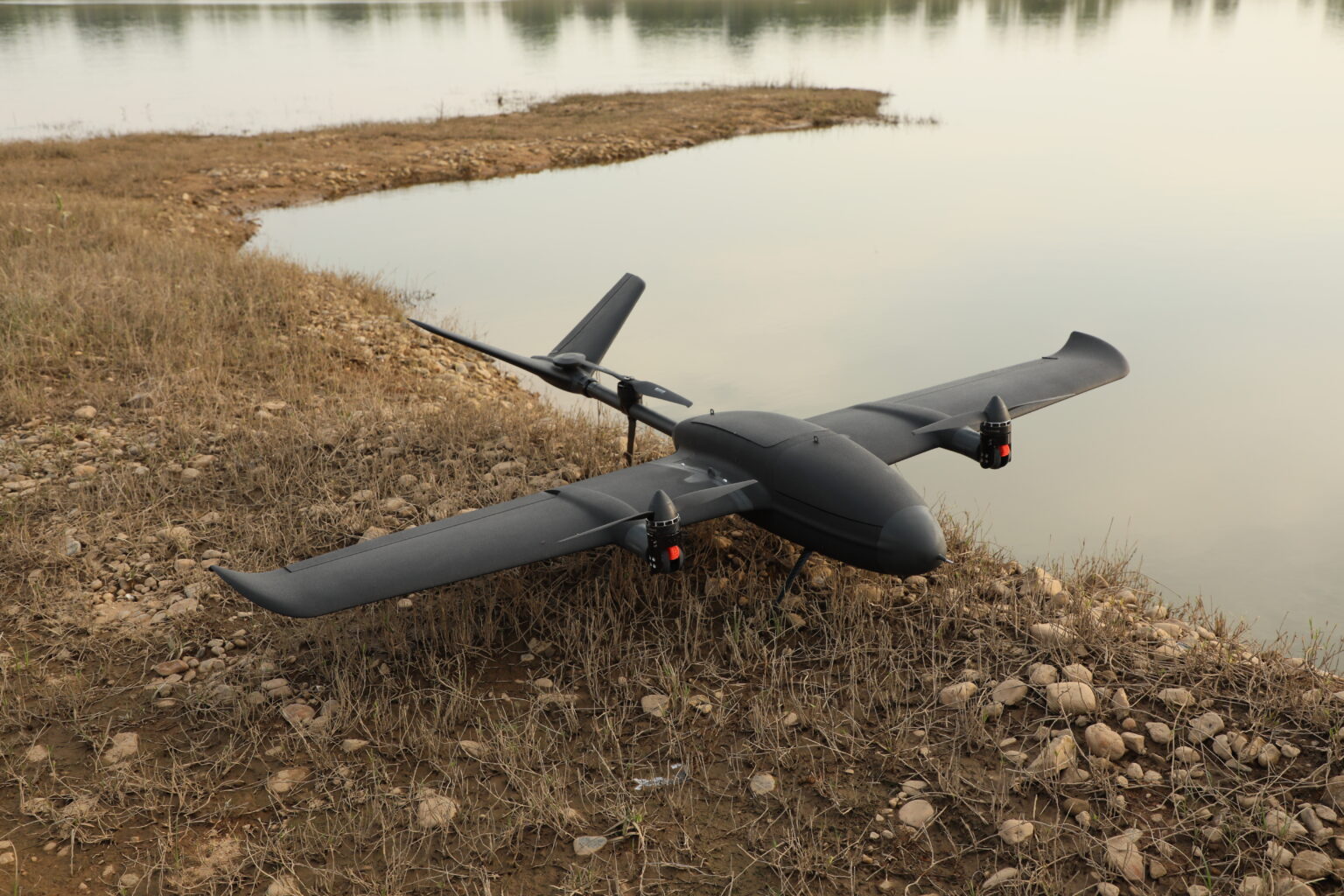

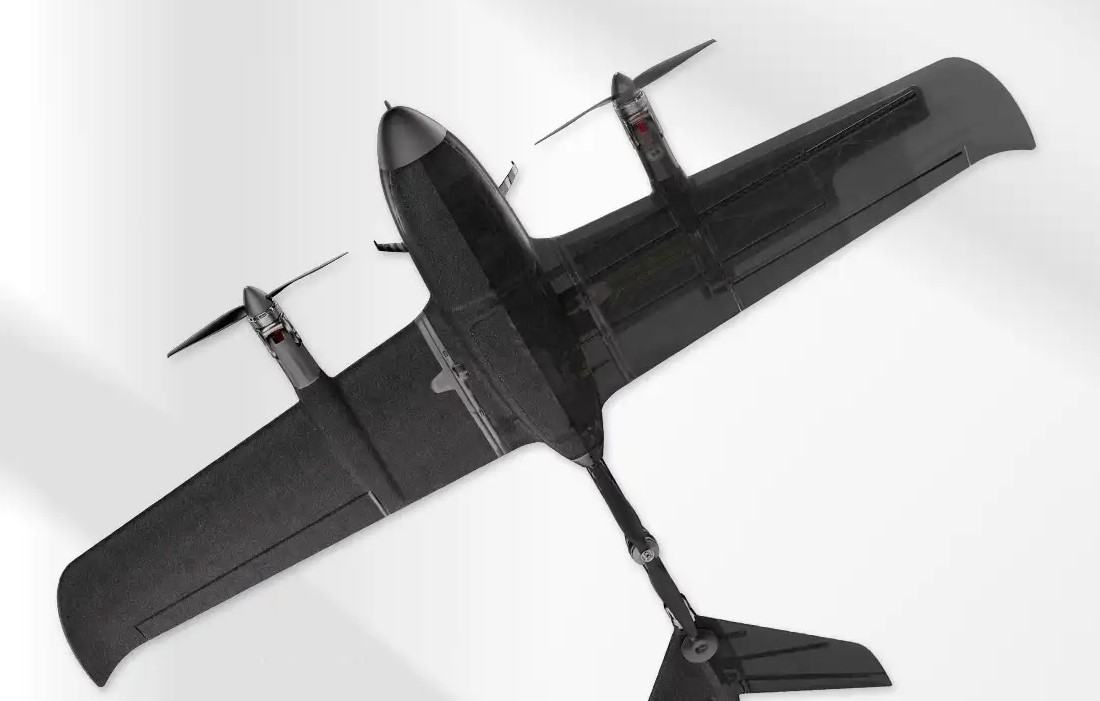

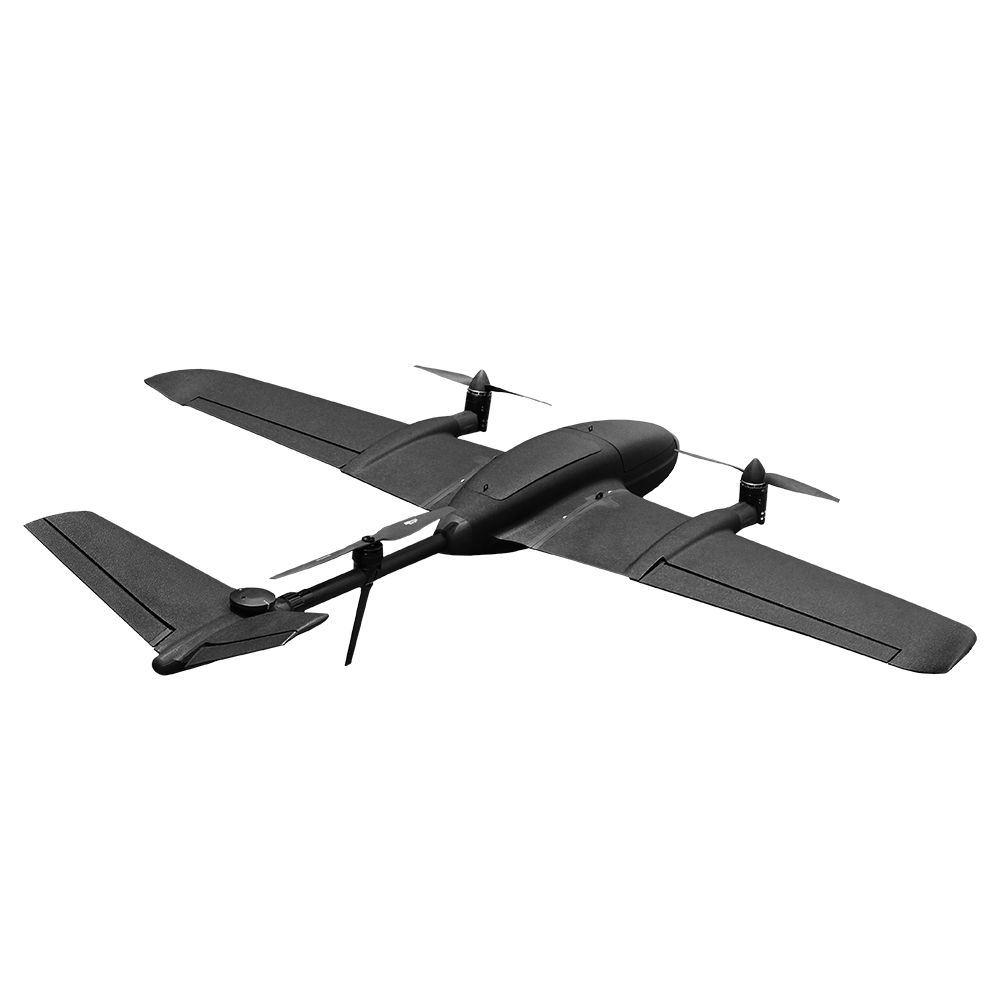

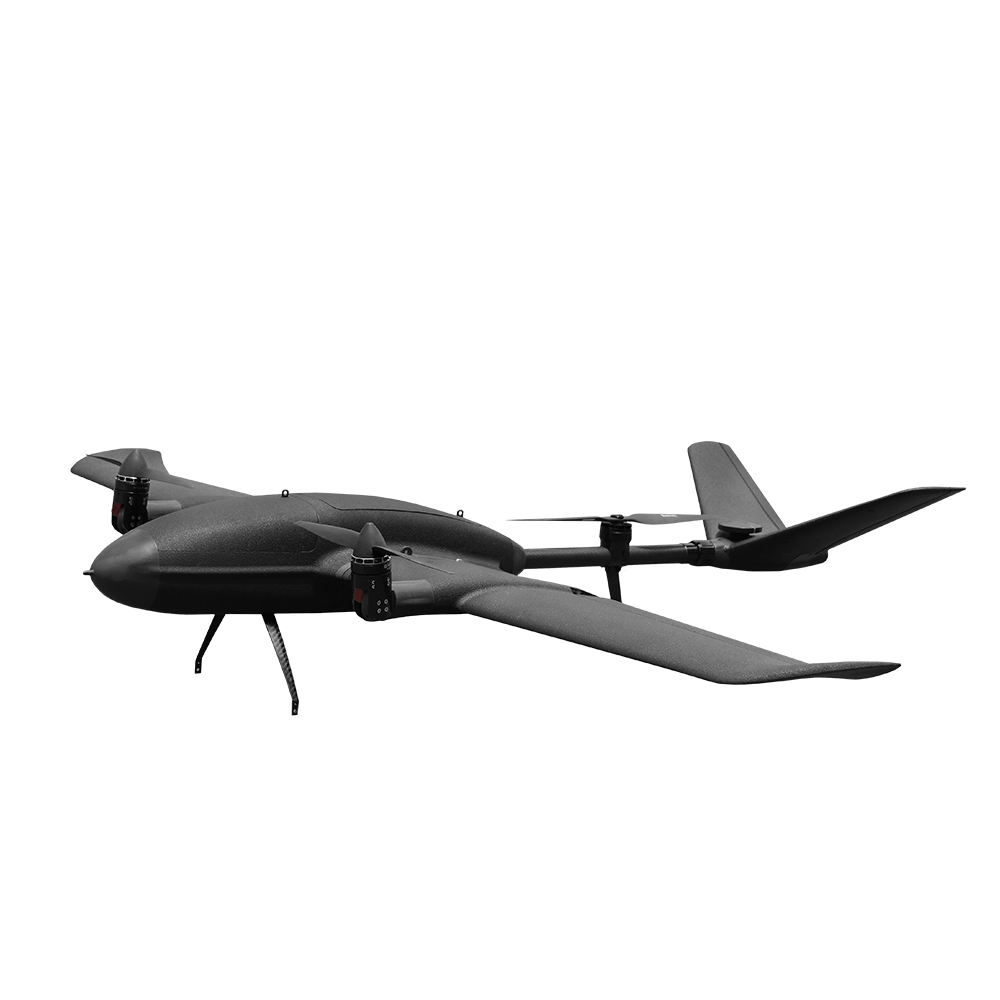

The VA17 is a long-endurance, electricity-driven tilting, fixed-wing UAV with vertical take-off and landing capability. It can fly for up to 120 minutes and has a maximum load capacity of nearly 1 kg. The drone is powerful, efficient, and equipped with an advanced power management system. It uses lightweight and durable EPP foam to ensure a lighter, longer-lasting flight.

Features:

  • Excellent endurance: Up to 120min endurance with 800g payload.
  • High-performance ESC: The 80A 3-in-1 high-performance ESC shows excellent overload resistance and fast response speed. The combination of high-performance
    and lightness is achieved from the compact design and 65% weight reduction compared to the traditional single ESC.
  • Safer flight: The onboard power management module is equipped with 8V12A-UBEC, which provides stable power support for the servo system. At the same time, the dual flight control backup power supply design significantly improves flight safety and simplifies the installation process.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the VA17 in particular but at least we know they do distribute T-Drones.

Where to buy


Wingspan: 1680mm (66.1 in)
Length: 1178mm (46.4 in)

Weight: 4300 g (9.5 lbs)
  • Frame Length: 1178mm
  • Wingspan: 1680mm
  • Take off Weight: 4.3kg
  • Payload: 0~900g
  • Frame Material: Carbon Fiber and EPP Foam
  • Flight Time: ≥120min with Payload 800g
  • Max Range: 125km
  • Flight Altitude: 100 ~ 1000m (typical); 4500m(Max.)
  • Wind Resistance: Level 5
  • Max Flying Speed: 25m/s
  • Cruising Speed: 15~18m/s
  • Control Range: 10-30km
  • Recommended Battery: 8s 14500mah
  • Cut-off Voltage: 24V
  • Compatible Flight Control: PIX /CUAV
