Bliss Classic EVO from TOPMODEL CZ

Details

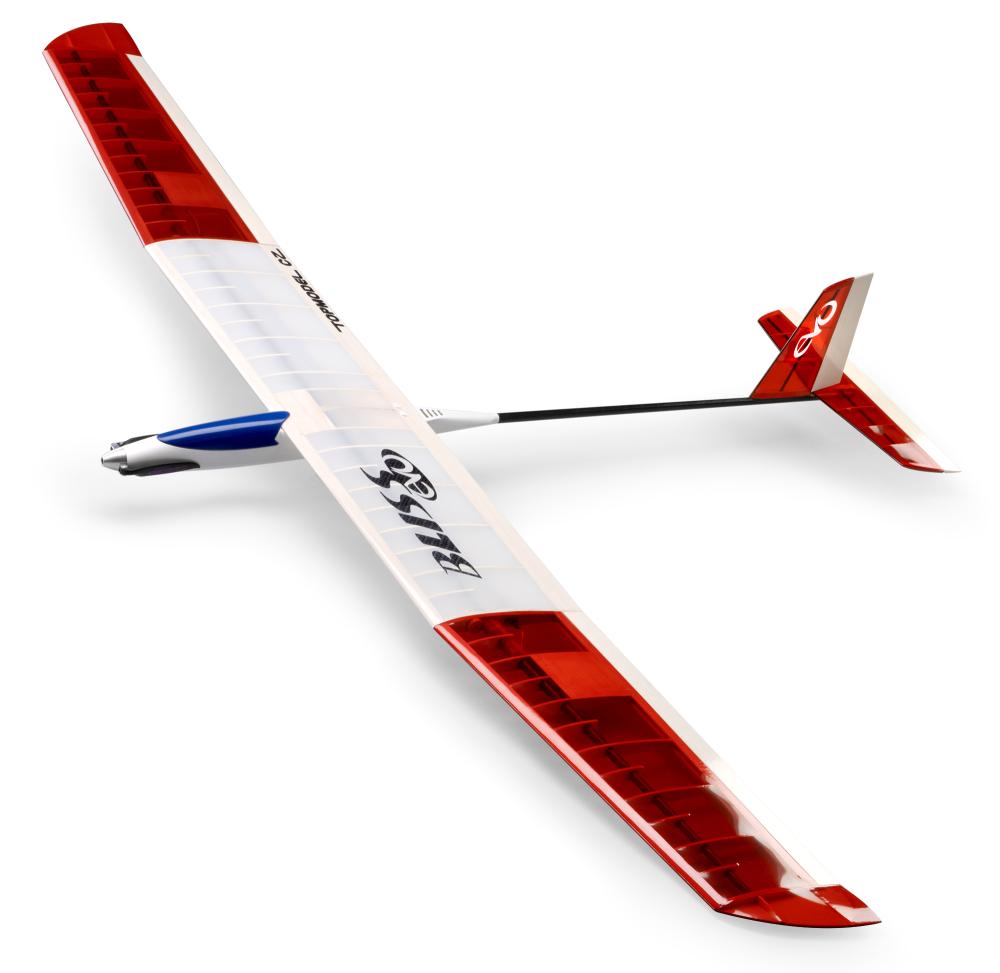

New modified version of the popular Bliss with a new wing structure and a new design.

Performance electric sailplane for sports flying.
Many expert pilots will be particularly surprised by its excellent flight qualities, given by the thin wing airfoil and weak weight.
Ideal for thermal flight. The recommended drive allows for steep climbs. Thanks to large area length the Bliss EVO has calm and steady gliding. Thanks to the large control surfaces, the model is very manoeuvrable.

Kit content:

  • Fuselage: white gelcoated fiberglass pod with the nose cut to Ø 30mm + fiberglass tail boom
  • Canopy: gelcoated fiberglass
  • Three-piece wing is made in balsa framework with wing joiner and wing spar made of carbon tube and covered with Oracover®
  • Tailplane are made in a balsa framework with carbon girder and covered with Oracover®
  • Vinyl cnc cut stickers
  • Top quality accessories (servo covers, servo mounts, rods, ending ties, wing joiner, control horns,fiberglass motor mount, tape for sticking flaps, plywood servo mount to the tail,...)
  • Complete assembly manual with step by step illustrations

Pictures

Manual

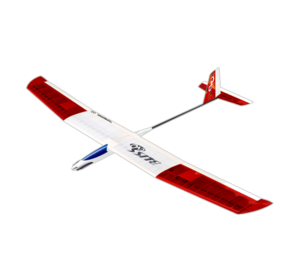

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1970mm (77.6 in)
Length: 1155mm (45.5 in)

Weight: 850 g (1.9 lbs)
  • Wingspan: 1970 mm
  • Length: 1155 mm
  • Flight Weight: 700 to 850 g
  • Wing area: 35.8 dm²
  • Wing Loading: 21-23.7 g/dm
  • Profile: MH 32MOD

Recommended Equipments:

  • Servos: 4x micro servos for ailerons, elevator and rudder ( ES 08 MD II EMAX)
  • Motor:  KAVAN C2836-1120
  • Controller: 30A ( e.g. KAVAN PRO-30SB)
  • Spinner: "turbo" 30/4mm
  • Propeller: 10/4" Cam carbon (Aeronaut)
  • Accu: 3S LiPol 2,2Ah
