T15 from Tarot RC

Details

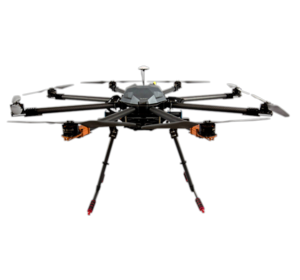

Very Big 1100mm Size Octocopter Frame Set by Tarot
Great to carry Prosumer or DSLR camera for long time filming.
Why play big? Because when it comes to flying object, the bigger the aircraft, the more stable it is. This T15 is a Foldable 1100 size octocopter (that's more than One meter dia.), it's even bigger with propellers installed. The drone itself is made with top end material, 3K Carbon Fiber Plates and Tubes, Aluminum CNC machined parts everywhere, especially the Motor Mount, they are awesome, machined from one big block of aluminum and then anodized with Orange an Black, plus a thick carbon fiber plate as the motor base mount. It has two battery plates on top, you can put 2 X 22.2 5500mah batteries, and you should get about 15 minutes of flight time. Considering you are carrying heavy payload (e.g. DSLR camera), this is a fairly long flight time.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the T15 in particular but at least we know they do distribute Tarot RC.

Wingspan: 1100mm (43.3 in)
Length: 1100mm (43.3 in)

Weight: unknown
  • Arms Dia : 25mm
  • Motor to motor dia. : 1020mm
  • Tip to tip dia. : 1070mm
  • Height : 380cm
  • Body size : 250 x 240mm
  • Motor mounting holes : 16mm / 19mm / 25mm / 27mm (triangle)

Recommended configuration

  • Motor : Tarot 4114 / 320KV
  • ESC : Hobbywing XRotor 40A-OPTO
  • Propeller : Tarot 1555 Propellers
  • Flight Controller : DJI A3, WKM or NAZA V2
  • Radio Set : At least 8 Ch. Radio System
  • Carrying : Tarot DSLR Gimbal (Servo Driven), FPV System, Camera
  • Remarks : You need many wires to solder the motors and servo extension cable to connect with flight controller. You need to have RC knowledge for this drone.
