Outrageous from The World Models

Details

Features:

  • Designed by Jerry Small and Dan Kane for EF1 Class Racing
  • 0-size electric almost-ready-to-fly plane
  • Coverd with genuine heat shrink ToughLon coverings
  • Top quality balsa / plywood construction
  • Detachable battery hatch
  • Carbon wing joiner
  • Aluminum landing gear
  • Precision maneuvers at pilotæ—§ command
  • Hand-painted fiberglass cowling
  • Pre-drilled holes on firewall for motor mount with 41mm hole offset

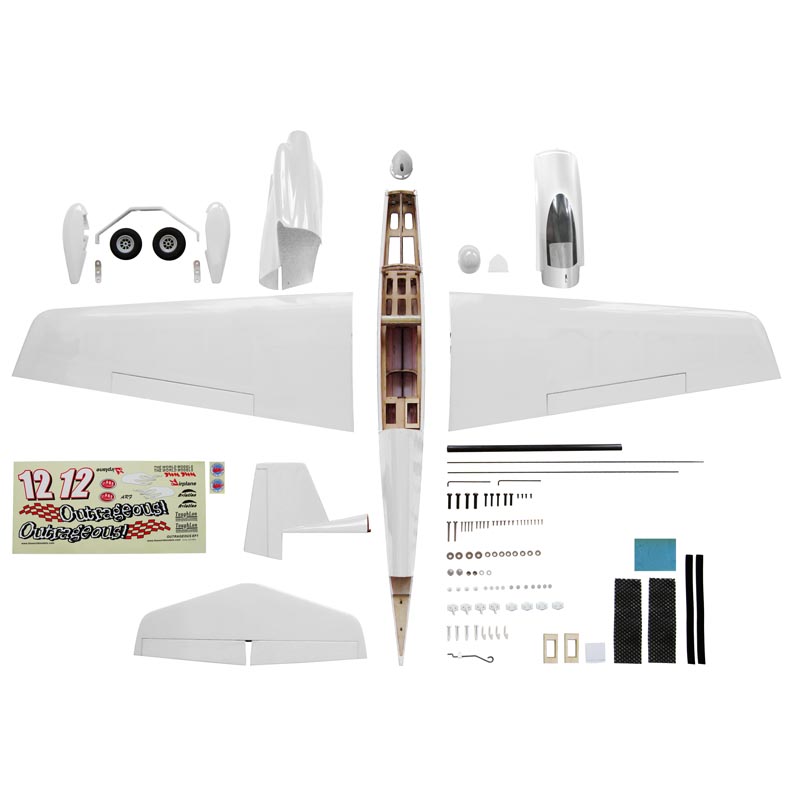

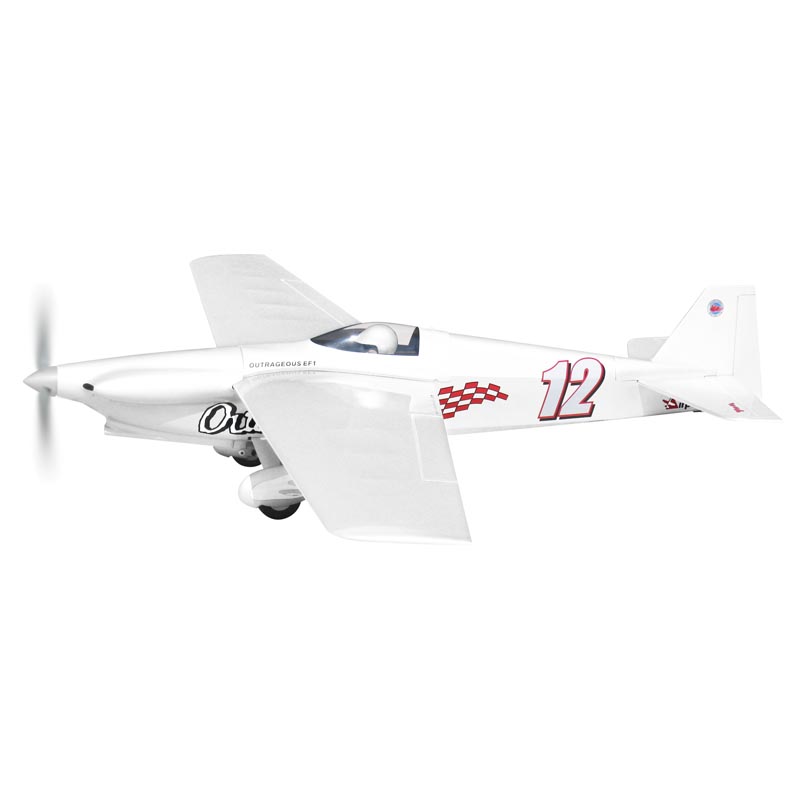

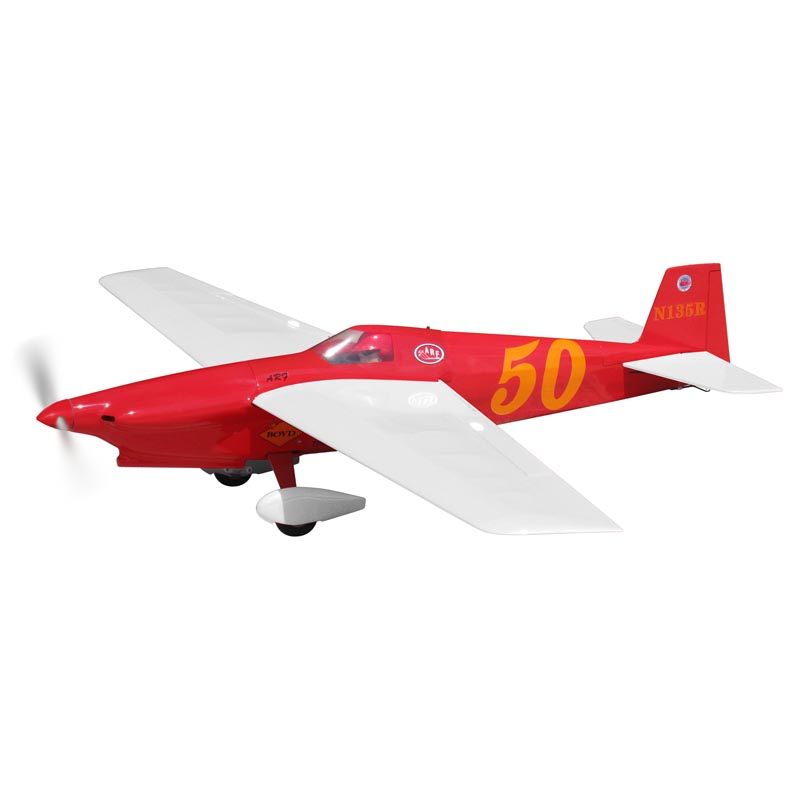

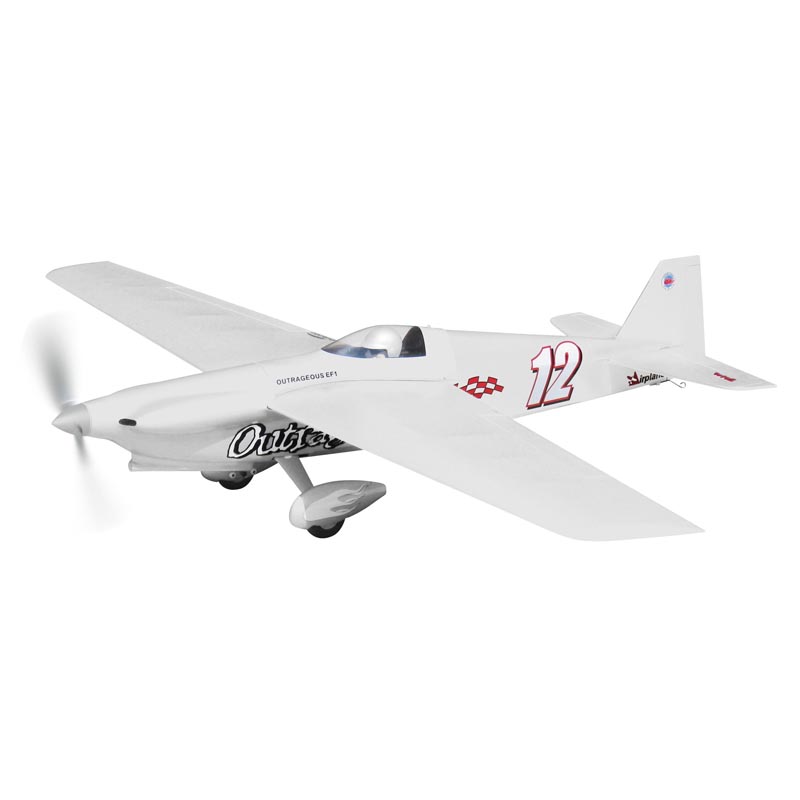

Pictures

Manual

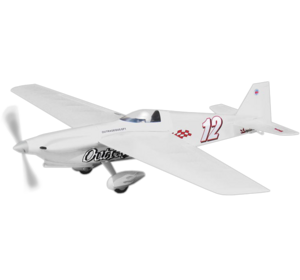

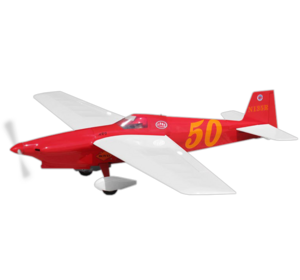

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1320mm (52 in)
Length: 980mm (38.6 in)

Weight: 1540 g (3.4 lbs)
Wingspan 52 in / 1320 mm
Wing Area 392 sq in / 25.3 sq dm
Flying Weight 3.4 lbs / 1540 g
Fuselage Length 38.6 in / 980 mm

Recommendations

  • Sport flying:
    • Outrunner Motor KM37490750 w/ Propeller Adaptor HW2340300
    • 40A Brushless ESC KC2040A02A
    • 11x8E Propeller PL6211108
    • 4 cells 14.8V 3200 mAh Li-Po battery & charger.
  • Pylon racing:
    • Any approved motor listed in the rules for NMPRA EF-1 Racing.
    • Any 60A ESC or greater, that does not exceed US$150 in cost.
    • Propeller shall be the APC 8 x 8 Thin Electric Propeller, part number LP08080E
    • Any 4S Li-Po battery that meets the NMPRA weight restriction rule.

Other Variant(s)
