Titan Micro Talon from Titan Dynamics

Details

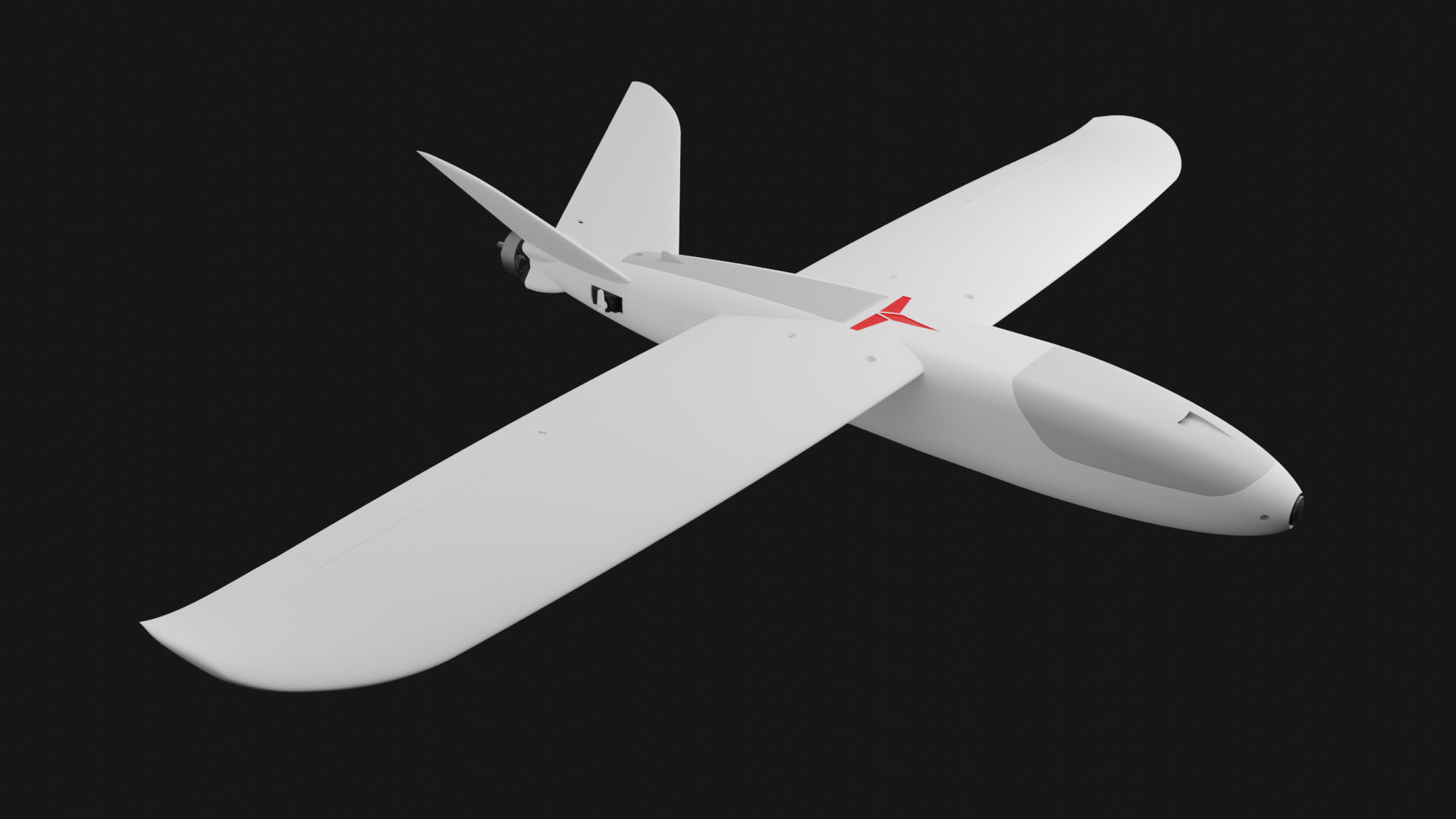

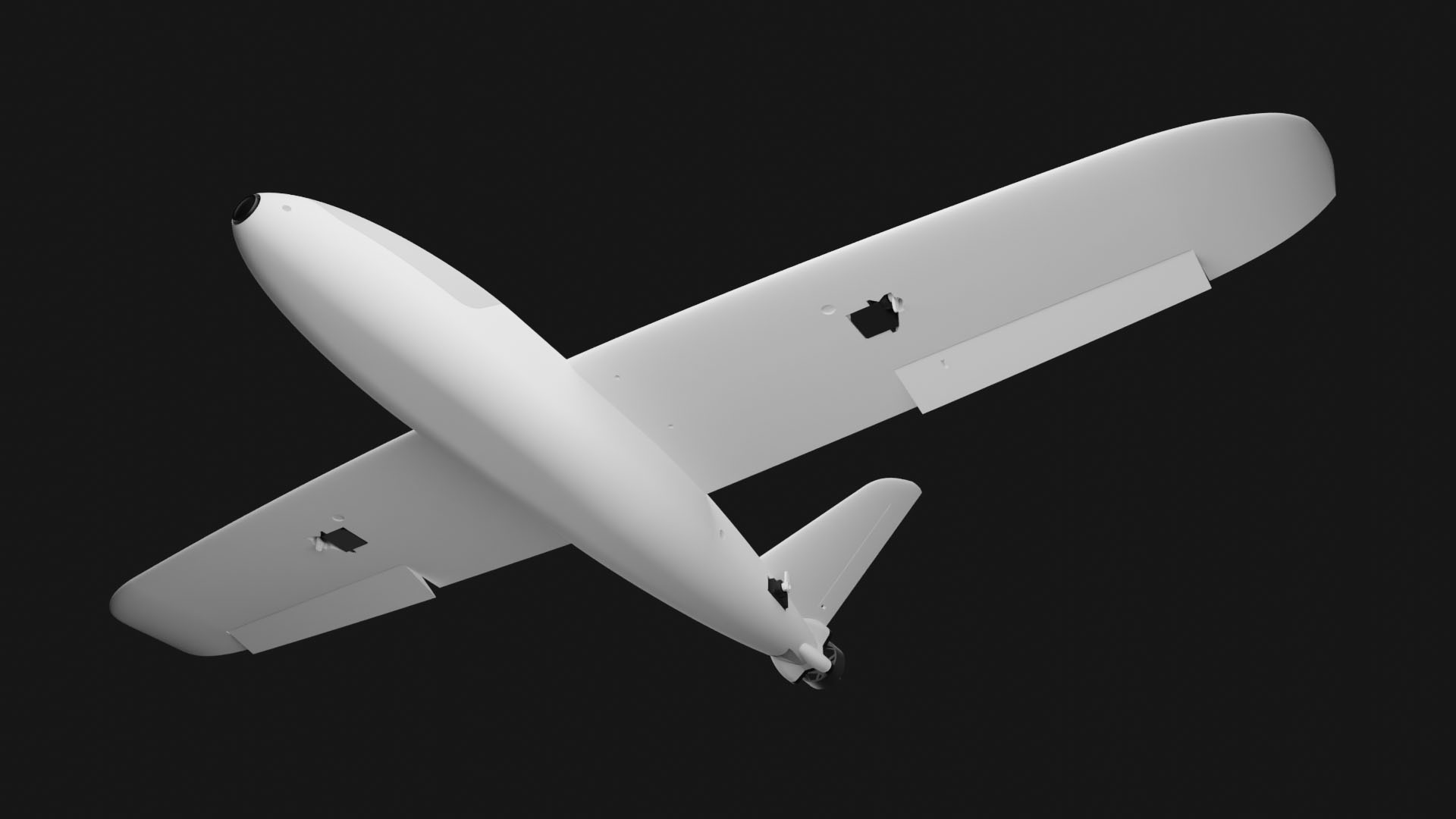

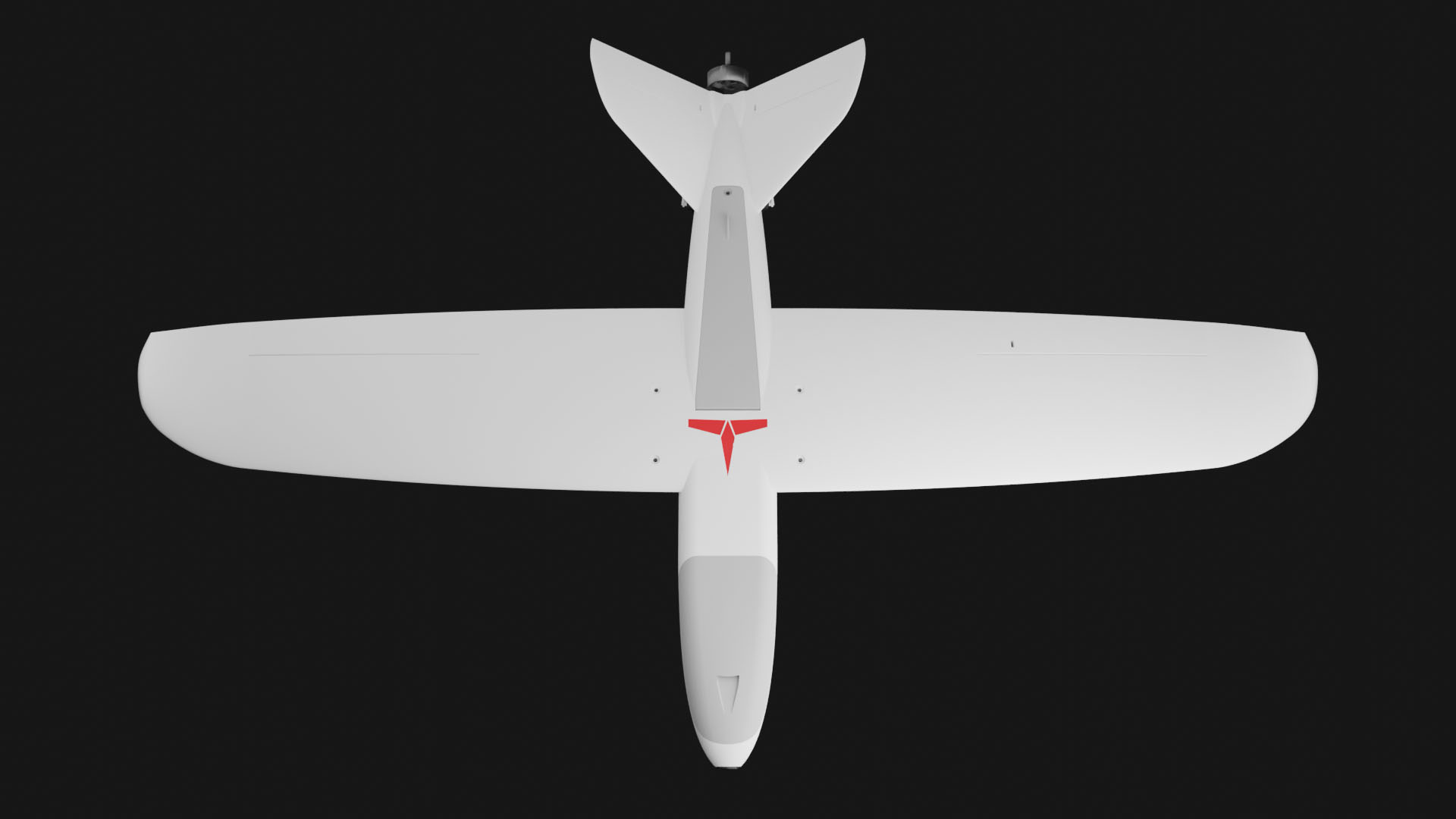

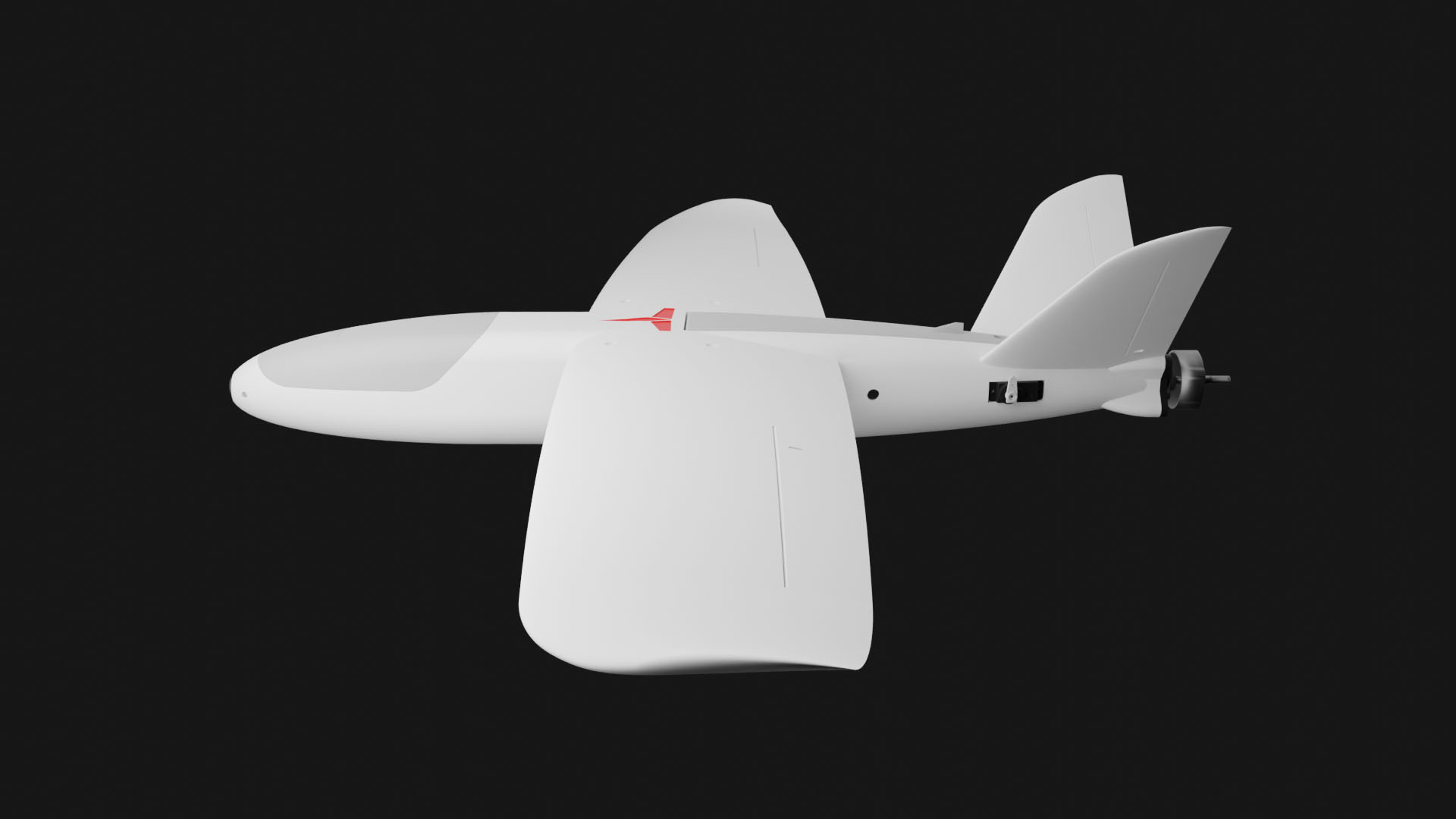

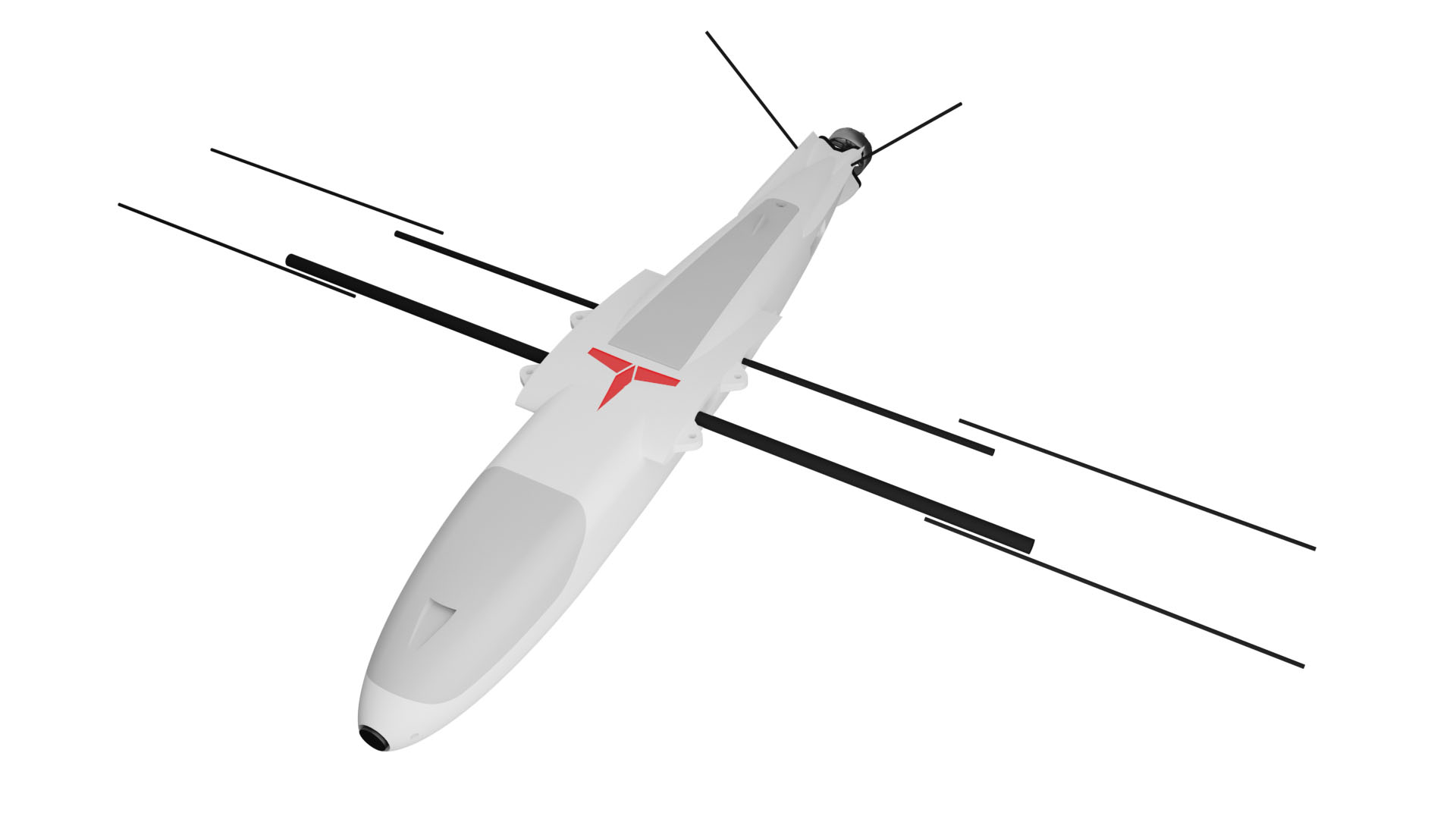

Introducing the Titan Micro Talon: A lightweight, long rangeable, ultra-portable 900mm wingspan FPV platform. Featuring a flight envelope ranging from high speed acrobatics to high efficiency cruise. Whether it’s flying around the park or shooting for a mountain peak, the Micro Talon is the tool for the job. The fuselage features a magnetic front canopy along with a hinged rear hatch with ample cooling and room for the electronics and battery. The wings and tail feature flush mounted servos for the flaperons and tailerons. The Micro Talon is capable of 140km max range and 2+ hours of flight time when using a 7000mah 4S2P 18650 paired with a Tmotor F90 (1300kv) and 7x5 prop. With higher kv 6S setups, a top speed of 250km/h is easily attainable.

Printable on smaller 180x180x180mm printers fully support-less. If you’re just getting started with 3D printed planes, this is the one for you!

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Titan Micro Talon in particular but at least we know they do distribute Titan Dynamics.

Where to buy


Wingspan: 900mm (35.4 in)
Length: unknown

Weight: 1700 g (3.7 lbs)
  • Wingspan: 900 mm
  • Wing Area: 1136 cm²
  • Maximum Take-off Weight: 1.7 kg
  • Efficiency: 0.56 Wh/km
  • Cruise Speed: 70-95 km/h

Recommended Equipments

  • Propeller: 7x5
  • Motor: T-Motor F90 1300 kV (or other motor light than  70g like 2203 or 2506)
  • Battery: Anything from a 2000mah 4S/6S Lipo to 4S1P 4,200mah Li-Ion
