Titan Quail from Titan Dynamics

Details

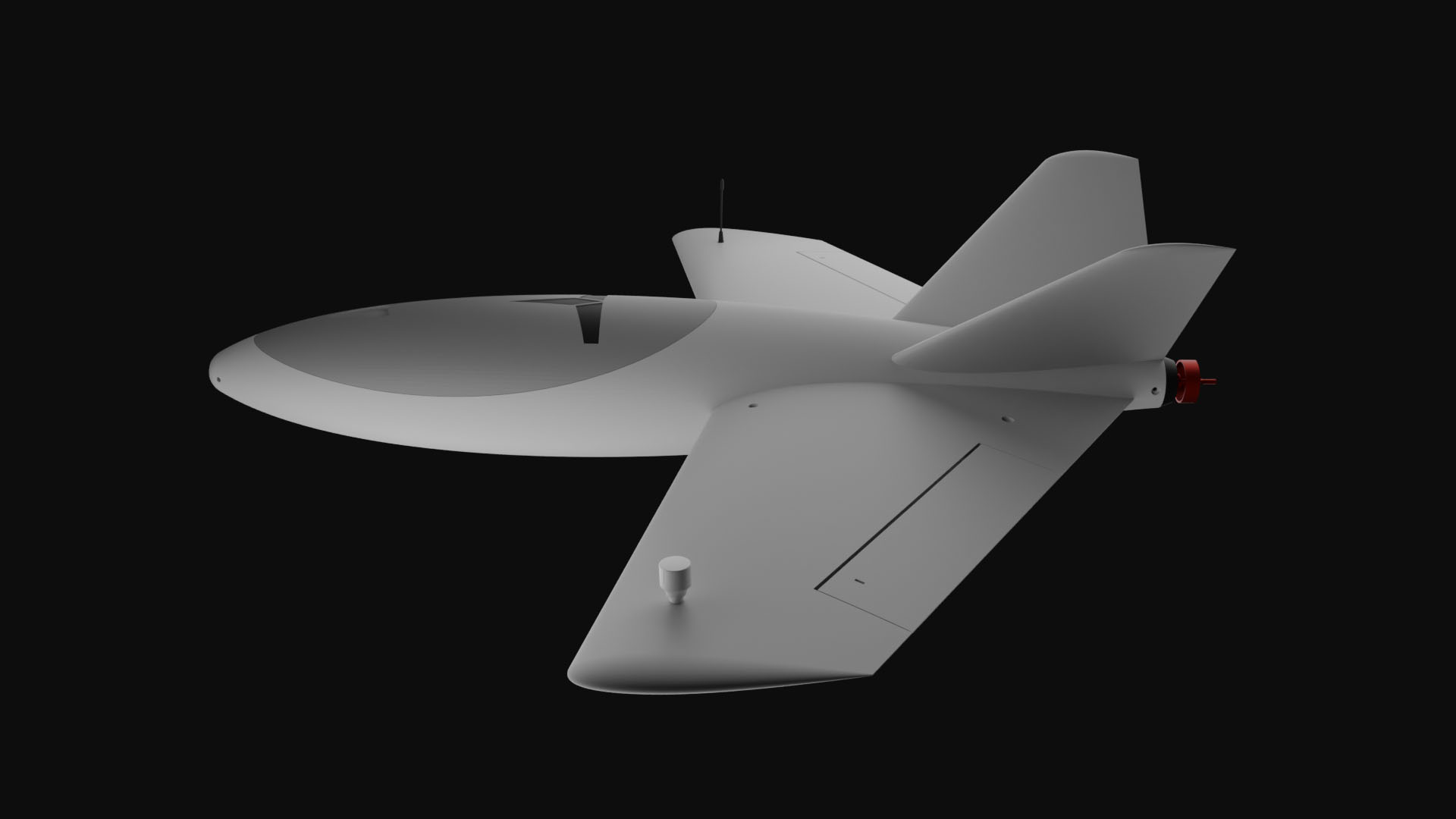

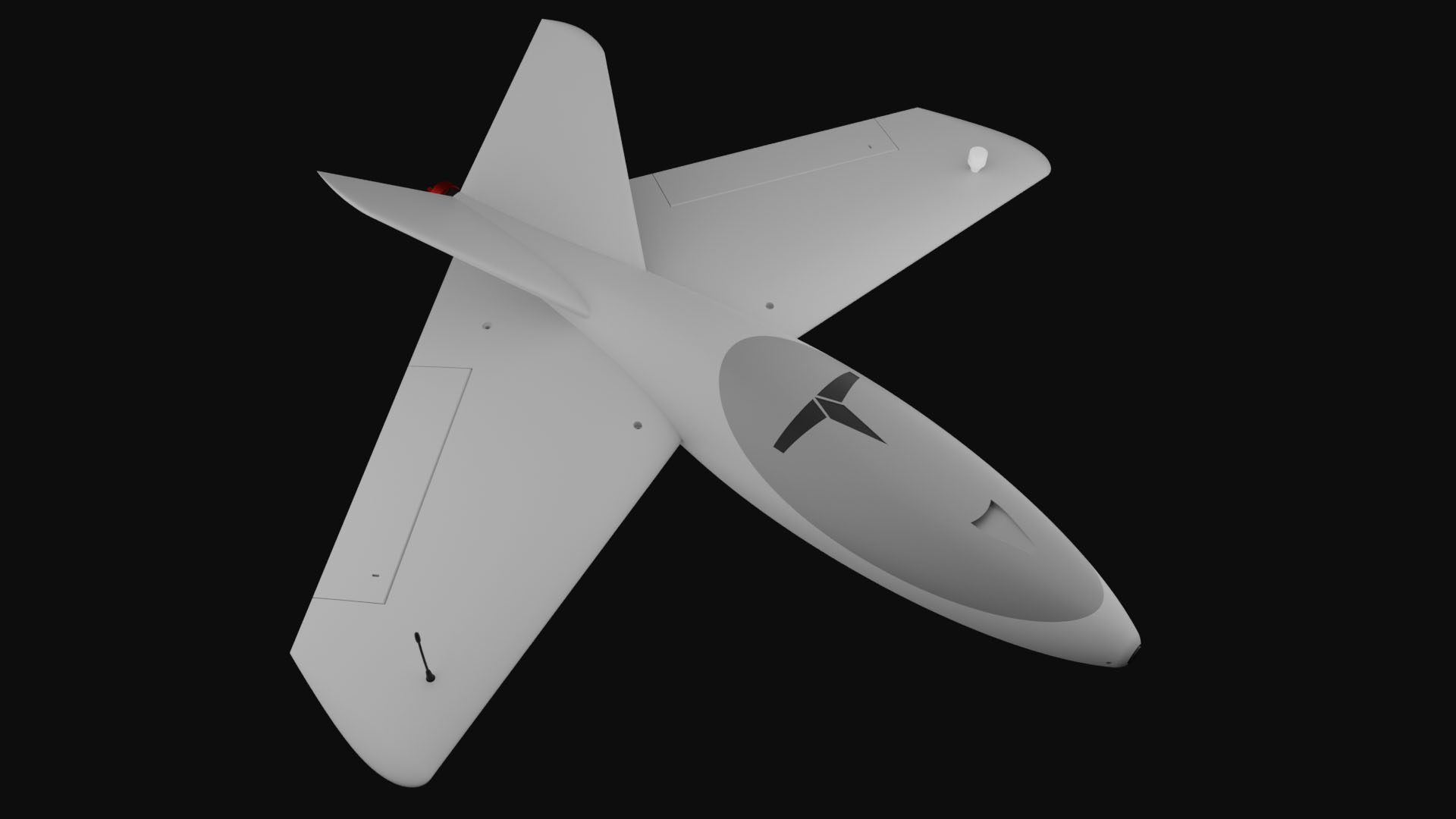

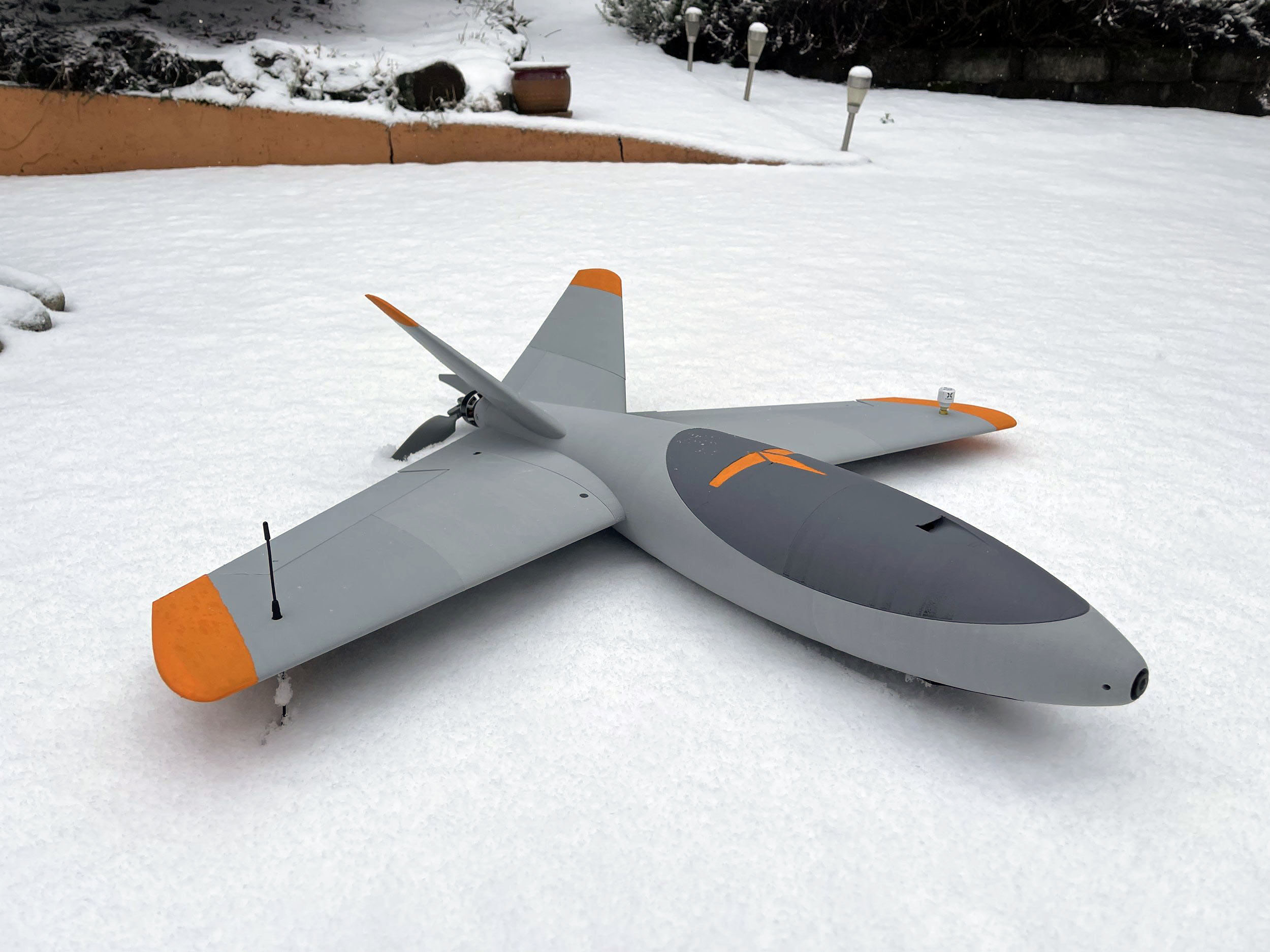

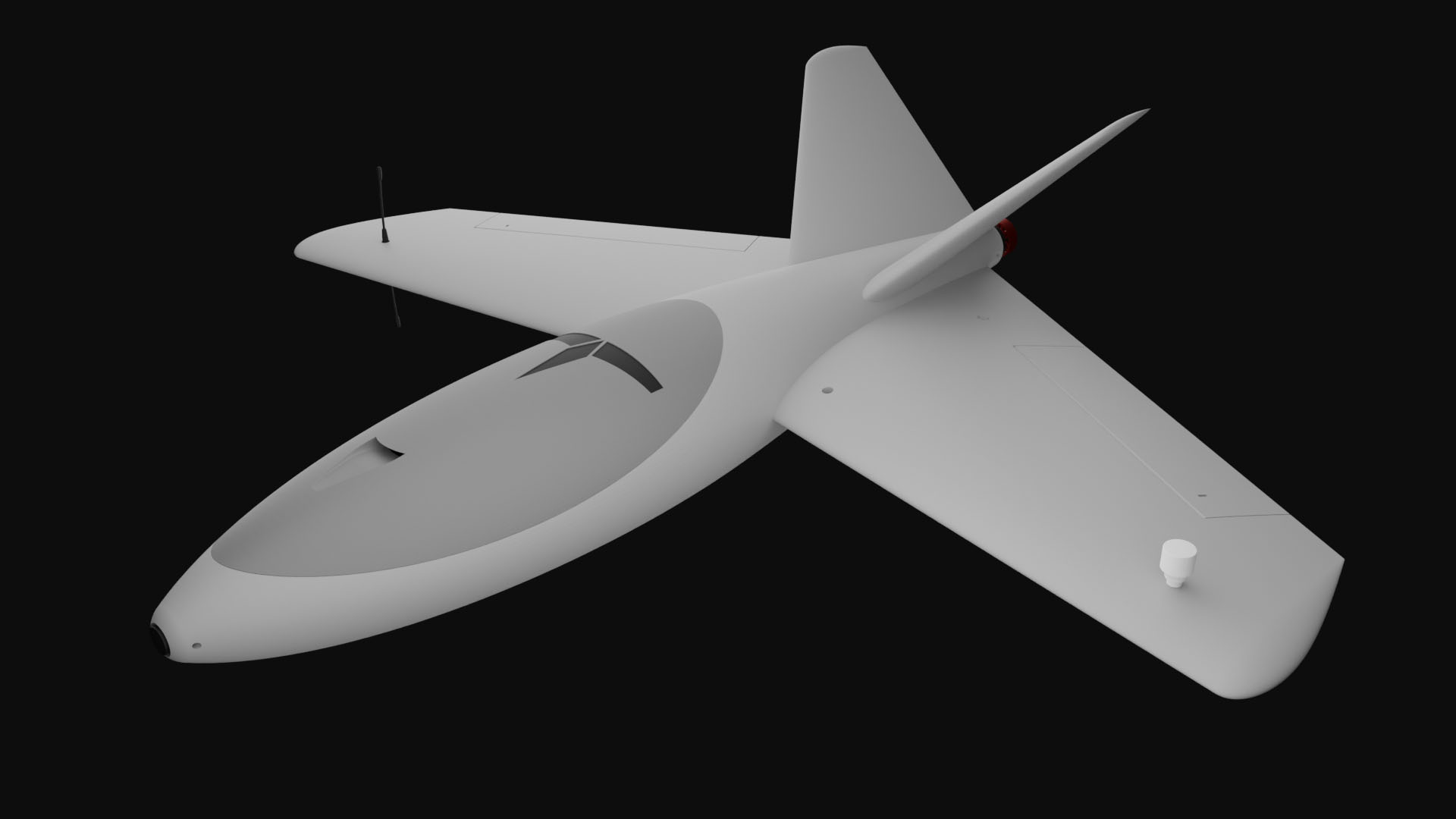

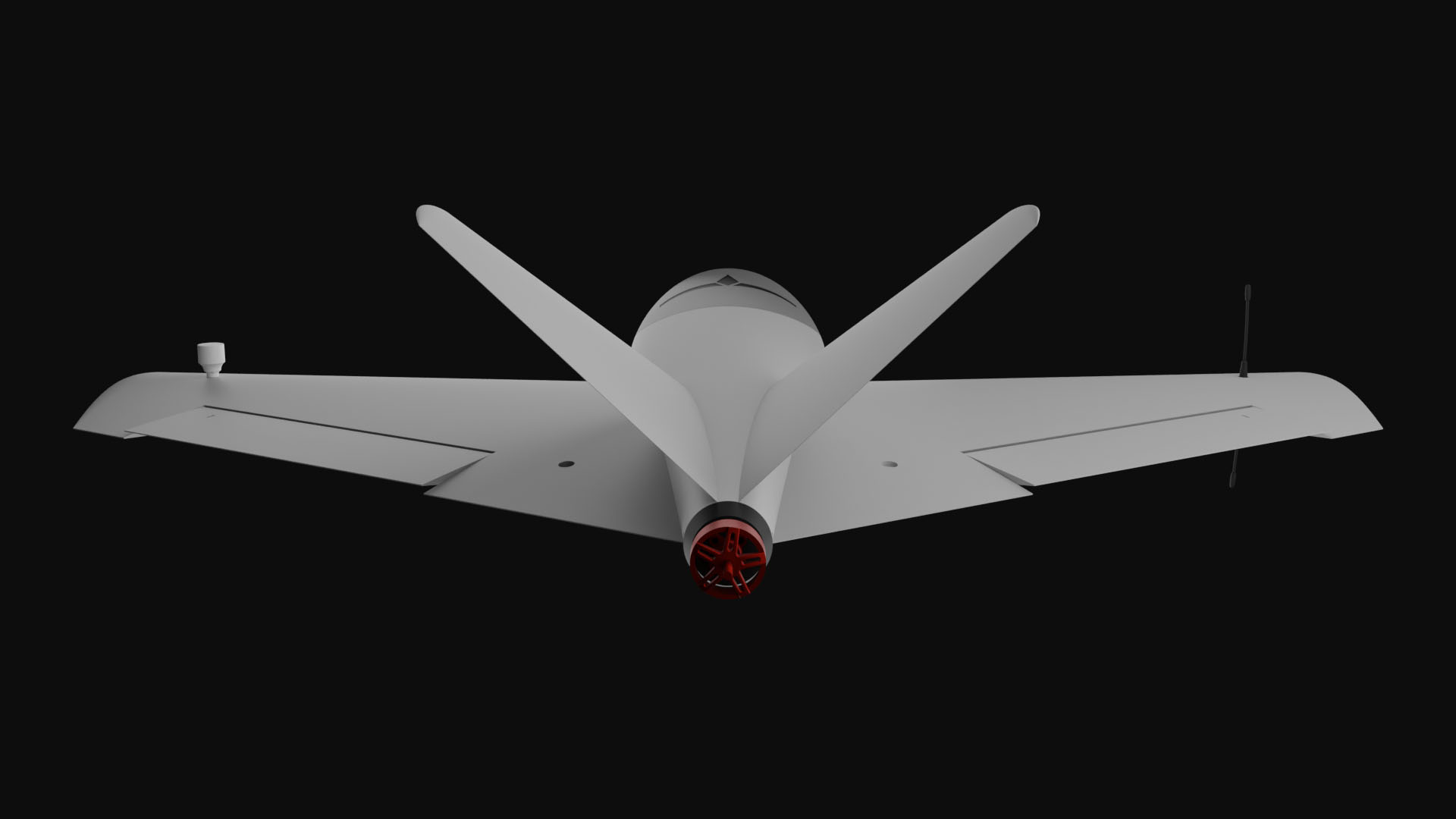

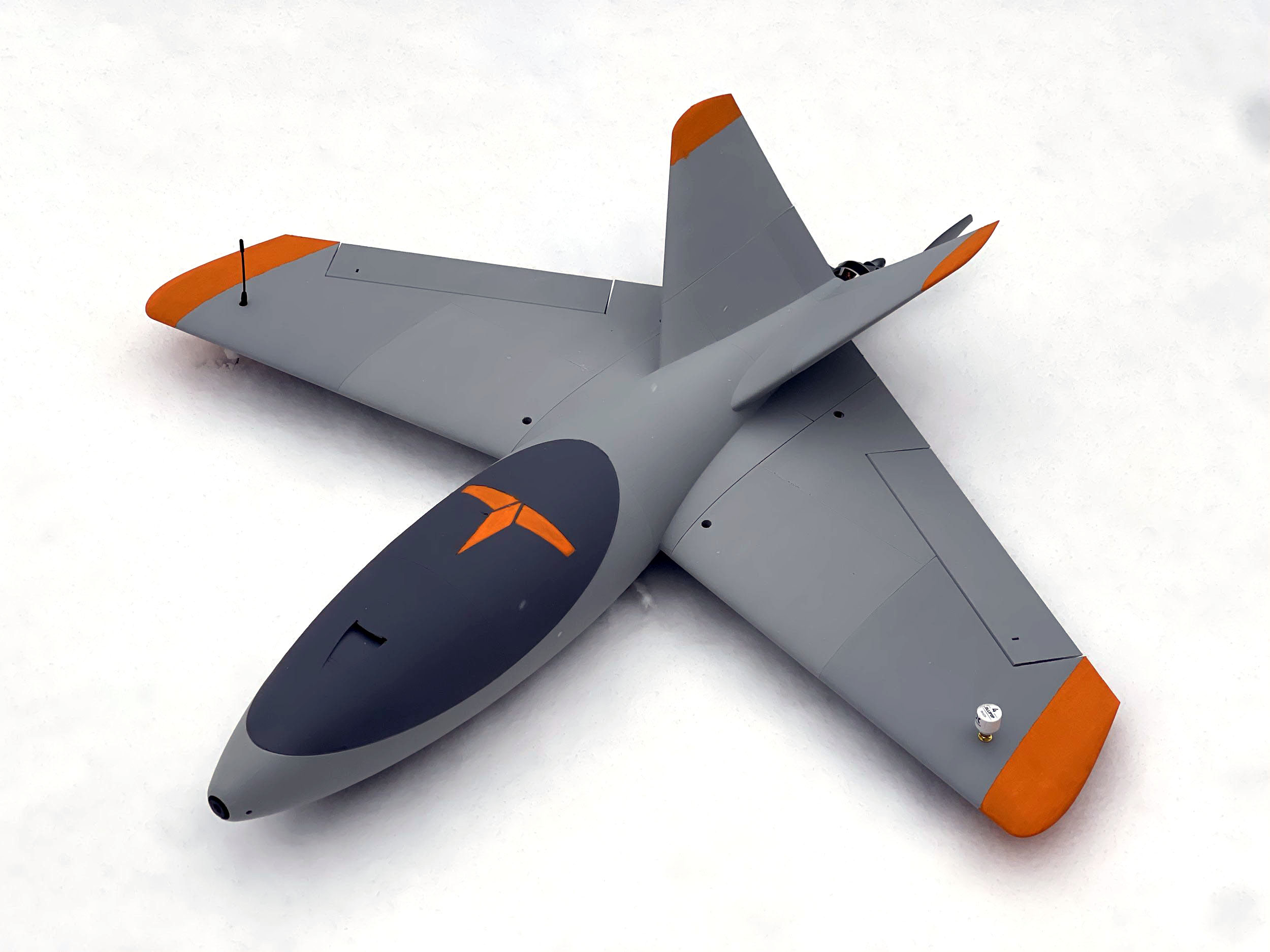

Introducing the Titan Quail, an 865mm wingspan FPV platform that can do it all. The Quail is an absolute blast to fly and boasts sharp, locked-in maneuverability with great efficiency. It’s quick and nimble while also being able to cruise gently through the scenery. It is both lightweight and strong enough to endure extreme high G maneuvering with the occasional harsh landing.

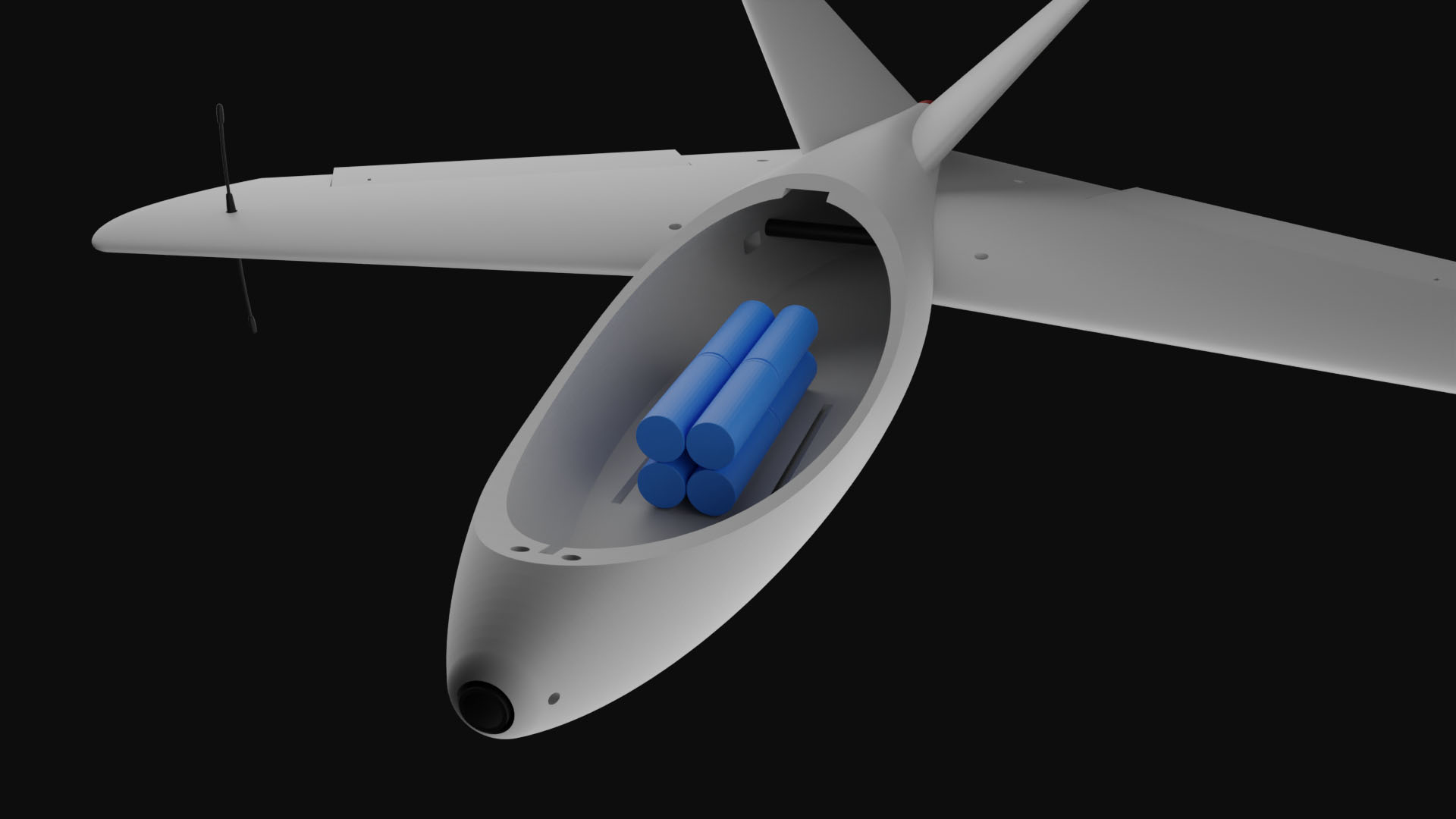

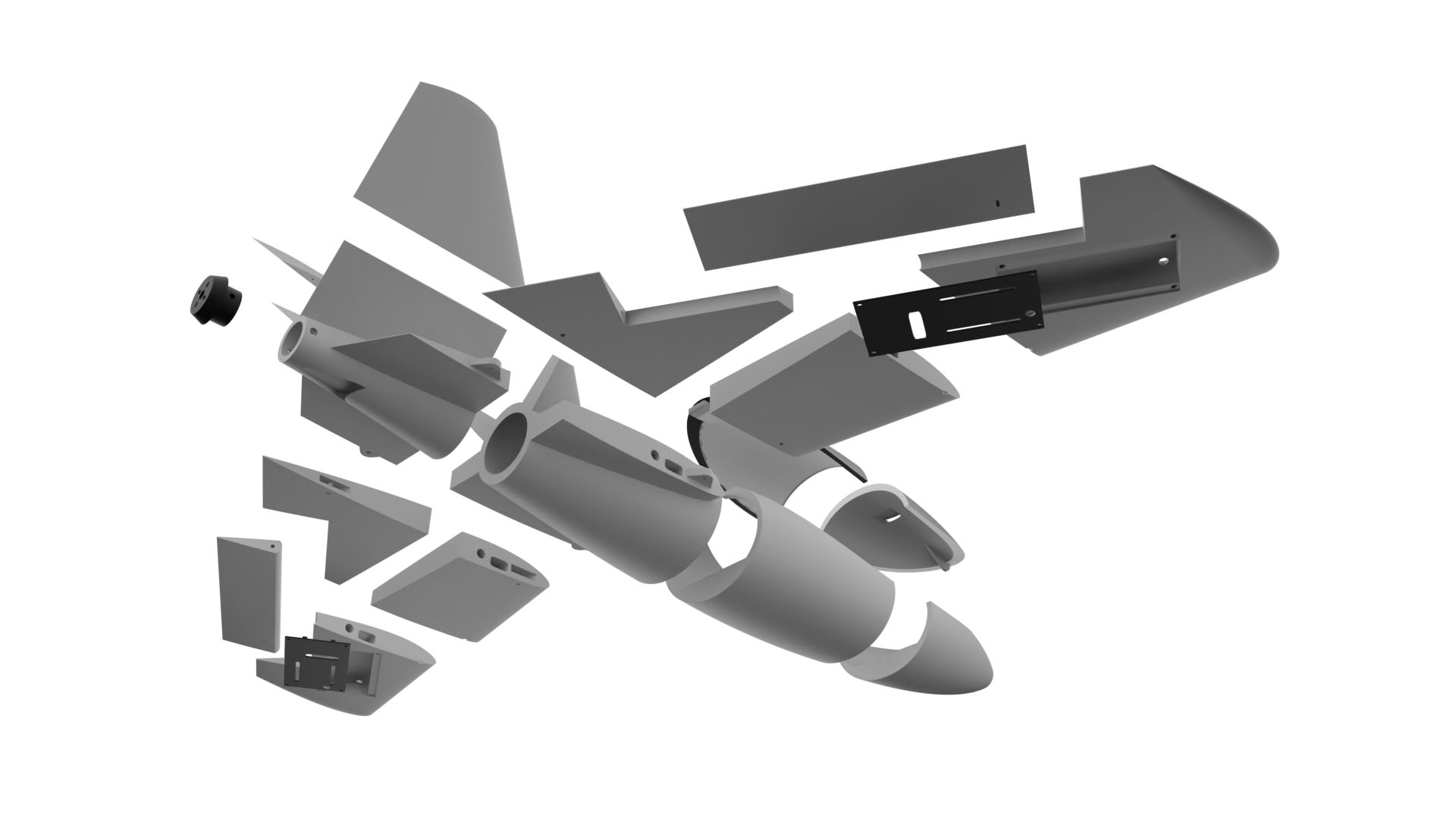

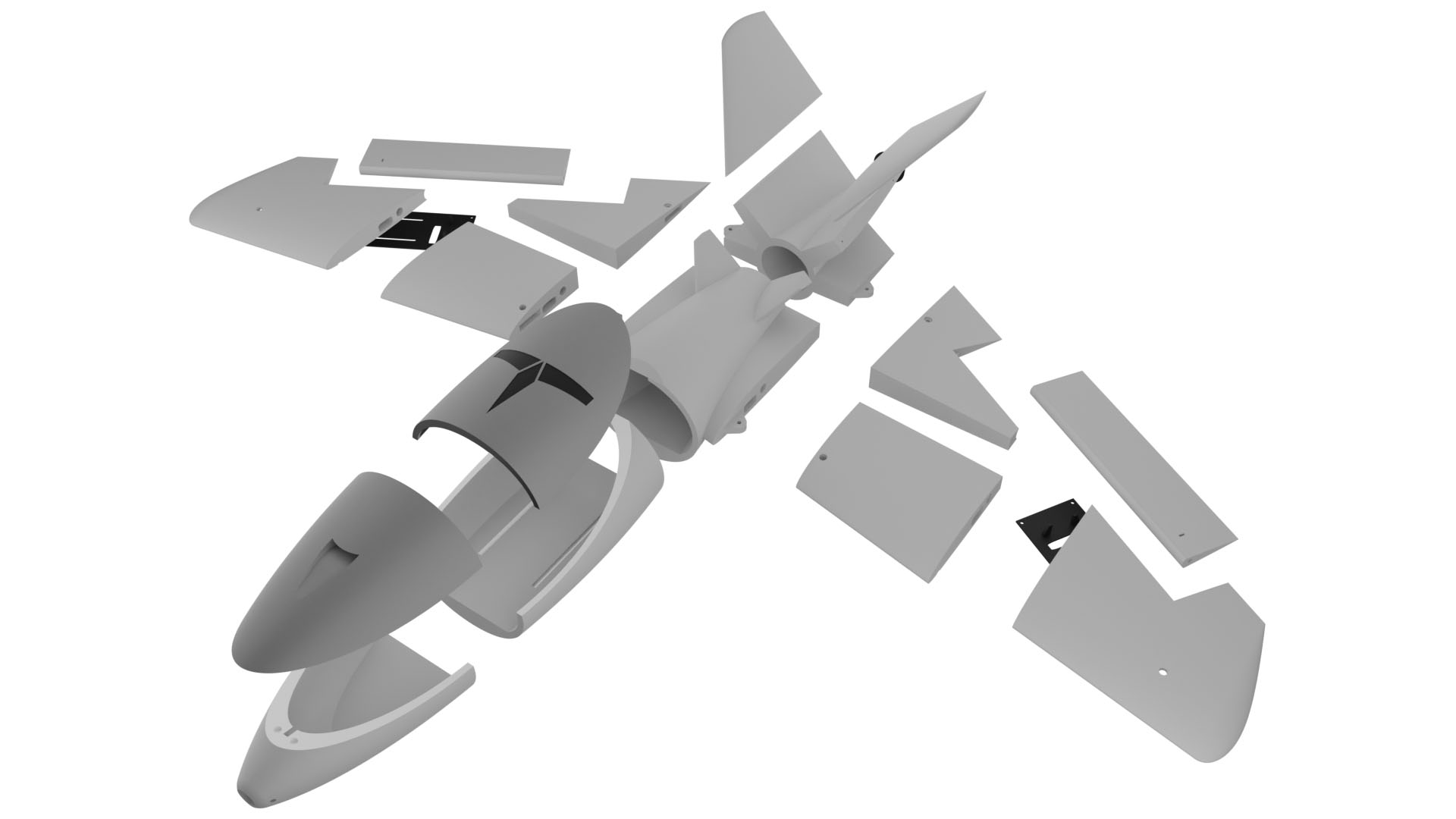

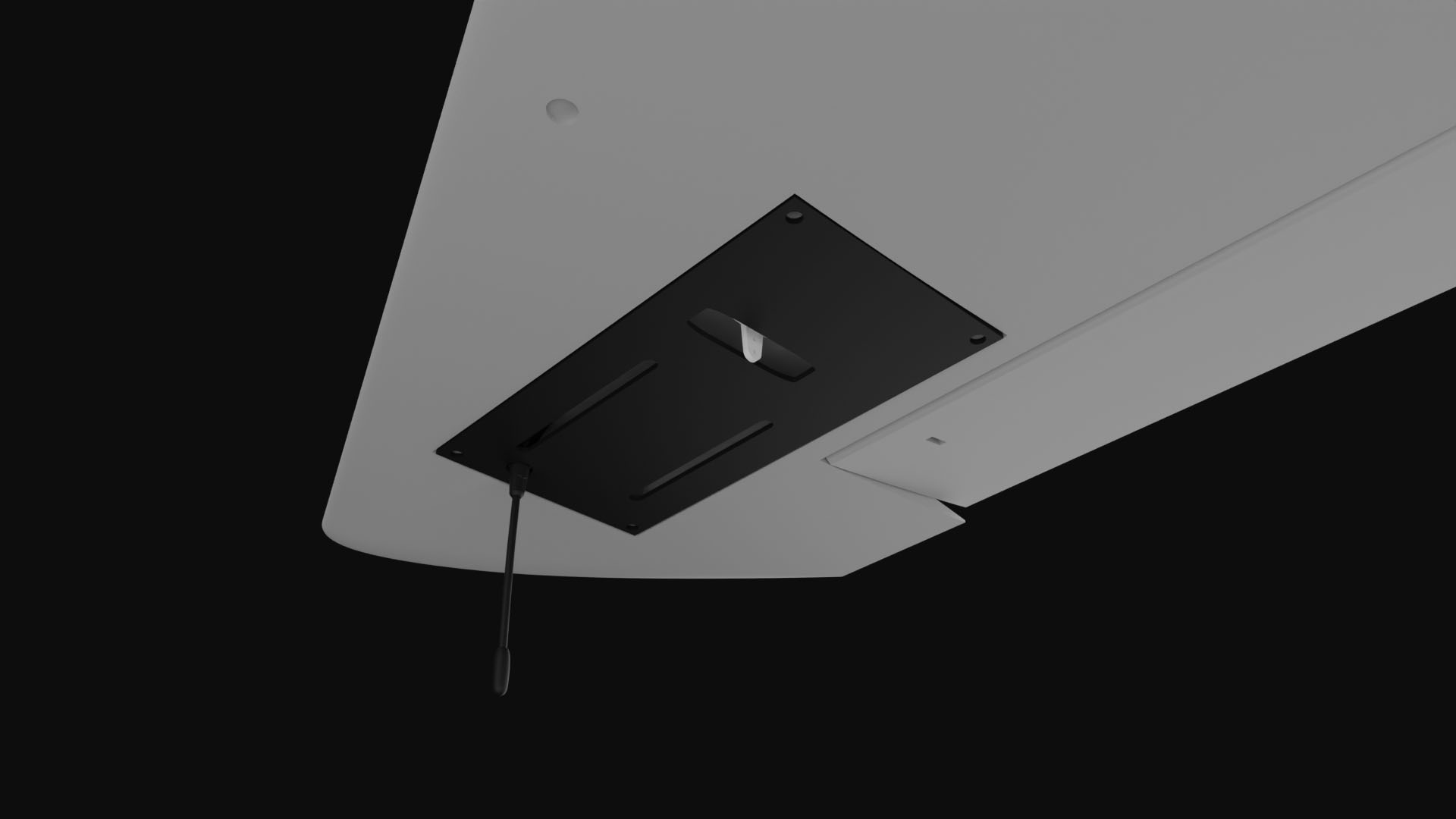

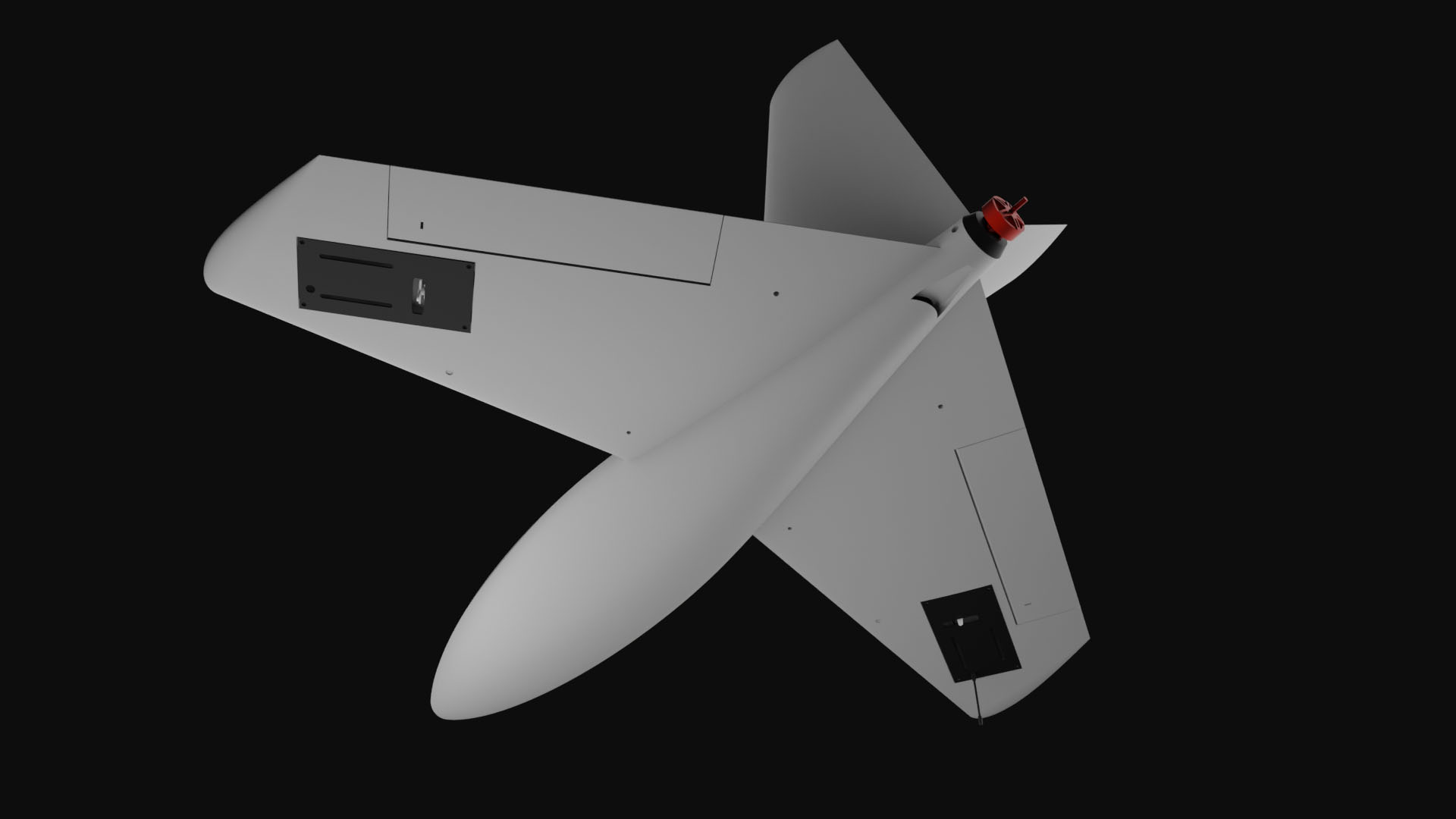

The Quail is compact yet has a spacious fuselage with ample room for a flight controller and large batteries. Underneath the wingtips are large wing bays which allow for mounting the receiver and video transmitter with maximized antenna separation for the best range. Quail was designed with simplicity in mind - needing only 2 servos for the elevons and a single motor in the rear - reducing the overall print time, build cost and setup time. It’s also printable fully supportless on smaller printers such as the Prusa i3.

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Titan Quail in particular but at least we know they do distribute Titan Dynamics.

Where to buy


Wingspan: 865mm (34.1 in)
Length: unknown

Weight: 2000 g (4.4 lbs)
  • Wingspan: 865mm
  • Wing area: 1920cm2
  • Maximum take-off Weight: 2.0kg
  • Efficiency: 1.1Wh/km
  • Cruise speed: 55-85kph
  • Maximum prop diameter: 12 inches

Recommended electronics:

  • TBS crossfire / ELRS / Dragonlink
  • 5.8ghz / 1.2ghz video (19x19 camera)
  • Matek F405-WTE flight controller or similar
  • Matek M8Q-5883 GPS/Compass or similar
  • 35a BLHeli ESC
  • (2) Emax ES08MAII servos
  • Battery: Anything from a 4,000mah 4S/6S Lipo to 4S4P 14,000mah Li-Ion

Variants

quail
Titan Quail (LW-PLA)
