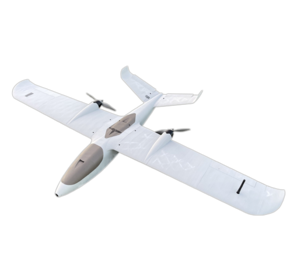

Titan Raven from Titan Dynamics

Details

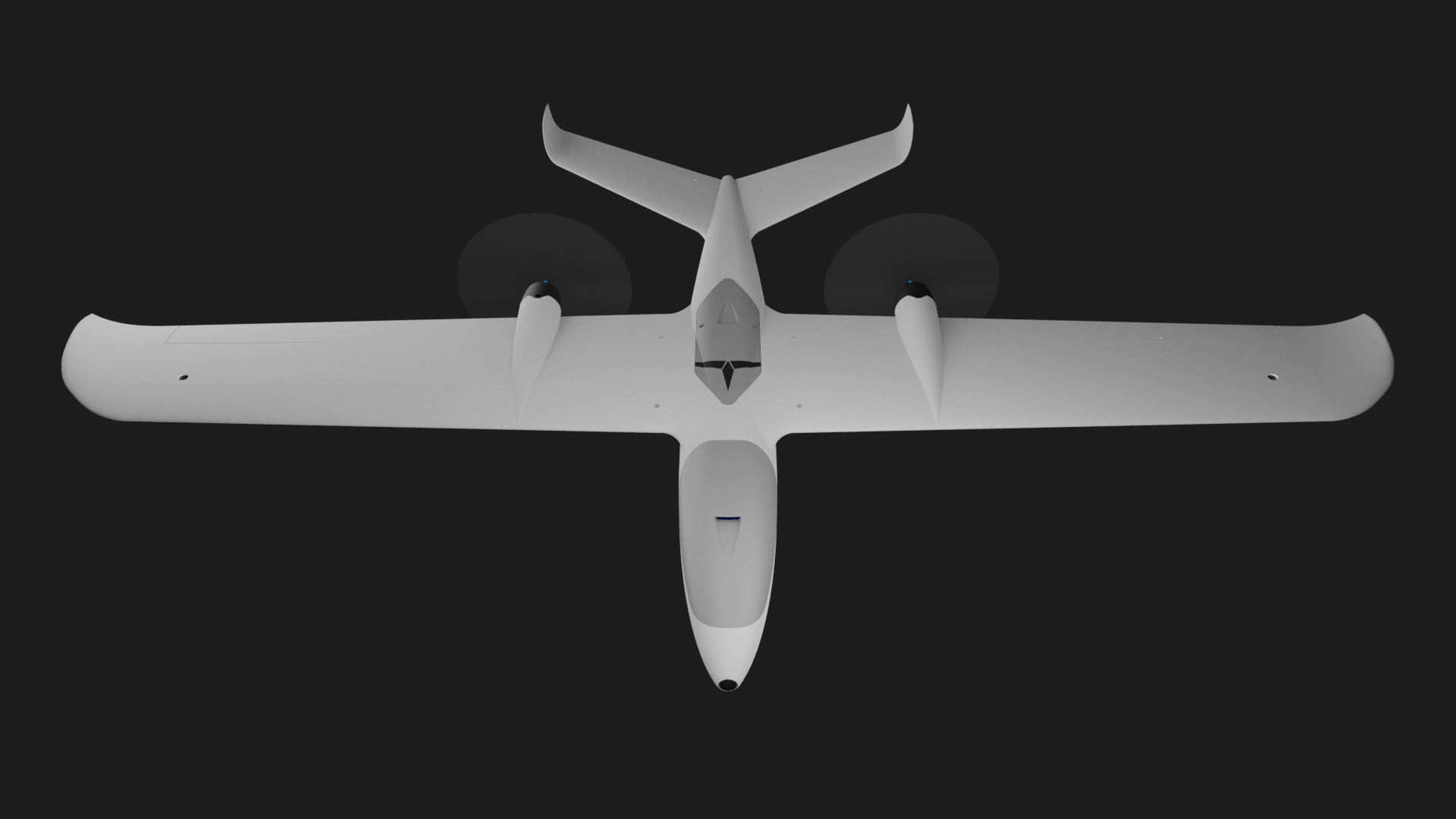

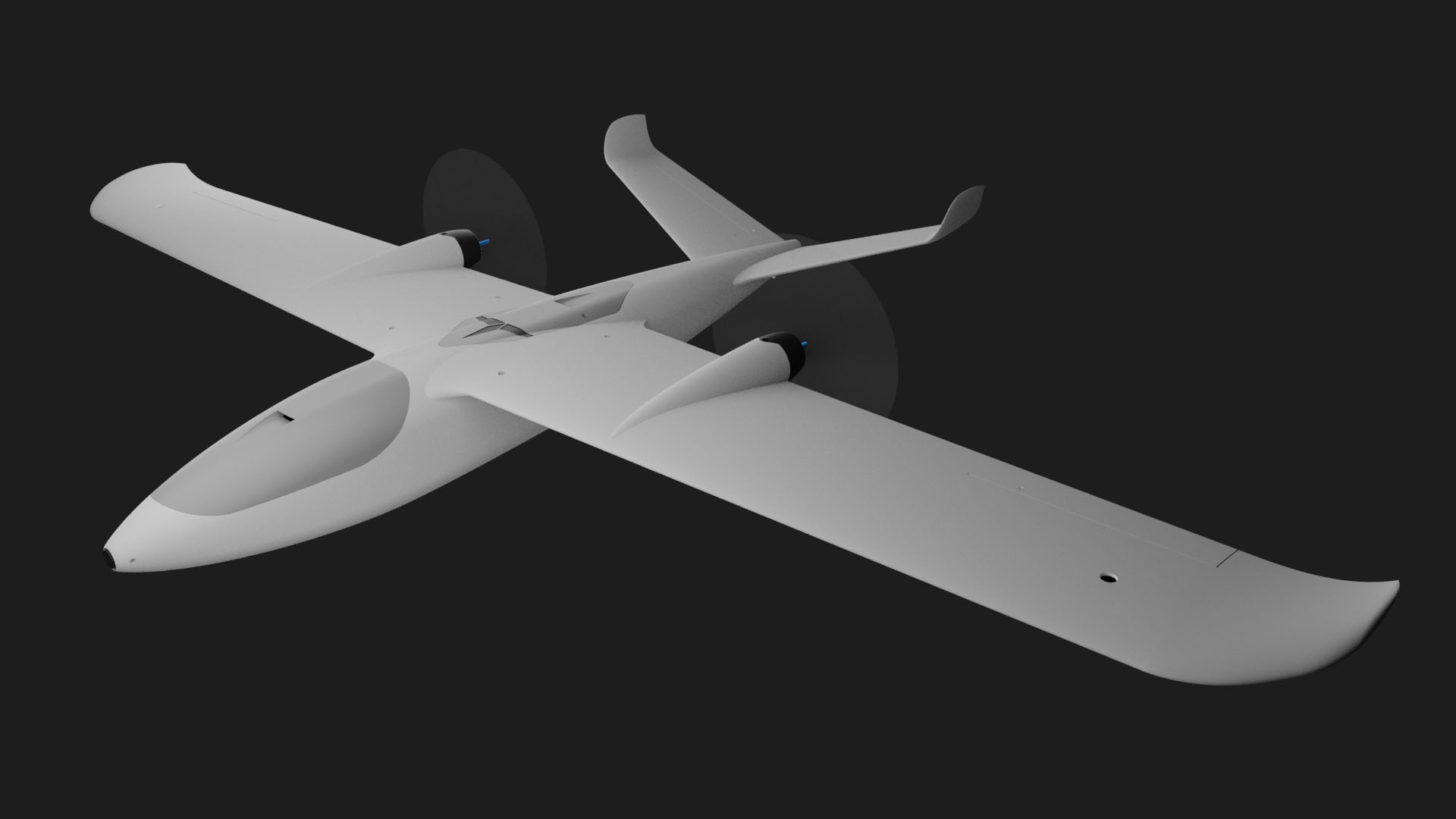

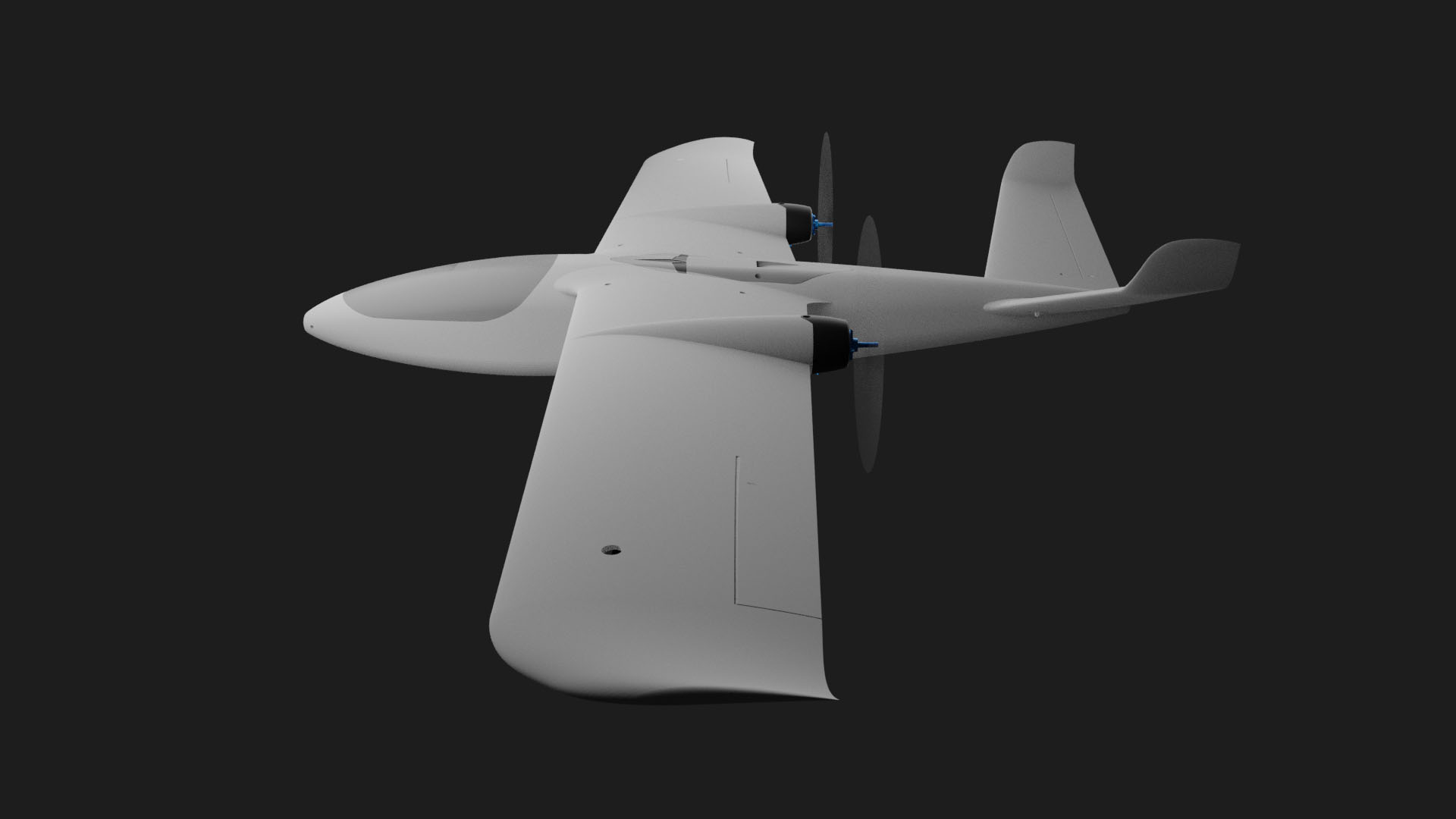

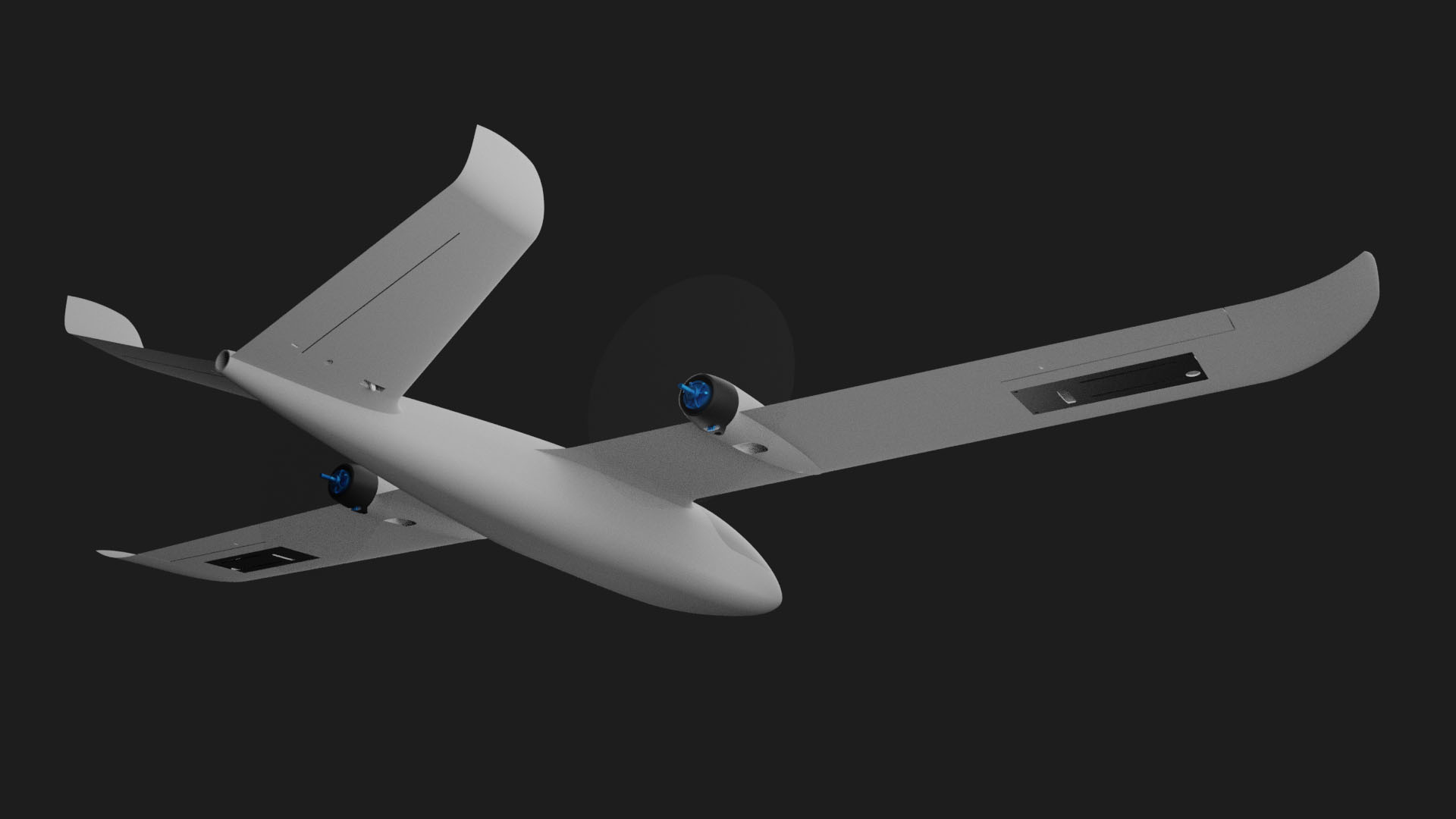

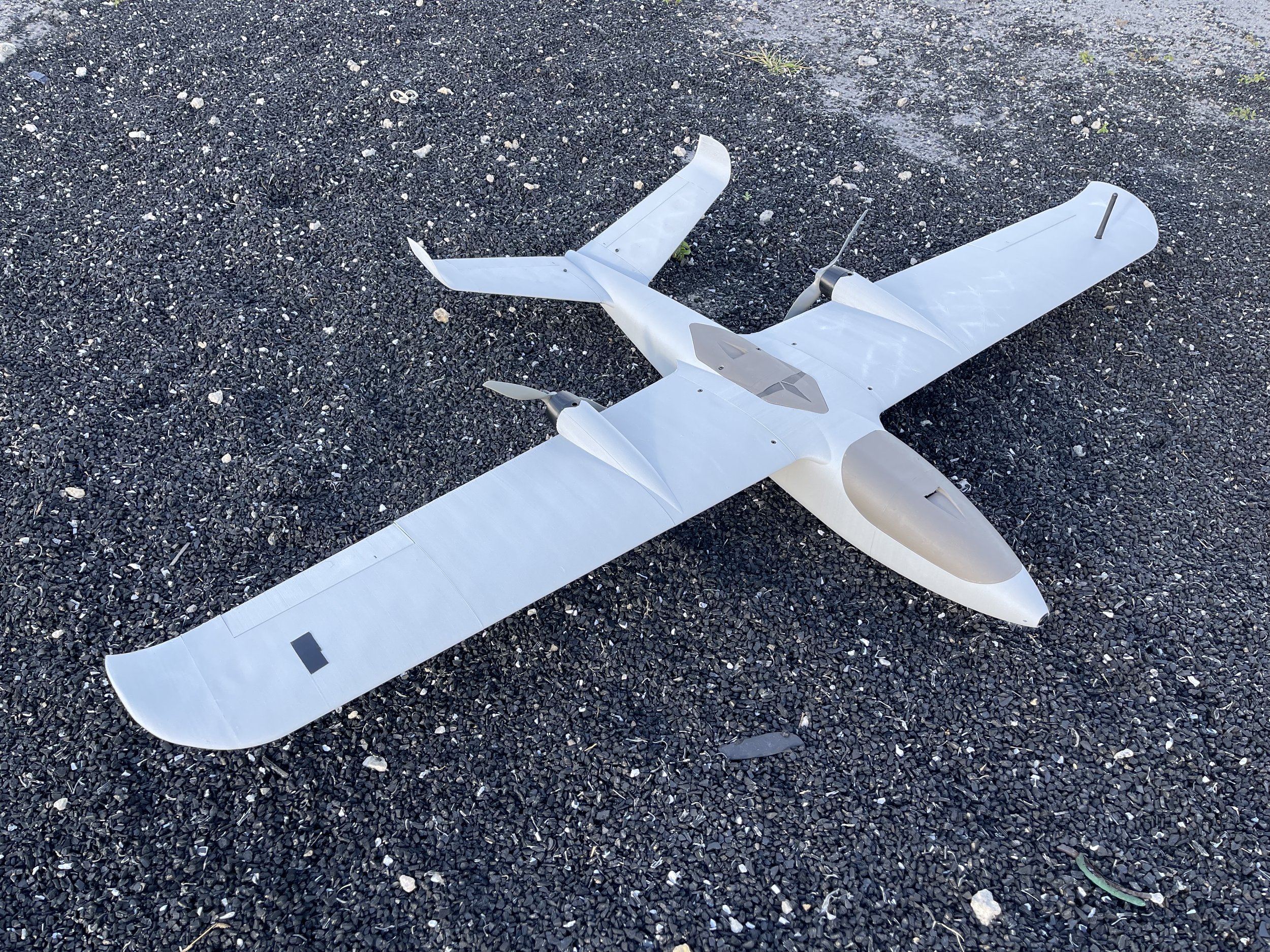

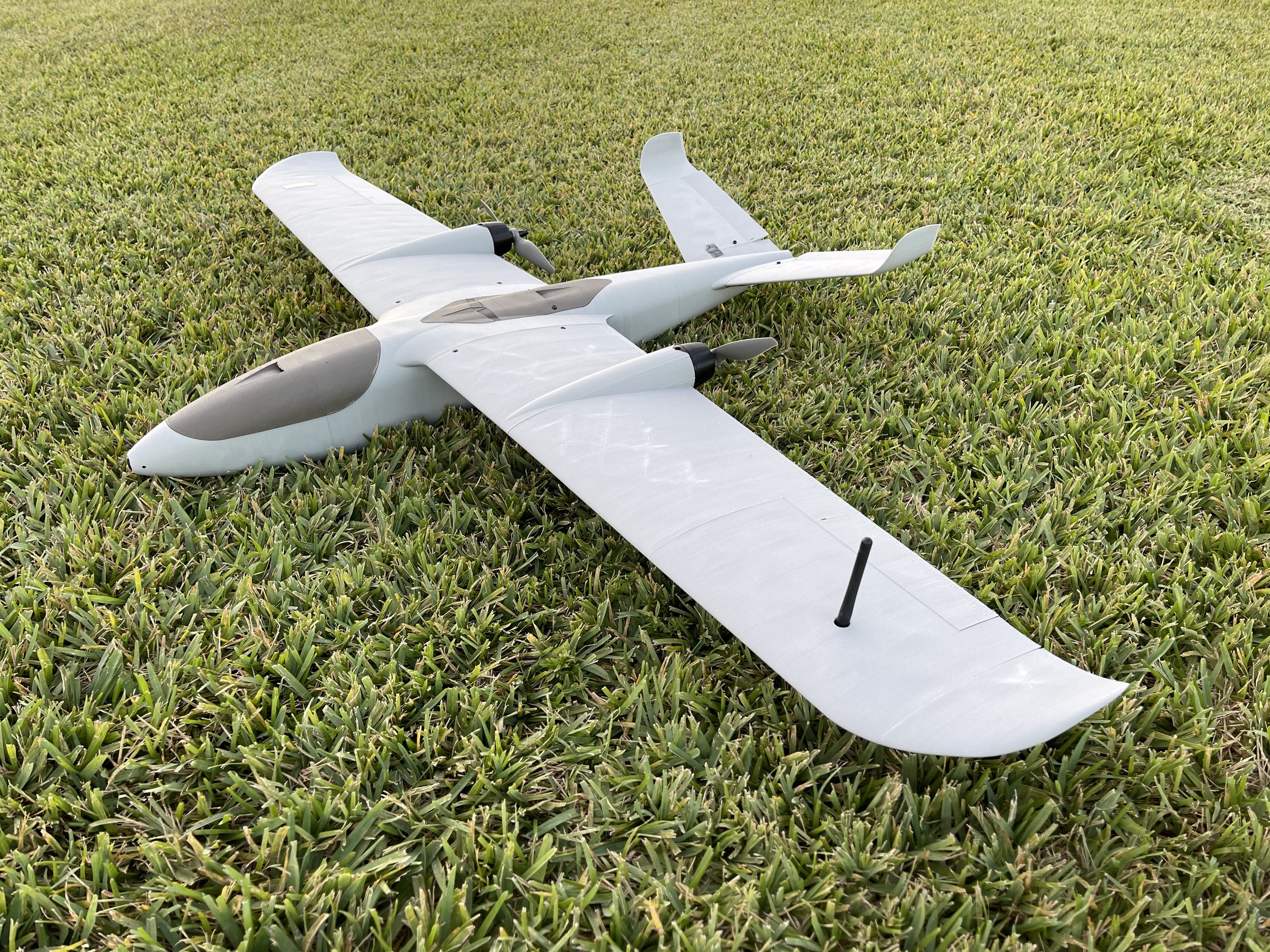

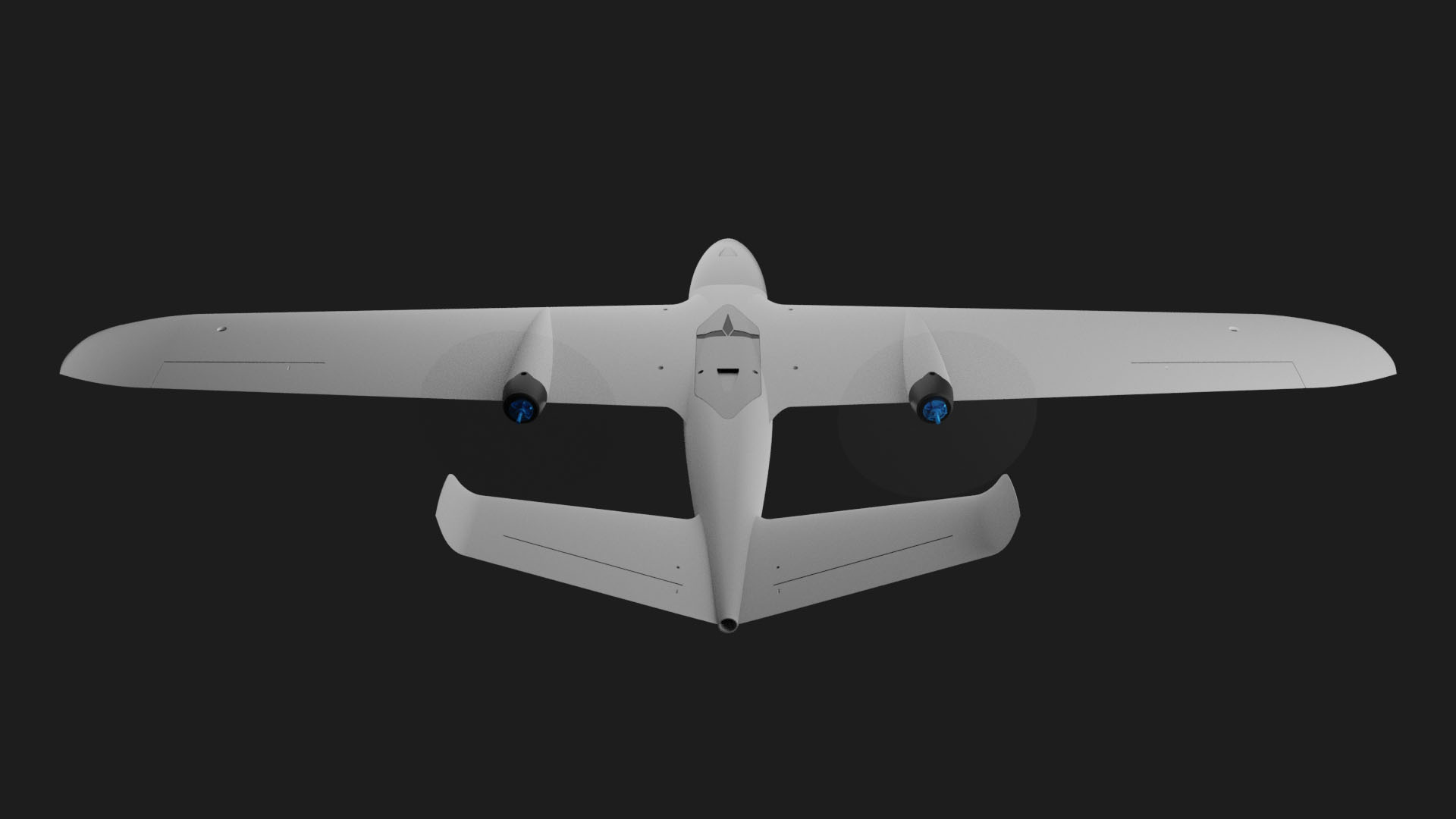

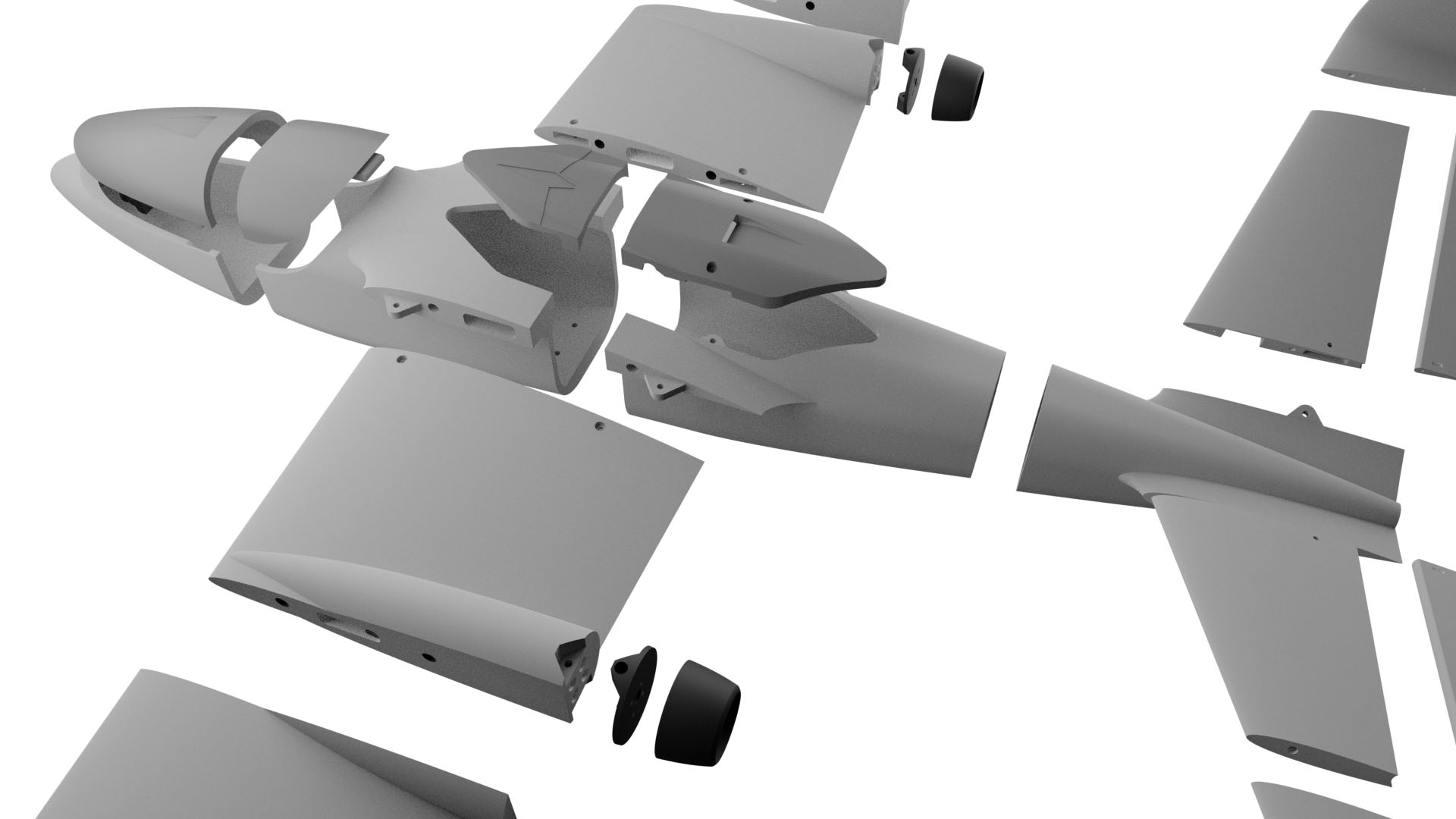

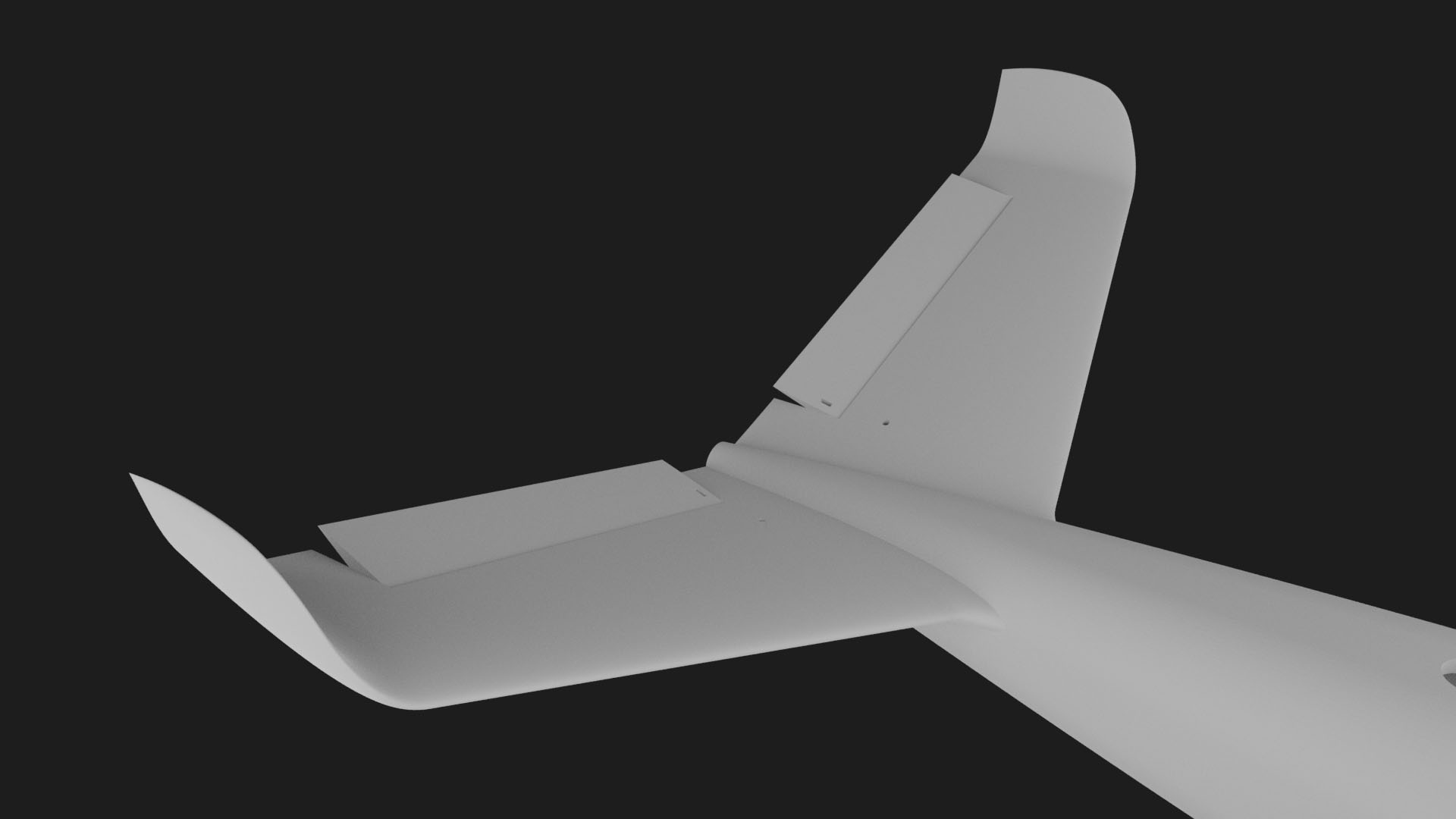

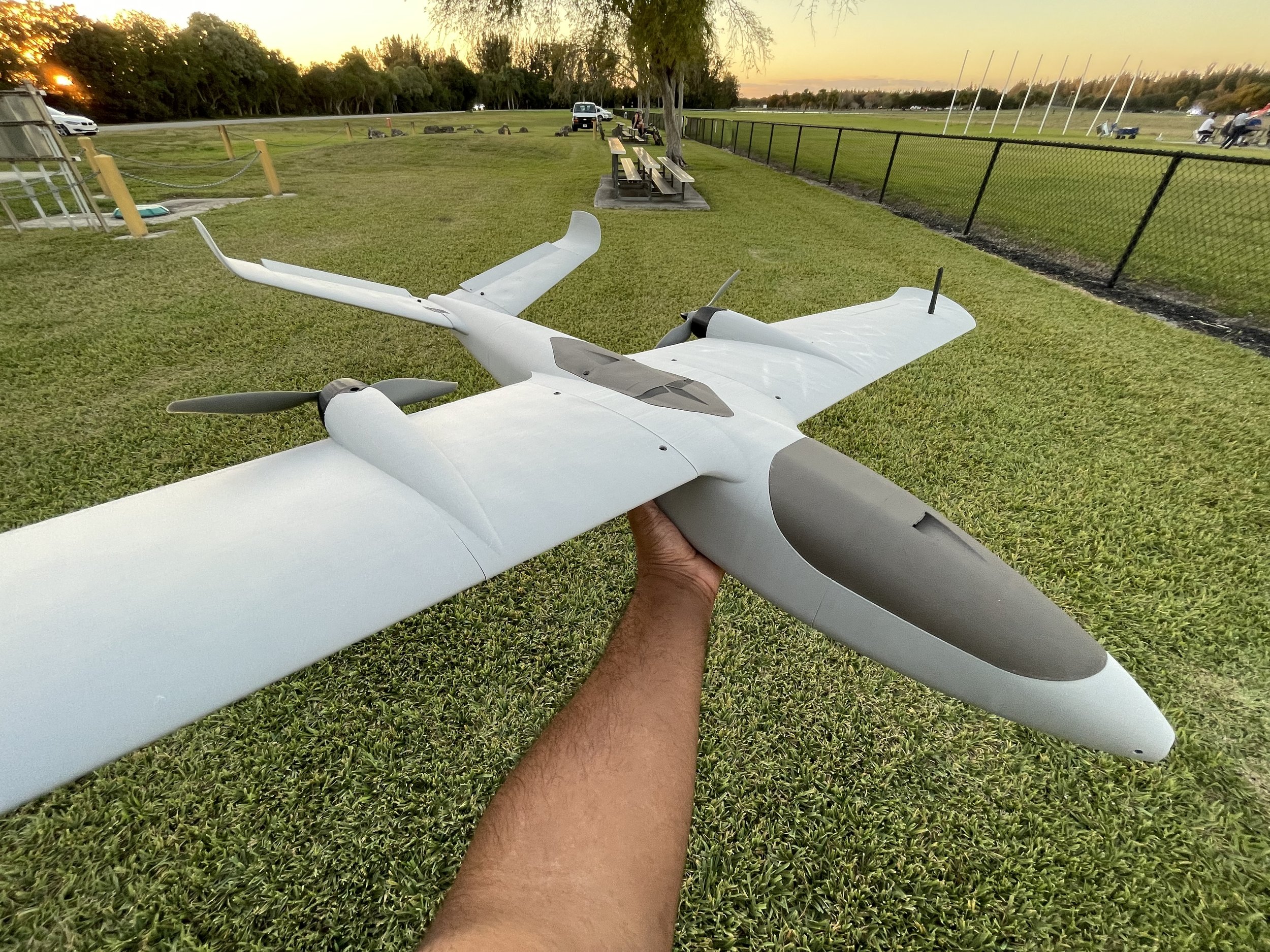

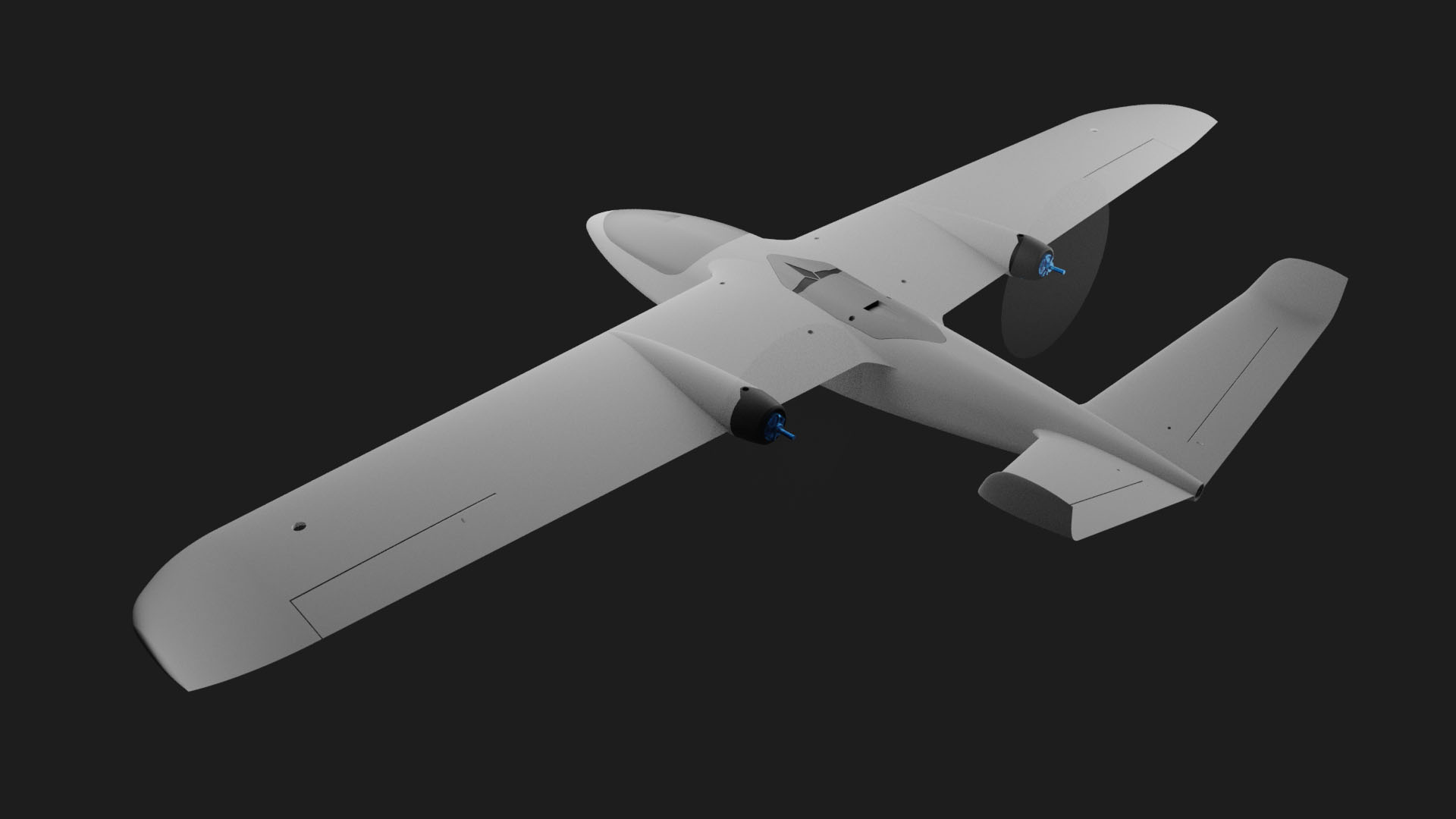

It’s unlikely you’ll find another model aircraft like the Titan Raven. Its twin-pusher motor layout and shallow v-tail make it truly unique – giving it a distinct look in the sky that is sure to stir up interest. Coming in at 1.6 meters of wingspan, this bird is capable of multiple hours of mixed agility flight. Speaking of agility, the Raven cuts through the air like a hot knife through butter – with purpose and excellent handling. Extensive CFD analysis went into creating Raven, giving it the unique look while preserving pitch, roll, and especially yaw stability. For ideal yaw control and turn coordination, we recommend using differential thrust. Not only can the wings be removed but also the stabilizers in the tail, making it easy to carry along to your favorite flying spots. As with all of our models, antenna separation is maximized via large bays underneath the wings for the VTX and RX. Pictures do not do it justice, and we’re certain you’ll be spending lots of time just looking at it from every angle. We hope you enjoy many flights with this beautiful machine.

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Titan Raven in particular but at least we know they do distribute Titan Dynamics.

Where to buy


Wingspan: 1607mm (63.3 in)
Length: unknown

Weight: unknown
  • Wingspan: 1607mm
  • Wing area: 3205cm²
  • Maximum take-off Weight: 5kg
  • Cruise speed: 60-70kph

Recommended motor & prop:

  • 16-19mm mounting pattern
  • 2212 / 2216 up to 28xx size (ideally 2216)
  • 8-10 inch prop (ideally 9x6 CW/CCW)

Recommended electronics:

  • TBS crossfire / ELRS / Dragonlink
  • 5.8ghz / 1.2ghz video (19x19 camera)
  • Matek F405-WTE flight controller or similar
  • Matek M8Q-5883 GPS/Compass or similar
  • 35a BLHeli ESCs (place in the fuselage)
  • (4) Emax ES08MAII servos
  • Example battery for fun flying: 8,000mah 4S/6S Lipo

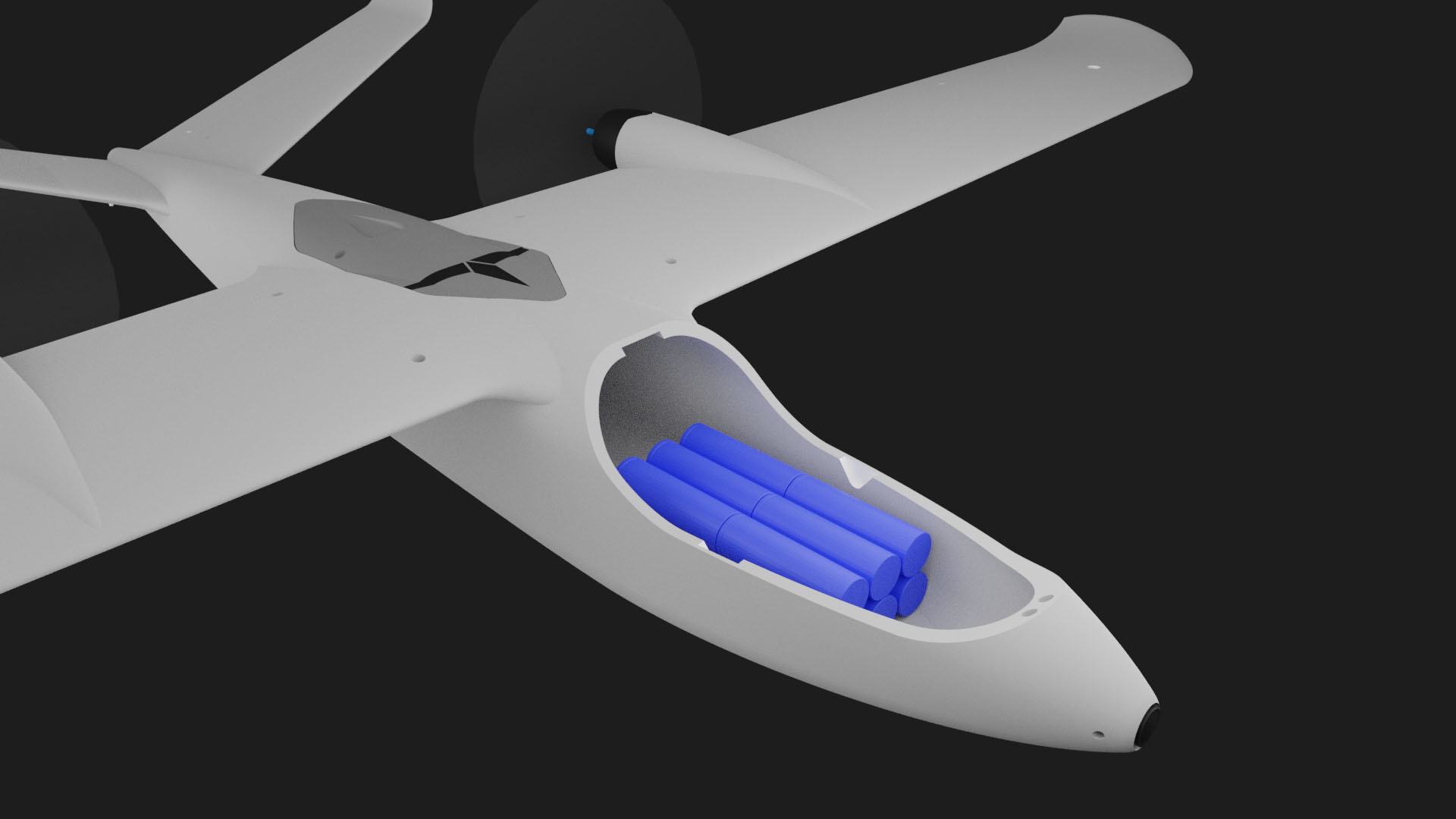

  • Example battery for medium endurance: 4S3P 21700 15,000mah Li-Ion
  • Example battery for max endurance: 4S6P 18650 21,000mah Li-Ion

Variants

raven
Titan Raven (LW-PLA)
