Titan Trooper from Titan Dynamics

Details

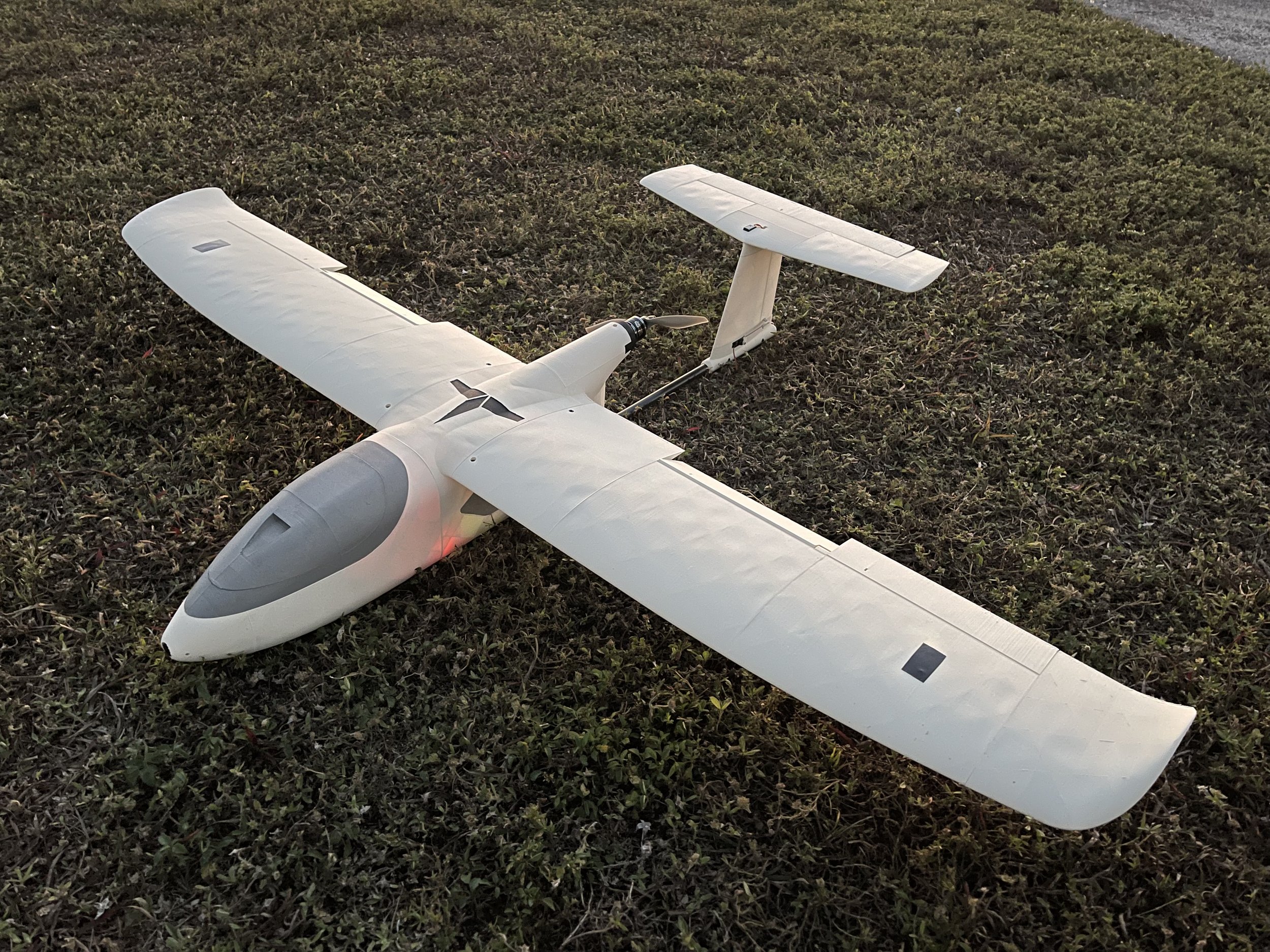

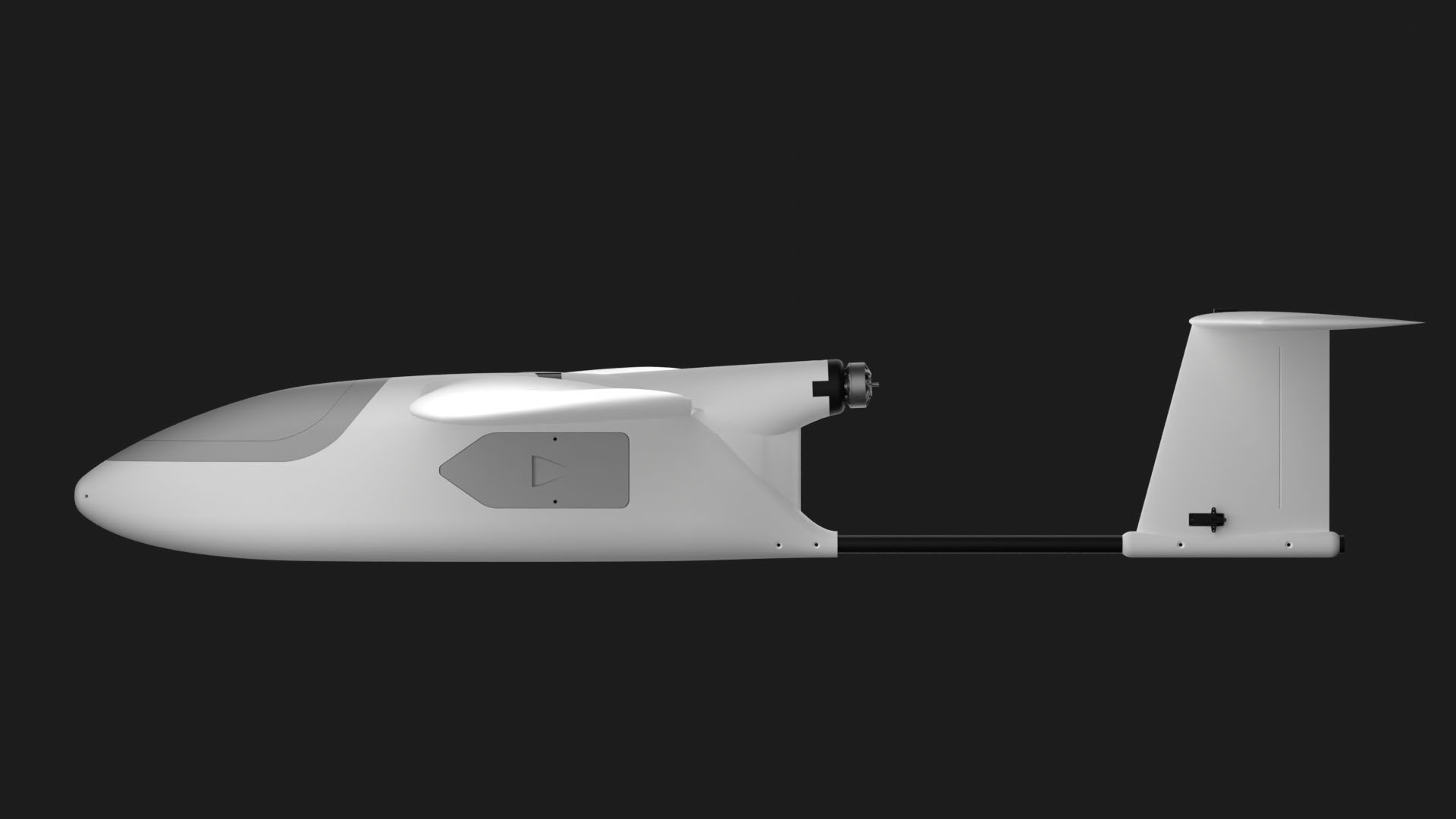

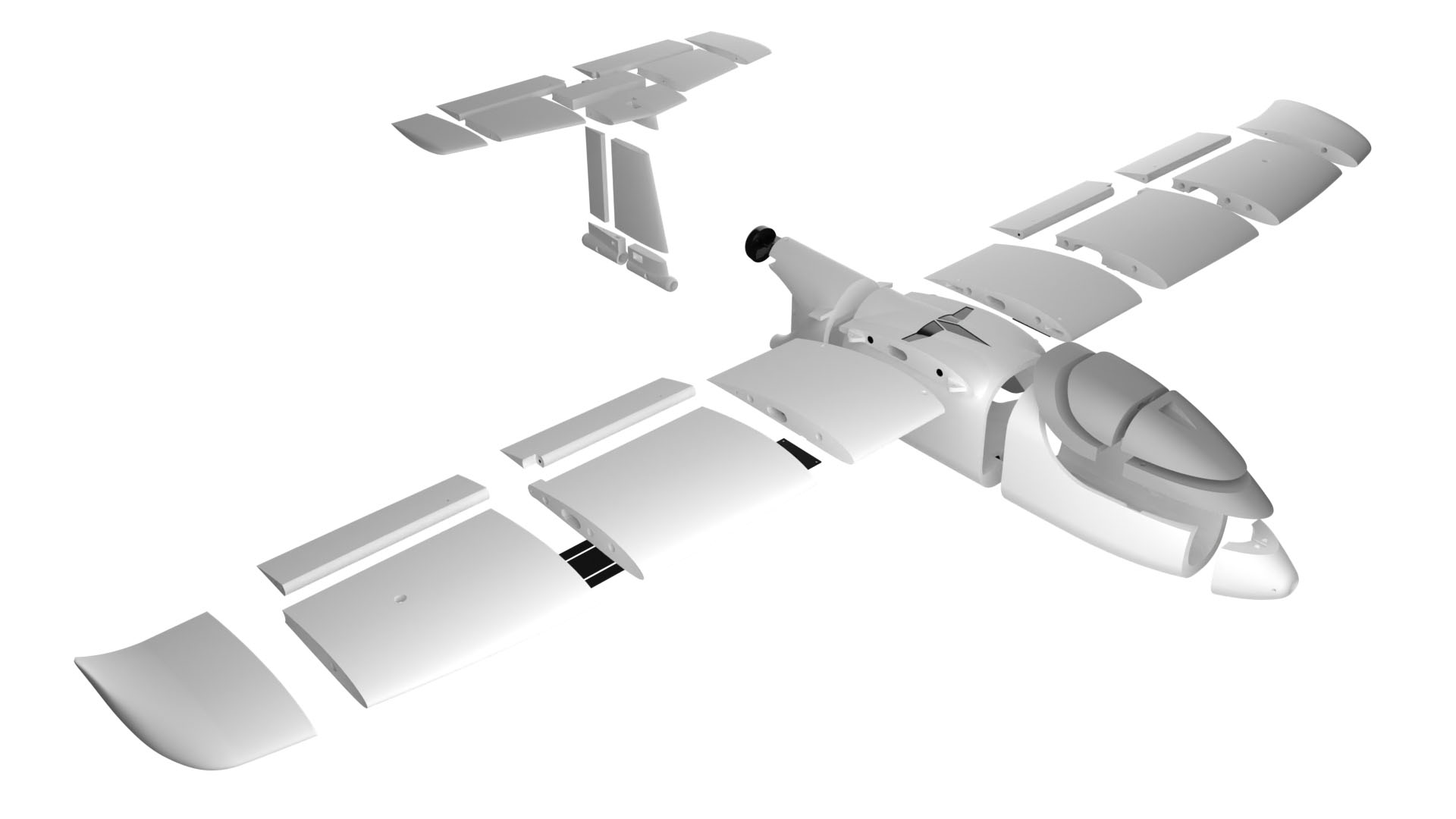

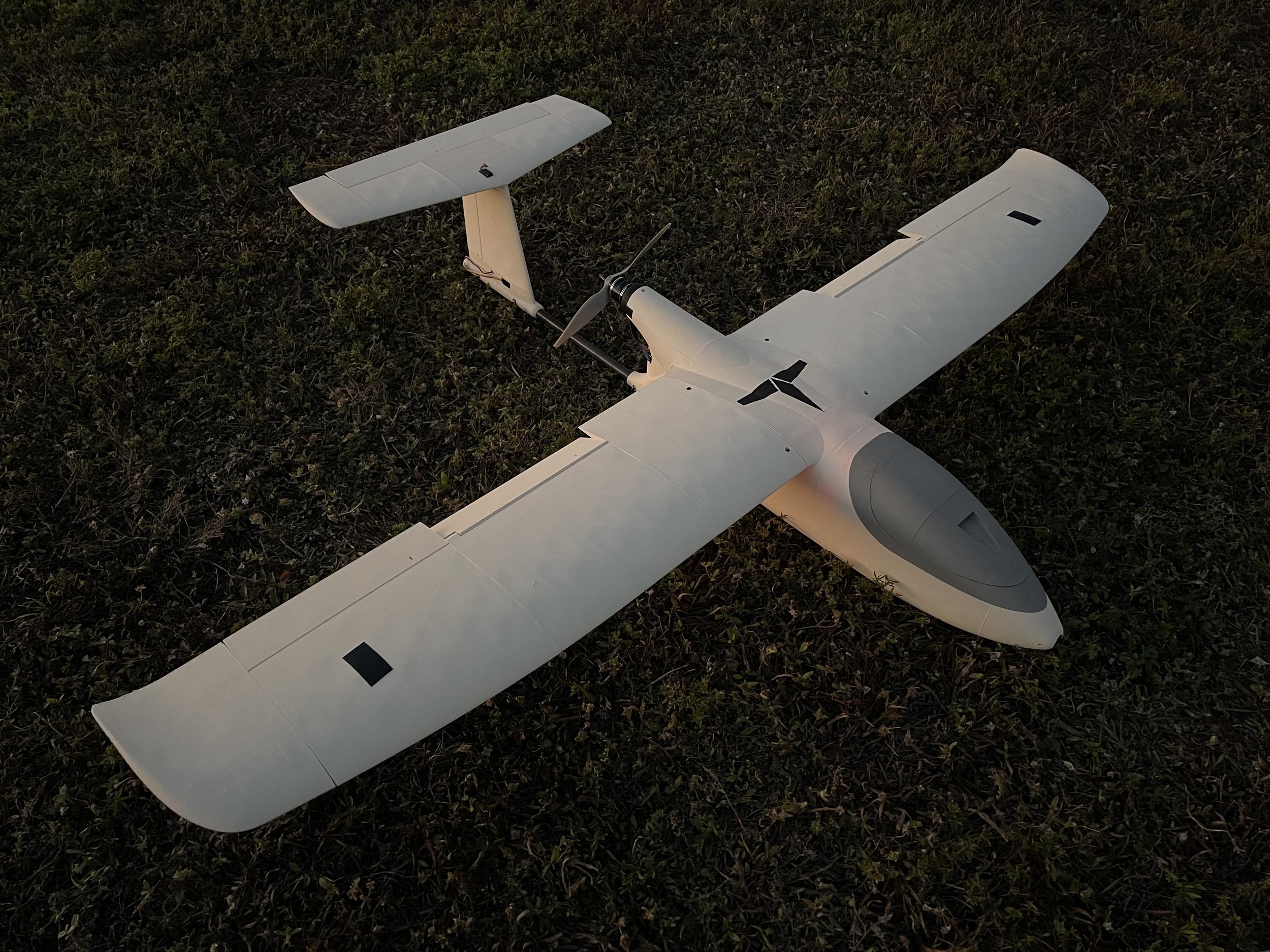

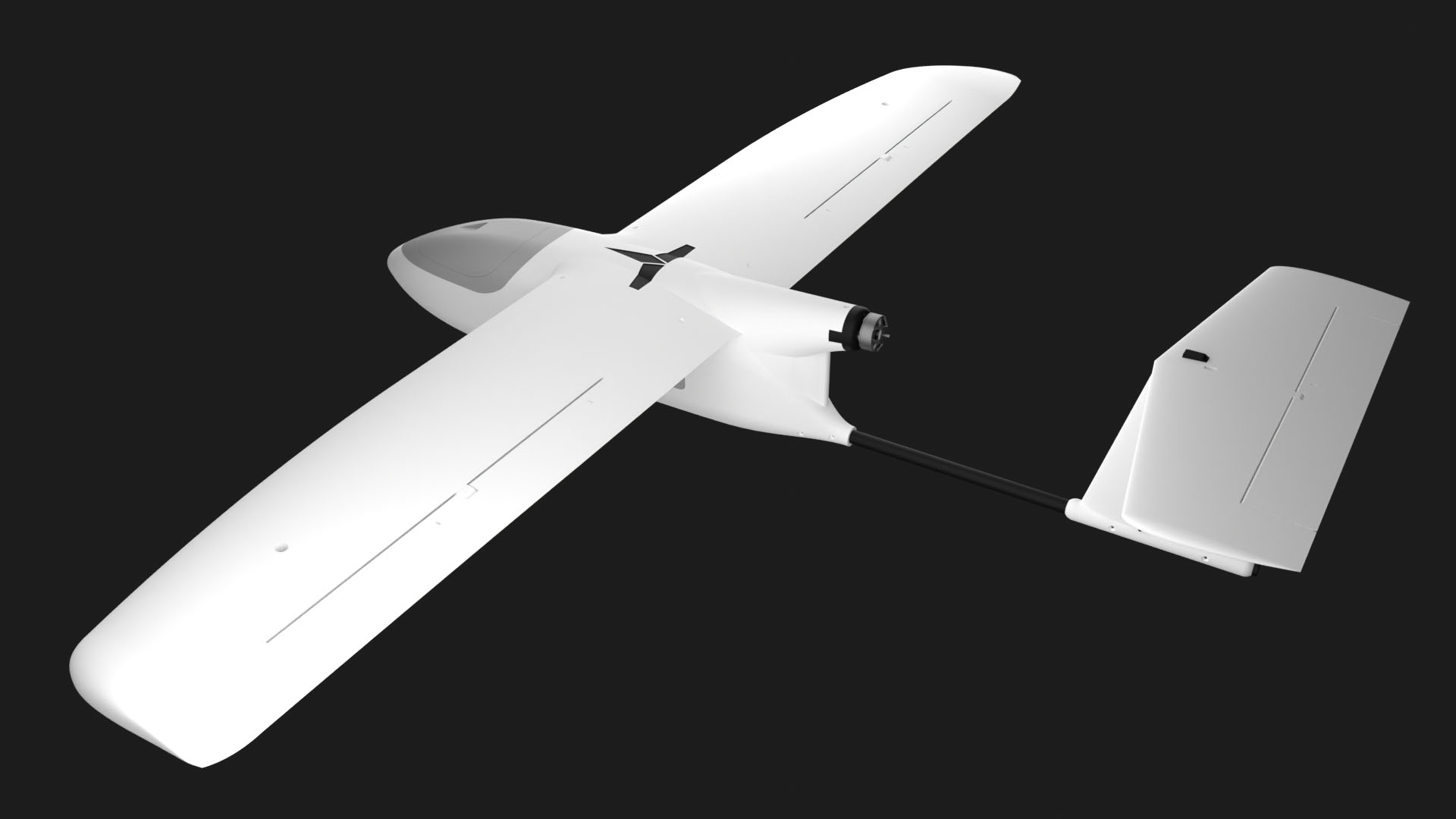

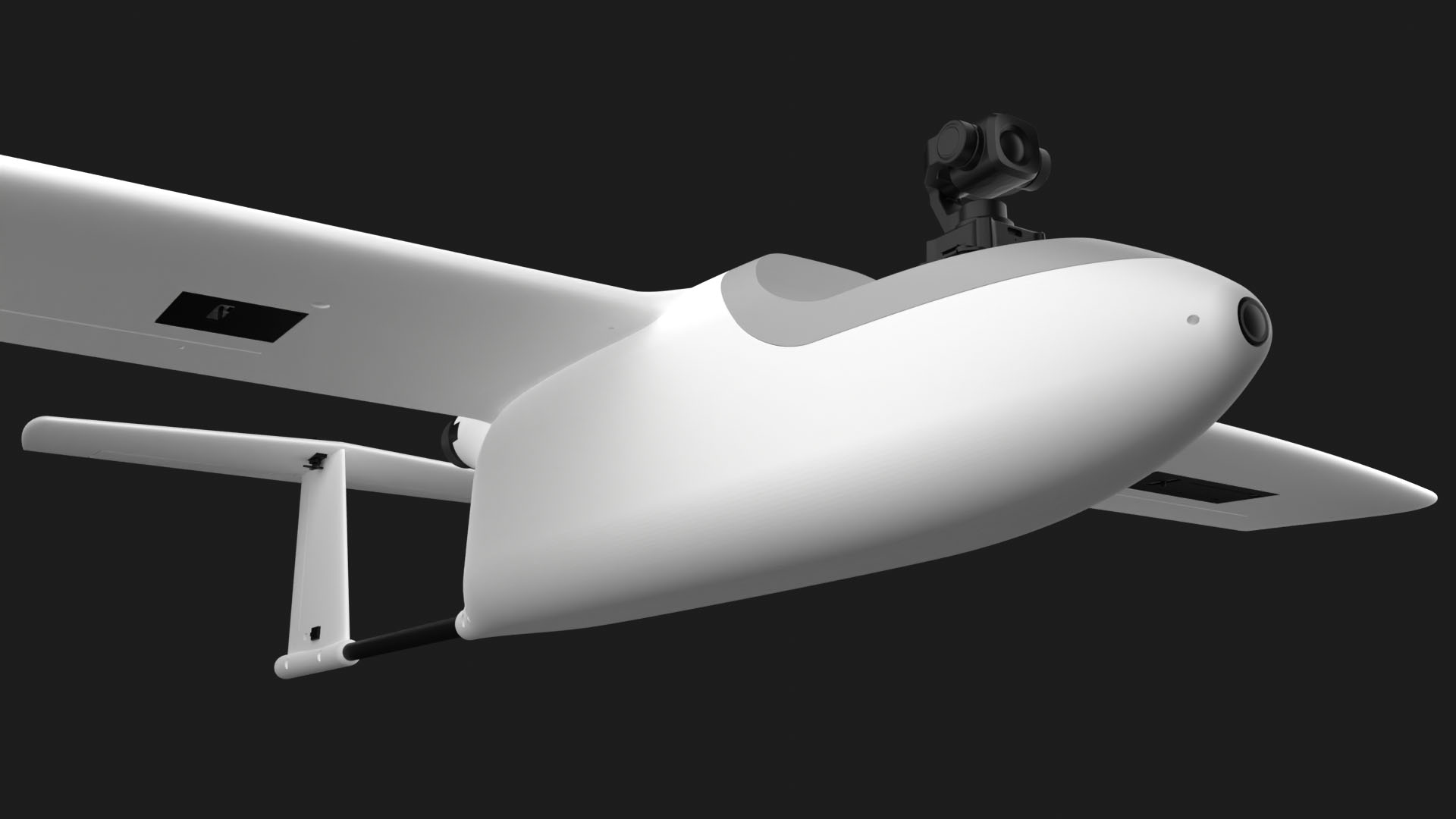

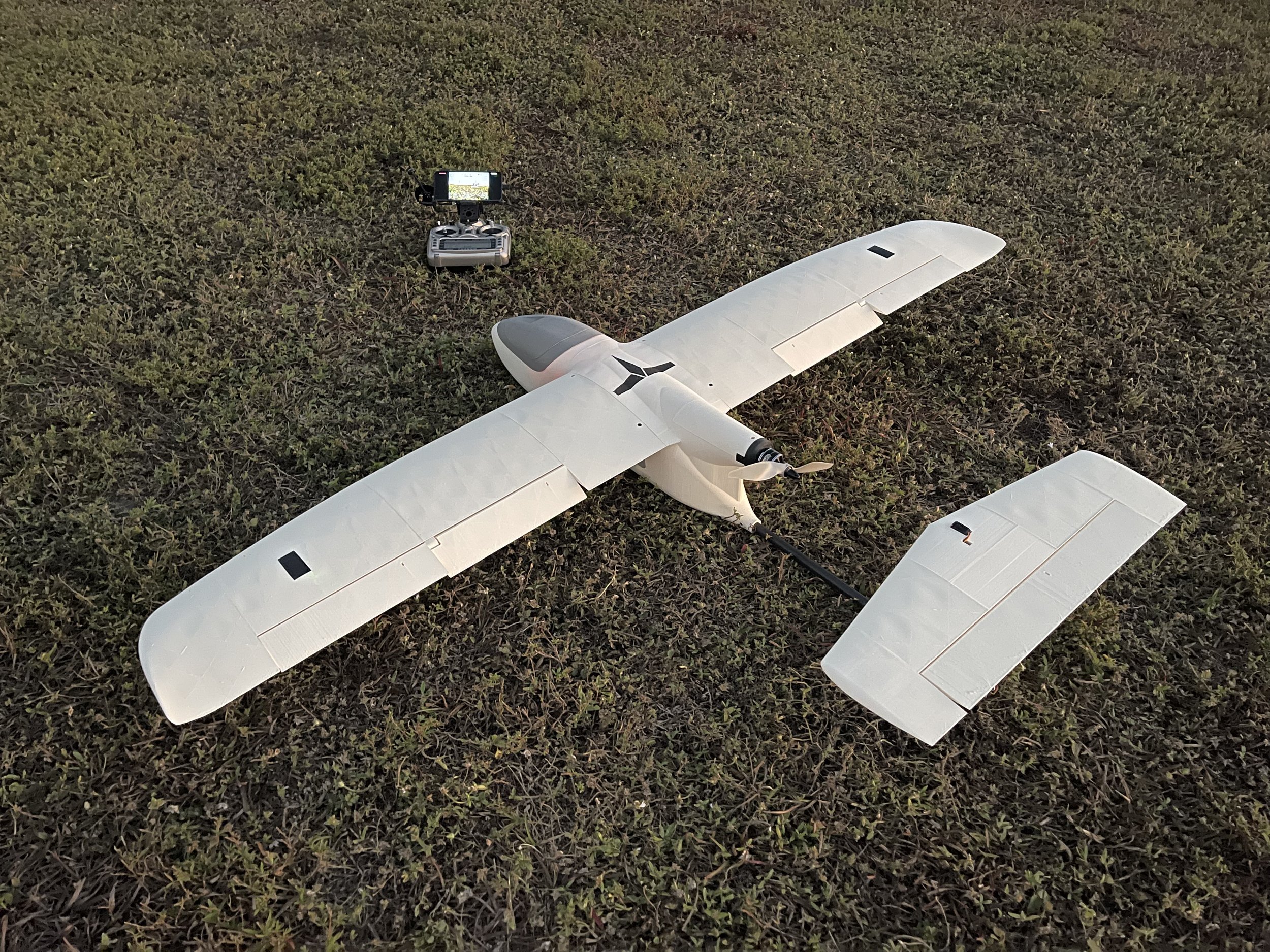

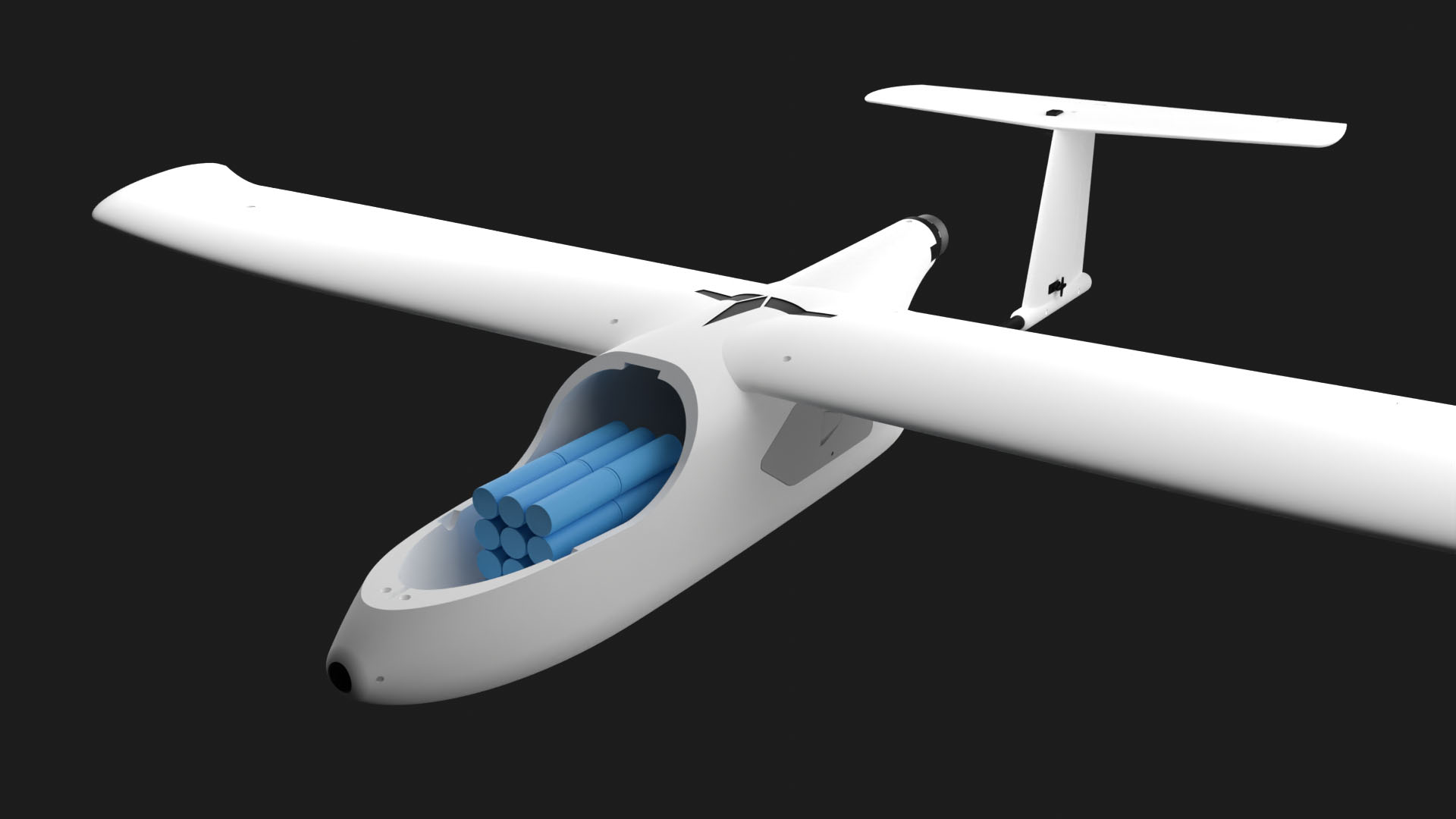

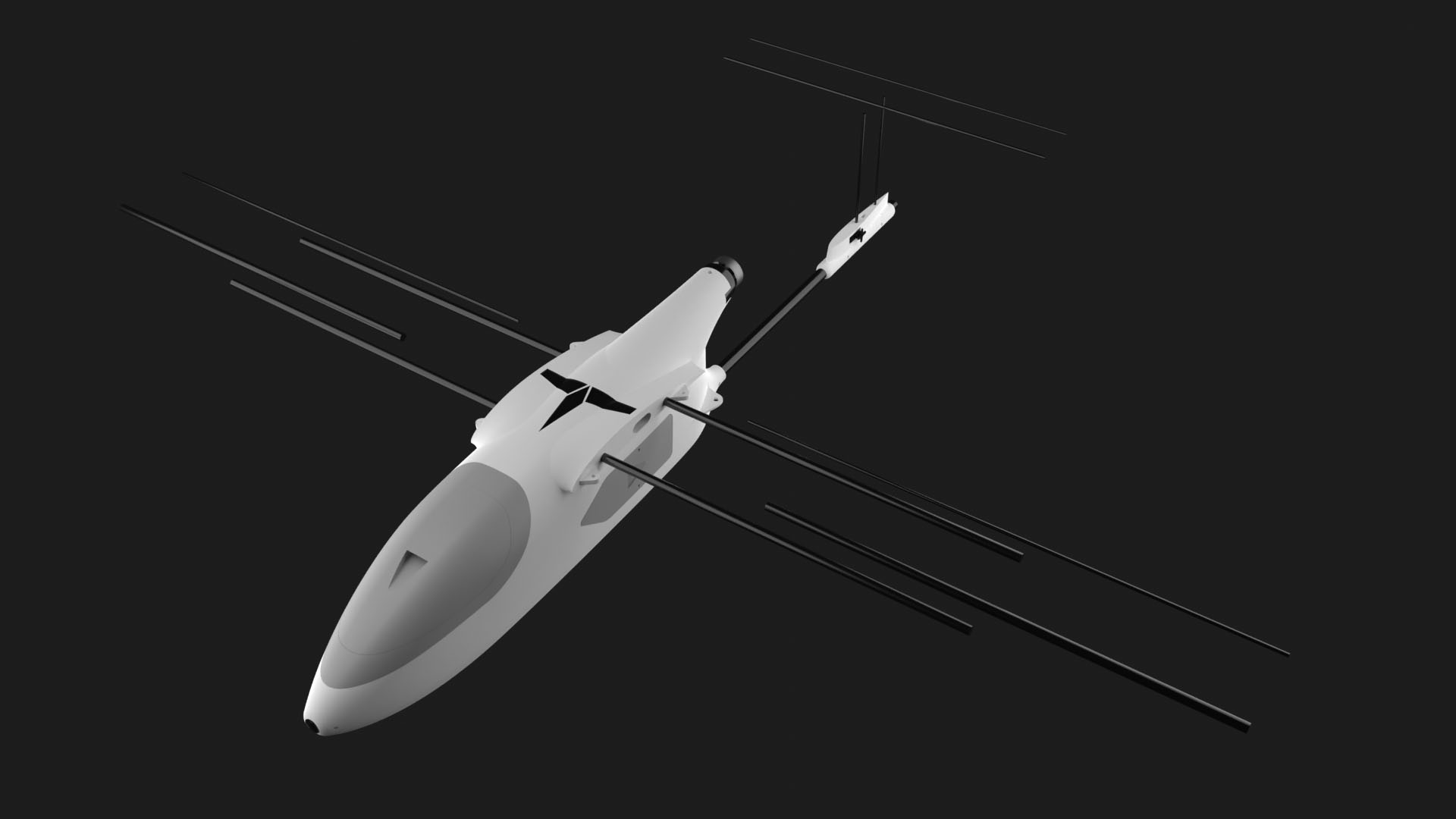

The Trooper is an excellent platform for FPV and pan/tilt setups. It features a double decker canopy, side hatch, spacious fuselage, and snag free propeller placement which makes landings a breeze. Trooper boasts precise handling and excellent heavy lift capability with a 1.66 meter wingspan and conventional T-tail for excellent pitch and yaw authority. Furthermore, independent flaps allow for full control over the desired cruise speed and cushiony approaches for landing. In flight, Trooper demonstrated incredible glide ratio and turn performance - making it excellent for all your long range FPV needs. Speaking of range, Trooper is capable of 250+km and 3-4 hours of flight time. Lastly, great attention to detail was put into Trooper’s structural rigidity - with internal structures on the floor as well as ample use of carbon tubes and stronger double wall parts around critical parts. Antenna separation is of utmost importance - hence Trooper features large bays under the wings for mounting your VTX and receiver out by the wingtips. The wings are removable, as well as the tail and tail boom.

Pictures

Manual

Radio icons

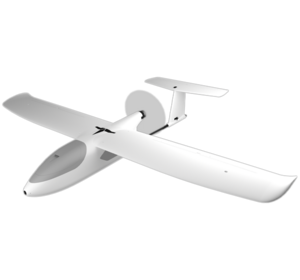

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Titan Trooper in particular but at least we know they do distribute Titan Dynamics.

Where to buy


Wingspan: 1665mm (65.6 in)
Length: 5000mm (196.9 in)

Weight: unknown
  • Wingspan: 1665mm
  • Wing area: 3850cm2
  • Maximum take-off Weight: 5kg
  • Efficiency: 1.8 Wh/km
  • Cruise speed: 55-65kph
  • Recommended prop diameter: 9-10 inches


Aerodynamic Properties:

  • Root airfoil: NACA 5412
  • Midway airfoil: NACA 4412
  • Tip airfoil: NACA 3412
  • Root chord: 250mm
  • Tip chord: 104mm
  • Average Chord: 210mm
  • Root incidence: 2°
  • Tip incidence: 0°
  • Aspect ratio: 7.12
  • Max L/D: 12
  • Dihedral: 0°
  • Sweep: 0°
