Levant F5J from Tomahawk Aviation

Details

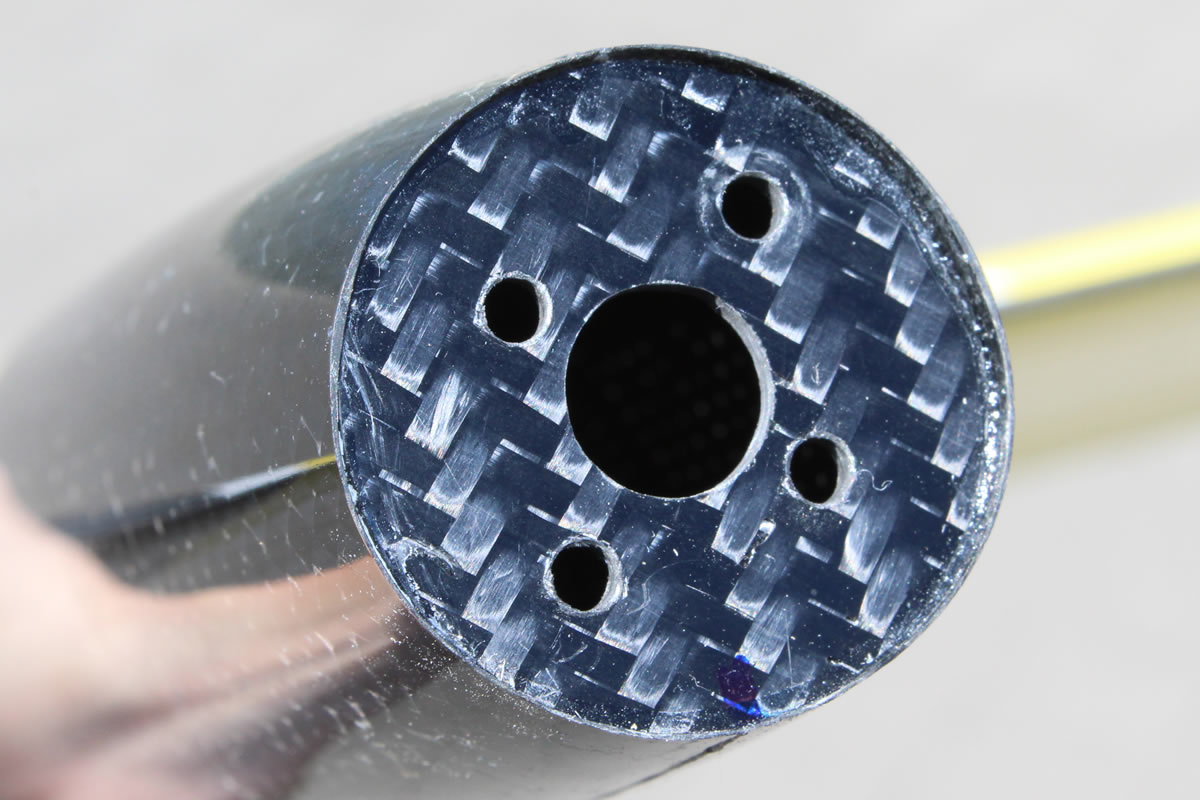

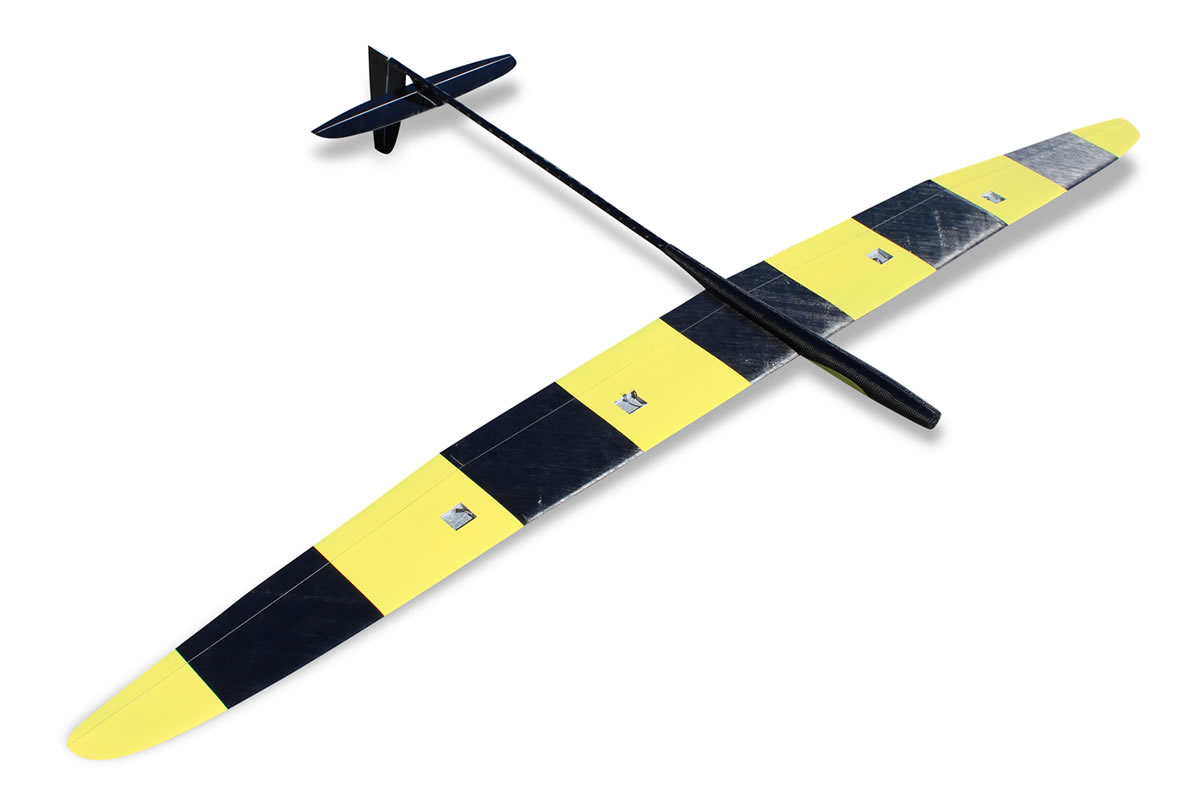

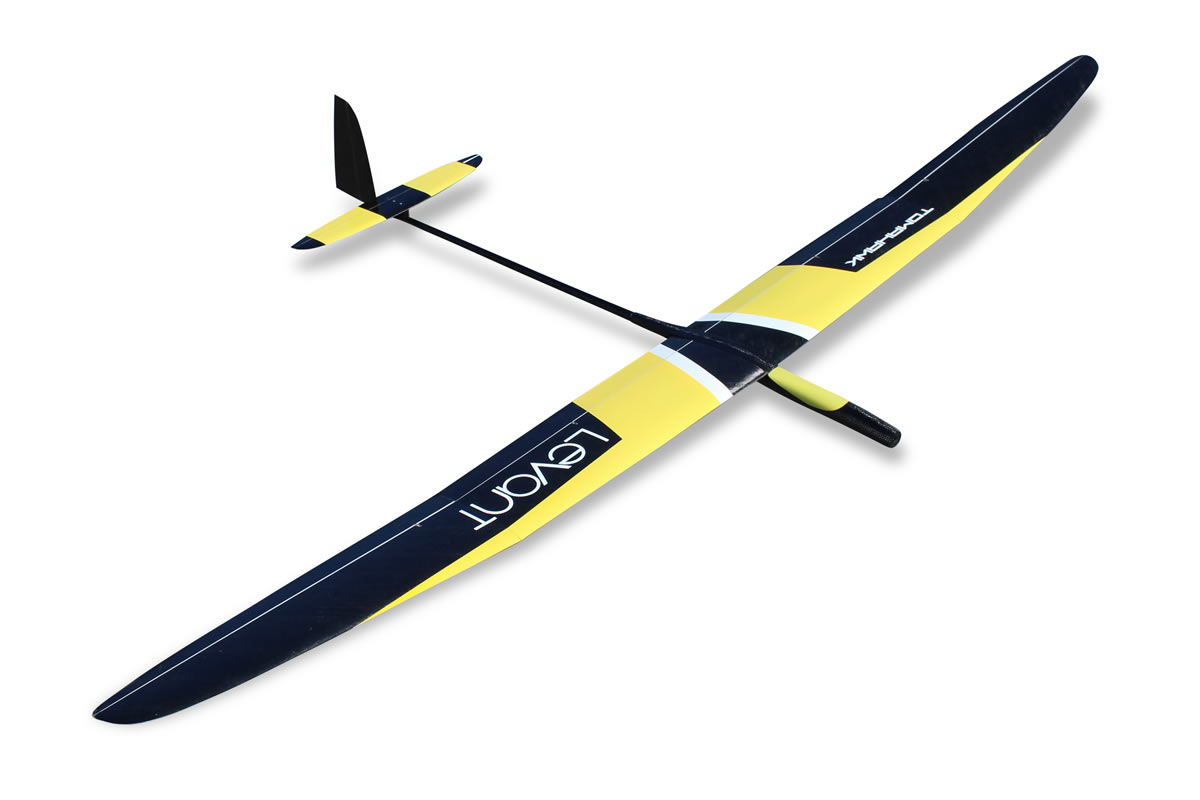

The Levant F5J ARF+ by Tomahawk Design is a purebred high-tech full-carbon model for the electric flight class F5J. It is extremely durable and light at the same time. This is mainly based on the elaborate carbon construction of selected materials. The fuselage is made in spread-tow carbon, which gives it tremendous rigidity at the lowest weight possible.

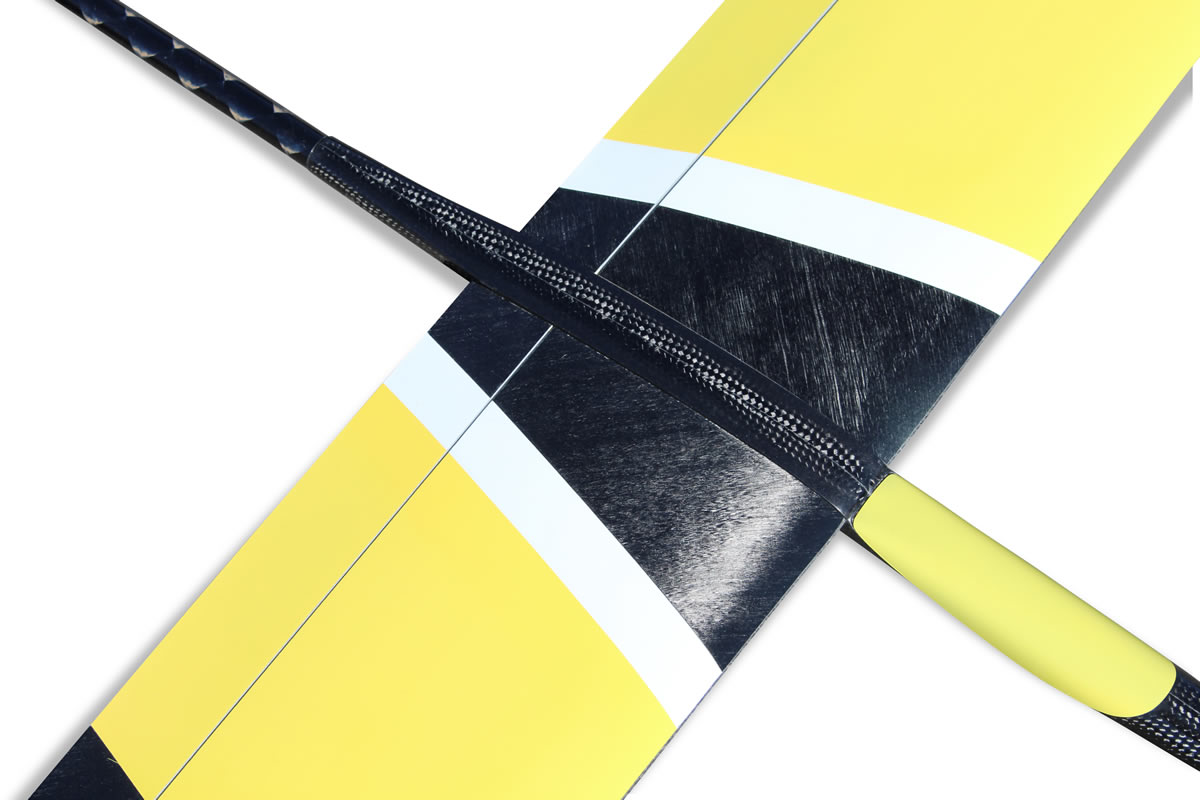

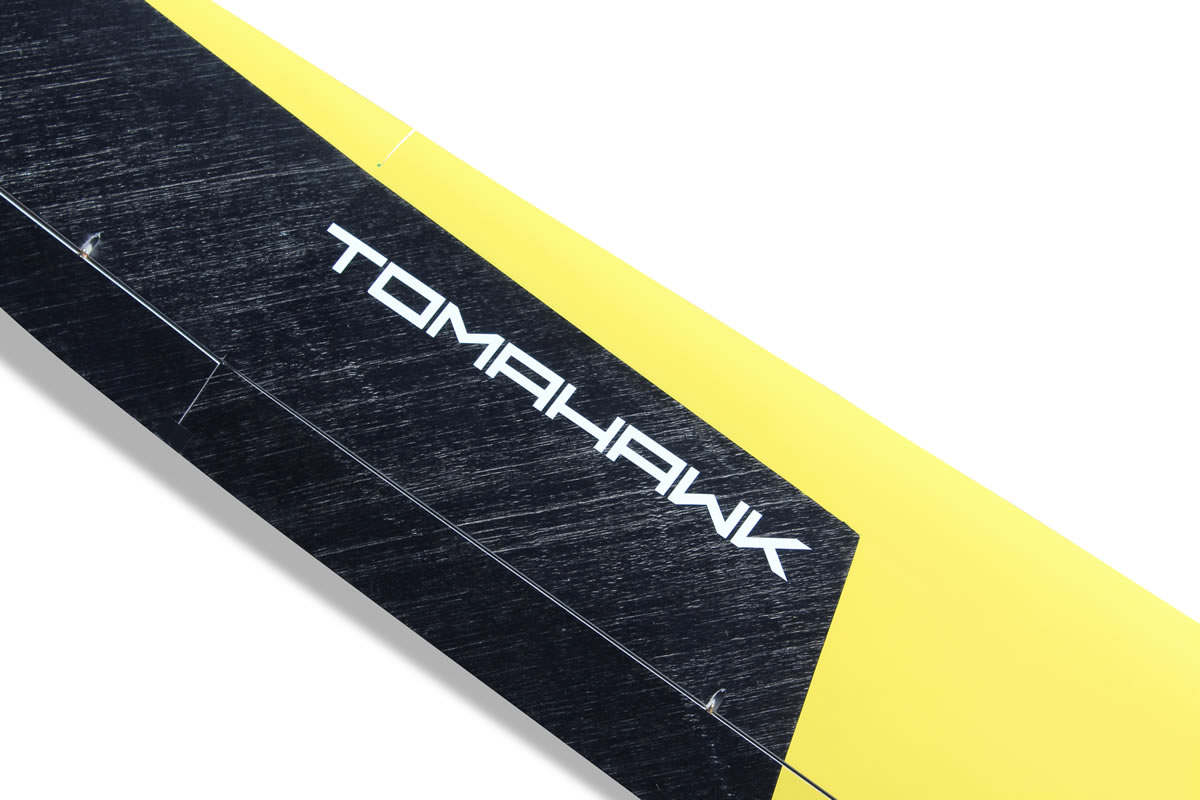

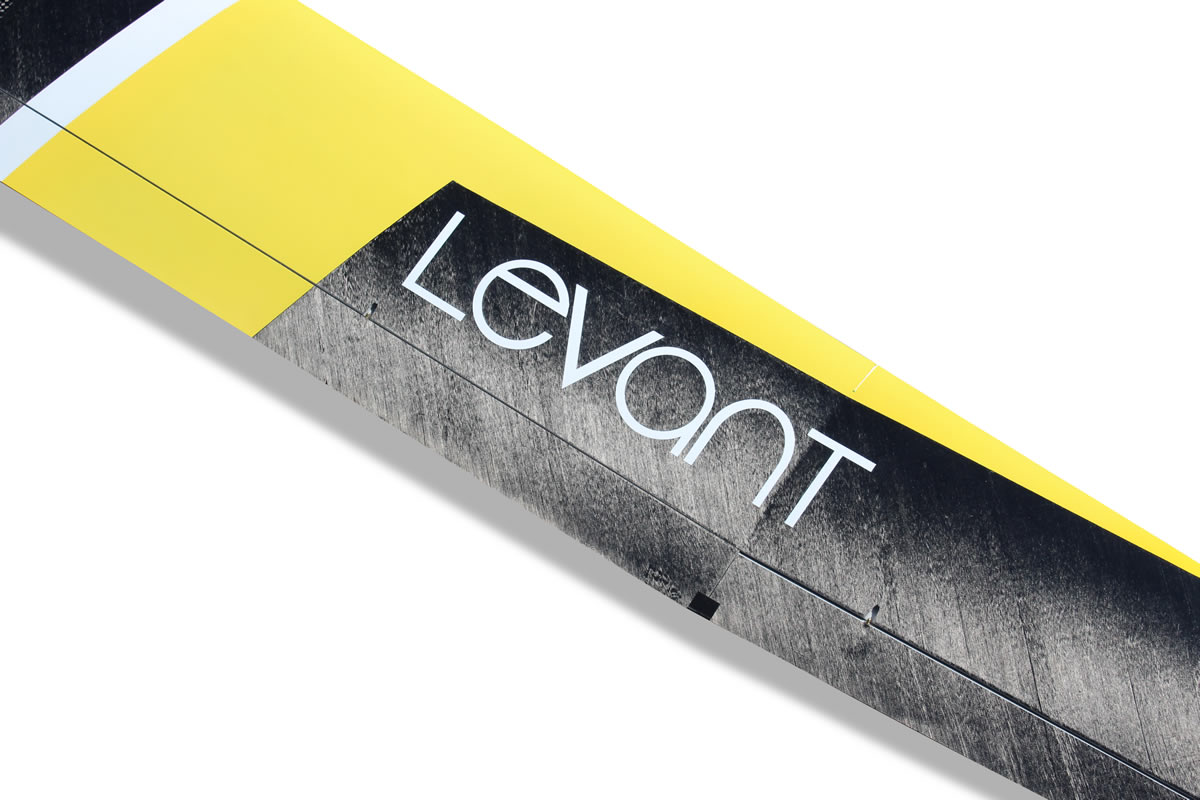

The two-piece carbon wing is made of biaxial carbon fabric on an Airex foam core and has an extremely high bending and torsional strength. The wing halves are connected to the fuselage and will be fixed with tape.The flaps articulation is classic cross. The empty weight is only about 450g, the flying weight about 700-780g.

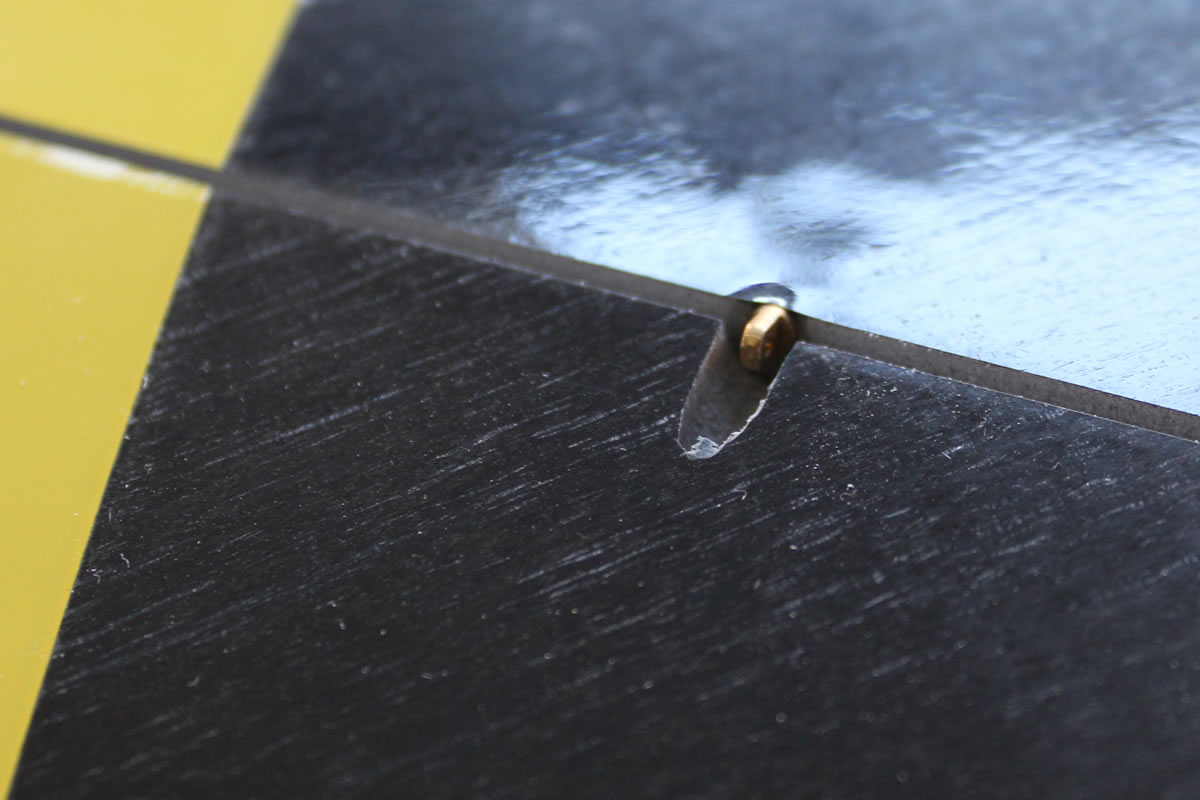

The Levant F5J ARF+ has an exceptionally high degree of prefabrication for this class and comes with  finished wiring and linkages, built in motormount, rudder-horns e.t.c.

As drive we use a brushless outrunner 2826-2200kv and a 30A regulator, which is designed for 3S 850mAh LiPo batteries. The entire drive has a great weight / power ratio and is thus tuned very efficiently.

Features:
• Full-carbon competition model of class F5J 400
• Model comes assembled ARF+ with wires and linkages mounted
• Fuselage in Spread-Tow Carbon
• Wing in biaxial carbon on Airex core

Pictures

Manual

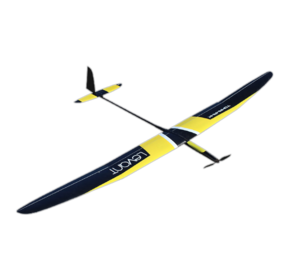

Radio icons

(Click on the icon you want to download)
Horus & T16 OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Levant F5J in particular but at least we know they do distribute Tomahawk Aviation.

Where to buy

Austria
Lindinger ModellBau
check web site
Ship to: Europe
Germany
Tomahawk
check web site
Ship to: International
Switzerland
Scamora
check web site
Ship to: Switzerland
Belgium
Aerobertics
check web site
Ship to: Europe
United Kingdom
Jettstreamuk
check web site
Ship to: United Kingdom

Wingspan: 2550mm (100.4 in)
Length: 1350mm (53.1 in)

Weight: 780 g (1.7 lbs)

Wingspan: 2.55m
Length: 1.35 m
Weight (empty) approx .: 450 g
Weight (ready to fly) approx .: 700-780 g
Wing area: 42.64 dm²
Wing profile: Mark Drela modified
Construction / material wing: Full-CfK, XPS core
Construction / material fuselage: full CFRP, spread-tow fabric

Variants

21470
Levant F5J (Black Yellow)
