P-51D Mustang 84.5 from Top Flite

Details

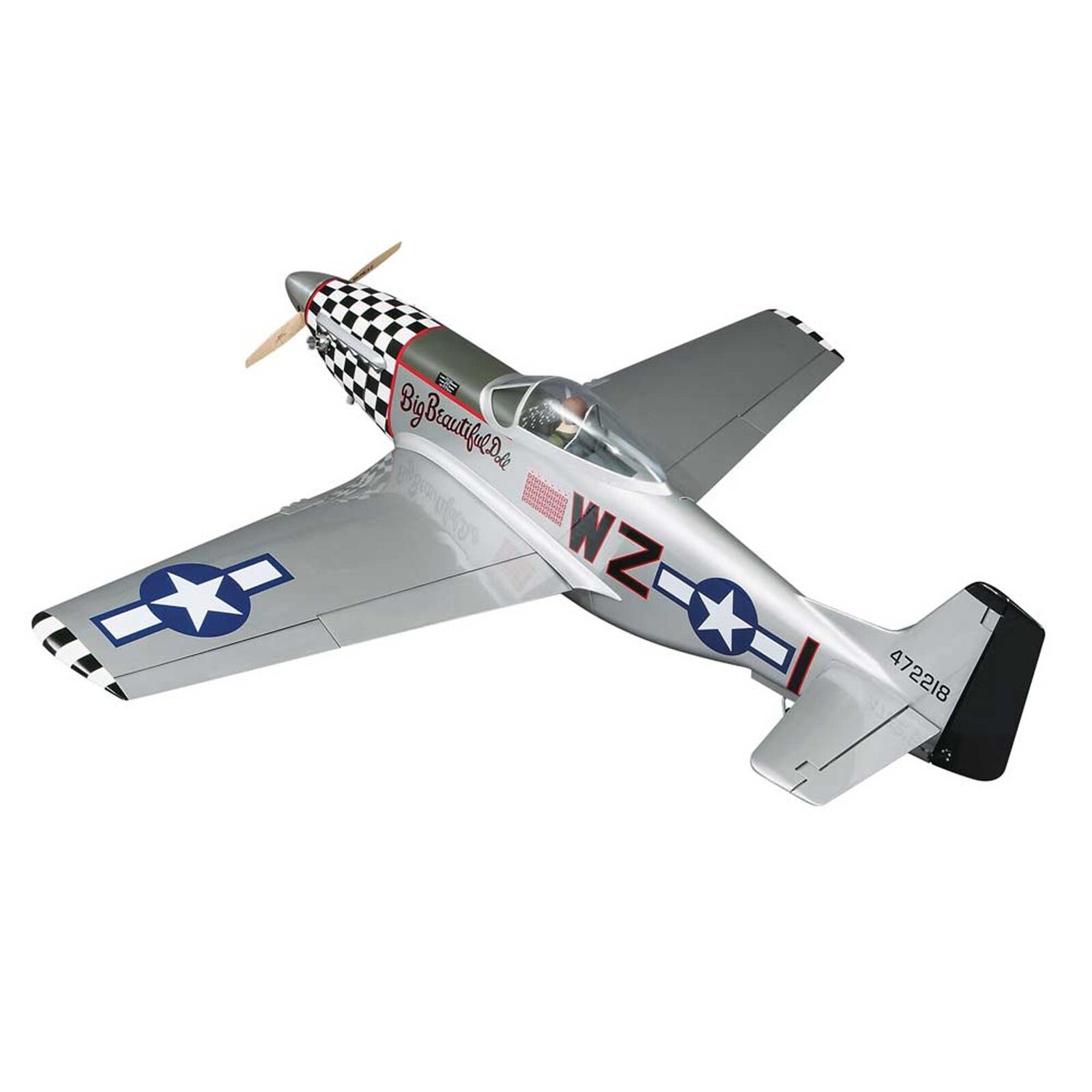

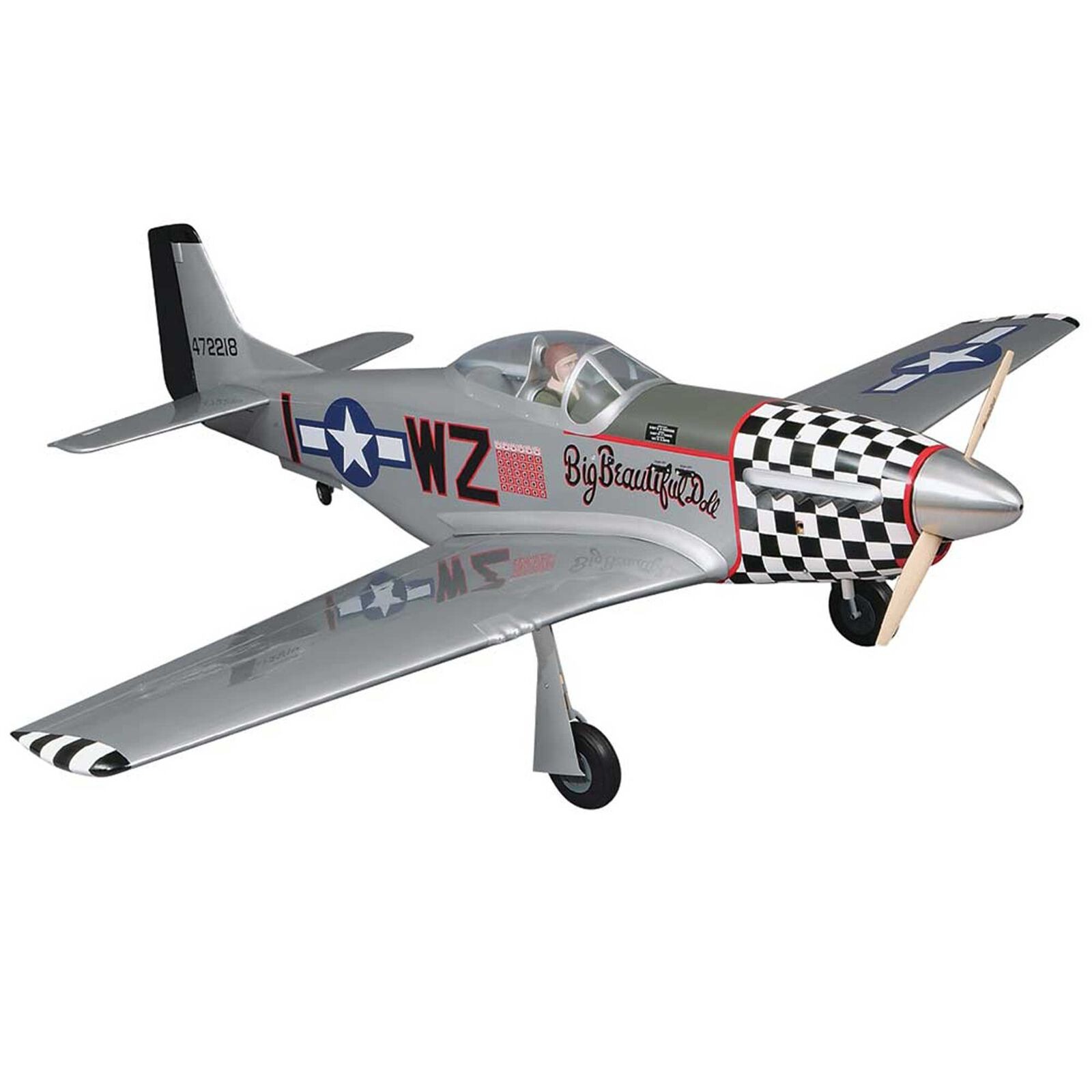

Called "Little Friend" by the bomber crews it protected, the P-51 Mustang also became known as the Cadillac of the Sky – one of the finest high-speed, high-altitude fighters built during WWII. Top Flite's giant ARF version fulfills your own fighter pilot fantasies with impressive size, power and maneuverability!

Features:

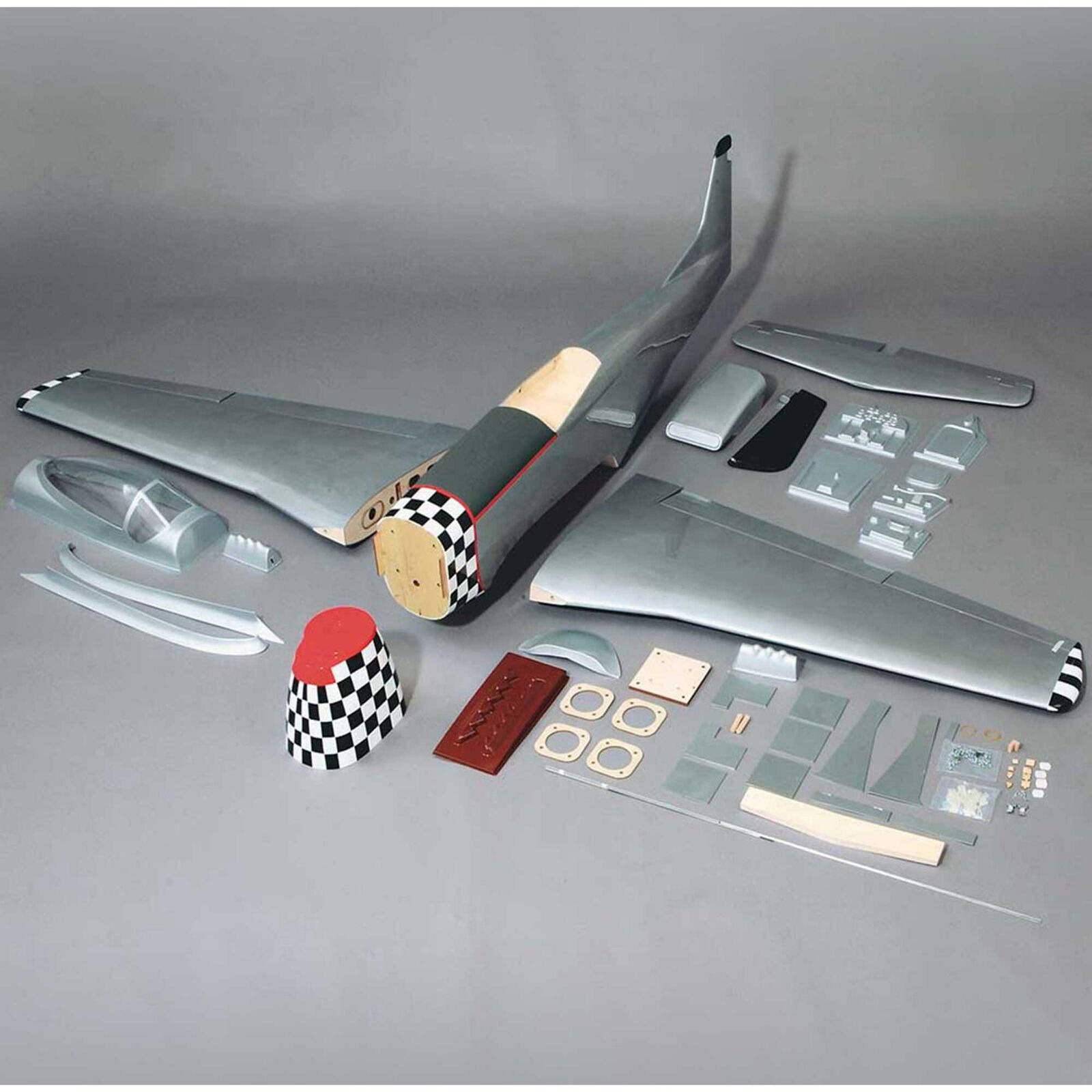

  • Construction: Fully sheeted balsa and plywood with pre-painted fiberglass fillets
  • Wing: One-piece, built up wood frame which is then sheeted with wood
  • Covering: Factory applied Top Flite MonoKote in color scheme to recreate WWII's "Big Beautiful Doll" flown by Col John D Landers
  • Radio Compartment: Easily accessible, plywood reinforced
  • Cowling: Fiberglass, Pre-Painted
  • Canopy: Clear, single
  • Landing Gear: Fixed heavy duty wire (¼"), but is also set up to use optional Robart retracts with functional landing gear doors
  • Dual Wing Servos: Two servos per wing half (1 Flap, 1 Aileron)
  • Spinner: 5" (127mm) Aluminum
  • Cockpit Kit: Pre-Painted ABS plastic with decals
  • Building Time: Ready to fly in only 25-30 hours.

Pictures

Manual

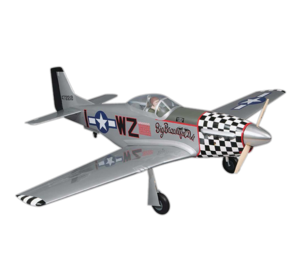

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the P-51D Mustang 84.5 in particular but at least we know they do distribute Top Flite.

Where to buy

USA
TOWER HOBBIES
check web site
Ship to: International
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
PB Modélisme
check web site
Ship to: Europe
USA
AMain Hobbies
check web site
Ship to: USA

Wingspan: 2146mm (84.5 in)
Length: 1865mm (73.4 in)

Weight: 10880 g (24 lbs)
  • Wingspan: 84.5" (2146mm)
  • Wing Area: 1245 sq in (80.3 sq dm)
  • Weight: 19 - 24 lbs (8.61 - 10.88kg)
  • Wing Loading: 32 - 35 oz/sq ft (98 - 107 g/sq dm)
  • Length: 73.5" (1865mm)
  • Airfoil: Fully-symmetrical, low-wing
  • Center of Gravity: 4-9/16" (116mm) Back from the wing's leading edge
  • Control Throws: High Rate   /   Low Rate
  • Elevator: Up & Down 9/16" (14mm) 3/8" (10mm)
  • Rudder: Right to Left 1½" (38mm) 1" (25mm)
  • Ailerons: Up & Down ¾" (19mm)up ½" (13mm)up 5/8" (16mm)down 3/8" (10mm)down
  • Flaps: 1-3/16" (30mm) 2-1/8" (55mm)

Variants

A0700
P-51D Mustang 84.5 (Silver)
