The RES Dart is a superb 2m flying wing that incorporates very advanced aerodynamics to provide astounding performance. The RES-Dart is unusually stable for a flying wing, has good thermal performance and a wide speed range. The model impresses with its balanced flight characteristics, the enormous performance potential and the extraordinary manoeuvrability (see following video). The large 2 piece spoilers enable steep descents, allowing safe exits from thermals and accurate landings. The wing is two part and the winglets can be detachable, making for a very transportable model. Like our other F3-RES models this is a high quality build-it-yourself kit constructed from hand selected CNC cut balsa and plywood

RES-Dart is a flying wing which complies with the German F3-RES regulations and can be used in these competitions - in fact it has been specially designed to be competitive in these events. The wing profile has been optimised to give a very high launch while at the same time being easy to build. The thickness of approx. 9.5% allows for a lightweight structure and provides good torsional strength. The contour of the profile is only curved in the region of the front Dbox. To the rear of this, similar to the AG35, planar facets prevent covering sag between the ribs and thus ensure an accurate section is maintained. The wing geometry and sweep have been practically tested and flown many times while optimising the model's structure and aerodynamics. One important design goal was good launching. The flight test showed a smooth launch behaviour and very competitive launch heights. Thanks to its wing profile, low surface load and DSA winglets, the RES-Dart has extremely good-natured flying characteristics, which enable practiced pilots to crank up the RES-Dart into the tightest thermal turn and sometimes even get away from a hand launch.

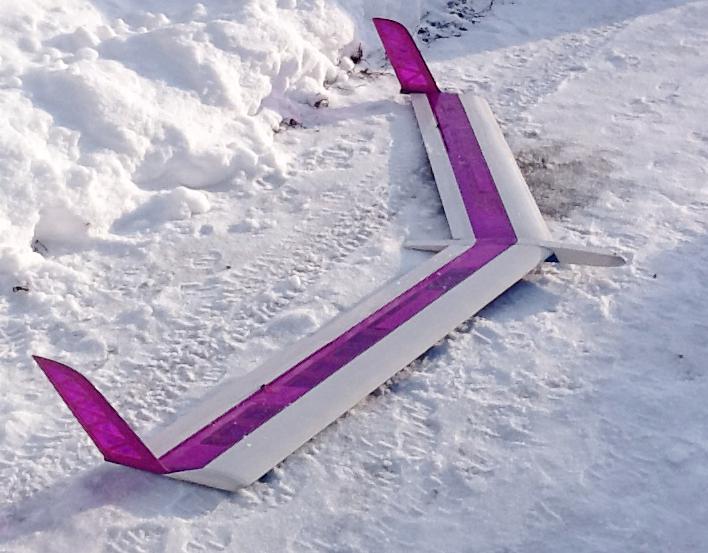

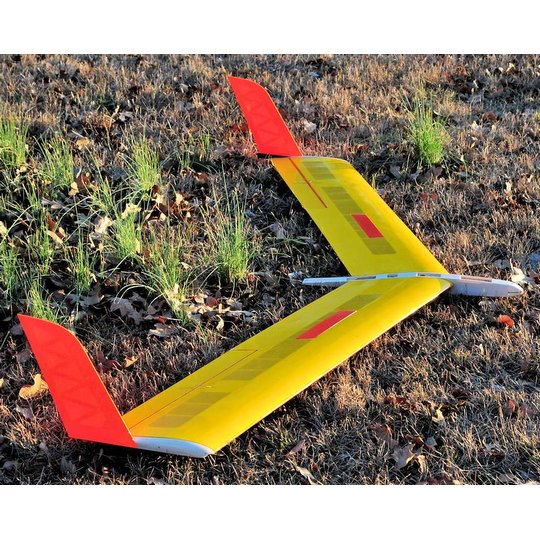

Pictures

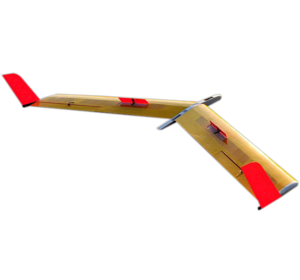

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the RES Dart in particular but at least we know they do distribute Unknown.

Where to buy


Wingspan: 1900mm (74.8 in)
Length: unknown

Weight: 496 g (17.5 oz)
Wing span 1.9 m 76 in
Wing area 47.0 dm2 729 sq in
Flying weight from 496 g 17.5 oz
Wing loading 10.6 g/dm 3.5 oz/sq ft
Aspect ratio 7.8
Wing airfoil Custom
Centre of Gravity 21 mm from wing centre trailing edge
Controls Elevons, spoilers
