Beechcraft Bonanza from VQ Model

Details

The Beechcraft Bonanza is an American general aviation aircraft introduced in 1947 by Beech Aircraft Corporation of Wichita, Kansas. The six-seater, single-engine aircraft is still being produced by Beechcraft and has been in continuous production longer than any other airplane in history. More than 17,000 Bonanzas of all variants have been built, produced in both distinctive V-tail as well as conventional tail configurations.

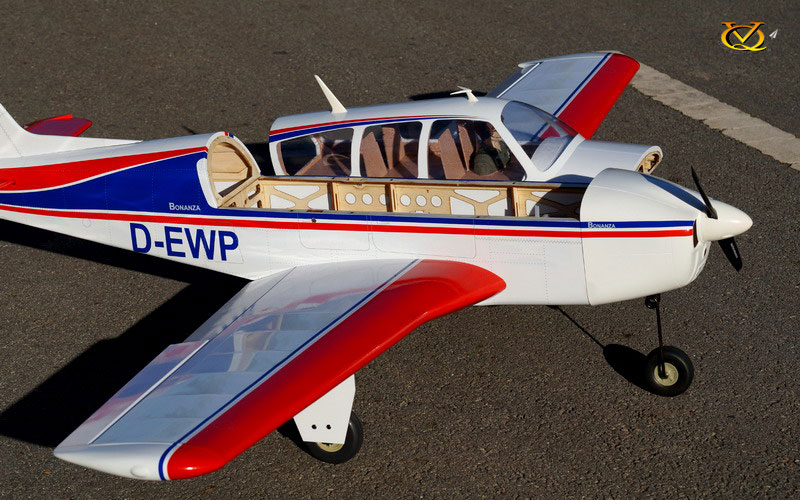

Now, VQ Introduces the Beech Bonanza 46 size EP-GP. This Bonanza comes with 2 scale flap, 1 x painted pilots, platic antena, plywood seat. Also we have supply in the kit some scale detail make by ply wood sothat you can make your Bonanza look like a real one .

With the big battery hatch, you can use both Electric motor or Nitro engine .

As an option , the Electric retracts with struts (VQ-ARE13S) or Electric retracts with nose gear struts only (VQ-ARE14)  is good choise for this Bonanza, it makes this Bonanza become one of the best Balsa scale 46 size EP-GP in the market.

 Features:

  • All Balsa and lite-ply construction
  • Fully covered in weathered detail
  • Fiberglass cowling
  • Reinstalled painted pilot
  • Control surfaces pre-hinged and installed
  • Two piece wing with Aluminium Wing Joiner

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos
(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Beechcraft Bonanza in particular but at least we know they do distribute VQ Model.

Where to buy

France
Flash RC
check web site
Ship to: Europe
France
interModel
check web site
Ship to: France
Hungary
RC Hungary
check web site
Ship to: Hungary
Switzerland
Scamora
check web site
Ship to: Switzerland
France
Weymuller Modélisme
check web site
Ship to: France
Austria
DMT
check web site
Ship to: Europe
USA
Gator RC
check web site
Ship to: USA
France
Turbines RC
check web site
Ship to: Worldwide
United Kingdom
tjd Models
check web site
Ship to: United Kingdom

Wingspan: 1580mm (62.2 in)
Length: 1190mm (46.9 in)

Weight: 3200 g (7.1 lbs)

Wingspan:  1580mm (62.2 in.)
Fuselage Lenght:  1190mm (46.8 in.)
Weight (ready to fly): 3200g (7.05lbs) (vary with equipment in use)
Glow Engine:  .46 (2 stroke) / .70 (4 stroke)
Electric motor: Boost 50 motor or any Electric Motor same size with .46/2 stroke engine
Battery: Lipo 14,8V  4500 mAh
Radio: 6 channels with 7-8 servos (3 x standard servos - 4 x Mini servo (17grams) for Flap – Aileron)

Variants

VQA136GE
Beechcraft Bonanza (White Red Blue)
VQA136US
Beechcraft Bonanza (White Black Red)
