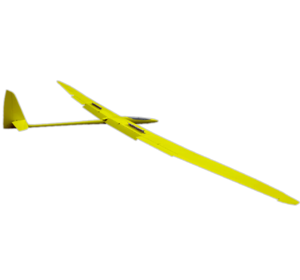

Thermik XXXL from Valenta model

Details

The Success of the 4M Thermik XL led to the creation of an even LARGER model..... The XXXL! The HUGE glider spans 5 meters...

The flying experience with this model is very similar to flying a real glider. It responds true and locks onto inputs. Despite it's large size, it is remarkable maneuverable!? By mixing aileron to the flaps, the roll rate is very impressive.

The wing is incredibly stiff with a behemoth of a carbon spar and carbon/glass/kevlar construction. The 4 flap sections extend to the outer panel, and require 4 servos. This makes a very effective airbrake! AND there are spoilers built in too!

The model is suitable for flying on slopes, aero towing, or winching with the appropriate winch and therefore is quite sturdy. Despite it's heavy all up weight, the wing loading is very low thanks to the enormous wing. With the MH-32 airfoil at the root, it penetrates and holds energy very well. The MH-32 then blends into the SD-7037 at the tips for high lift and solid control throughout the flight envelope.? This can be a very fast glider! It flies excellent in thermals, and makes distance goals and cross country flight a breeze. In spite of large wing span, the 3 piece wing can be broken down into easy to manage sections for easy transport and assembly. Give us a call or e-mail us with any ordering or technical questions, we'll be happy to help you make the right glider and equipment choices.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 5000mm (196.9 in)
Length: 1900mm (74.8 in)

Weight: 5240 g (11.6 lbs)
  • Wingspan:  5000 mm (195 in.)
  • Wing Area:  104 dm² (1616 sq.in.)
  • Wing loading:  50.35 g/dm² (16.5 oz/ft²)
  • Airfoil:  MH-32/SD-7037
  • Length:  1900 mm (75 in.)
  • Weight:  5240 g (185oz AUW) 4170 g (147oz Empty)
  • Controls:  A-E-4F-R
