plusX from Vladimirs Model

Details

Plus X - featuring the world's best F5J wing by Joe Wurts:

  • the best thermal and penetration performance in one wing;
  • the six-servo wing provides the best thermaling combination of aileron and flaperon efficiency;
  • wide flaps provide extremely smooth airfoil in all flight modes;
  • extreme slow and stable landing approaches are possible due to the six-servo wing;
  • Plus X/5 consists of a travel-friendly five-piece wing;
  • Plus X light version is merely 7gm over the FAI minimum weight limit;

Fuselage:

  • fuselage can be separated into two parts for ease of travel;
  • easy and reliable ballasting method;
  • carbon canopy;
  • strong and light weight Carboline pod and boom;
  • servo mounting systems for servos;
  • pre-installed carbon pushrods for tail servos;
  • oversize nose diameter allowing trimming of nose to fit motor and/or adjust CG (54mm to 38mm) based on location of motor;

Tail:

  • light, strong, efficient and low-drag tail;
  • high-aspect ratio fin utilizing efficient airfoils designed by Joe Wurts;
  • extreme rigide and light elevator and rudder control system;
  • simple & easy fuselage mounting system for fin and stab;

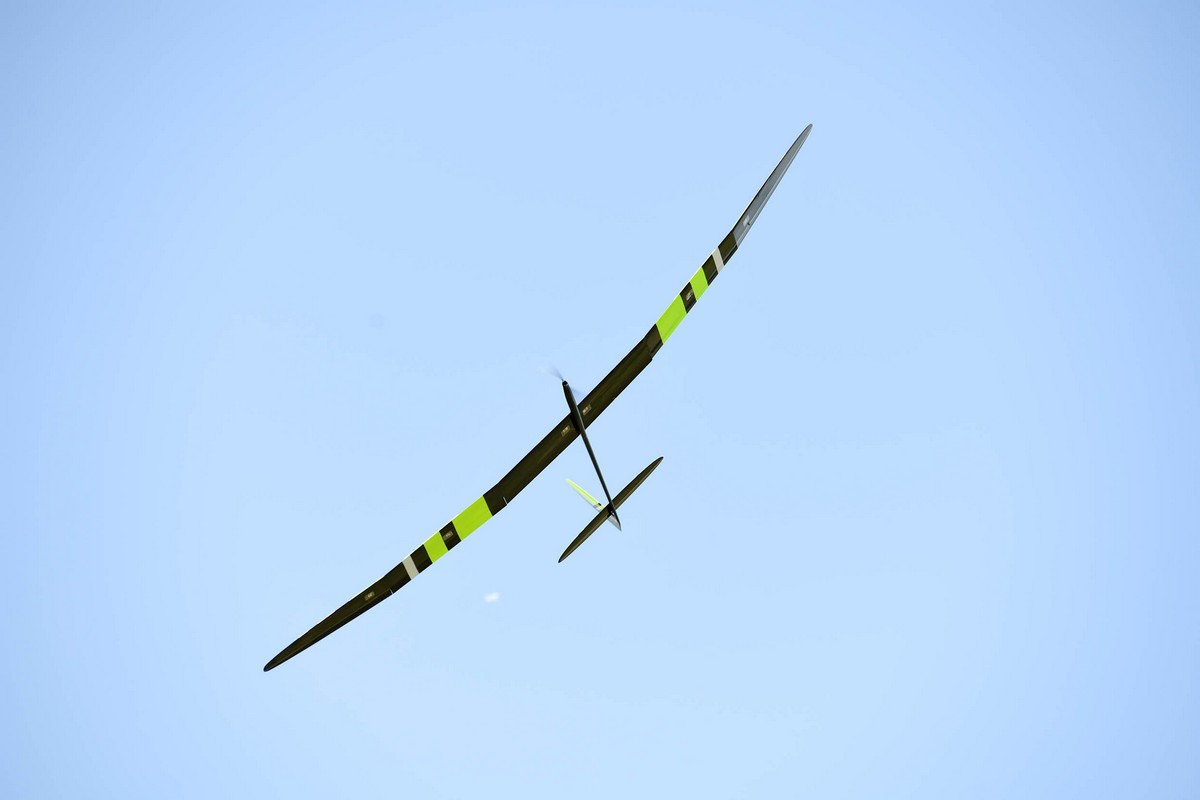

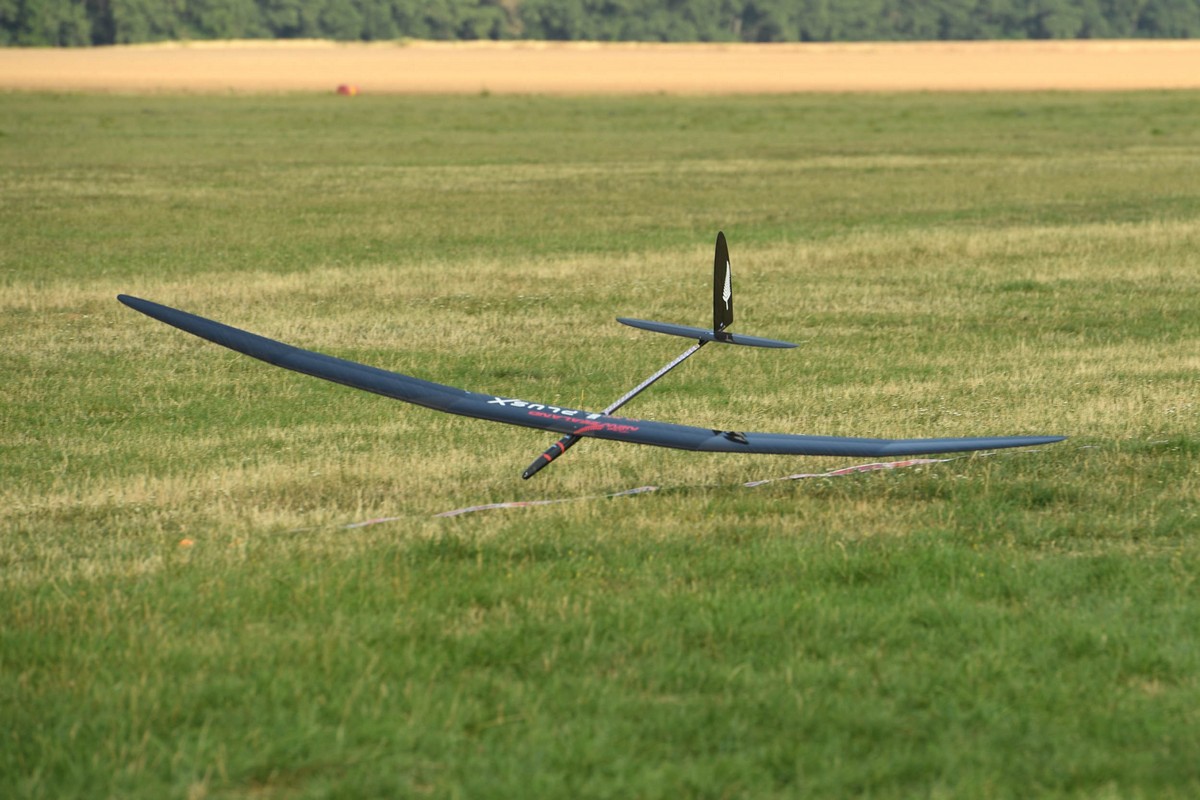

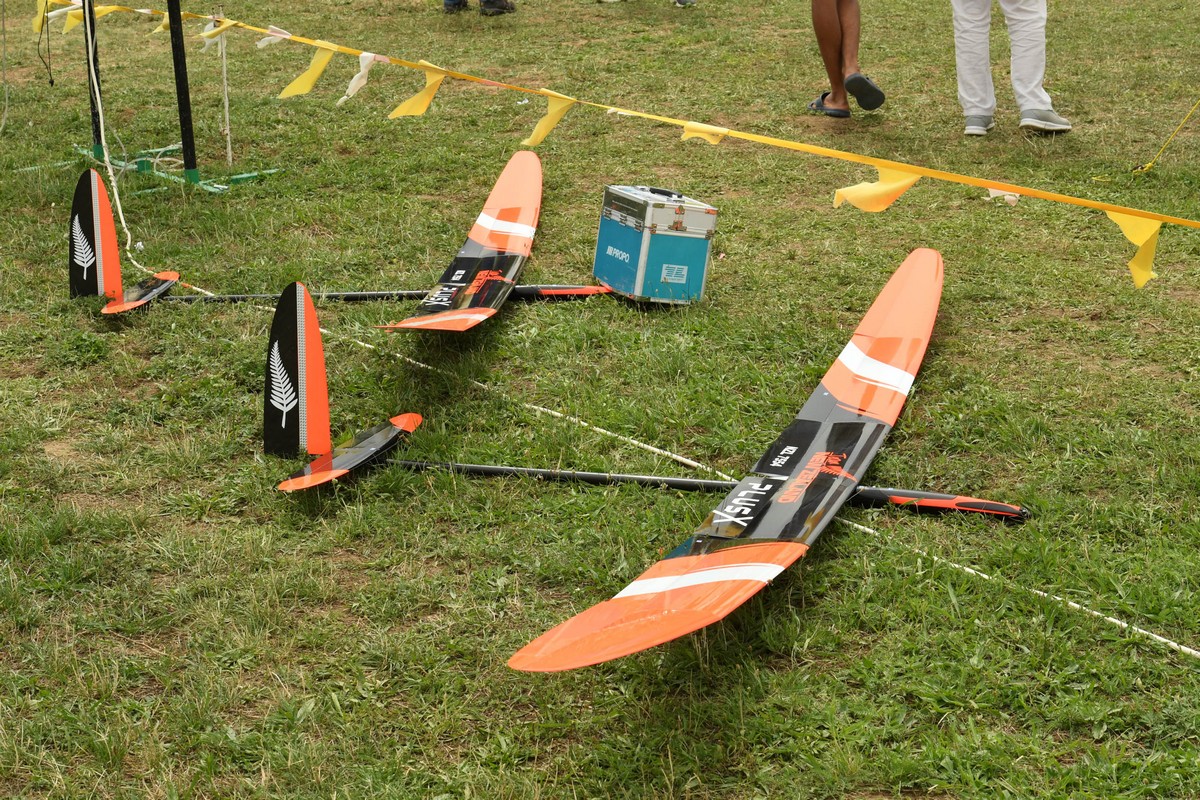

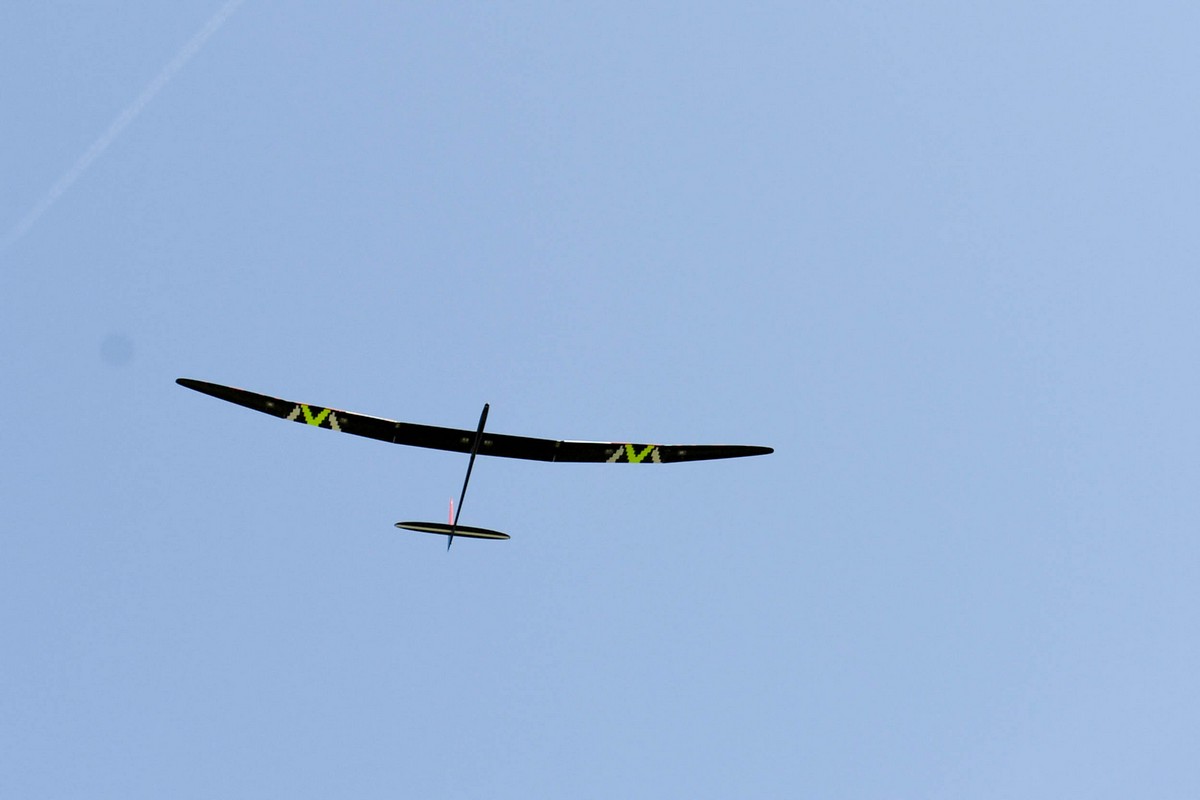

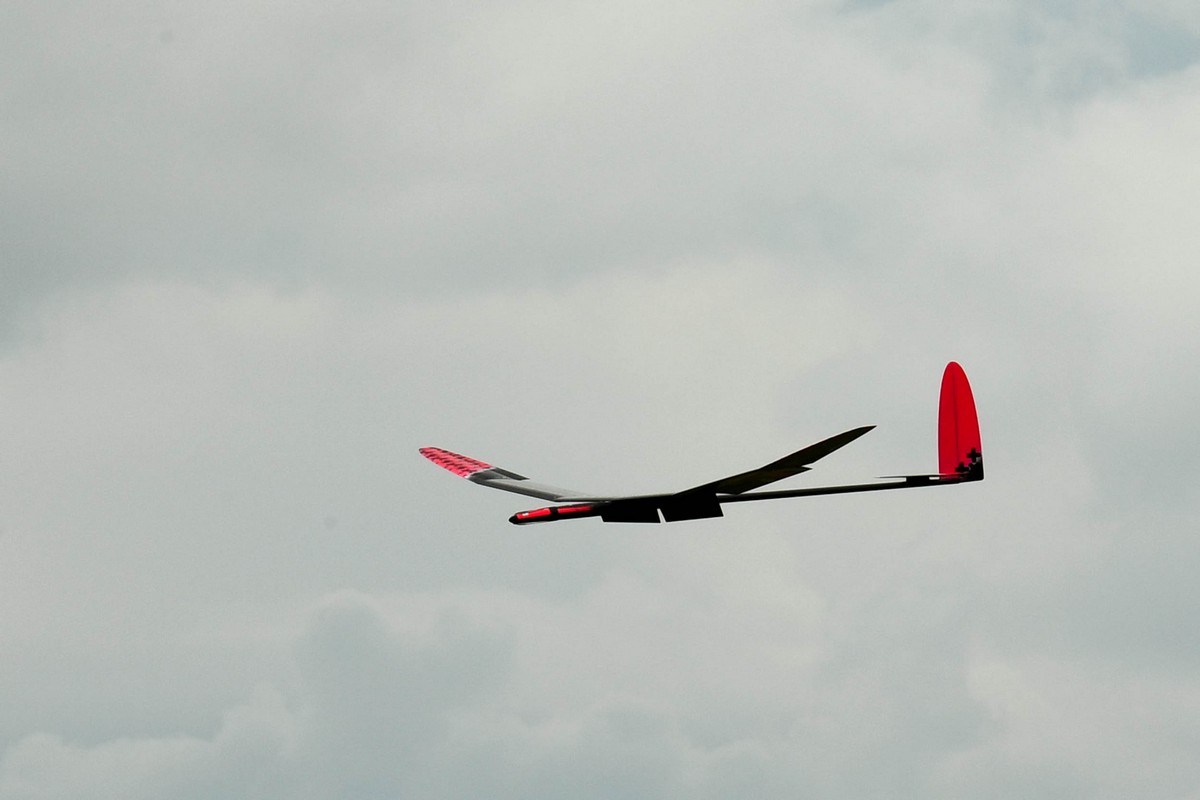

Pictures

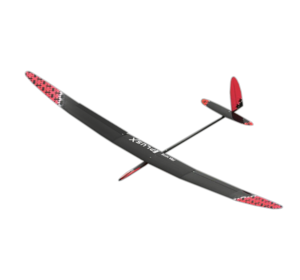

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

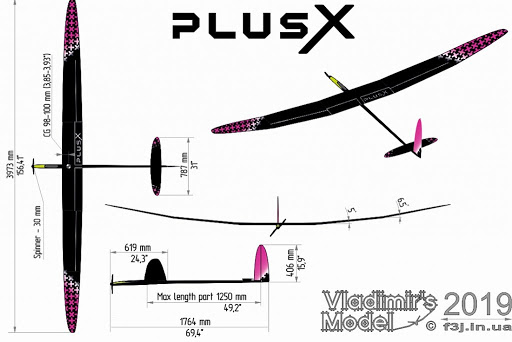

Wingspan: 3973mm (156.4 in)
Length: 1764mm (69.4 in)

Weight: 1230 g (2.7 lbs)
Length 1764 mm (69.4")
Wingspan 3973 mm (156.41")
Flight weight 1230 g
CG 105 mm from leading edhe
Wing area 77.2 dm²
Wing airfoils original by Joe Wurtz
Wing aspect ratio 20.4 %
Horizontal stabilizer area  7.98 dm²
Horizontal stabilizer aspect ratio 7.76
Vertical stabilizer area 5.15 dm²
Vertical stabilizer aspect ratio 3.17
Control surfaces ailerons, flapperons, flaps, elevator, rudder
