Phreakstyle from XILO

Details

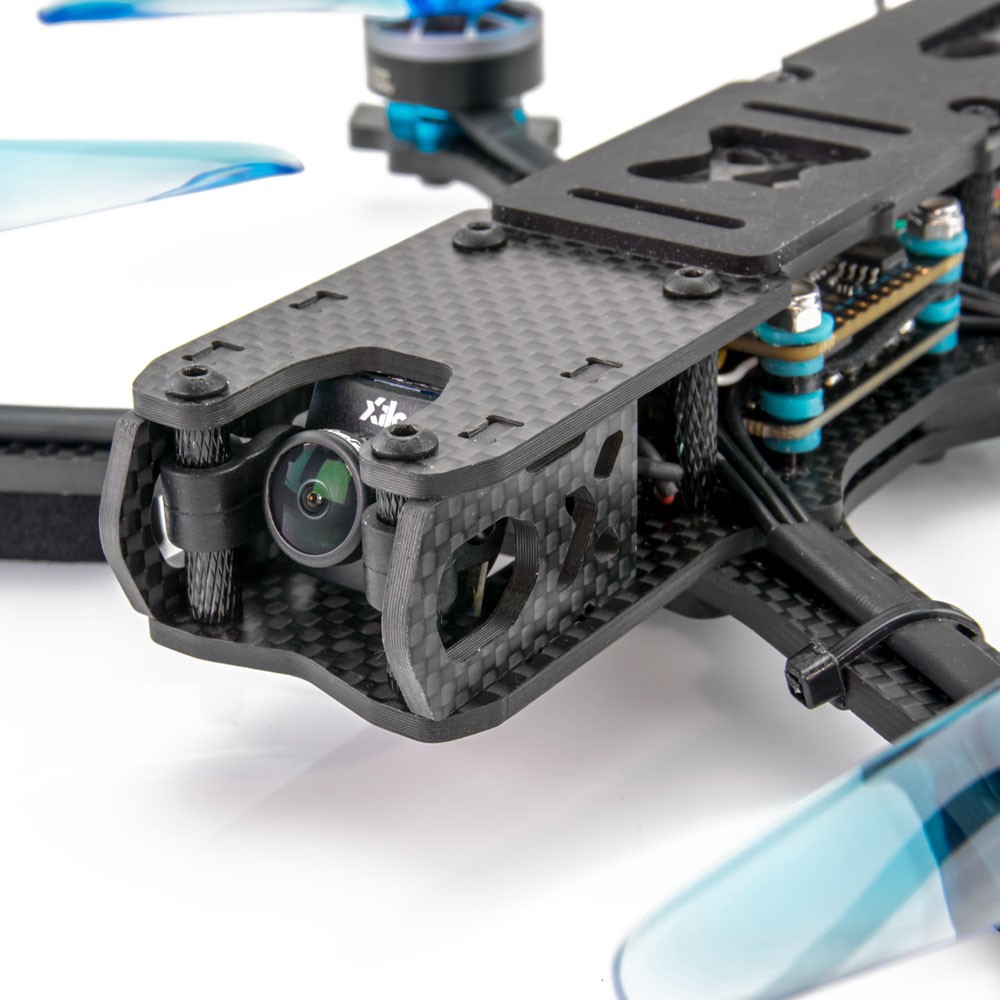

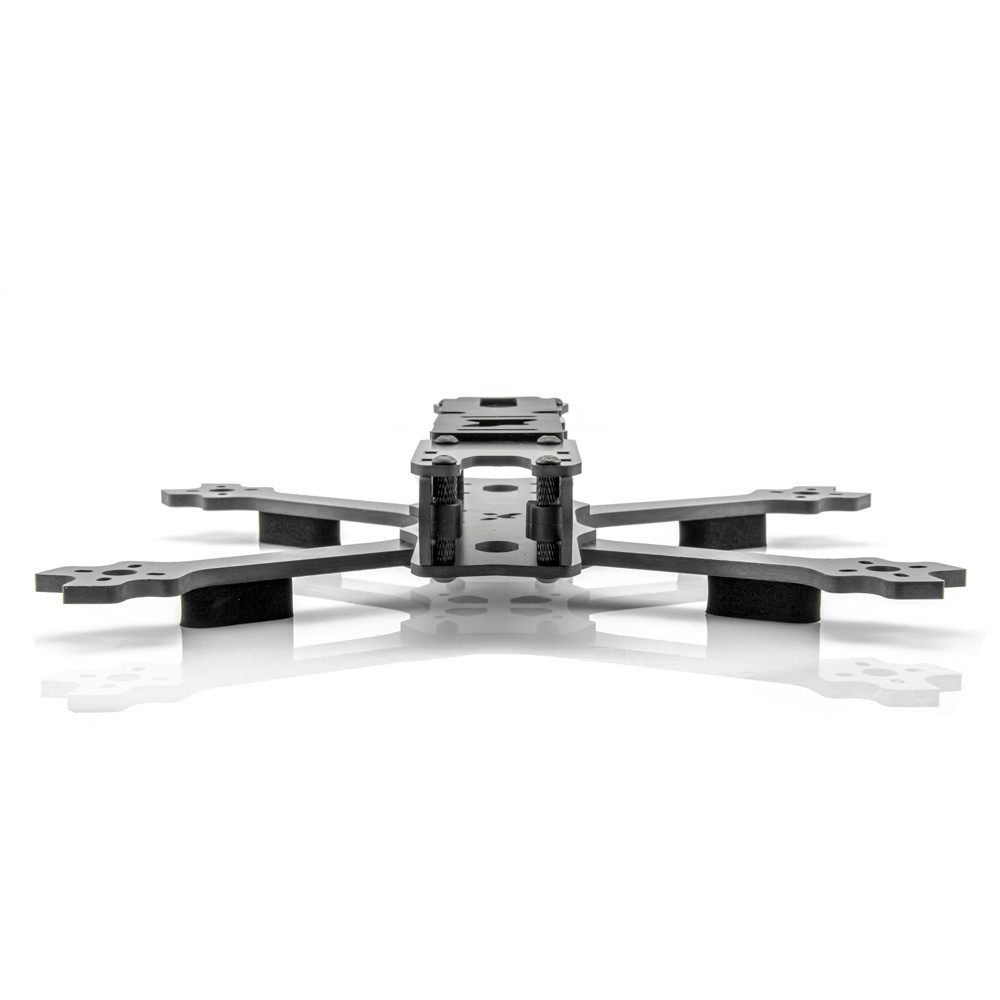

The Phreakstyle Quadcopter is XILO's take on the FPV freestyle airframe. The ultra-durable, easy to work on, carbon fiber airframe was built to take a beating. The Phreakstyle offers freestyle FPV pilots a frame with all the space and features you want - at an affordable price.

Whether you are flying in bandos or some proximity flying around trees - accidents happen. You want a quad that is easy to repair and won't cost an arm and a leg to fix. If you're looking for an awesome frame at a great price, then the XILO Phreakstyle is the quad for you!

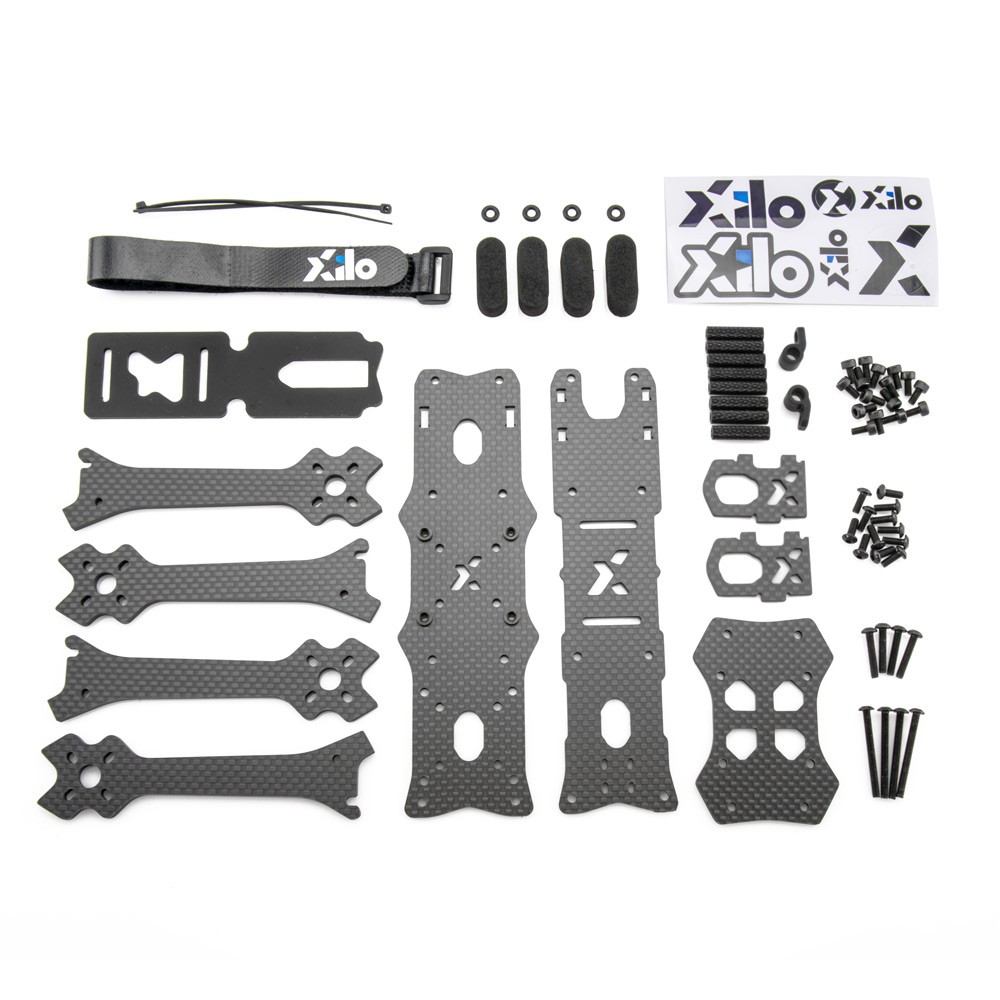

The airframe features removable 4mm carbon fiber arms and 2.5mm thick top and bottom plates. Similar to the Phreak Racing Frame, the Phreakstyle arms are sandwiched between the bottom plate and 2.5mm battery plate giving you an incredible 9mm thick of carbon fiber at the center of the body. Each arm is secured in place with just 2 screws and steel press-fit nuts on the main plate. This allows fast and easy arm swaps by simply taking out 1 screw and loosening the other and pulling the arm out of the slot.

Each 4mm arm and plates are CNC milled out of a solid sheet of high-quality XILO carbon fiber. The outer weave of the carbon fiber runs 100% down each arm of the XILO Phreak (0/90 weave), maximizing the strength of the carbon and arms. The center layers are offset at 45 degrees providing even and balanced strength throughout the entire plate.

Features:

  • Full 3K Carbon Fiber "slammed" airframe with removable 4mm arms (5", 6", 7" arm options coming).
  • Slotted arms allow for easy arm swaps by removing only 1 screw
  • Built-in carbon fiber camera bumper guards
  • Squashed-X configuration keeps props out of view
  • Black Oxide steel screws
  • Easy-grip anodized spacers
  • Motor guards on the end of the arms to protect the motor during a crash
  • Fits both 30.5x and 20x stacks in front and rear
  • Silicone non-slip battery pad
