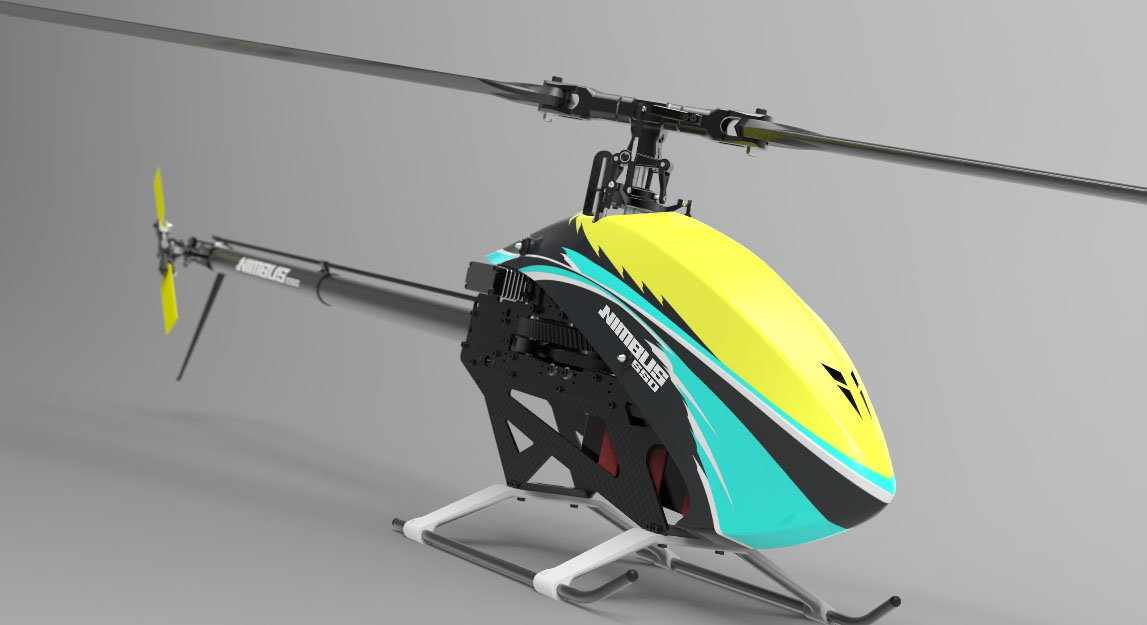

Nimbus550 from XLPower

Details

  • Sacrificial blade grip arms designed to bend or break in crash
  • The tail servo and tail control rod are mounted in the upper frame raising the vertical CG to improve flight characterisitcs
  • Optional quick connector system make your battery load super easy
  • One-piece tail box to simplify the build process and replacement of tail shaft bearing
  • Two kit versions are available based of the pilot's servo choice.
  • Battery tray system is able to be loaded into the helicopter from the front or the rear
  • The core of the mainframe is a single piece 7075 aluminium bearing block assembly and servo mount providing rigidity to the frame and drivetrain
  • The cyclic servos are arranged in a 120 degree layout for optimal control geometry
  • Large diameted tail boom (25mm) without the need for boom supports
  • High quality 2.5mm thick carbon fiber upper frames and lighter 2mm lower frame plates for unmatched frame strength and crash resiliency
  • The main gear hub consists of two one way bearings providing reliability for the most extreme power combinations
  • Wide landing gear to increase ground stability.

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Nimbus550 in particular but at least we know they do distribute XLPower.

Where to buy

USA
AMain Hobbies
check web site
Ship to: USA
Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 1160mm (45.7 in)
Length: 1120mm (44.1 in)

Weight: 1560 g (3.4 lbs)
  • Length Without Main Blades: 1120mm
  • Overall Height: 302mm
  • Width: 196mm
  • Main Gear: 106T Mod 1
  • Pinion Gear: 12T (11-13T Optional)
  • Motor Shaft Diameter: 5-6mm (Length 20-38mm)
  • Main Gear Ratio: 8.38 (8.15 9.63 Optional)
  • Front Tail Pulley: 60T
  • Rear Tail Pulley: 13T
  • Tail Ratio: 4.615
  • Frame Weight With Blades: 1560g
  • Main Shaft Diameter: 10mm
  • Feathering Shaft Diameter: 8mm
  • Tail Boom Diameter: 27mm
  • Tail Belt Width: 6mm
  • Main Gear Thickness: 10mm (12mm Optional)
  • Battery Compartment Size: 290mm 53.5mm 60mm

Variants

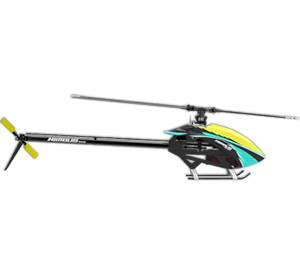

XL55V2K02
Nimbus550 (Green Yellow Black)
