Specter 700 from XLPower

Details

The XLPower Specter 700 features a high CG design, aided by mounting all electronics as high in the frame as possible. Additionally, the main rotor is located as low as possible to the tail boom further enhancing the CG design.

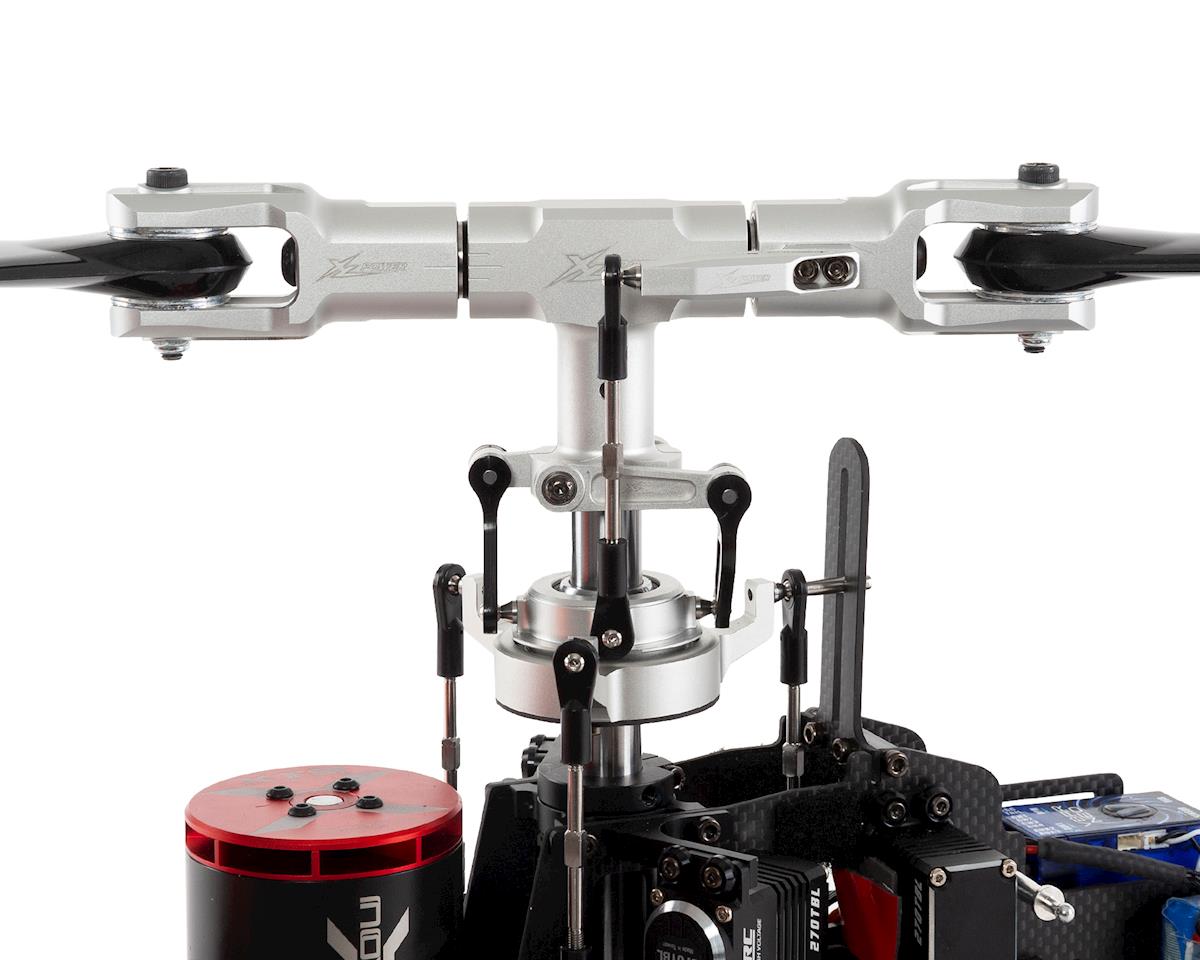

The main rotor head features a CNC polymer and O-Ring based dampening system, which provides both great low headspeed characteristics, as well as incredibly crisp feeling in high headspeed flight. The main shaft is 15mm thick, offering improved crash resistance and strength over most other 700s in the market. Blade grip pitch arms feature two mounting holes (inner and outer), allowing pilots to tune their rotor heads for incredibly aggressive pitch and cyclic response, or more conventional and calmer reactions.

Additionally the helicopter features titanium based turnbuckles, which provides incredibly precise length adjustments.

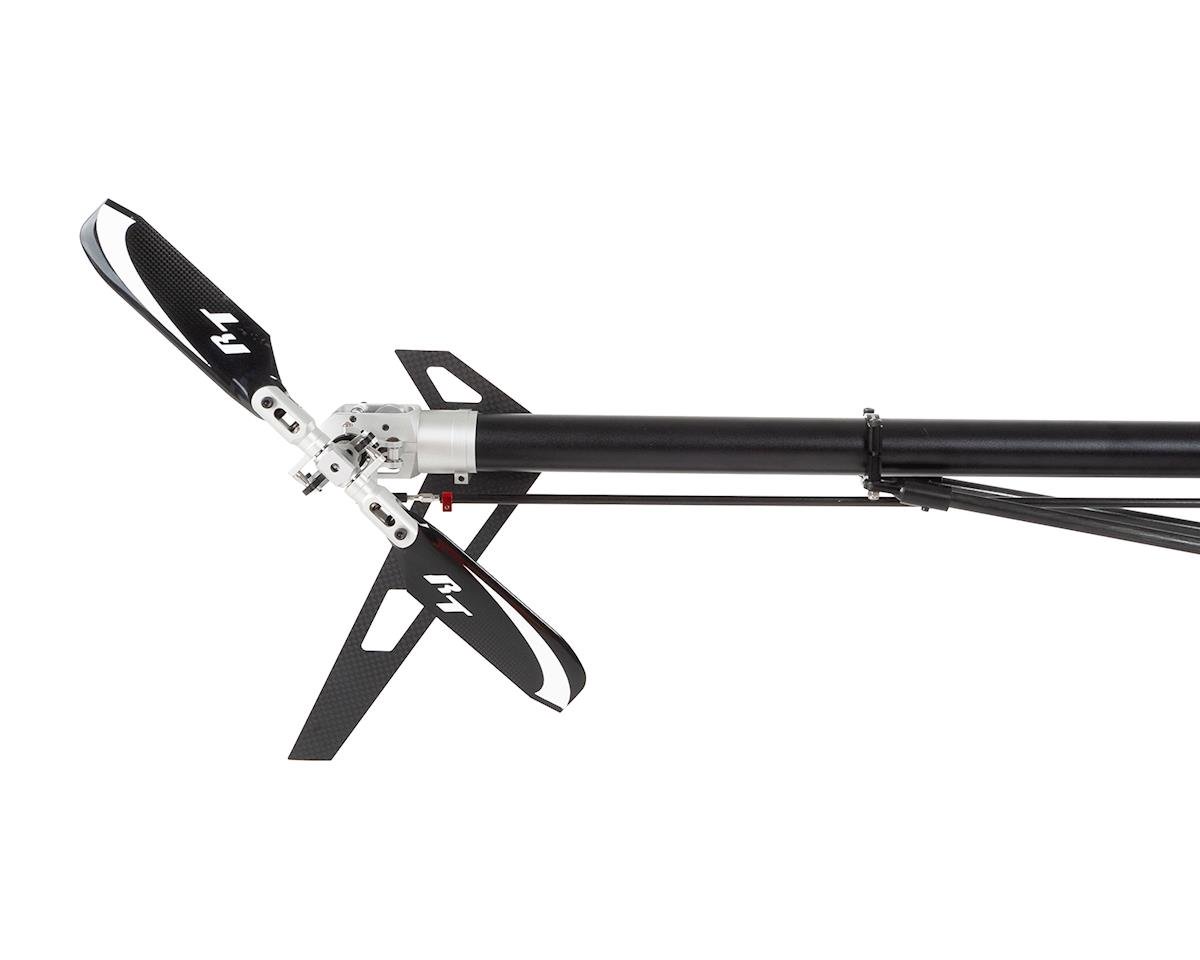

The tail rotor is driven by a belt, providing pilots with simplicity of both design and low parts count. Often times belts are desired due to improved durability; in the event of a tail strike often times the belt will skip a few teeth, and keep on running without damage to the drive train.

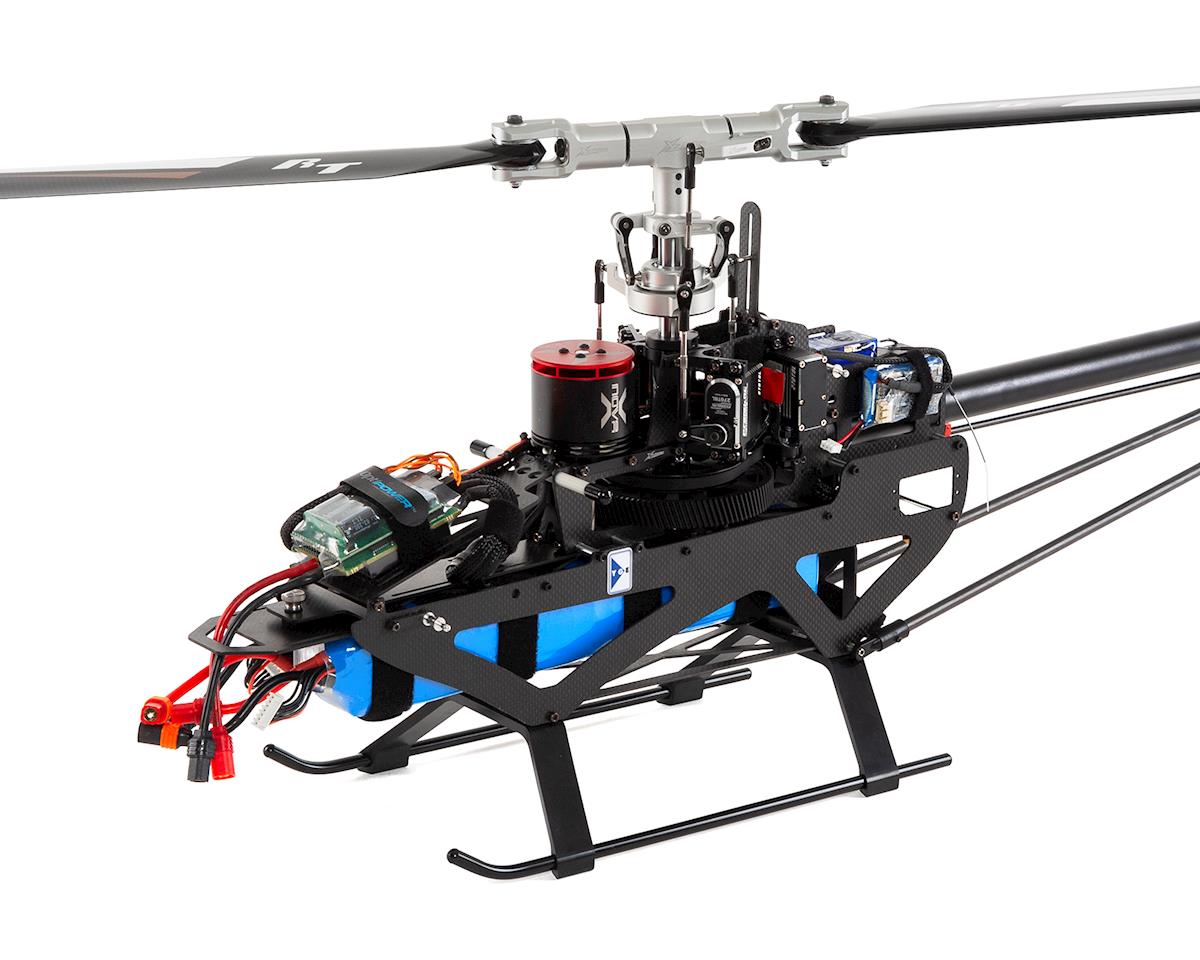

Battery mounting is a breeze thanks to the sliding rail system. Secured in the front by a single thumb-screw with O-Ring, batteries can be changed in a matter of seconds! There is a large area of space available for CG adjustment (front to back adjustments), or larger battery packs such as 5,500 mAh 12s, or even 5000mAh 14s power systems!

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Specter 700 in particular but at least we know they do distribute XLPower.

Wingspan: 1300mm (51.2 in)
Length: 1300mm (51.2 in)

Weight: 5300 g (11.7 lbs)
  • Length: 1300mm
  • Height: 376mm
  • Width: 134mm
  • Main blade size: 685mm - 716mm
  • Tail blade size: 105mm - 115mm
  • Motor pinion:  11t included; 10t,12t optional
  • Main gear: 106t
  • Tail pinion: 17t
  • Autorotation gear: 80t
  • Main to tail gear ratio: 4.7
  • RTF weight: 4900g - 5300g
  • Main shaft diameter: 15mm
  • Feathering shaft diameter: 10mm
  • Tail boom diamater: 27mm
  • Battery tray size: 350mm x 66mm x 70mm (12s-14s)
