Dart 250G from ZOHD

Details

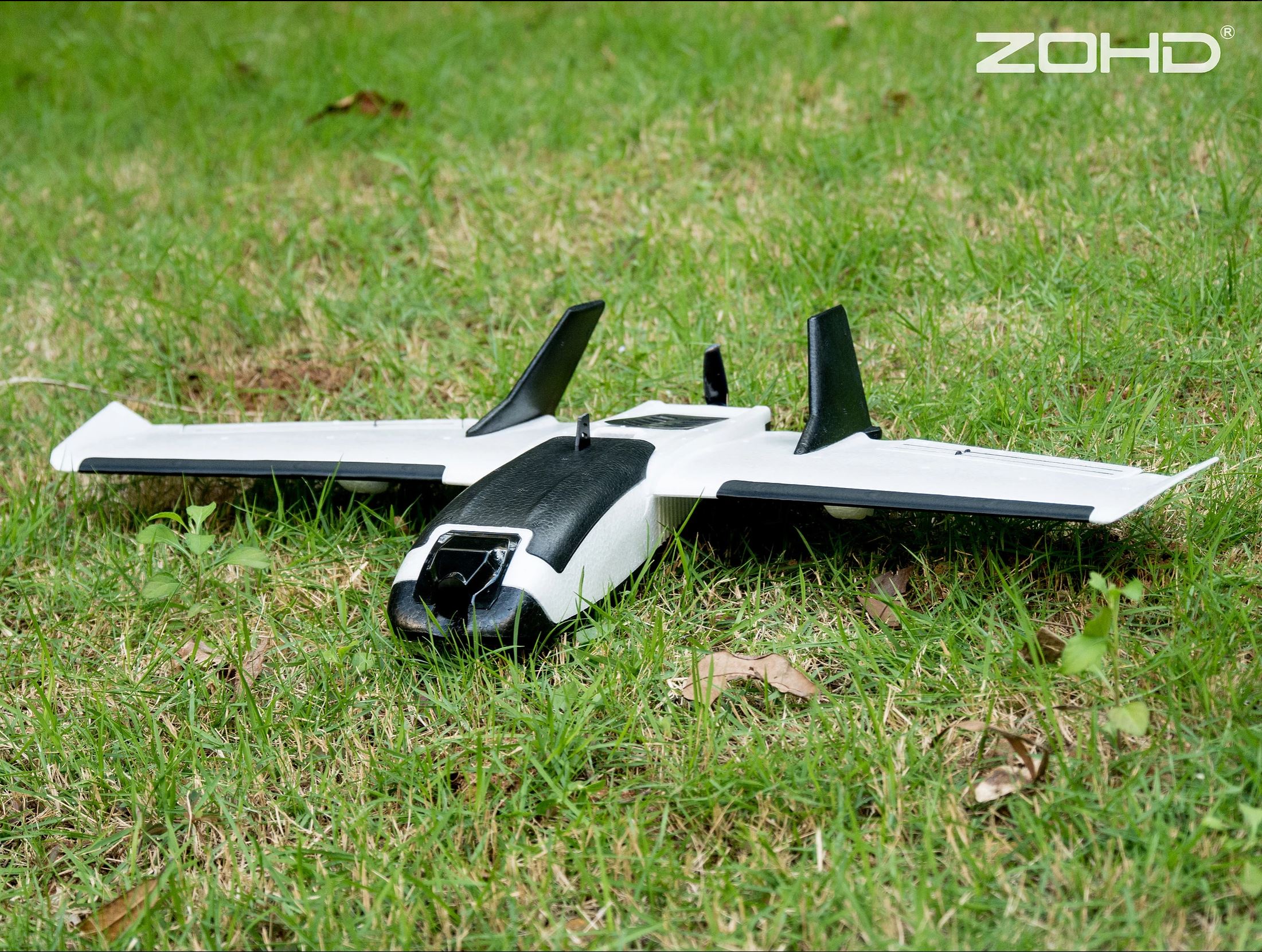

Based on the great reputation of the Dart Wing family and the invaluable info gathered from top world-wide FPV pilots, we were able to develop new techniques, and after tons of tests and refinements, we are finally bringing you the finest sub-250 ship in the market: The ZOHD Dart 250G.
Using our default configuration and the recommended FPV gear, it is 100% under 250 grams. To the untrained eye, she will look like a harmless toy but, -we and you know- this is a super capable FPV ship that will even let you do long range like the bigger sisters.

Being so light, it’s a blessing for beginners since they will find that is really hard to break it. Also, coupled with our NEW Kopilot Lite and the VC400 camera, you will get a ready to go FPV system, solder and hassle free.

Now you can enjoy more than 30 minutes FPV action (with a 18650 2S1P 3500mAh) or a super thrilling proximity mission (on 3S setup), everything under 250 grams. Since the wingspan is only 570mm, you don’t even need to think about the portability, this thing is bicycle-ready!

Features

  • AUW is less than 250g, ideal to comply with Sub250g regulations
  • Durable EPP material, built-in CF spar for enhancement, crash resistant
  • Being light-weight will be safe to fly anywhere, anytime. You’re avoiding the hassle of an FPV registration
  • Glue-free assembly, the main wing and tails come with pre-applied 3M adhesive, just peel it off and install them
  • Large battery bay for extended flight time

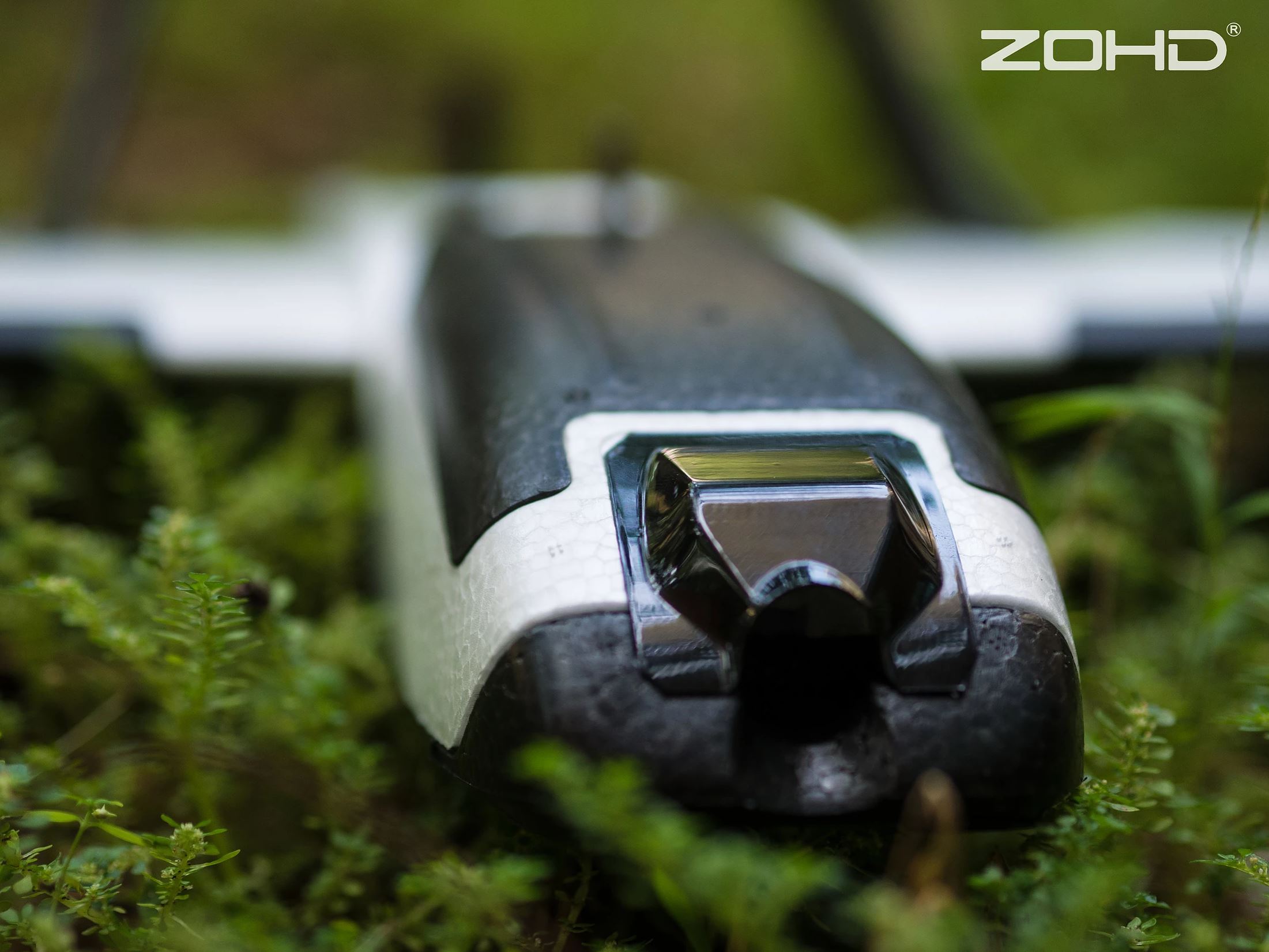

  • Nose camera bay compatible with all FPV and AIO cameras in the market
  • Teflon cover for the fuselage bottom, super durable, protecting the fuselage bottom from scratches

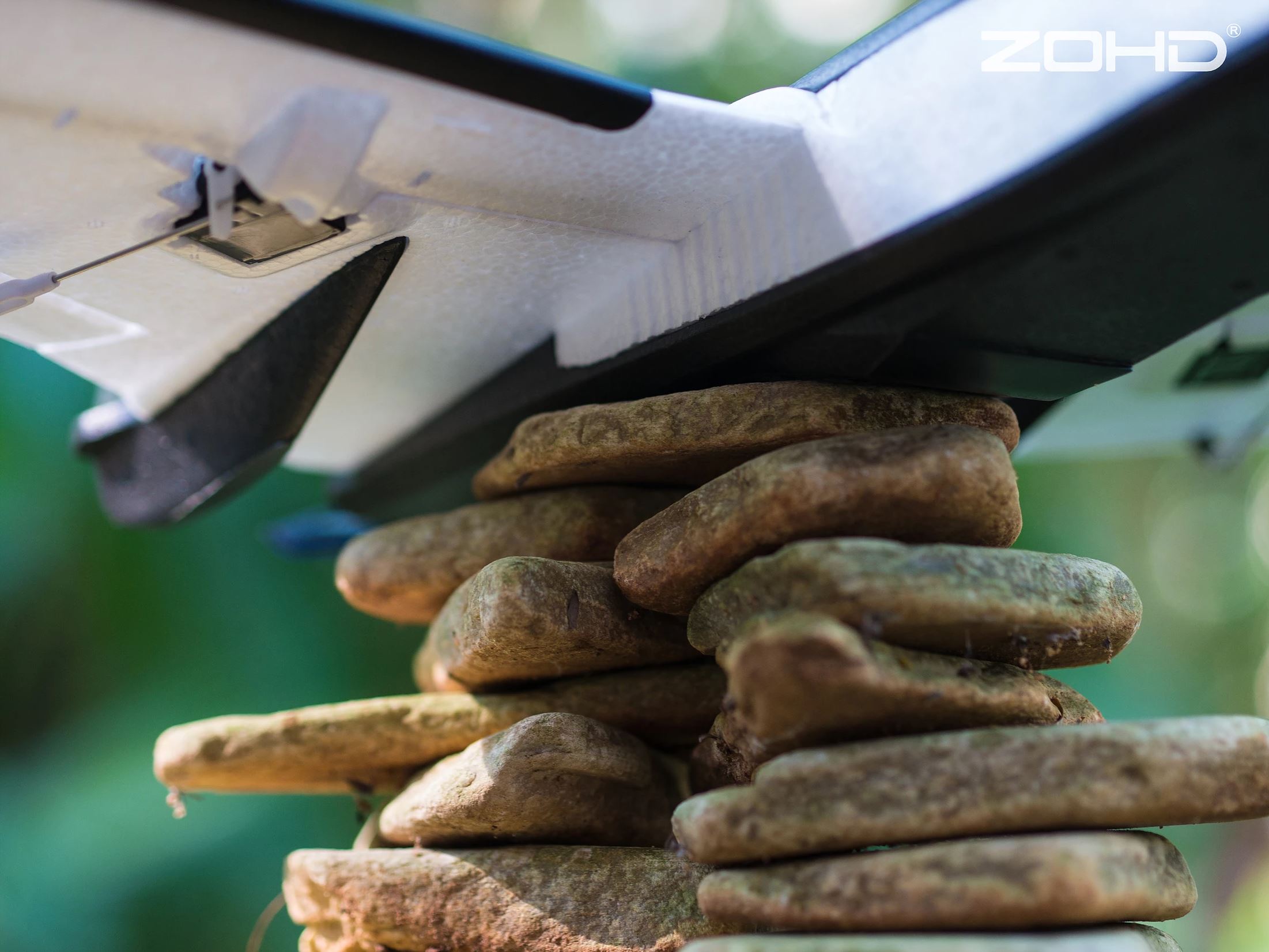

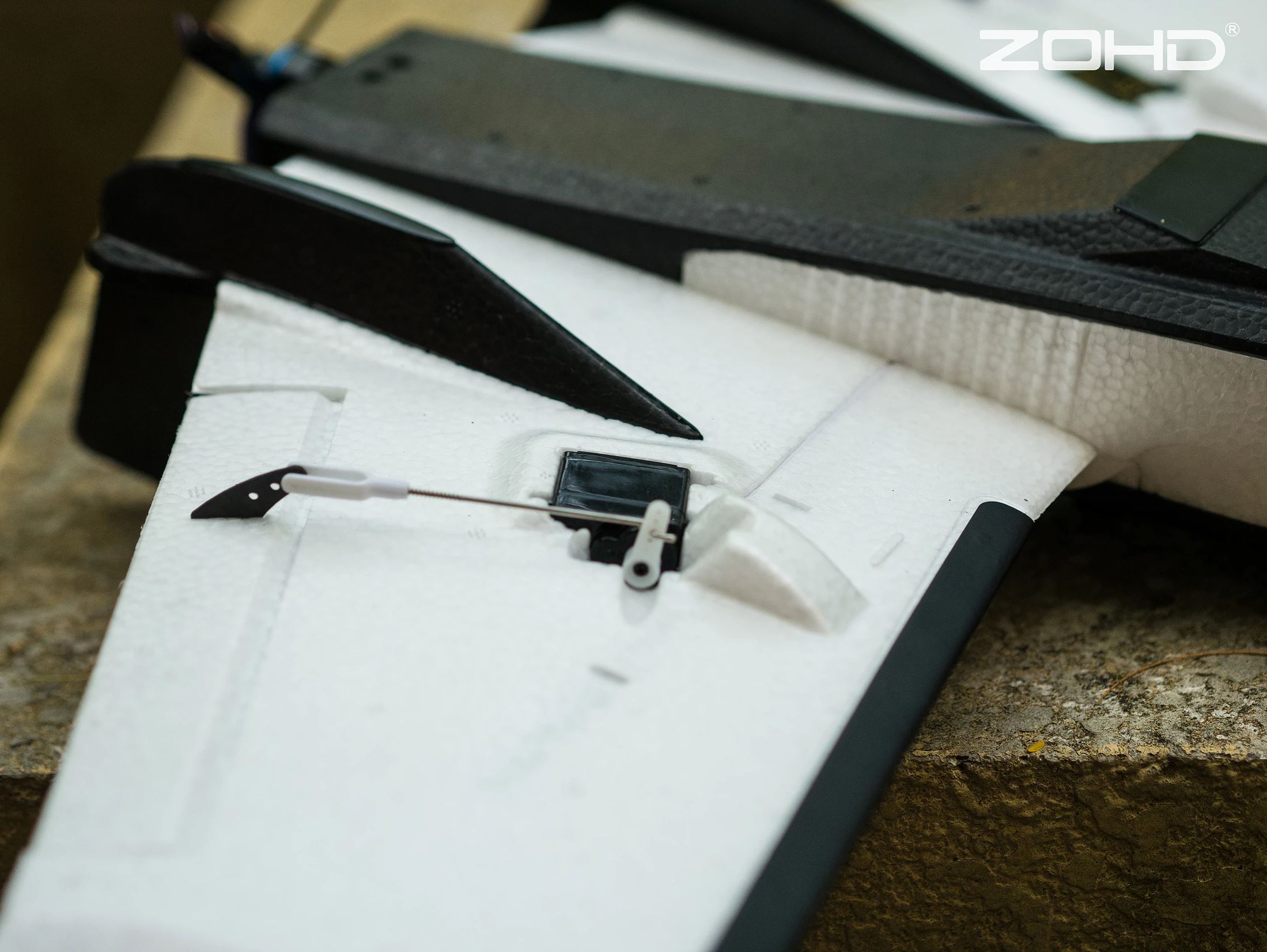

  • Servo arms are well protected by an EPP hump
  • Built-in CF rod in the ailerons will give precision and sharp action to your inputs

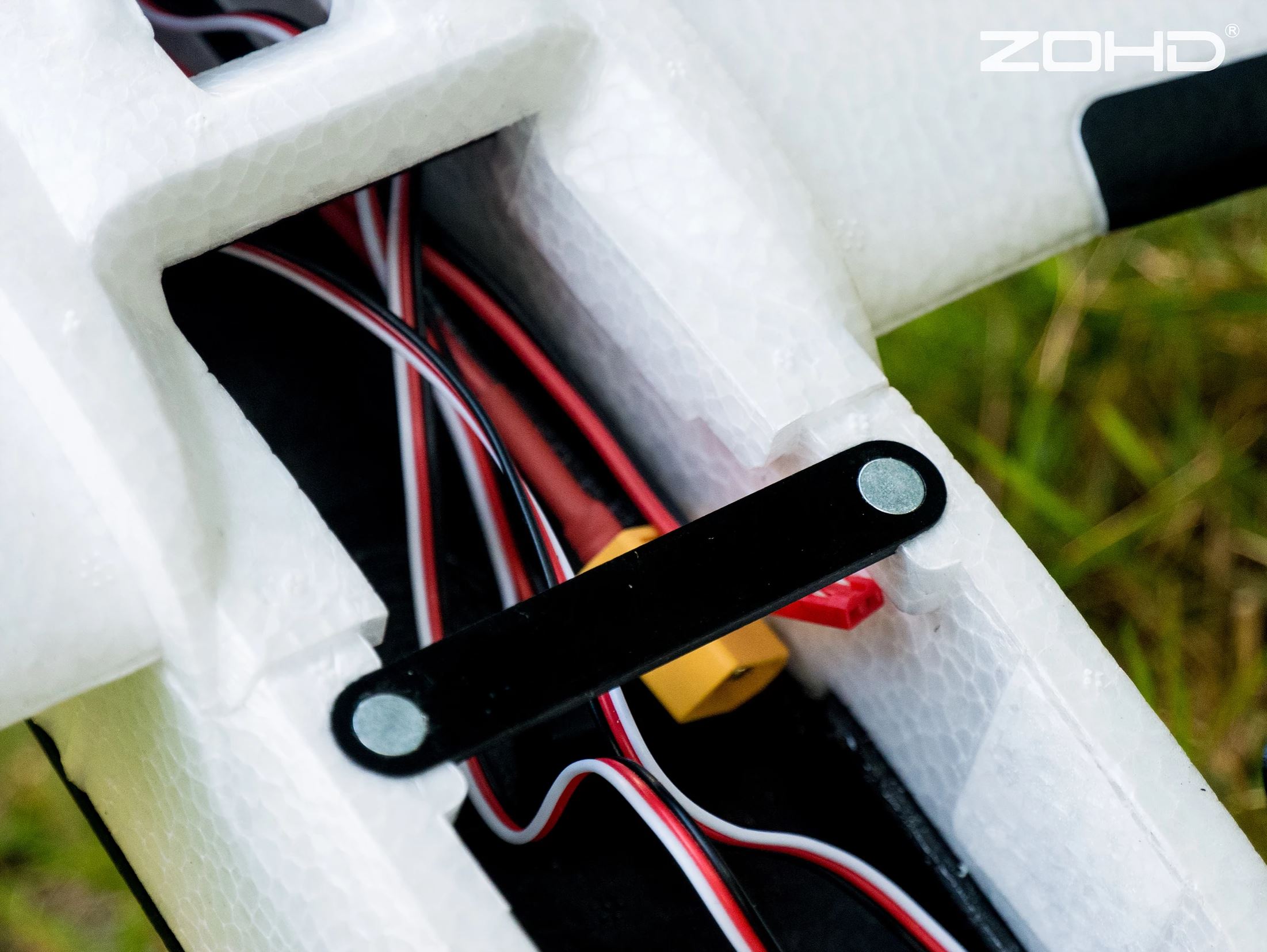

  • Dedicated equipment bay for Flight Controller and GPS
  • Main wing leading edge cover for those unexpected impacts

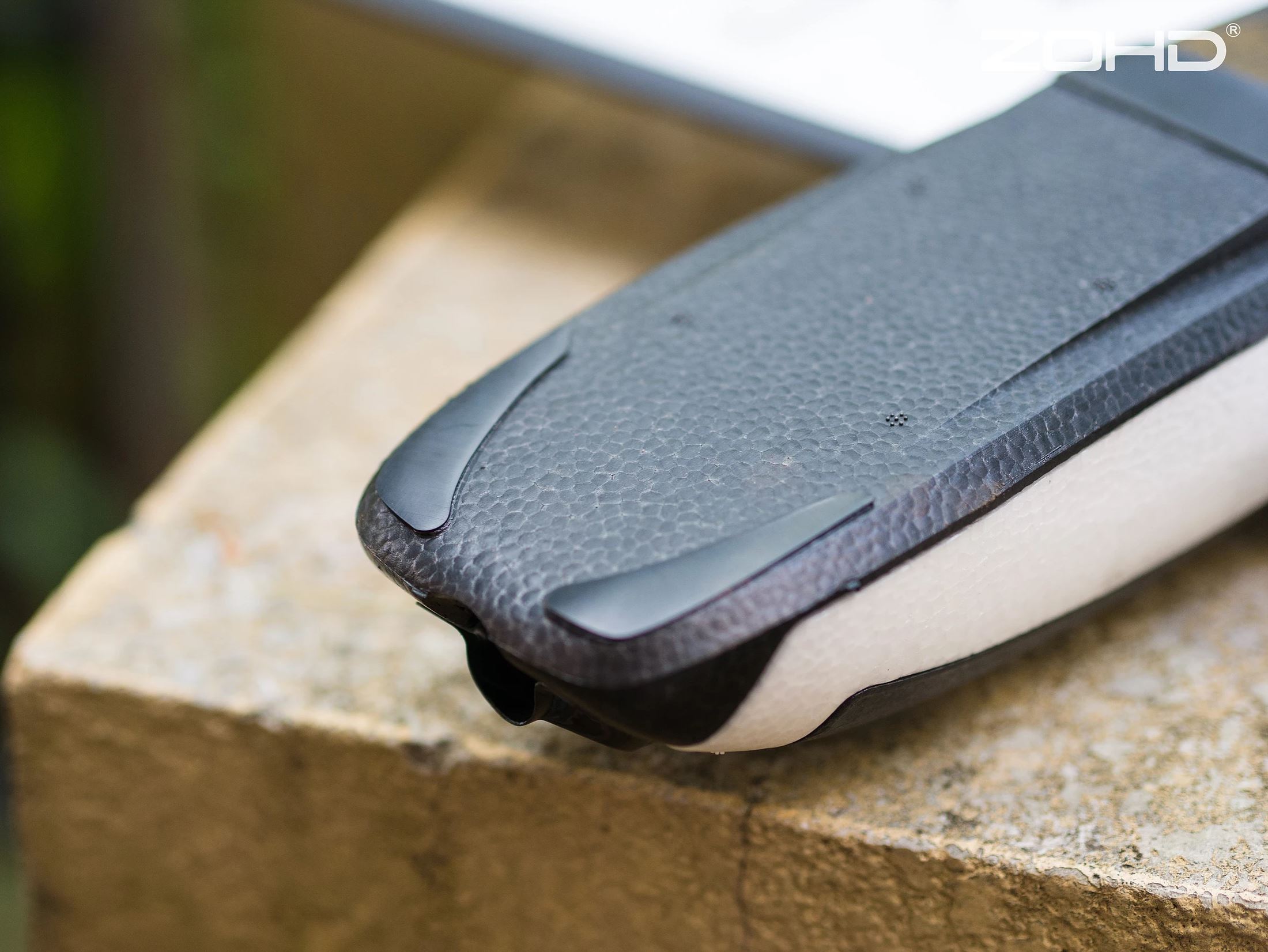

  • Textured areas on both side of the fuselage, for more secure hand launch grip
  • Optimized air-cooling design will keep your gear safe from overheating

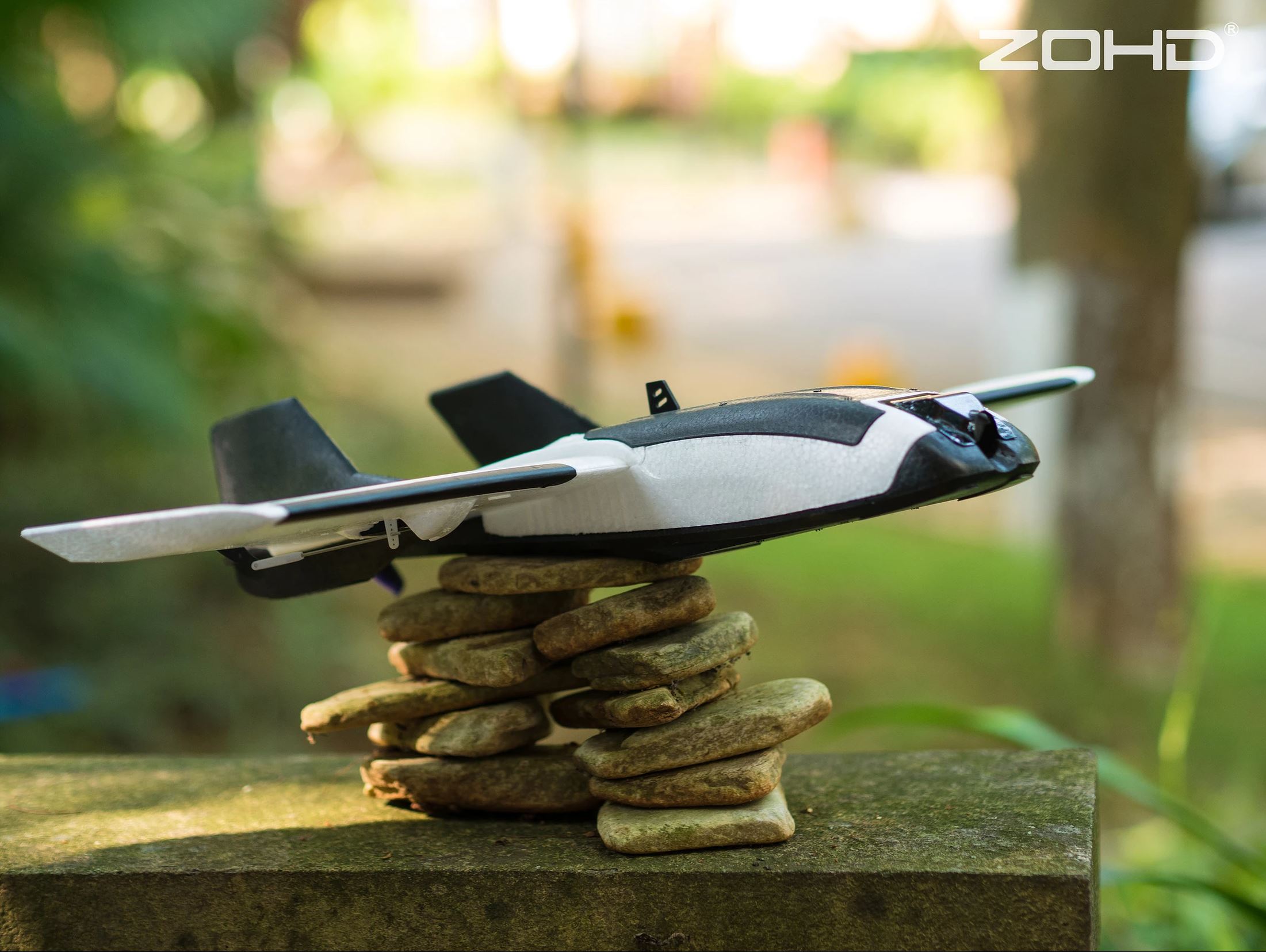

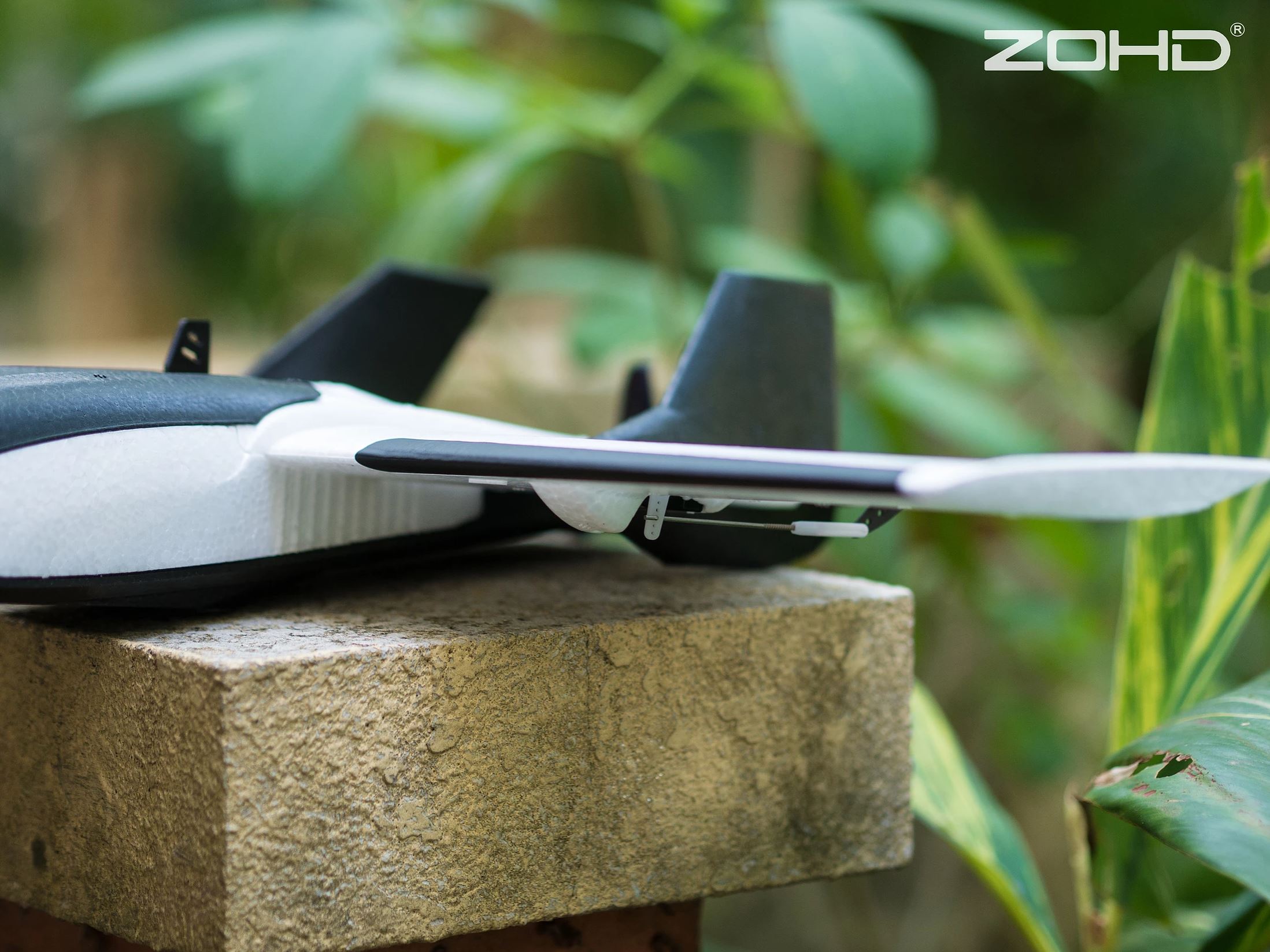

Pictures

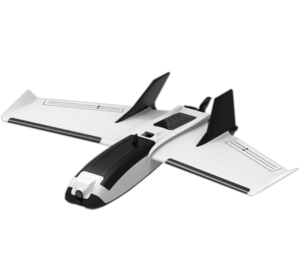

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Dart 250G in particular but at least we know they do distribute ZOHD.

Wingspan: 570mm (22.4 in)
Length: 379mm (14.9 in)

Weight: 250 g (8.8 oz)

Wingspan: 570mm
Length: 379mm
takeoff weight: 250g
Engine / RPM Model: 1406-2600KV
ESC current: 30A w / 5V 2A BEC

OPTION A (2S Version)
Motor: 1406-2600KV
ESC: 30A w/5V 2A BEC Servos: 9g
Propeller: 2 blade 5x5
Recommended Battery: Lipo 2S 900-1500mAh (*)
Li-Ion 18650 2S1P 3500mAh (*)

OPTION B (3S Version)
Motor: 1406-2600KV
ESC: 30A w/5V 2A BEC
Servos: 9g
Propeller: 3 blade 3x5x3
Recommended Battery: Lipo 3S 800-1500mAh (*)
