Delta Strike from ZOHD

Details

We're proudly introducing you the NEW Delta Strike, the Eachine's first production FPV 50mm EDF jet, with built-in 180° pan servo!

Continuing with the killer looking of her MKIII sibling (the Alplha Strike) The Delta Strike presents a new challenge for FPV pilots. Anyone who has flown EDF jets before knows that they handle nothing like a propped plane. You will need to be much more skilled with throttle management and air speed, specially in turns.

The EDF propulsion system adds also a safety feature: No risk to get your fingers chopped in a funky hand launch!  All of that combined with the amazing sound and the immersive experience of the 180° pan to look over your wings in the turns, will give you an improved and amazing FPV experience.

Features:

  • World's first 50mm EDF FPV Wing wl built-it pan servo
  • Innovative designed airfoil and aerodynamic airframe
  • Unique and charming“turbine" sound when flying
  • With custom-designed servo bay on top of fuselage for a 180° Pan view
  • ZOHD MKIII blended wing body configuration
  • Clever air cooling design to protect your FPV gear
  • Spacious room inside fuselage for batteries and FPV gear
  • Detachable wings, tail fin and nose, portable and easy to pack
  • EPP molded airframe, built in carbon fiber spar for enhancement
  • Specially-designed servo arm“bunker' structure will protect your servo arm from impacts and minimize drag
  • Ball head buckle linkage for ailerons, high efficiency and more accurate
  • Molded marks for“CG”under the wing
  • Molded hand grip slots for a worry-free hand launch
  • 'inside- the cockpit like'' Immersive experience
  • Looks AMAZING in the sky!

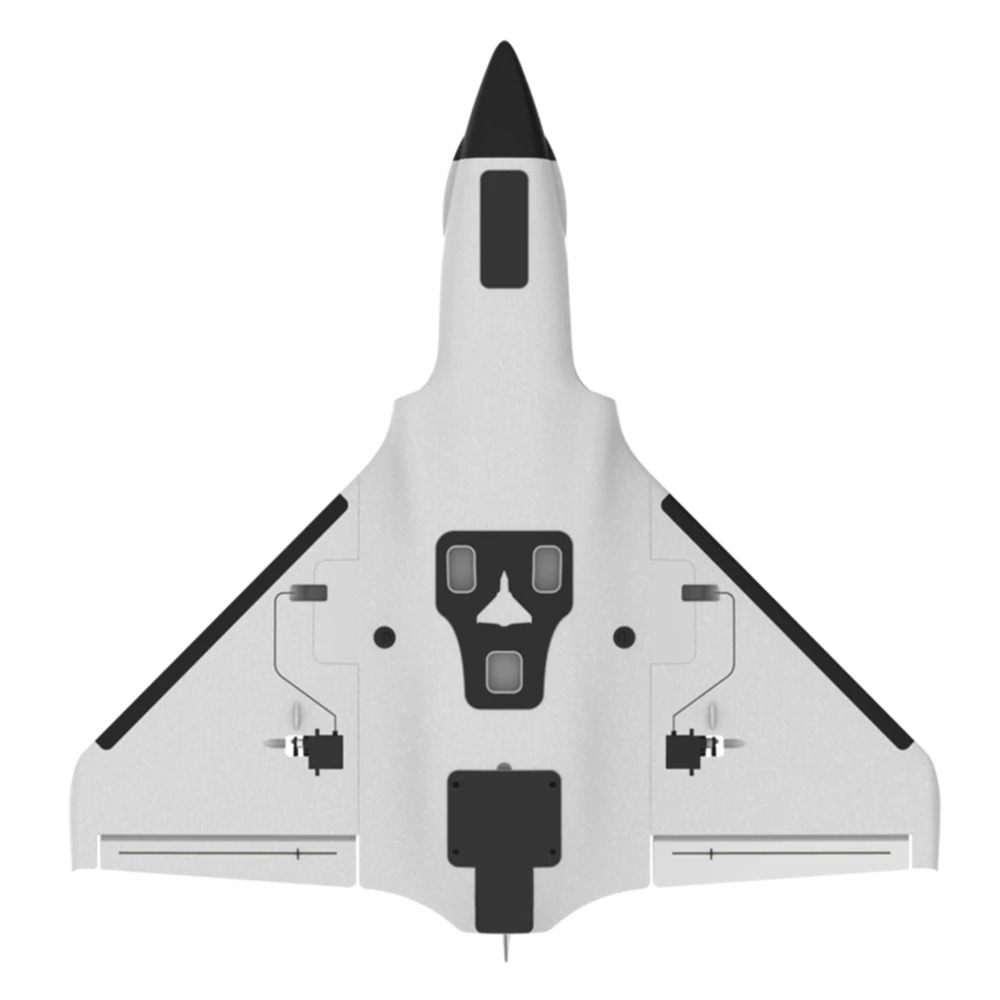

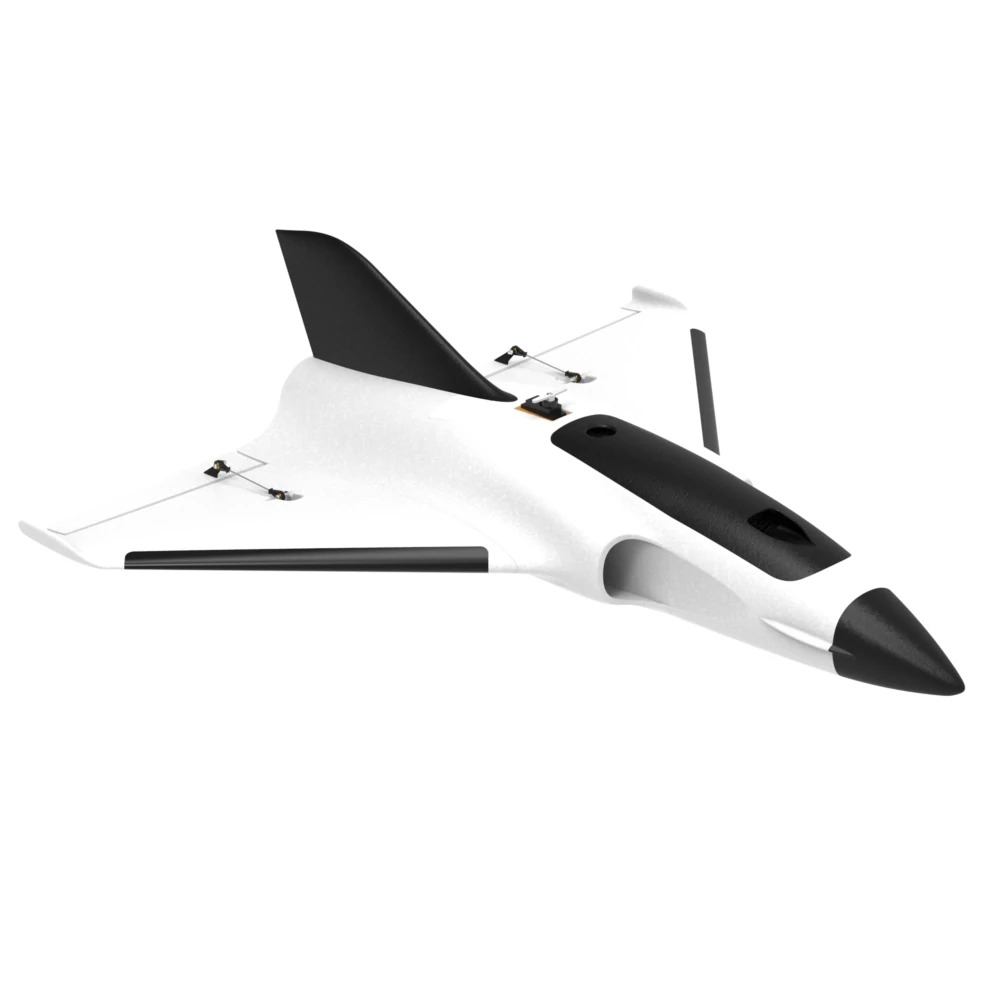

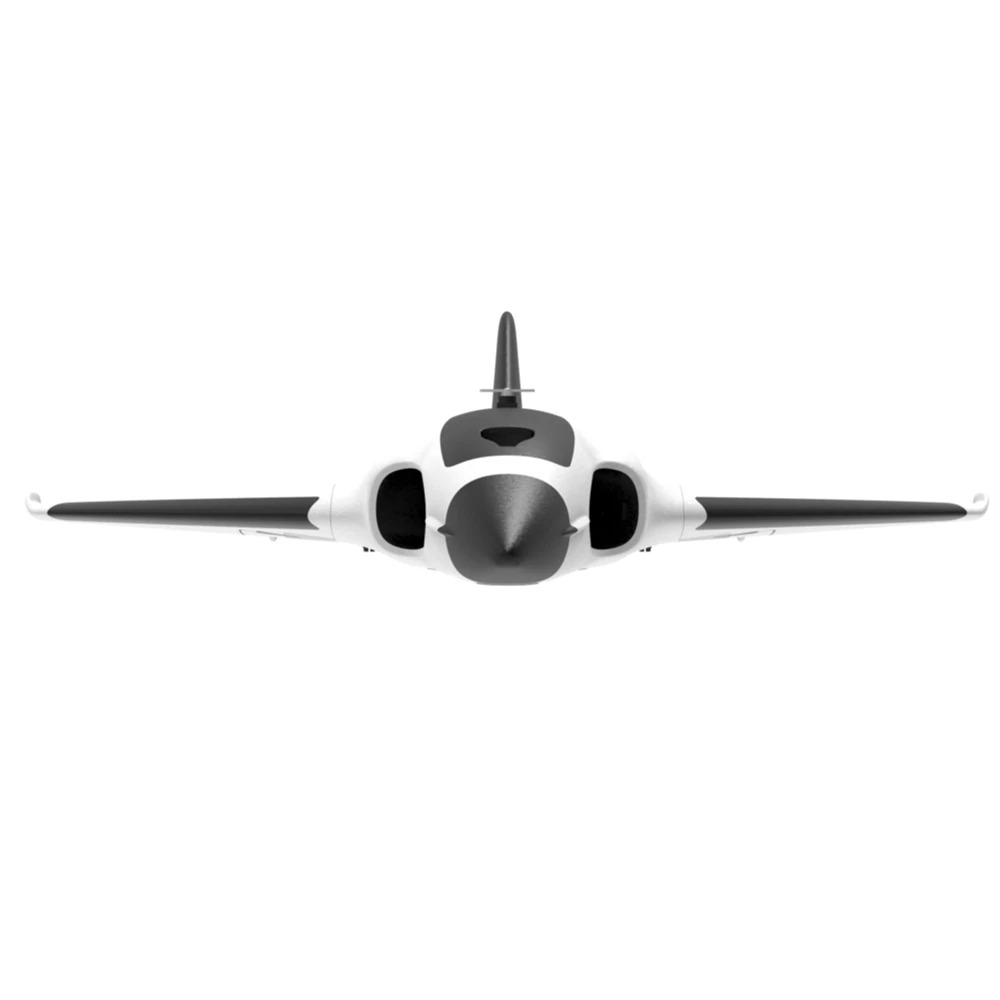

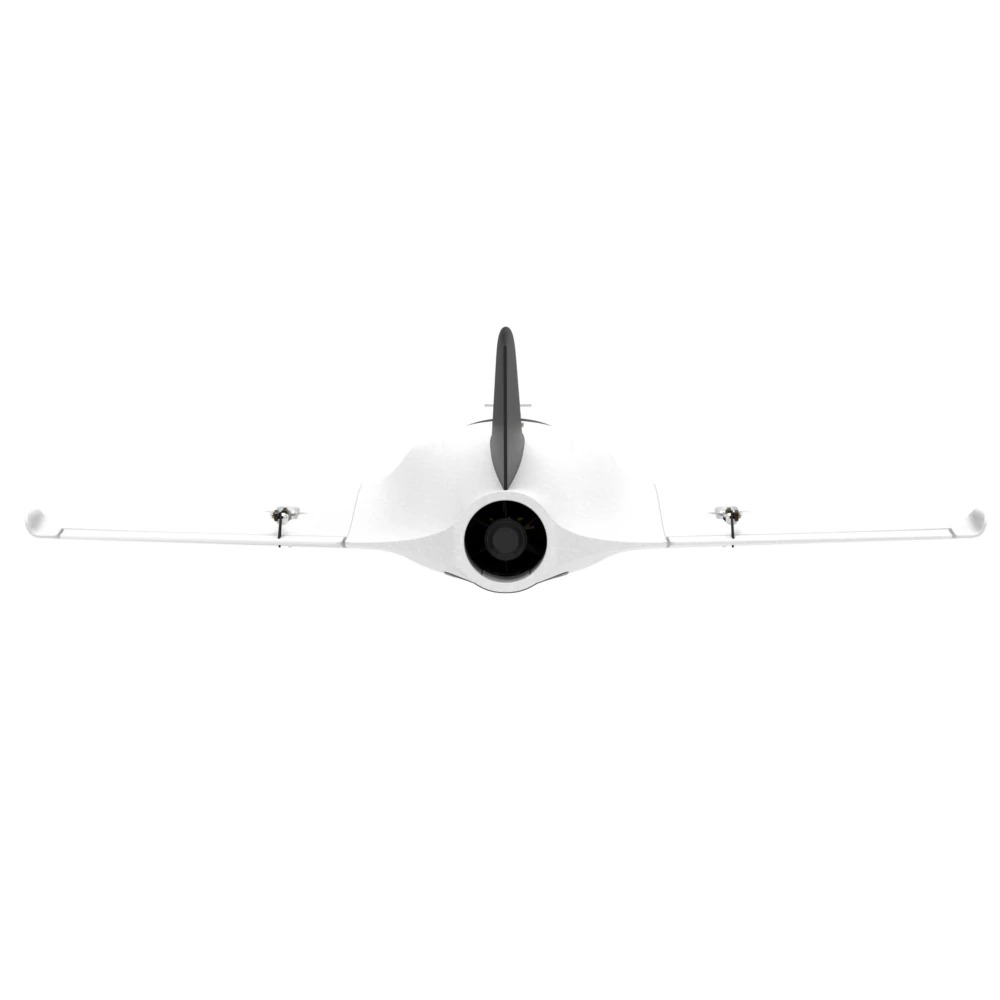

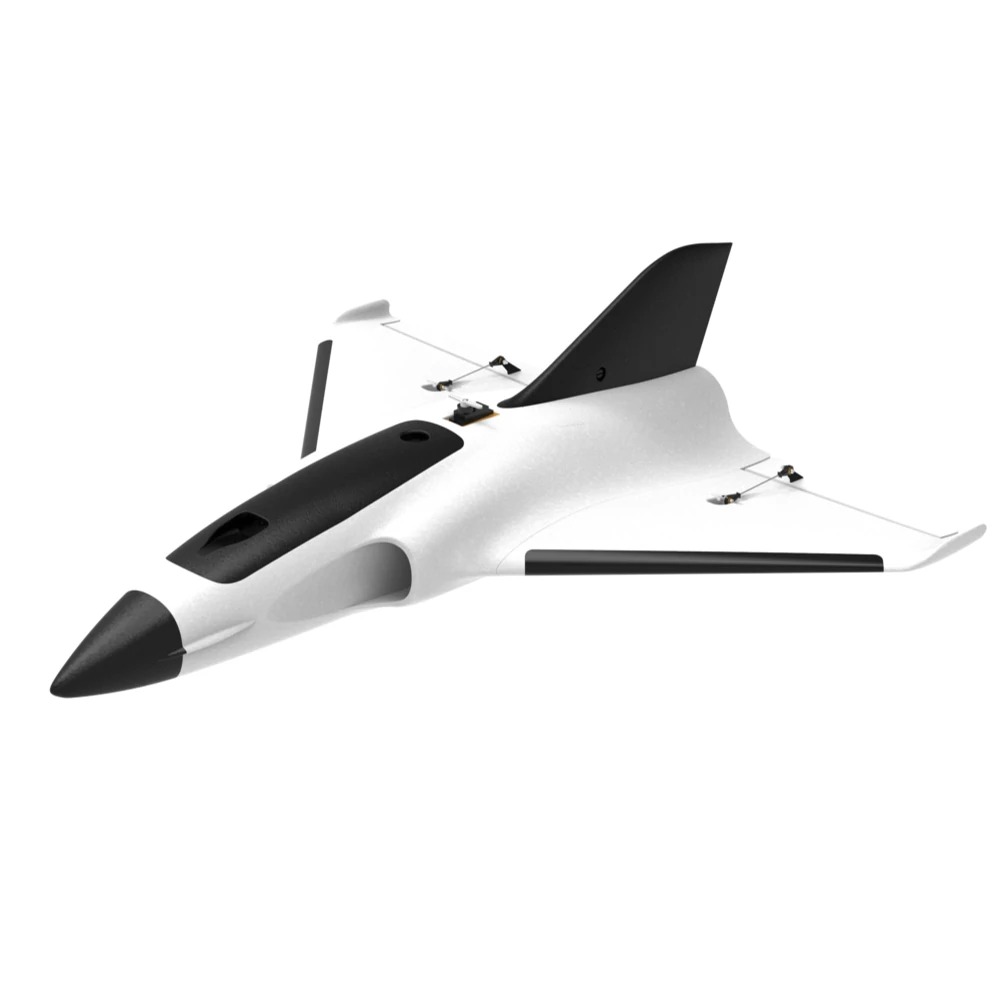

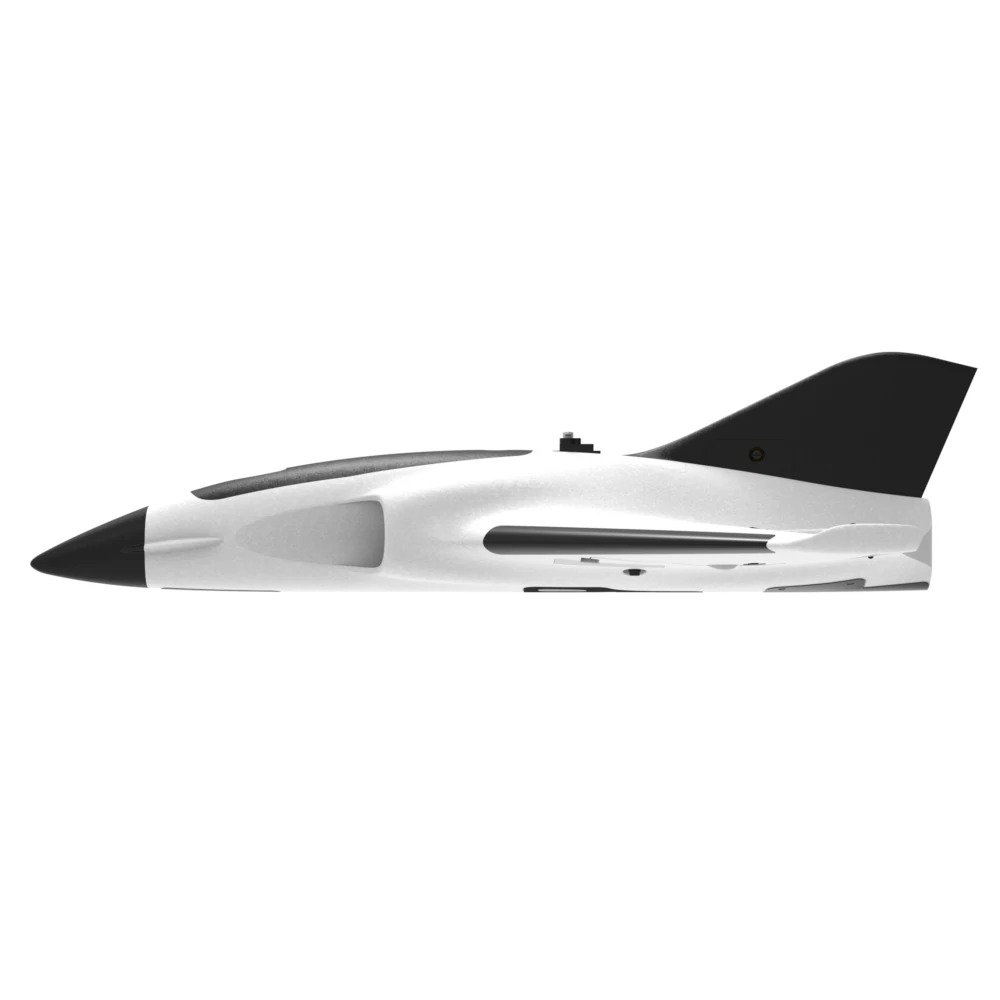

Pictures

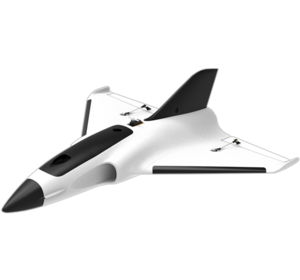

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Delta Strike in particular but at least we know they do distribute ZOHD.

Where to buy

Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 600mm (23.6 in)
Length: 610mm (24 in)

Weight: 750 g (1.7 lbs)
  • Material: High-Quality EPP
  • Wingspan: 600mm (23.66'')
  • Length: 610mm (24.02'')
  • Min. Speed: Around 30km/h
  • MAX Flying Speed: 120 km/h (with recommended setup)
  • Recommended Max Takeoff Weight: 750g
  • Power Combo (Only Included in PNP Version):
    • EDF: 50mm with 2611 4000KV motor
    • ESC: 40A w/5v 3A BEC
  • Servos: 9g *3PCS (1pc 180 Degree for Camera)

Variants

DSMKIII
Delta Strike (White Black)
