Talon 250G from ZOHD

Details

This Talon 250G with a 620mm wingspan is the smallest Talon in the world, which, under the 250 gram regulation, is very easy to carry thanks to the detachable main wing; The right wing design will bring you super stable flight performance. The improved carbon fiber control surface will bring you more precise control. High strength ultralight EPP material with integrated carbon fiber tube makes it stiff and crash resistant. Due to the huge parts inside the fuselage, you can also put a lot of FPV gear and a big battery inside during long time FPV flights. Its power system is exactly the same as that of most quadcopters on the market, so you can drive this Tiny Talon as a racing cell. The specially designed FPV camera housing is suitable for most AIO FPV cameras on the market.

Features:

  • The world's first Talon capable of weighing less than 250 grams.
  • Detachable wing, portable and easy to pack.
  • Small size, ideal for flying in small areas.
  • Compatible with most racing quad power system and FPV gear.
  • Large battery bay for Lipo or Li-ions.
  • With hump marks for “CG” under the main fender.
  • EPP molded airframe, integrated carbon fiber spar for upgrading.
  • NACA air intake in the nose and air outlet in the tail for better cooling.
  • Straight wing brings more stable and agile attitude in flight.
  • Textured on both sides of the fuselage for a more secure launch grip.
  • Easy hand launch, super stable flight performance, 18-80km / h flight speed

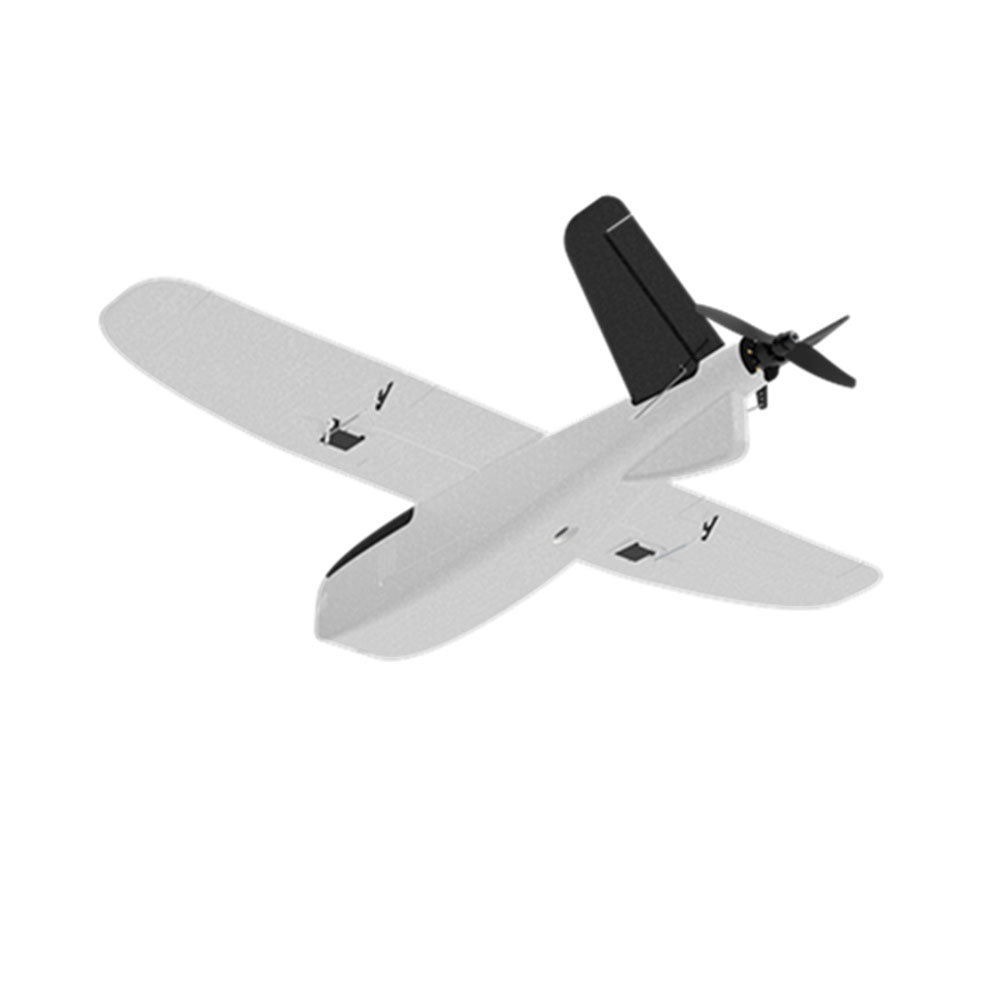

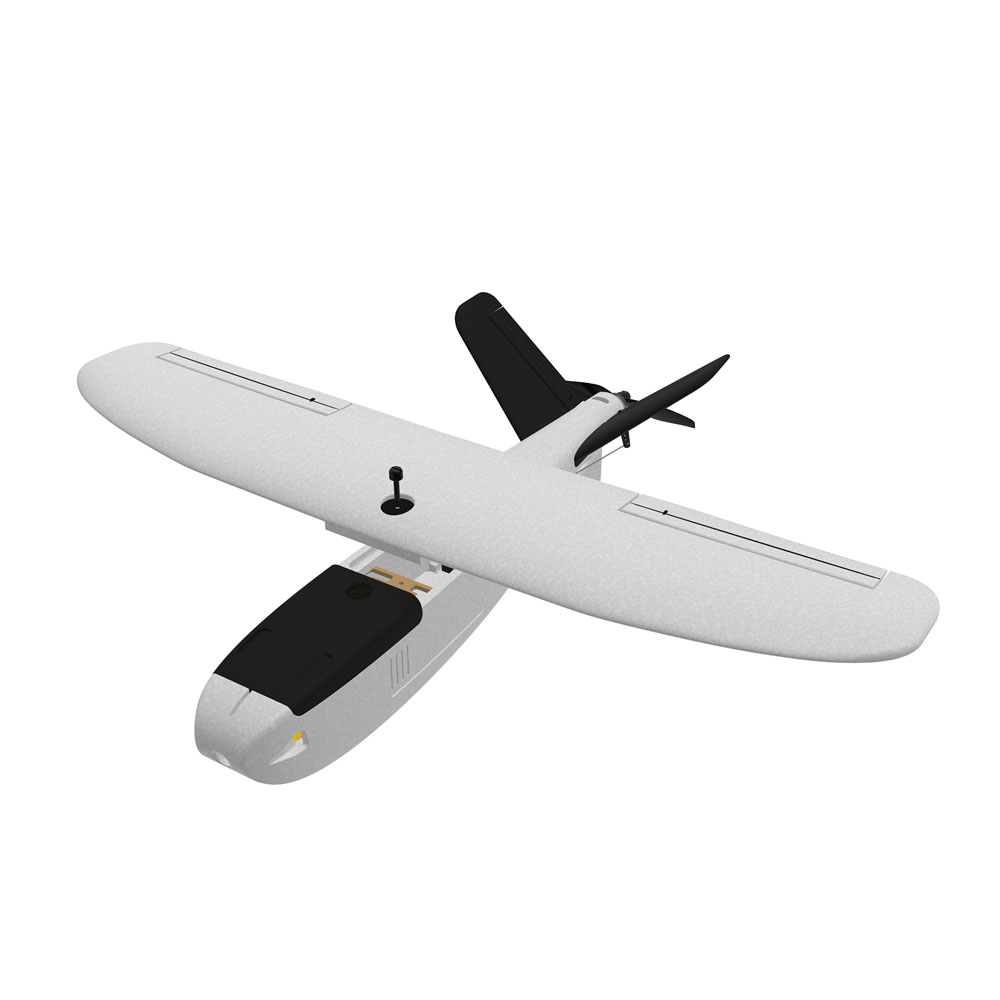

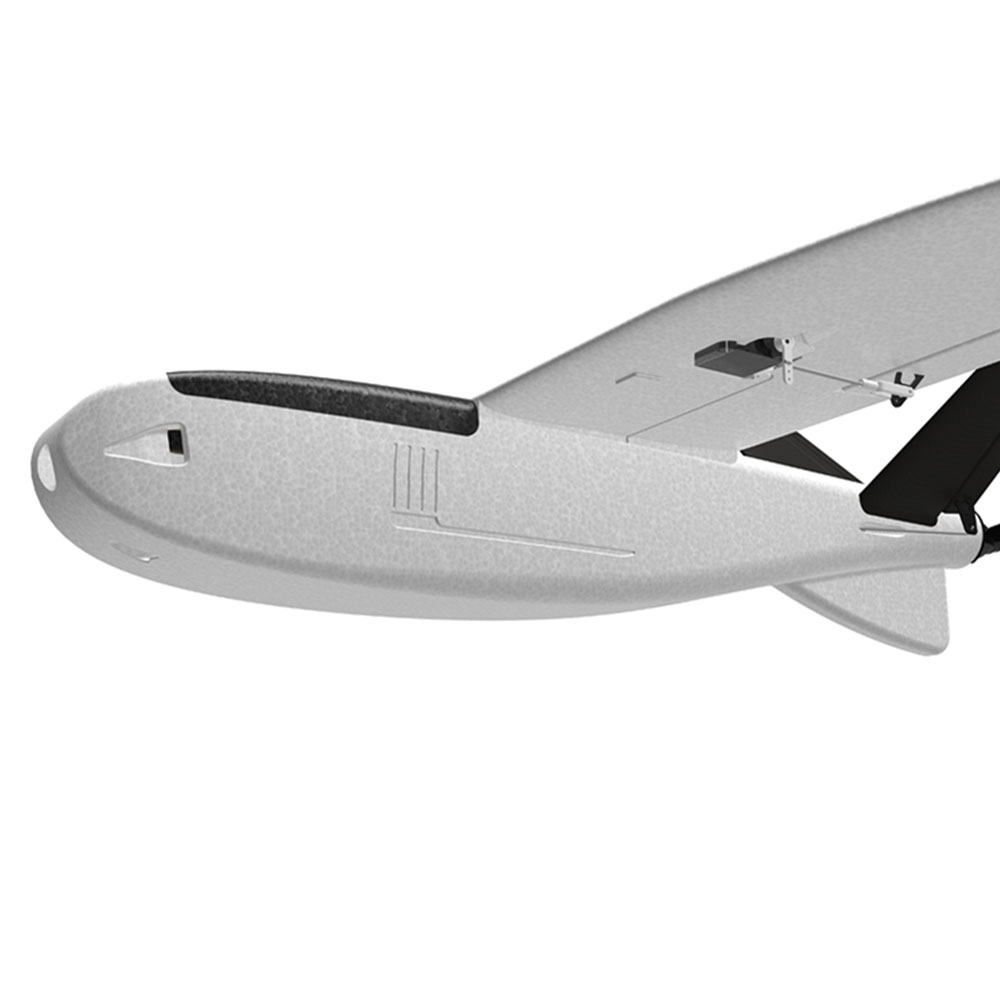

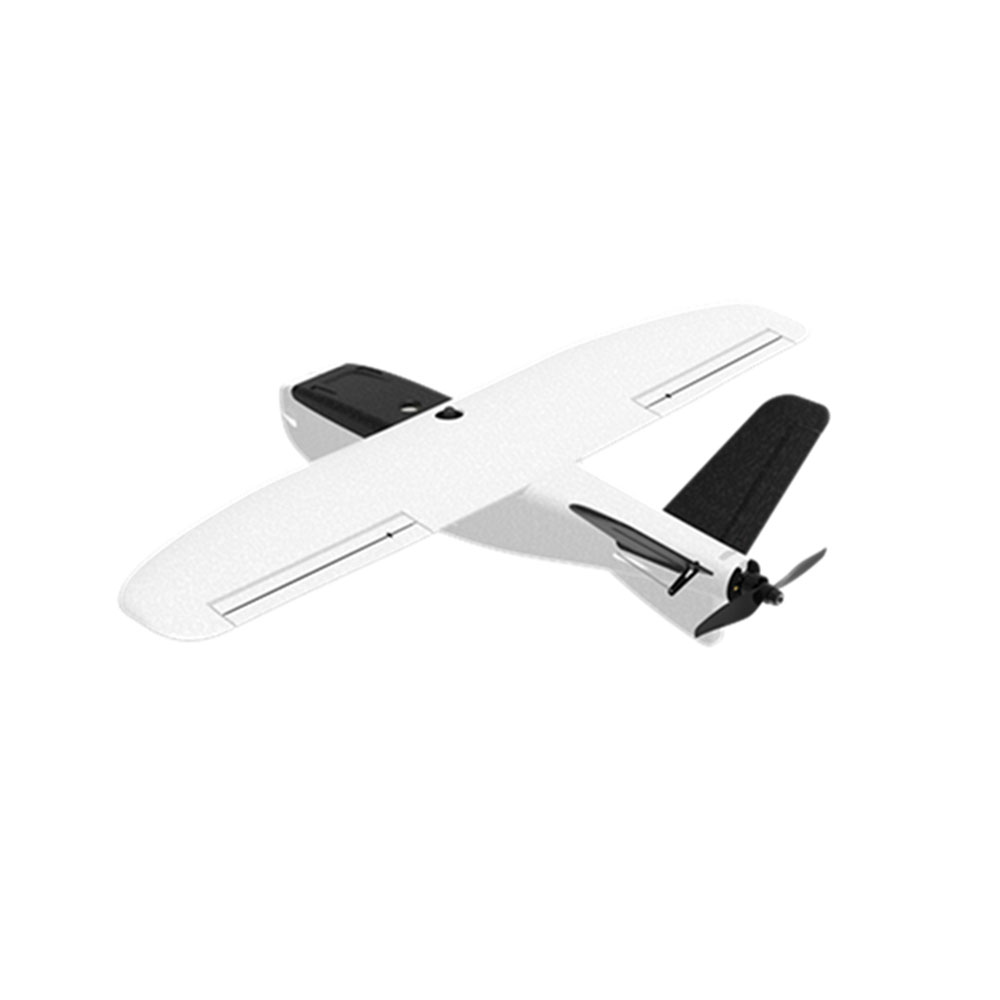

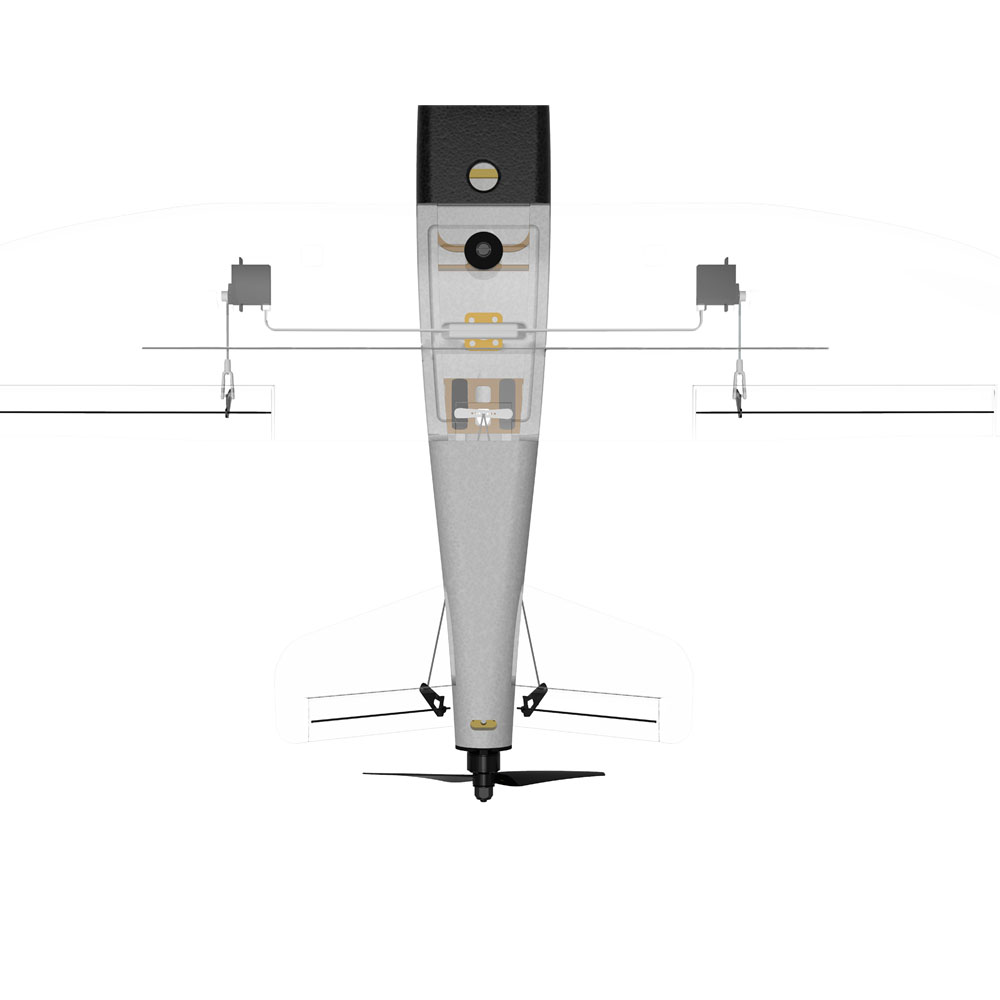

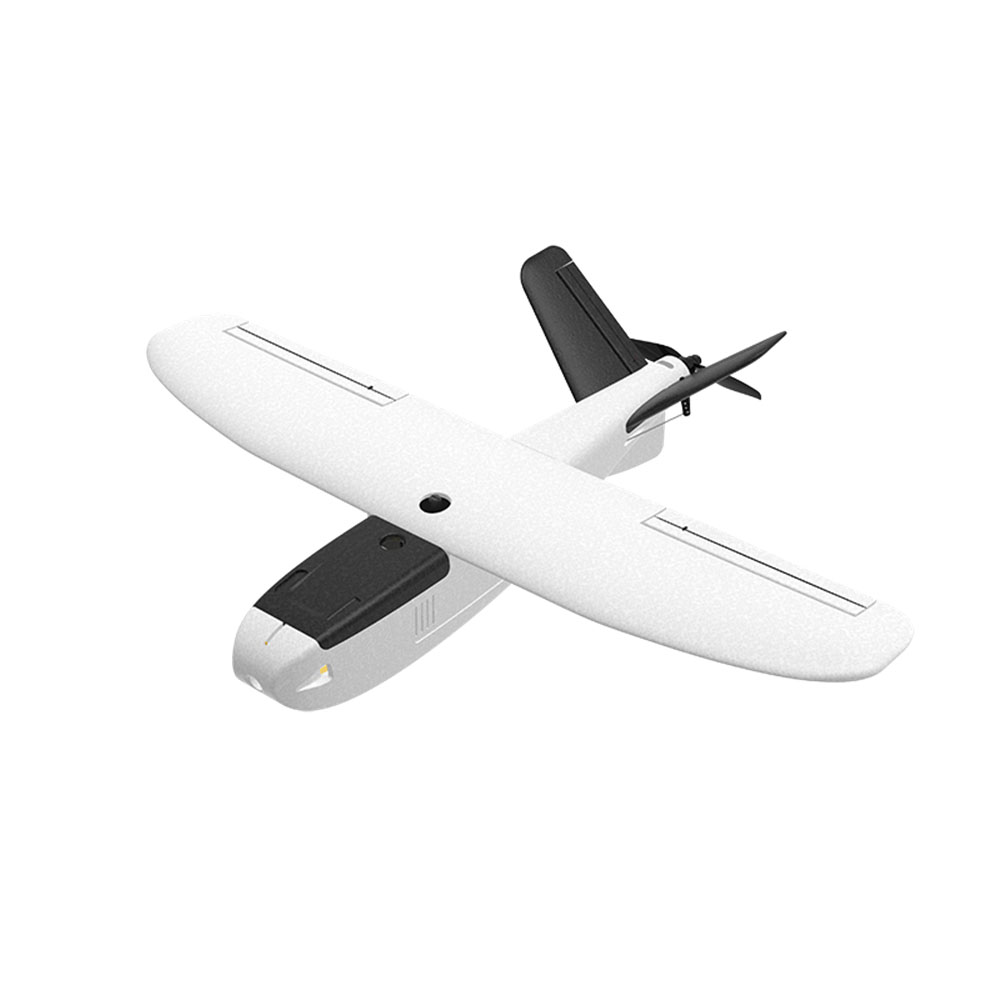

Pictures

Manual

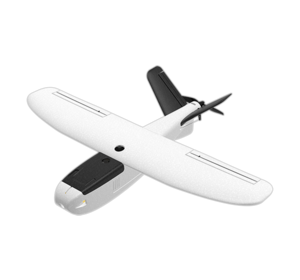

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Talon 250G in particular but at least we know they do distribute ZOHD.

Wingspan: 620mm (24.4 in)
Length: 452mm (17.8 in)

Weight: 250 g (8.8 oz)
  • Material: High-Quality EPP
  • Wingspan: 620mm (24.41”)
  • Length: 452mm (17.79’’)
  • Motor: 1406-2600kv
  • ESC: 30A w/5v 2A BEC
  • Servos: 4.3g *4PCS
  • Propeller:
    • 5*5 prop for 2S battery,
    • 3*5*3 3-blade prop for 3S battery.
  • Wing size: 5.98dm²
  • Flying Speed: 18-80km/h
  • Recommended Battery:
    • Lipo 2S 1100-1500mAh
    • Li-ion 18650 2S1P 3500mAh (Max.)
