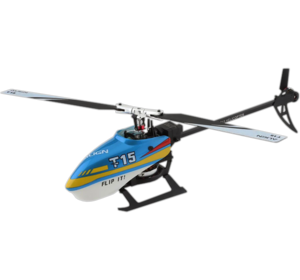

T15 from Align

Details

The T15 Align remote control helicopter provides a great stepping stone for beginner rc heli pilots into the world of collective pitch radio control helicopters. Thanks to the built in auto level mode, beginners can feel confident with a micro rc model helicopter that typically is difficult to fly. As your skills improve, auto level attitude mode can be turned off with the flip of a switch from your remote control. With the built in 6 axis gyro, advanced aerobatics can be performed, even for a helicopter of such small size.

Durability is important for everyone, regardless of skill. The T15 aims to deliver where possible in this category. It's main frame and landing skid are made from industrial grade plastics that allow for high impact resistance, as well as high strength. Metal rotor head parts help to reduce the possibility of damage in a crash, that helps you get back in the air faster after an unplanned meeting with Earth. Direct drive brushless motors for the main and tail rotor additionally have less parts, and are very low maintenance.

Adjustments to the flight controller gyro are done inside of the Align T15G smart phone app, available for Apple devices, and Android. Many parameters are available to change to your liking, as well as the needed steps to bind your remote control to the helicopter.

The built in S-FHSS 2.4GHz system is compatible with Futaba radio systems, or others that can output the S-FHSS communication type. Additionally you can connect a Spektrum DSM X or JR DMSS satellite receiver, for connection to your Spektrum or JR DSM2, DSMX, or DMSS type radio.

Features:

  • Smartphone app for paramater adjustment
  • High Precision
  • 6 Axis gyro
  • Altitude mode, auto level
  • Multi radio system support
  • Easy Maintenance
  • Dual motor direct drive
  • 3D Mode



Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 280mm (11 in)
Length: 272mm (10.7 in)

Weight: 100 g (3.5 oz)
Main Blades Align T15 120mm Main Blades x 2 Sets
Tail Blades Align 51mm Diameter Tail Blades x 2
Battery Align 7.4V 380mAh 50C
DSMX Satellite Extension 3 Pin White Plug
1.3mm Hexagon Screw Driver Align Blue Hex Driver x 2 (8.2g)
0.9mm Hexagon Screw Driver Align Red Hex Driver (8g)
Spare Parts Box Small Parts
Carry Case T15 Carry Box - Black or Yellow (292x160x69mm)
Electronics Included
ESC Align Dual ESC System Output
ESC Programing Align T15G APP for iOS & Android
Motor Align 15M Main Motor (1500KV/2405)
Motor Tail Align 15MT Tail Motor (8000KV/1103)
Cyclic Servo Align T15 x 2 - Align T15T x 1
Servo Gears Metal
Servo Case Metal
Flybarless System Align T15G Flight Control System
Flybarless Programming Align T15G APP for iOS & Android
Stabilization Level Mode Auto-Level
Rescue Mode Yes
Receiver Built In Futaba S-FHSS
Receiver Supported DSMX (Recommend Kensun) - DSM2/DMSS
Specification
Assembly Required None - Bind and Fly
Length 272mm - 10.71in
Height 85mm - 3.35in
Main Blade Length 120mm - 4.72in
Main Rotor Diameter 280mm - 11.02in
Tail Rotor Diameter 51mm - 2.01in
Main Drive Gear Motor Direct Drive
Tail Drive System Motor Direct Drive
Weight (Without Battery) 100g - 3.53oz
