Bando 5" from Axis Flying

Radio-Controlled Multirotor for RC Pilots

Details

Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle and BANDO flying, we continuously absorb user feedback and summarise product design experience. Axisflying combines ful
aluminum skeleton, zero-gap interlocking structure and high-strength T700 carbon plates to create the BANDO 5 series — a true battle-ready frame built for extreme BANDO flight.

Feature:

  • BANDO 5 True X is a 5-inch freestyle frame Born for BANDO flight, designed for tight space, high-intensity tricks and extreme crash resistance.
    Industry first full aluminum skeleton + zero-gap interlocking arm structure for zero play, ultra-high integrity and maximum durability.
    7mm ultra-thick arms with 7075 aerospace aluminum parts, far beyond ordinary 5-inch frames, unfazed by frequent crashes.
    Compact True X layout with centralized center of gravity for agile control and instant response.
    Equipped with H743 Pro flight controller + dual ICM-42688 gyro + DPS368 barometer for stable and precise flight.
    32-bit high-performance ESC and BANDO 2207.5 motor for strong torque burst and stable output.
    Gull-wing design side plates provide effective protection and better accessibility.
    Integrated TU lens protector for lightweight cushioning and impact resistance.
    Silicone anti-slip pad ensures solid and stable landing.
    Supports Analog / DJI O4 Lite / 04 PRO VTX, dual antenna for long-range stable signal.
    Available in Pink / Blue colors, stylish and personalized for BANDO pilots.

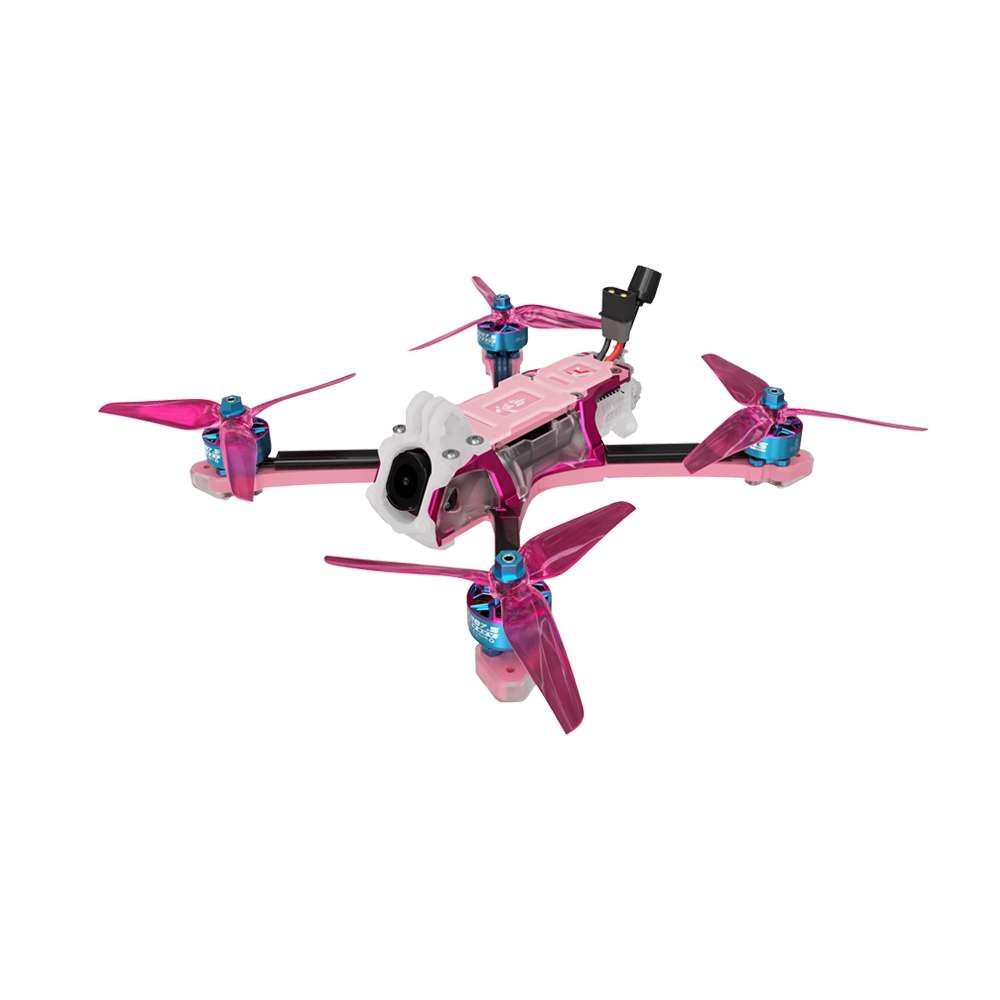

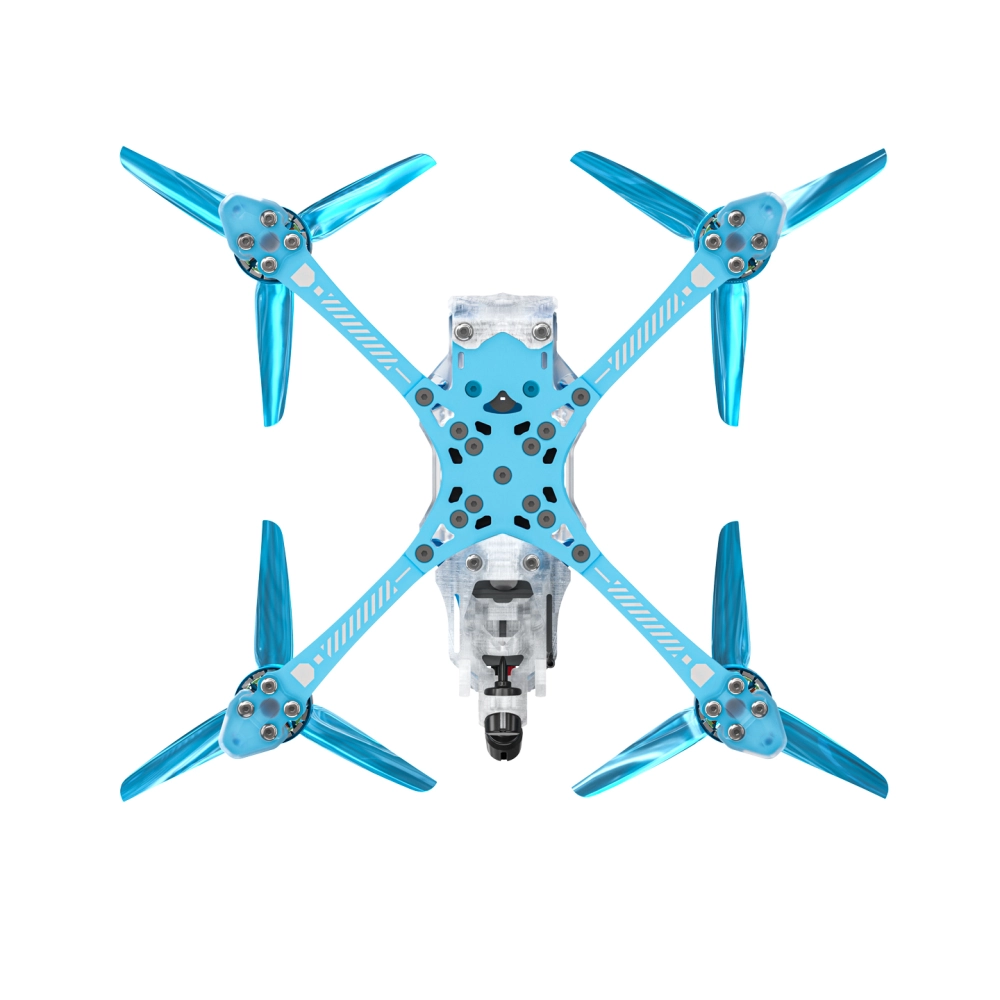

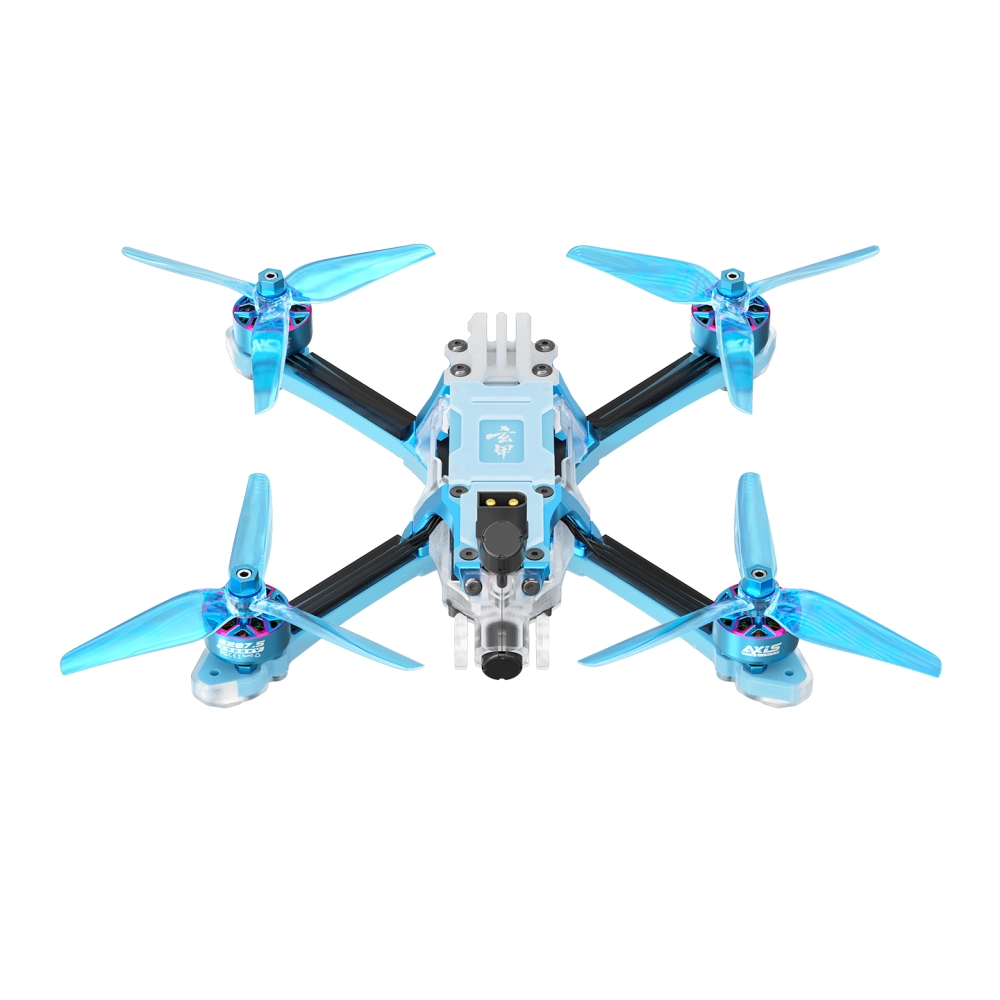

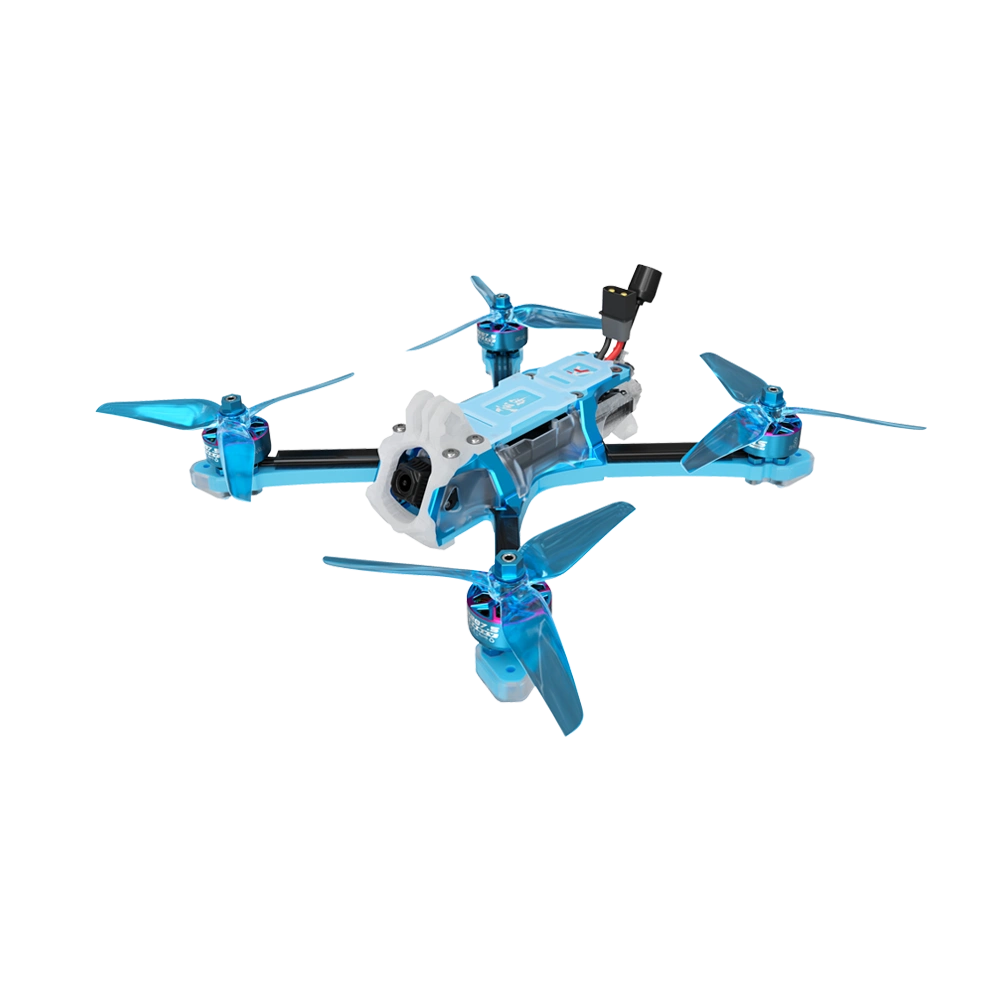

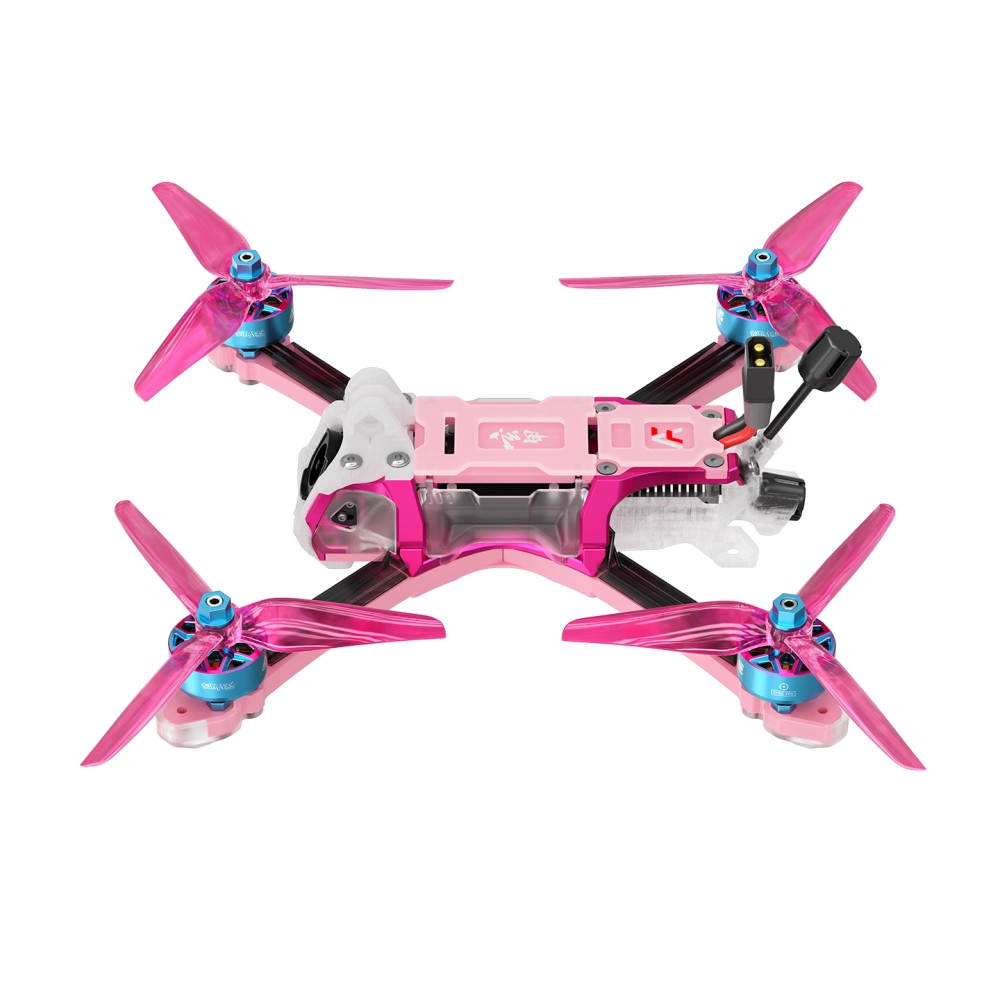

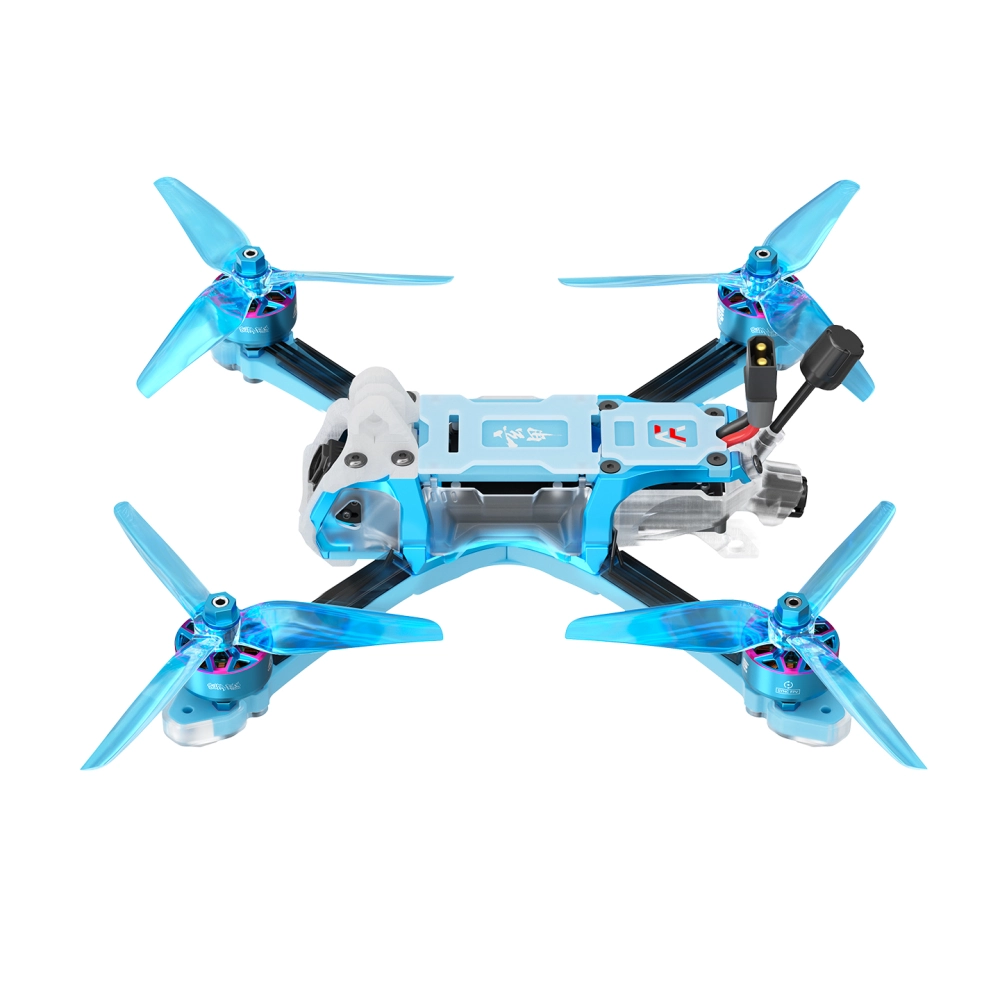

Pictures

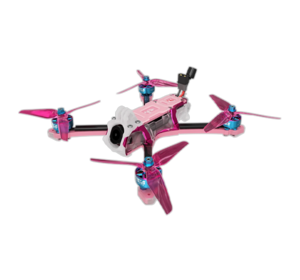

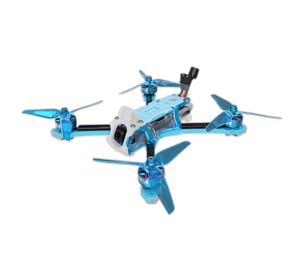

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Bando 5" in particular but at least we know they do distribute Axis Flying.

Wingspan: 240mm (9.4 in)
Length: 240mm (9.4 in)

Weight: 459 g (16.2 oz)
  • Frame Type: True X
  • Wheelbase: 230mm
  • Material: T700 Carbon Fiber + 7075 Aluminum Alloy + TPU / Injection Parts
  • Arm Thickness: 7mm
  • Top Plate Thickness: 3mm
  • Bottom Plate Thickness: 3mm
  • Flight Controller: Axisflying H743 Pro
  • Gyro: Dual ICM-42688
  • Barometer: DPS368
  • ESC: 32-bit ESC
  • Motor: BANDO 2207.5 1960KV 6S
  • Prop: HQ R37
  • VTX Option: Analog / 04 Lite / 04 PRO
  • Receiver: AXIS ELRS 2.4G
  • GPS: Beizheng 121
  • Recommended Battery: 6S 1300-1800mAh LiPo
  • Flight Time: 8-15 minutes
  • Weight: 459g / 46lg / 470g (by VTX version)
  • Overall Size: 240mm × 85mm
