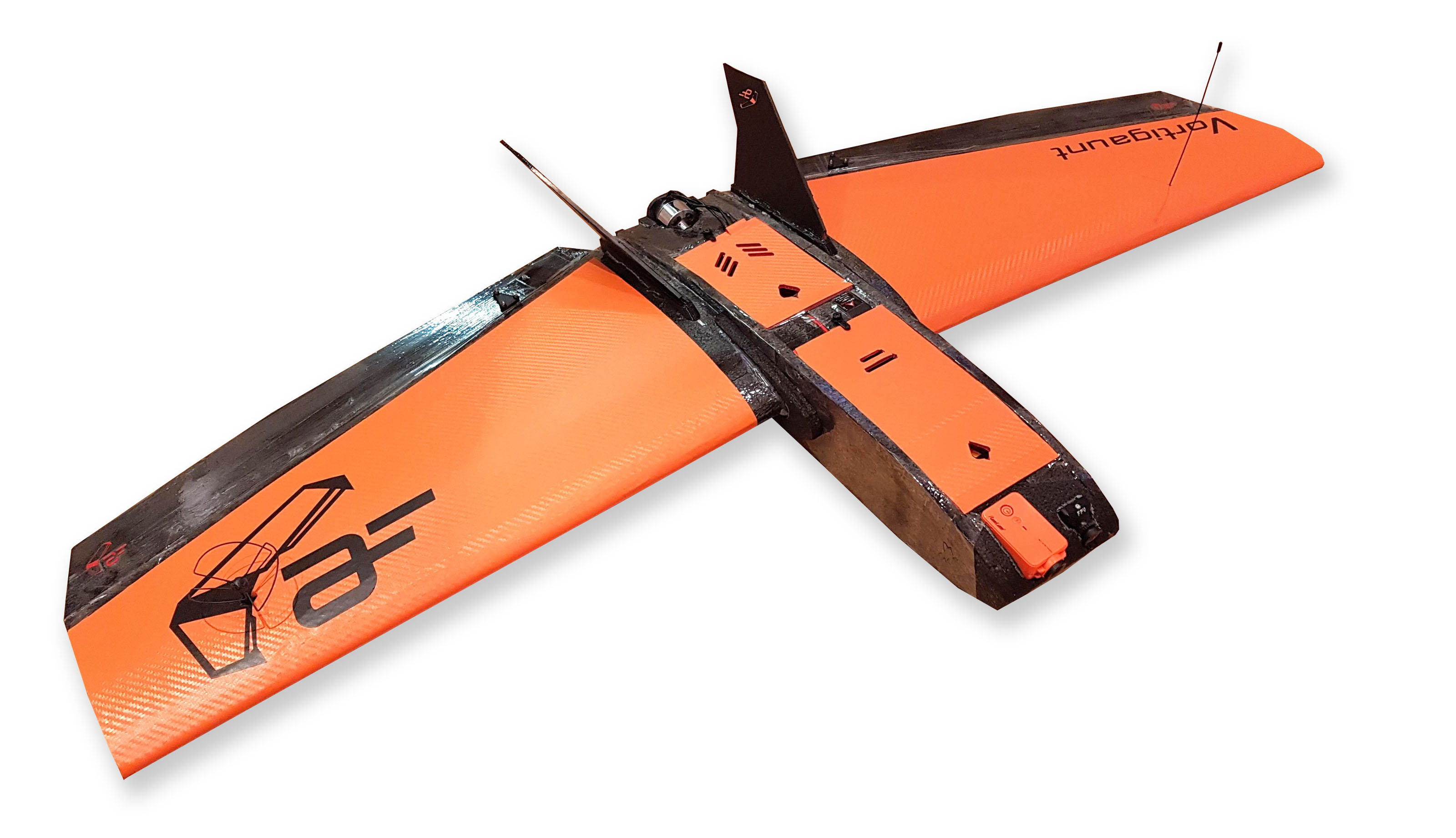

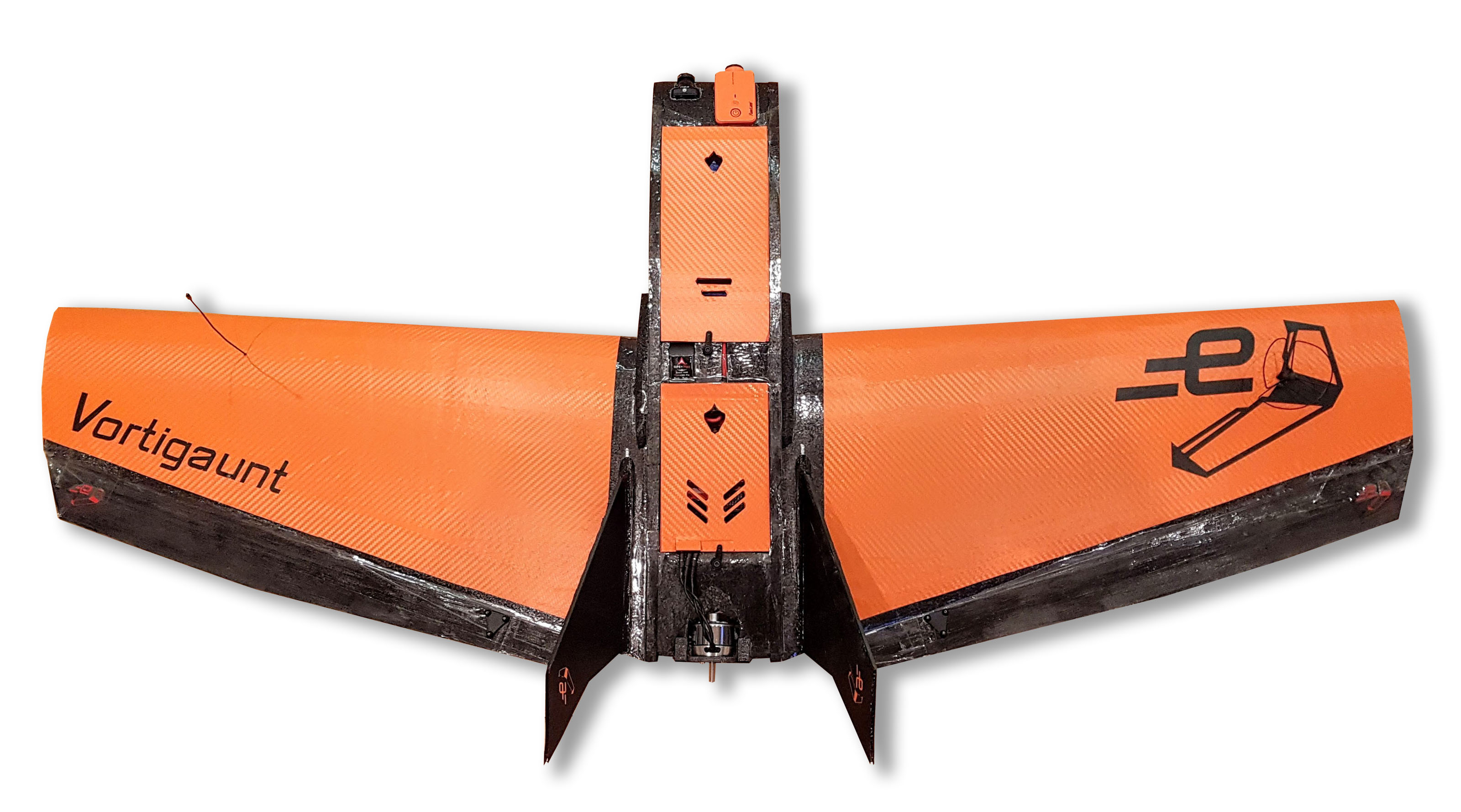

Vortigaunt FPV from e-wings

Details

Every Freeman should have one. The first in the e-wings lineup, designed from the ground up with smooth, stable FPV flying in mind. Room for large batteries (will fit 2x 5200mah 4S multistars side by side!) and separate electronics bay for autopilot goodness.

Available in either white or black high density EPP (exactly the same foam for both, just the colour is different).

The kit contains:

  • Full precision cut high quality EPP 1.22m wingspan airframe:
    • 2x wings with pre-cut spar slots
    • Center section with pre-cut spar slot
    • Sidewalls + re-enforcement pieces
  • 8mm main carbon spar
  • 6x carbon strip spars
  • Correx bay covers + vertical stabilisers
  • Balsa elevon sheet
  • High quality control horns + linkages
  • Vinyl decals
  • 3D printed (PETG) motor mount
  • 3D printed (PLA) stabiliser mounts

Pictures

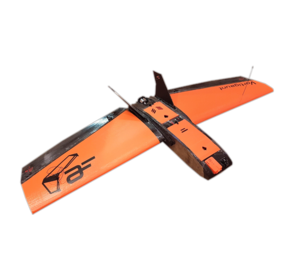

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Vortigaunt FPV in particular but at least we know they do distribute e-wings.

Where to buy


Wingspan: 1220mm (48 in)
Length: 530mm (20.9 in)

Weight: 2000 g (4.4 lbs)

Main Material: High density EPP foam (CNC hot wire cut)
Motor Mount Material: PETG
Wingspan: 1.22m
Fuse Length: 53cm
Battery Bay dimensions: 7x18x5.4 cm (WxLxH)
Electronics Bay dimensions: 9x12x4 cm (WxLxH)
Dry Weight (assembled, no laminate): ~900g
Fully Loaded Weight (FPV kit plus batteries): 1.4 - 2.0 kg
Laminate pack - 4m of 75 micron clear heat adhesive laminate.

Recommended setup
Motor: Turnigy 3536 1400kV SK3
Prop: 8x5 (Graupner E-Prop is an excellent choice)
ESC: 60A
Battery: 5000mah(+) 4S
This setup works well, pulls about 50A on launch, 40A WOT and is good for about 90mph! Will cruise around 10A or lower if you don't mind going slow! ;)
Metal gear servos with a torque of about 2.5kg will be plenty.
