Details

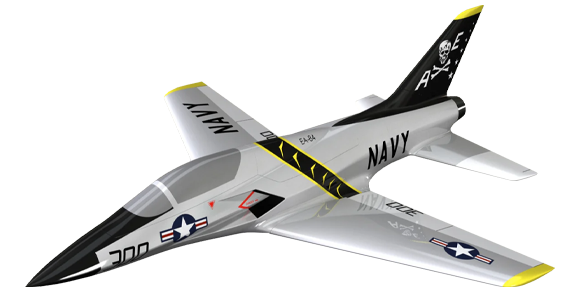

The RAYZR is a high-performance sport jet inspired by modern stealth aircraft, combining sharp, aggressive styling with proven sport jet design principles. Developed by EA from an original 2018 concept sketch, the RAYZR was refined through advanced CAD work and precision manufacturing.

The aircraft features a one-piece stabilizer, rear engine hatch, and forward canopy hatch, providing easy access to radio and turbine systems. Its spacious engine bay—the largest EA has produced—supports a wide range of turbines using a simple single 6L fuel system and large turbine rails. The airframe is designed around Electron ER50 landing gear and uses a two-piece fuselage secured with four bolts for convenient transport.

Sharing the proven BDX airfoil, the RAYZR offers low stall speed, forgiving handling, and strong aerobatic capability. Its swept-wing design improves performance while maintaining excellent slow-flight behavior and short takeoff and landing capability.

Optimized for 180N–220N turbines, the RAYZR features a 2.3 m wingspan and 2.65 m length, resulting in a lightly wing-loaded aircraft that delivers both aggressive aerobatics and smooth, controlled low-speed flight.

Features:

• Extensive Pre-fabrication
• Painted outside mold with clear coat finish
• Very light all composite sandwich layup
• Two-piece fuselage disassembles easily
• Removable vertical and horizontal stabilizers with one bolt
• Carbon fiber reinforcement throughout
• Carbon fiber wing and spar tubes
• Fuselage, wing, rudder and stab covers
• Diverse speed envelope, highly maneuverable while maintaining outstanding slow speed performance
