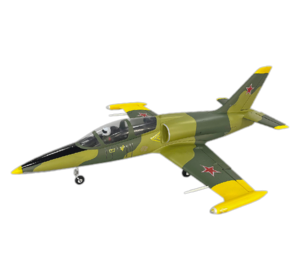

L-39 64mm from FlyFans Models

Details

The FlyFans L-39 64mm EDF jet is crafted for both ease of use and adaptability, presenting an ideal training aircraft for a broad spectrum of pilots, including those new to EDF jets. It is outfitted with a powerful 6S brushless motor and a 40-amp ESC, paired with a 12-blade 64mm fan, to ensure outstanding speed, robust thrust, and a turbine-like auditory experience, setting it apart from its contemporaries. The jet features an integrated shock-absorbing, retractable metal landing gear system with aluminum struts, expertly engineered to reduce drag by retracting during flight, thereby enhancing aerodynamic efficiency. Additionally, it boasts a flap system that increases lift and allows for slower, more controlled landing speeds. Lastly, the aircraft also incorporates high-intensity navigation LED lights, elevating visibility, safety, and aesthetics, while empowering pilots to maintain control in low-light conditions.

Feature:

  • 6 operable channels (Aileron, Elevator, Throttle, Rudder, Retract, Flaps, Steerable Nose Gear)
  • 6S configuration paired with a 64mm (12-blade) EDF system, featuring a high-RPM brushless motor and a 40A ESC, offers exceptional performance and near-instant throttle response
  • Durable, shock-absorbing retractable metal landing gear system with aluminum struts
  • Integrated wing connector for easy installation or removal of main wing
  • Features a flap system that increases lift and allows for slower, more controlled landing speeds
  • High-intensity navigation LED lights, elevating visibility, safety, and aesthetics, while empowering pilots to maintain control in low-light conditions
  • Glueless assembly
  • Constructed of durable EPO flex foam

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the L-39 64mm in particular but at least we know they do distribute FlyFans Models.

Wingspan: 860mm (33.9 in)
Length: 1140mm (44.9 in)

Weight: 1200 g (2.6 lbs)
Wingspan: 860mm / 33.8in
Length: 1140mm / 44.9in
Flying weight: 1200g
CG (Center of Gravity) Check manual
Servos 8x9g nylon gear
EDF Diameter Class: 64
Blades: 12
Power System Brushless 2840-KV2300
Electronic Speed Control 40A
Battery Type LiPo-Accu
Battery Cells: 6s - 22.2v
Battery Capacity (mAh) 2.000 mAh, 3.300 mAh
Surfaces Ailerons, Rudder, Elevator, Flaps
Landing Gear Retractable, Steering gear, Metal gear
Material EPO Foam
Required Radio 6 channels minimum
