Sundowner 36 from hangar 9

Details

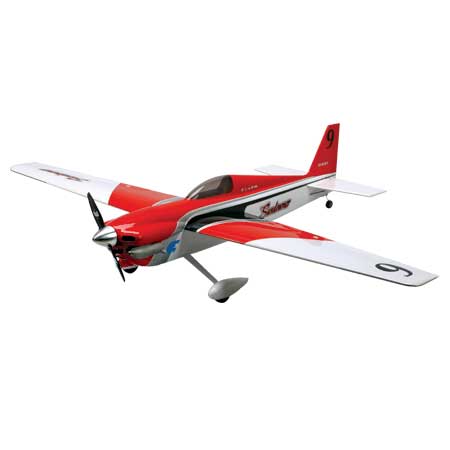

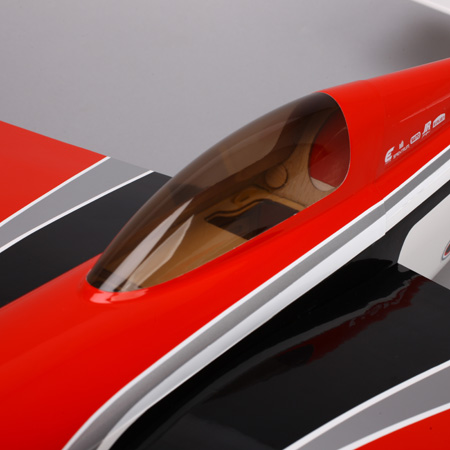

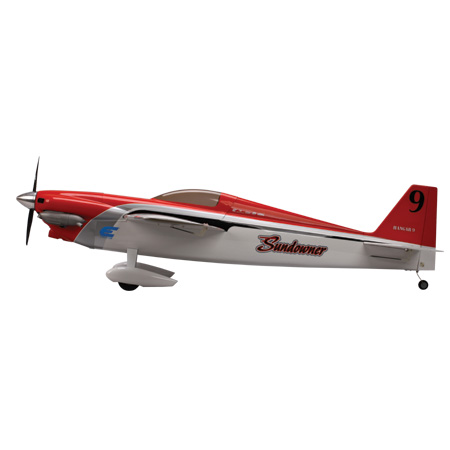

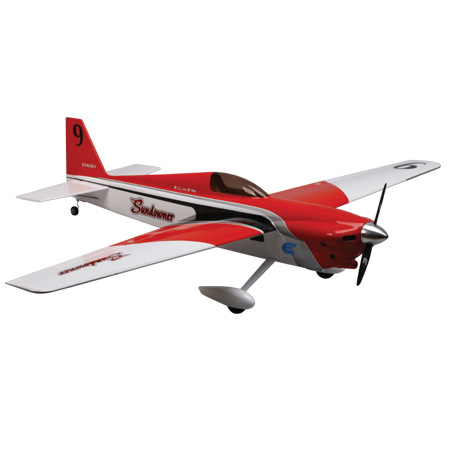

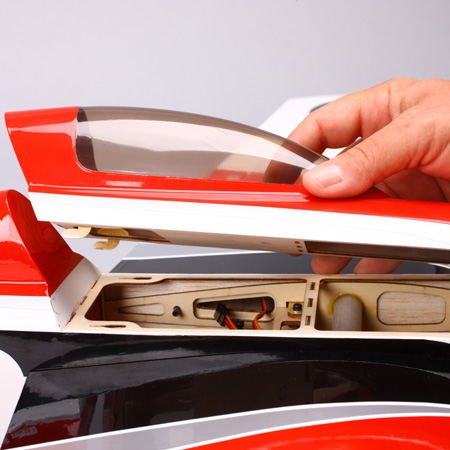

The Hangar 9 Sundowner 36 is a speedy sport scale perfect for high-speed aerobatics and club racing. Based on the Sundowner Formula 1, this speedy performer has a scaled-down aggressive racer body design that is at home equally as a sport flyer or as a serious racer. Designed to be powered by EP or GP powersystems, this plane delivers racer styling at a lower cost to you. This spirited speedster is constructed of lightweight balsa and plywood with carbon fiber reinforcements for added strength and durability. The low parts count makes this ARF exceptionally easy to assemble, and with a two piece wing, easy to disassemble for transport. The one piece fiberglass cowl has hidden cowl screws, adding to its great looks. The internals are easily accessed through the removable canopy, which is held securely in place with tabs and magnets. The Sundowner can be powered for sport utilizing the E-flite Power 32 or 25 motor or the Evolution .40NX glow engine. The Sundowner 36 always makes it look like it's tearing through the sky. Because of its smooth flight characteristics and precise, sport handling, even intermediate pilots will feel comfortable behind the sticks. Unlike other racers that may be difficult to fly, the Sundowner 36's streamlined design makes this racer smooth, precise and ready-to-roll.

Features:

  • Rock solid performance at high speeds with good low speed handling characteristics for landing

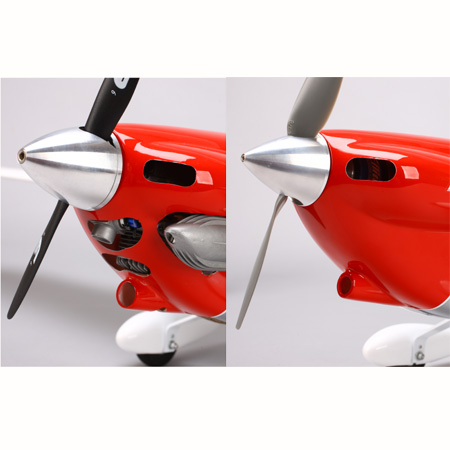

  • Two power setups: 3S/4S battery for Power 32 or 25 Option/Evolution 40NX glow engine
  • Carbon fiber reinforcements

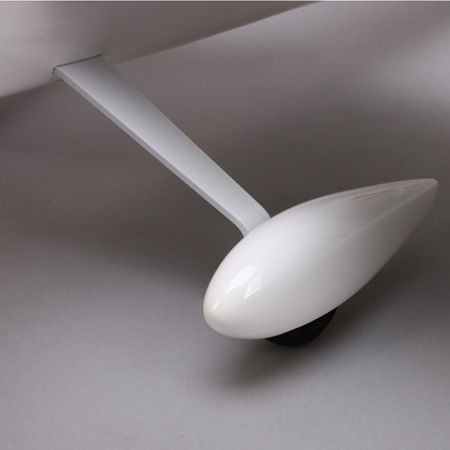

  • Fiberglass Wheel pants and cowl
  • Lightweight construction techniques

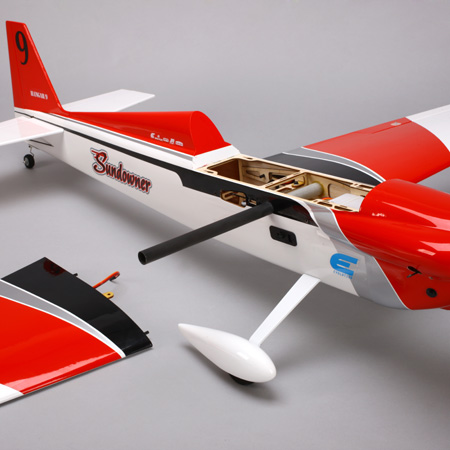

  • Two-piece wing
  • Shown with optional aluminum spinner sold seperatly (plastic spinner included)

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.


Wingspan: 1310mm (51.6 in)
Length: 1130mm (44.5 in)

Weight: 2000 g (4.4 lbs)



  • Wingspan: 51.5 in (1310 mm)
  • Length: 44.0 in (1140 mm)
  • Wing Area: 400 sq in (25.8 dm²)
  • Flying Weight: 4.0 - 4.5 lb (1800 - 2000 g)
  • Engine Size: .32 - .36 glow
  • Motor Size: Power 25 Brushless Outrunner
  • Servos: 4 mini servos electric; 5 mini servos glow setup
  • CG (center of gravity): 2-3/8 to 2-3/4 inches (60-70mm) back from the leading edge at wing root
  • Prop Size:
    • Electric: 12 x 8;
    • Glow: 10 x 6
  • Spinner Size: 2.0 inch (51mm) - plastic spinner included
  • Speed Control : 40 Amp 3S, 60 Amp 4S
  • Recommended Battery: 3S 11.1V 3200 mAh Li-Po

Variants

HAN4520
Sundowner 36 (Red White Black)
