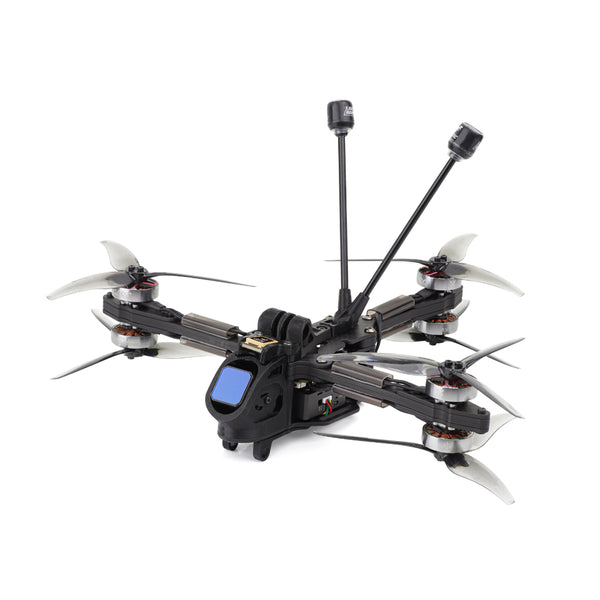

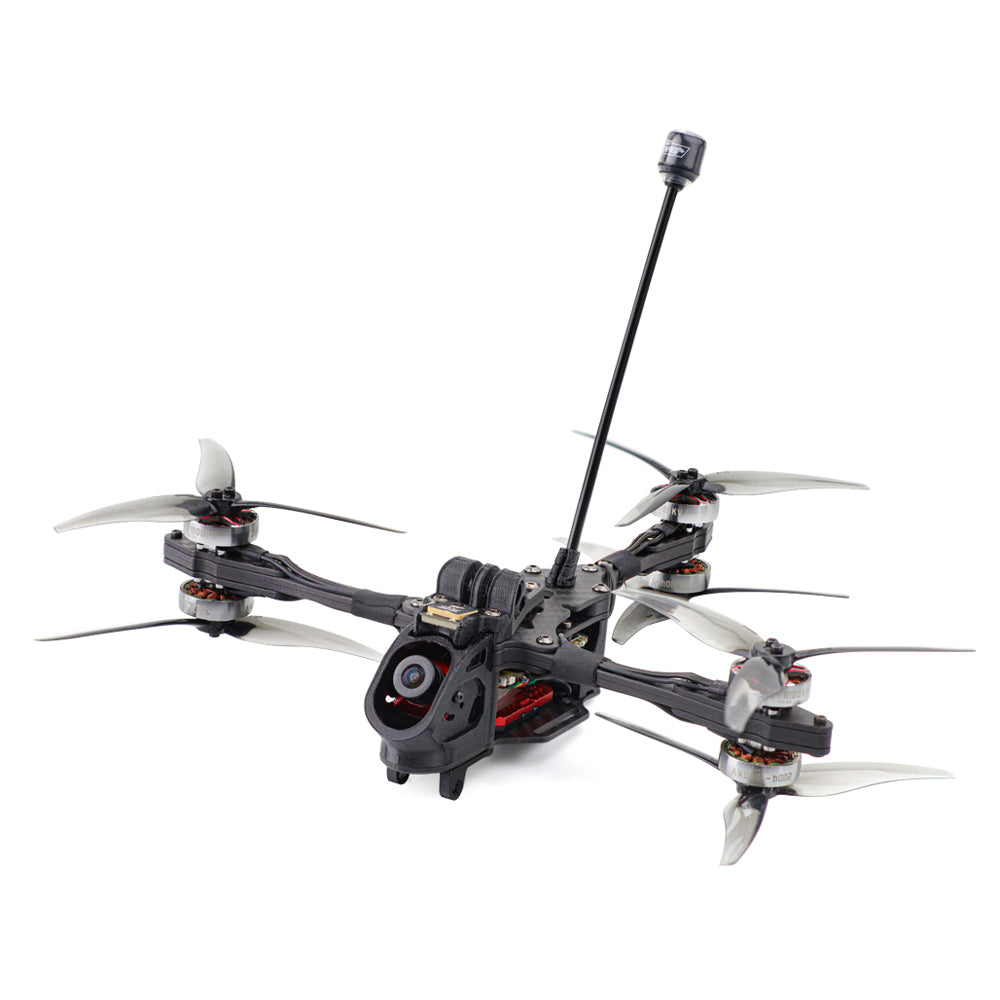

Rekon Y6 from HGLRC

Details

  • Offers a 50% increase in propeller area compared to a standard 5” quadcopter to carry full-sized action camera, while maintaining a compact design.
  • Fixed power connector: avoids instability caused by shaking of the connector during flight, making the flight more stable
  • Reserve the side antenna Mount: you can change the antenna installation position by yourself, or install a dual-antenna receiver to effectively solve the signal dead zone
  • Super long battery life: With 18650 6S 3000MAH battery, the battery life can reach 20 minutes without load, and up to 10 minutes with Gopro8.
  • Unobstructed Camera Views: Propellers are designed to stay out of the action camera’s view, enabling clear, unimpeded video capture
  • Optimized for Speed and Stability: Increased cruising speed and enhanced straight-line flight stability provide a "locked-in" feel, ideal for cinematic long-range shots and
  • dynamic vehicle chases.
  • Equipped with M100mini GPS: compact and exquisite, stable flight
  • 3 versions are available, each with its own characteristics :
    • Analog version:Equipped with 1.6W high-power analog VTX Long-distance ultra-low latency image transmission Long-distance flights are easier
    • O3 HD version:Low-latency long-distance digital image transmission Up to 10KM Support 4k100fps/4k 120fps output 155°super wide angle
    • Moonlight HD version:Unique dual-stabilized digital VTX The picture is more stable and clear Support 4K/60FPS direct output 160°super wide angle Equipped with ND8 filter

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Rekon Y6 in particular but at least we know they do distribute HGLRC.

Where to buy


Wingspan: 200mm (7.9 in)
Length: 200mm (7.9 in)

Weight: 299 g (10.5 oz)
  • FC:SPECTER F722 40A 4S-6S 6-way AIO
  • MCU:STM32F722
  • GYRO:MPU6000
  • FC Firmware:HGLR-HGLRCF722AIO_X6
  • Continuous current:40A
  • Peak current:45A(10 Sec)
  • ESC Firmware:F-H-40 - Bluejay, 0.19, 48kHz
  • VTX:ZEUS1.6W VTX / Moonlight Kit HD / DJI O3 Air Unit HD
  • Motor:SPECTER 2004 1800KV(6S)
  • GPS:M100 MINI GPS
  • Buzzer:Soter FPV Drone Buzzer
  • Propeller:Gemfan5125 3-blade propeller
  • Wheelbase:former200mm,after170mm
  • Size:200mm*209mm
  • Weight
    • Analog Version: 271.4g
    • Moonlight Kit version: 298.6g
    • O3Version: 294.9g
