Super Viper+ from HSDjets

Details

  • The wing area is increased by 35%, the wing load is smaller and the flight performance is better
  • The main body of the aircraft is made of FRP composite material. This makes the plane very beautiful and durable, and can resist many unpopular occasions!
  • Iterative upgrade to dual receiver MFC-2085-DR integrated control system.
  • Four classic colors to choose from
  • The air inlet holes on both sides are equipped with metal filter screens, which can effectively prevent foreign matters from entering the engine compartment and causing faults.
  • All servo are upgraded to high-voltage high-speed metal gear digital servo, 7.4v can directly supply power.
  • Equipped with the latest 1800cc main fuel tank+ 1400cc smoke pulling fuel tank, the flight time is increased by about 20%.
  • All pull rods are connected with copper ball joint buckle, which effectively improves the control accuracy and is not easy to be damaged.
  • Equipped with all metal simulated electronic retracting and retracting landing gear. 65mm rubber tyre skin is used for the front wheel and 85mm rubber tyre skin is used for the rear wheel.
  • New ball bearing wheels with Electric Braking System for smooth landings and stopping the HF-16 V2 quickly.
  • The tail nozzle is equipped with red dynamic LED tail burner. The light intensity can change with the size of the throttle. It is very humanized and close to the psychological design.

Images from HSDJETSUSA.com

Pictures

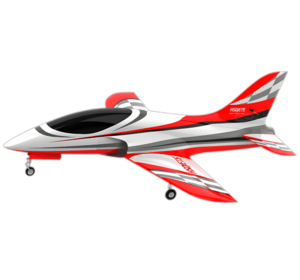

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1800mm (70.9 in)
Length: 2000mm (78.7 in)

Weight: 10880 g (24 lbs)
Wingspan 1800mm (70.87in)
Length 2000mm (78.74in)
Flying Weight 25-27lbs wet.  18lbs without batteries, engine or fuel
Recommended engine thrust 10~12 kg / 20~26.4 (lb)
Cruising speed 260 km/h
Flying time 6~8 mins
Wing area 67.94 dm2
Wing load 174.57 g/dm2
Main material FRP
Painting surface Highlight environmental protection paint + decal
Suitable for ambient temperature 0℃~40℃
Radio System 8 channel (required & not included)
Control System MFC-2085
Recommended Receiver Battery 2S / 7.4V / 5200 mAh Li-Po XT60 Plug×2 PCS(required & not included)
Recommended Power Battery According to engine matching (required & not included)
Servos(included in PNP only)

25g×3 Metal gear with 90mm lead (Left & right ailerons & rudder,forward)
25g×2 Metal gear with 90mm lead (Flap,forward)
25g×2 Metal gear with 90mm lead (Elevator,forward)
12g×1 Metal gear with 500mm lead (Nose wheel steering,forward)
12g×1 Metal gear with 500mm lead (Front landing gear cover plate,forward)

Servo material 7.4V high-voltage high-speed metal gear, aluminum middle shell digital
Ailerons Yes
Flaps Yes
Elevator(Horizontal tail) Yes
Rudder(Vertical tail) Yes
Smoking system Yes
LED lights system Yes
Electromagnetic brake system Yes
Reinforced gyro Not Included
Packaging / Size Outer box (extra hard carton) + Inner box(extra hard carton) + Card strip/1400×485×720 (mm)
CG (Center of Gravity) 180~185 mm leading edge of main wing
Landing Gears Metal electric retractable hydraulic landing gear×3
Battery Charger LiPo battery charger (required & not included)
