Alpha A85 from iFlight

Details

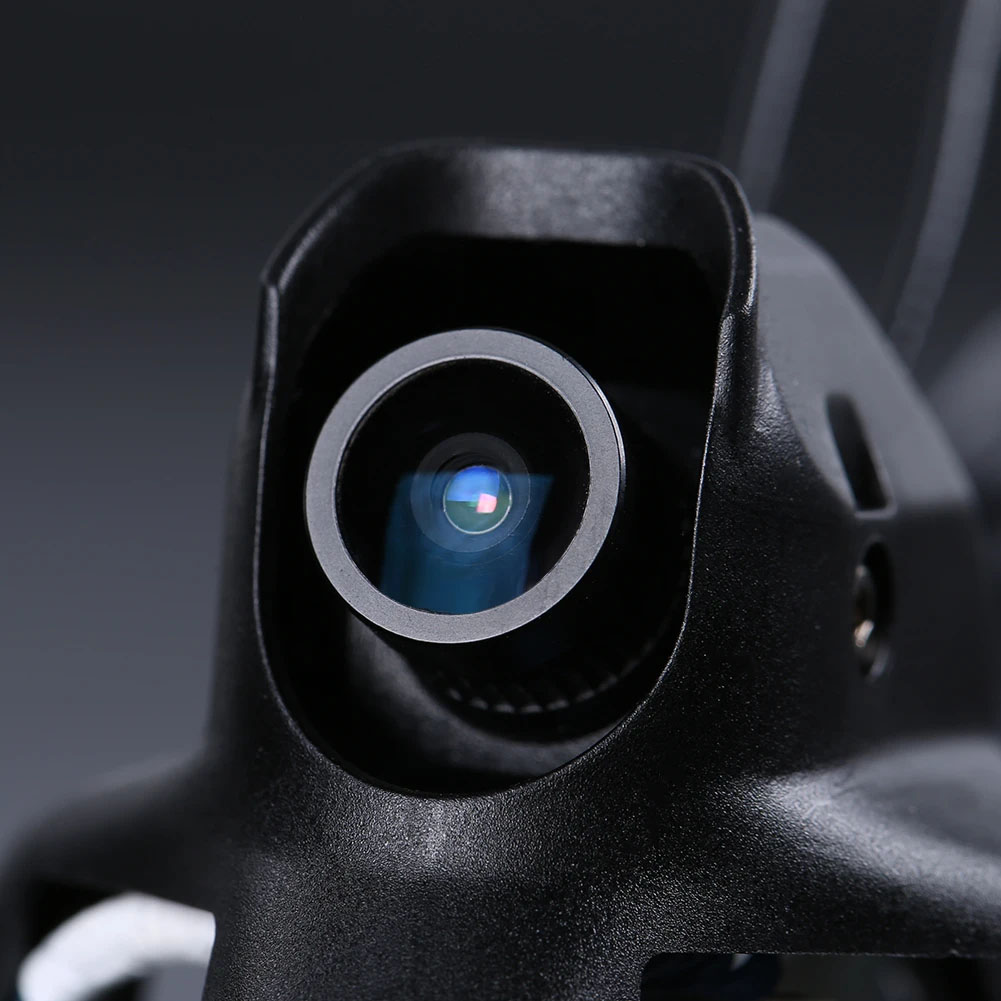

Let's welcome the iFlight Alpha series, a new way to fly FPV. Ever wanted to try Digital FPV on the smallest possible whoop size quad? We sticked the caddx Vista and the new caddx Nebula cam to one of our new 2inch whoop frames, did some tuning and tried to find the optimal ratio between weight and power. This is what we came up with to combine flight time efficiency with sufficient power.

This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some more secret Betaflight sauce to enhance the flight experience.

Reflashed your drone but didn't backup the setup? Messed up the whole tune and want our factory tune back?
No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK


Pre-tuned & Ppe-setup:

  • Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
  • To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
  • Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

Features:

  • 84.5 grams (without battery)
  • Butter smooth XING1303 5000KV,more torque and efficiency with longer flight times compared to 1105 motors

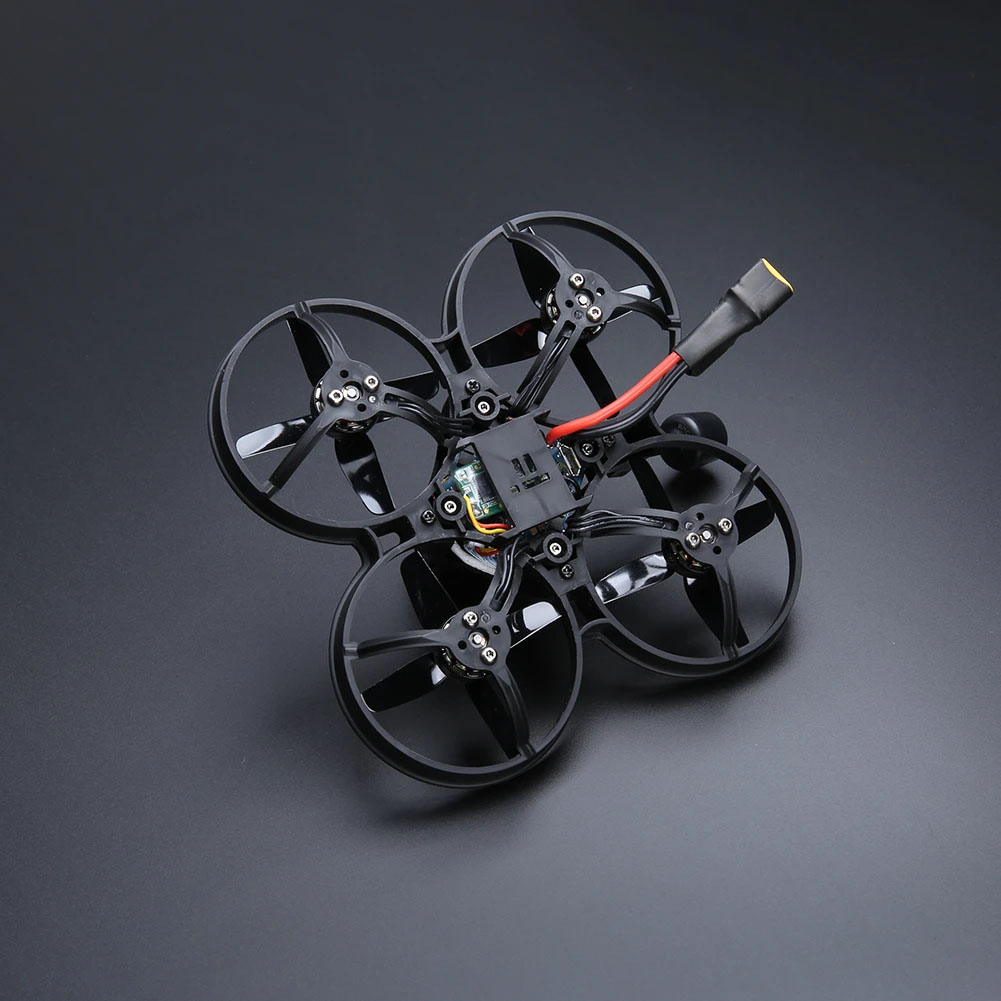

  • Ducts to protect the sensitive environment or yourself
  • Pre-tuned with smooth cinematic settings

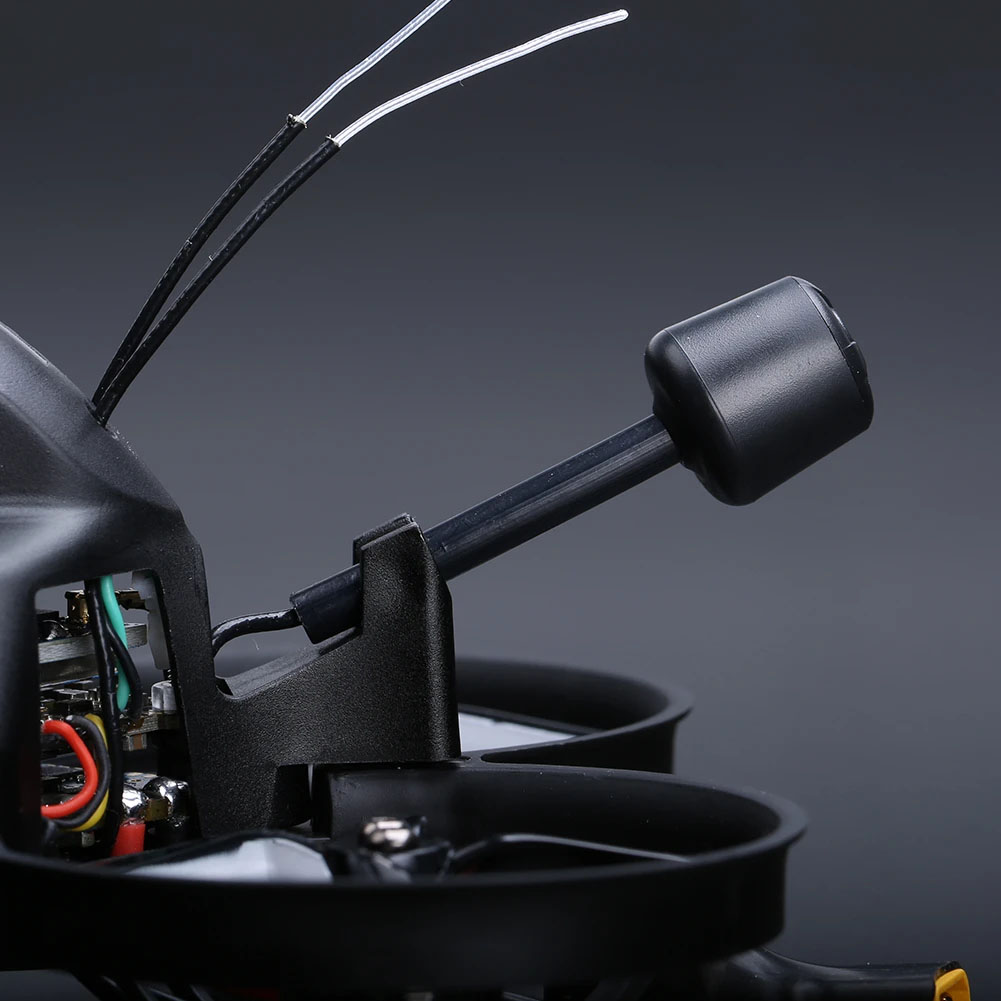

  • iFlight Albatross 5.8G light antenna upgrade (included)
  • iFlight Albatross 900mhz light micro antenna upgrade (included with every Crossfire Nano RX)

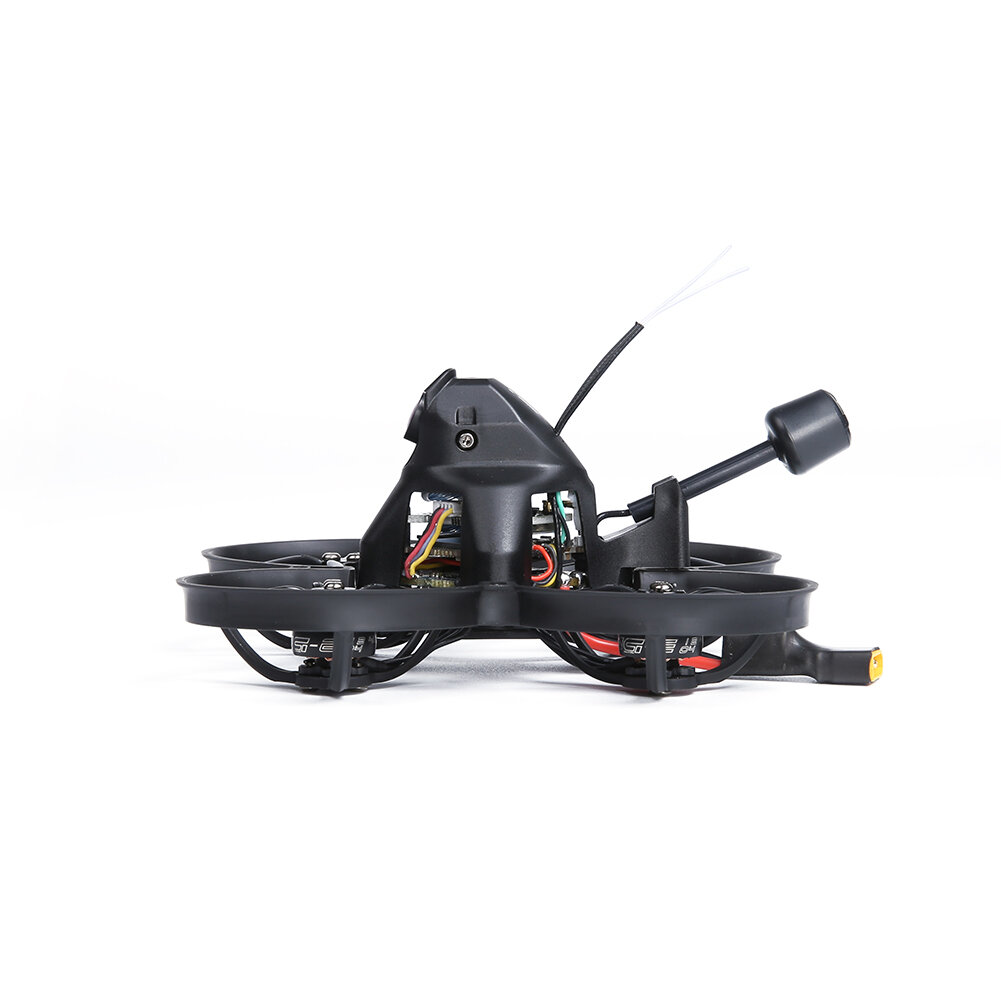

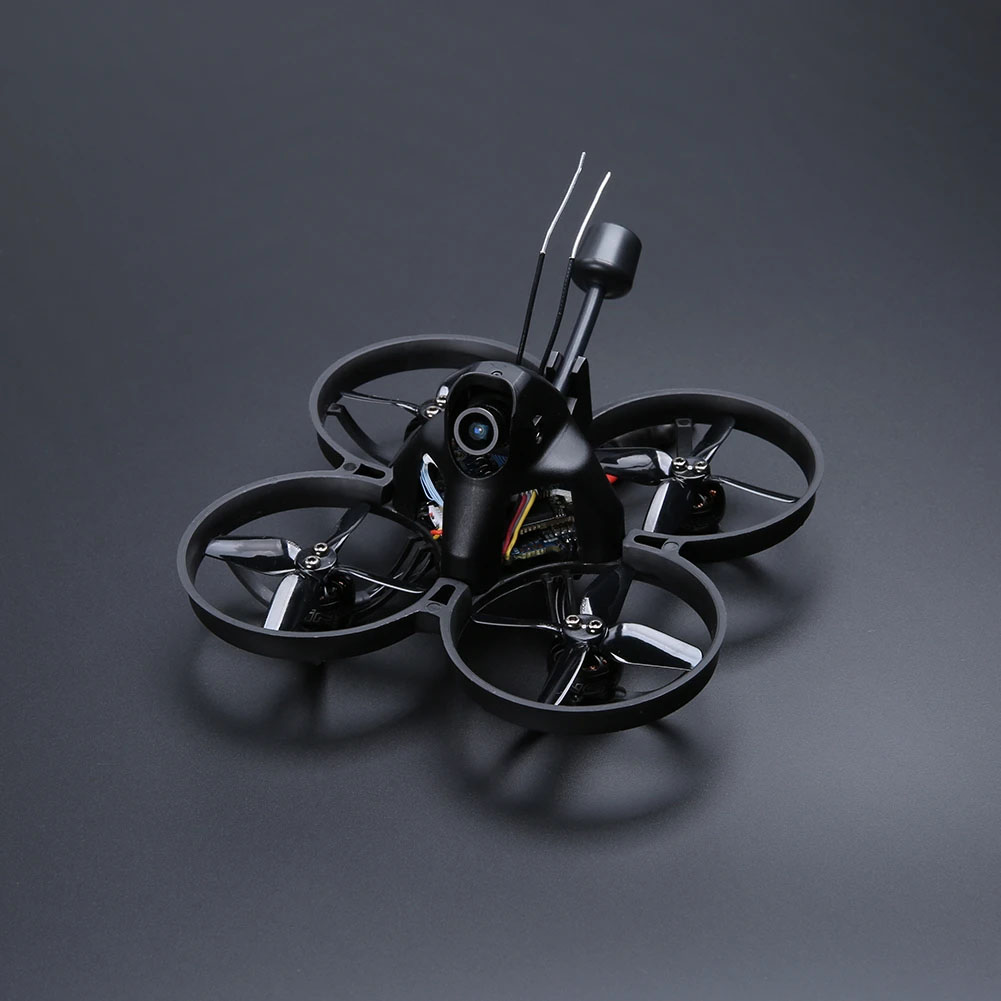

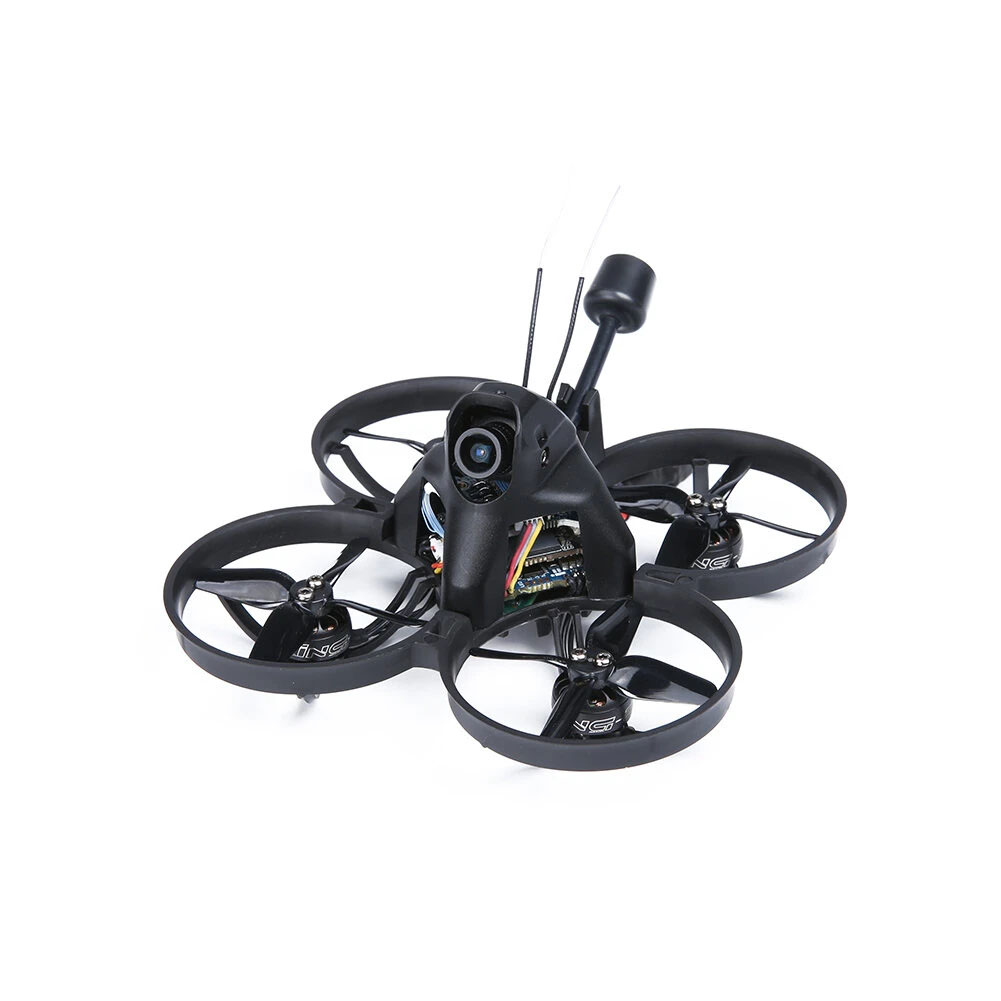

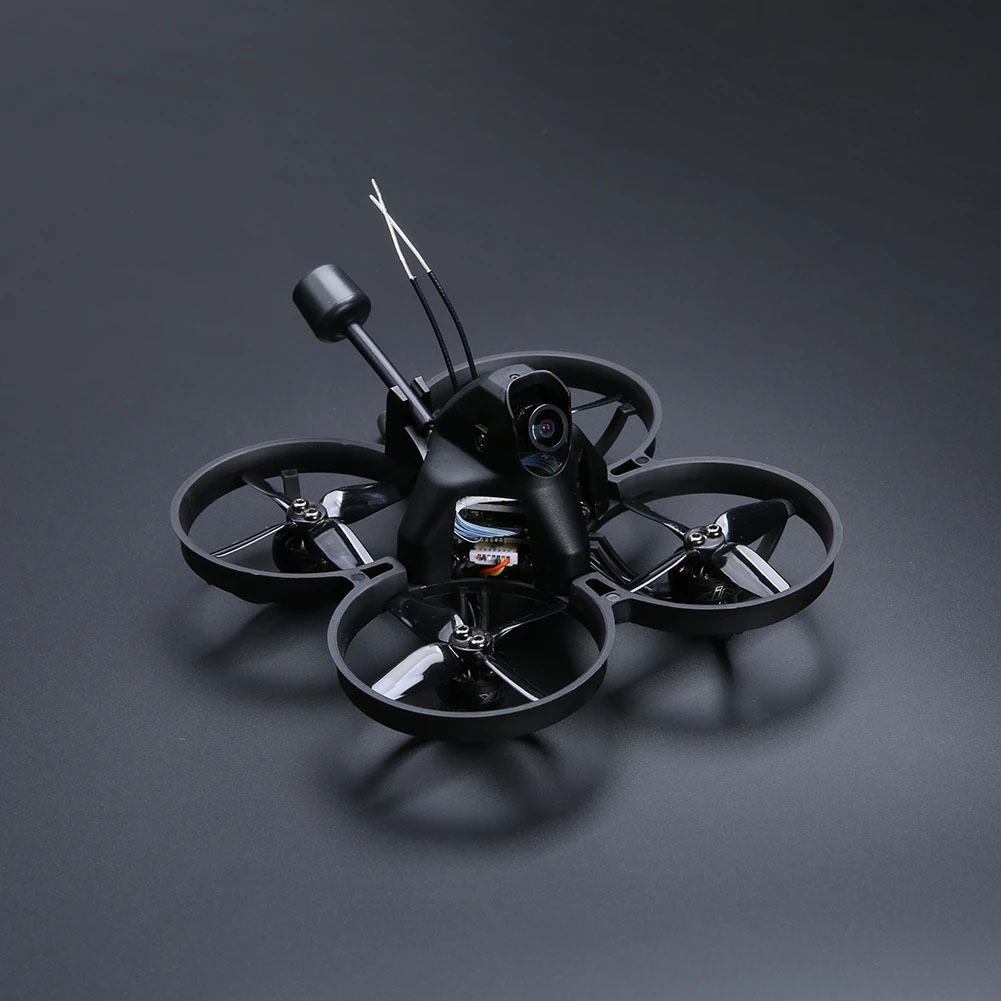

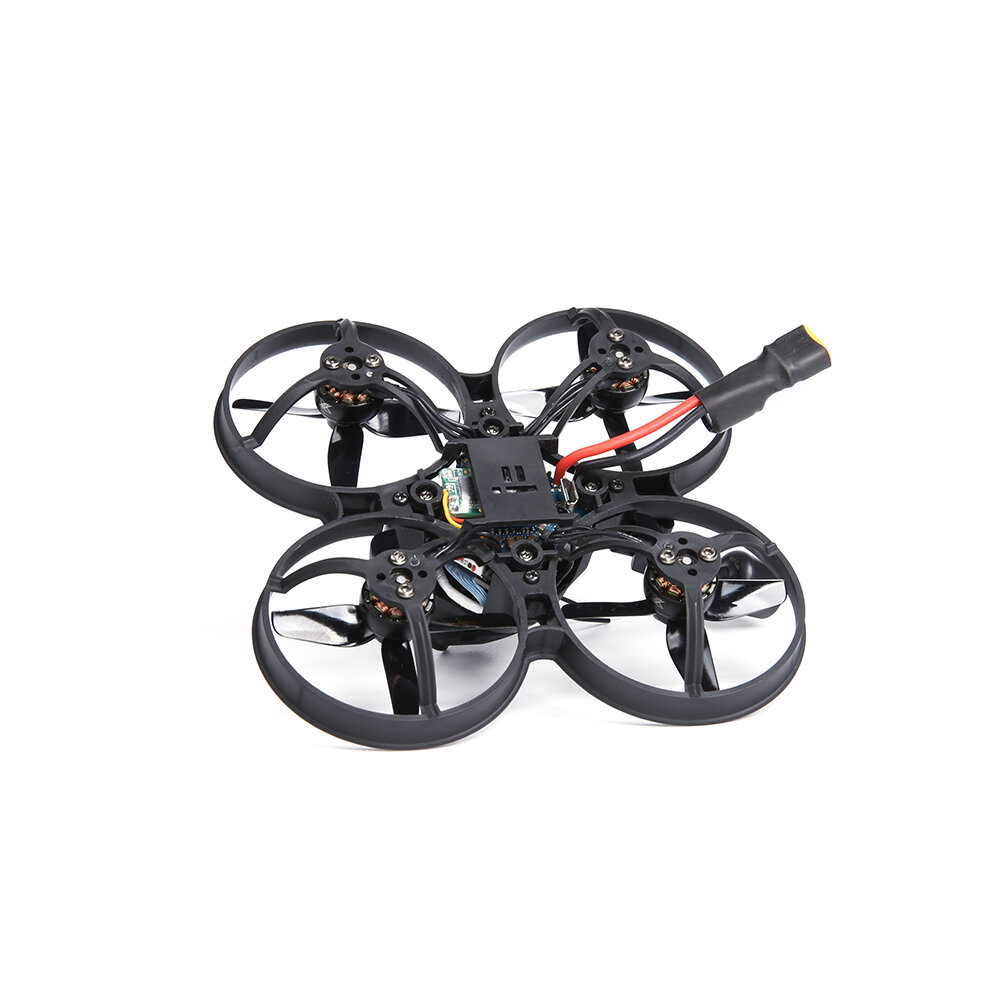

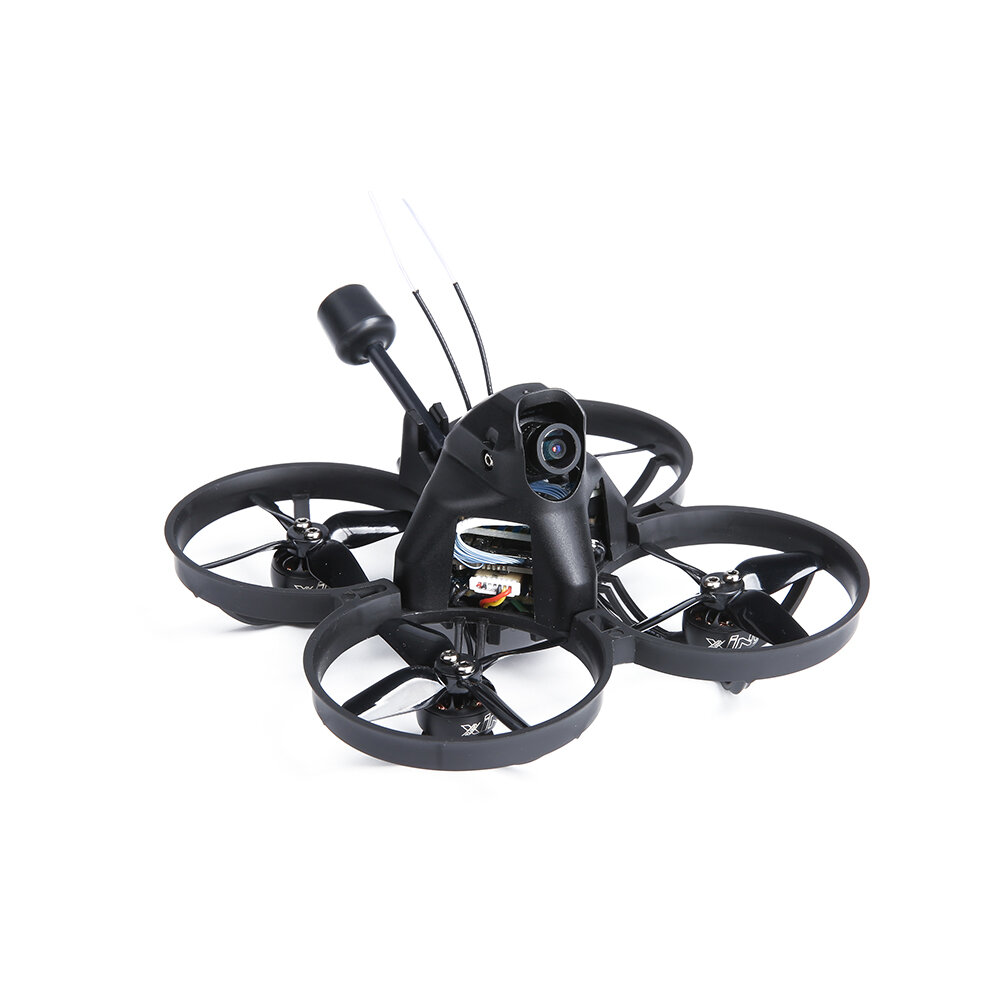

Pictures

Radio icons

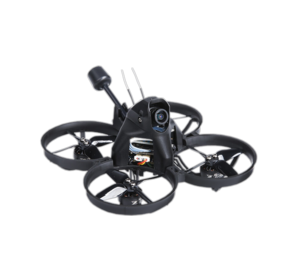

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Alpha A85 in particular but at least we know they do distribute iFlight.

Wingspan: 125mm (4.9 in)
Length: 125mm (4.9 in)

Weight: 85 g (3 oz)
  • Board: SucceX-D 20A Whoop F4 AIO Board
  • Motor: XING 1303 5000KV
  • Wheelbase: 85mm
  • Body size: 125*125mm
  • Ducted propeller size: 2 inch
  • FC pattern: 25.5*25.5mm
  • FPV cam spacing: 14mm
  • Weight: 84.5g (without battery)
  • Flight time: 5-7 min cruising (4S 450mAh)
