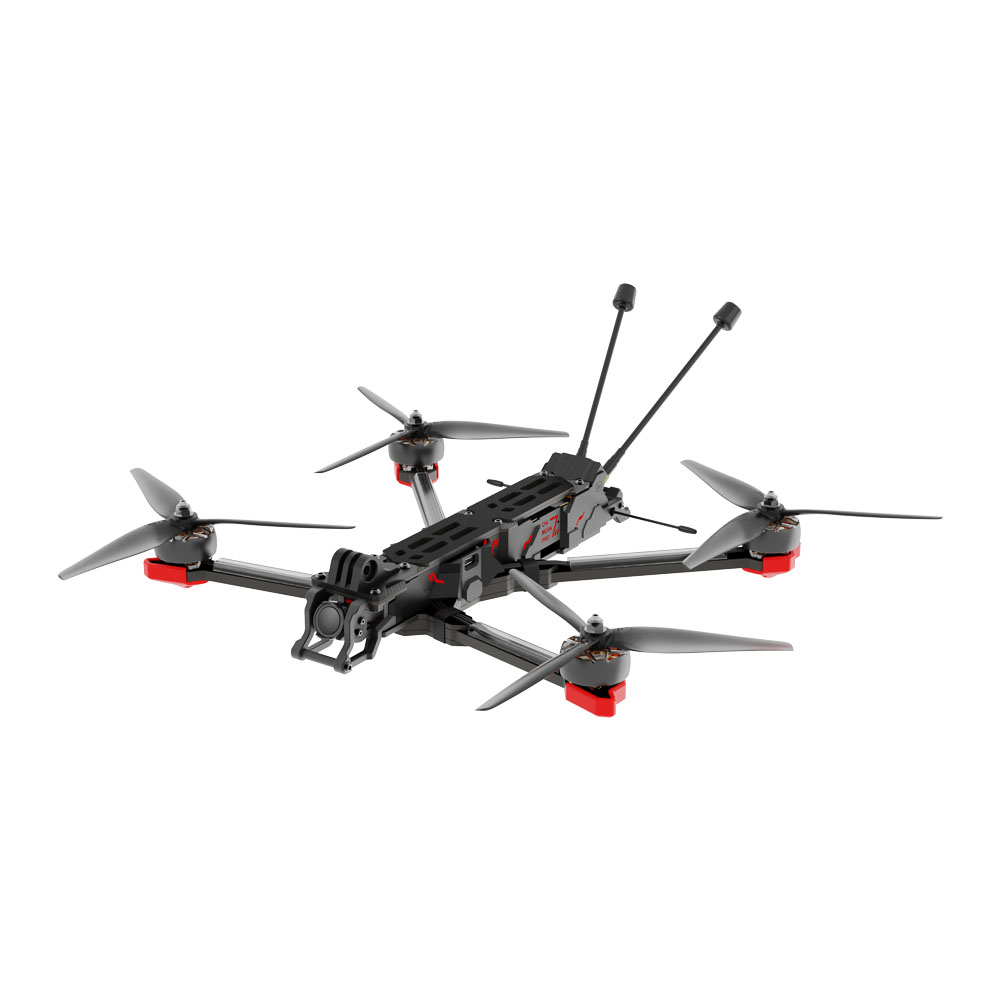

Chimera7 Pro V2 6S HD from iFlight

Details

The KING of Long Range FPV! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or our new 6S 3300mAh battery.

Features:

  • Smooth and Powerful XING2 Motors
  • Latest Chimera7 Pro Frame for Maximum Protection
  • DJI O3 HD Air Unit Low-Latency Digital Transmission
  • 4K Stabilized Video with 155° Ultra-Wide Angle
  • Secured Battery Plug with Anti-Spark Filter
  • Specially Designed Heatsink for DJI O3 HD Air Unit
  • GPS Pre-Installed for More Safety at A Distance

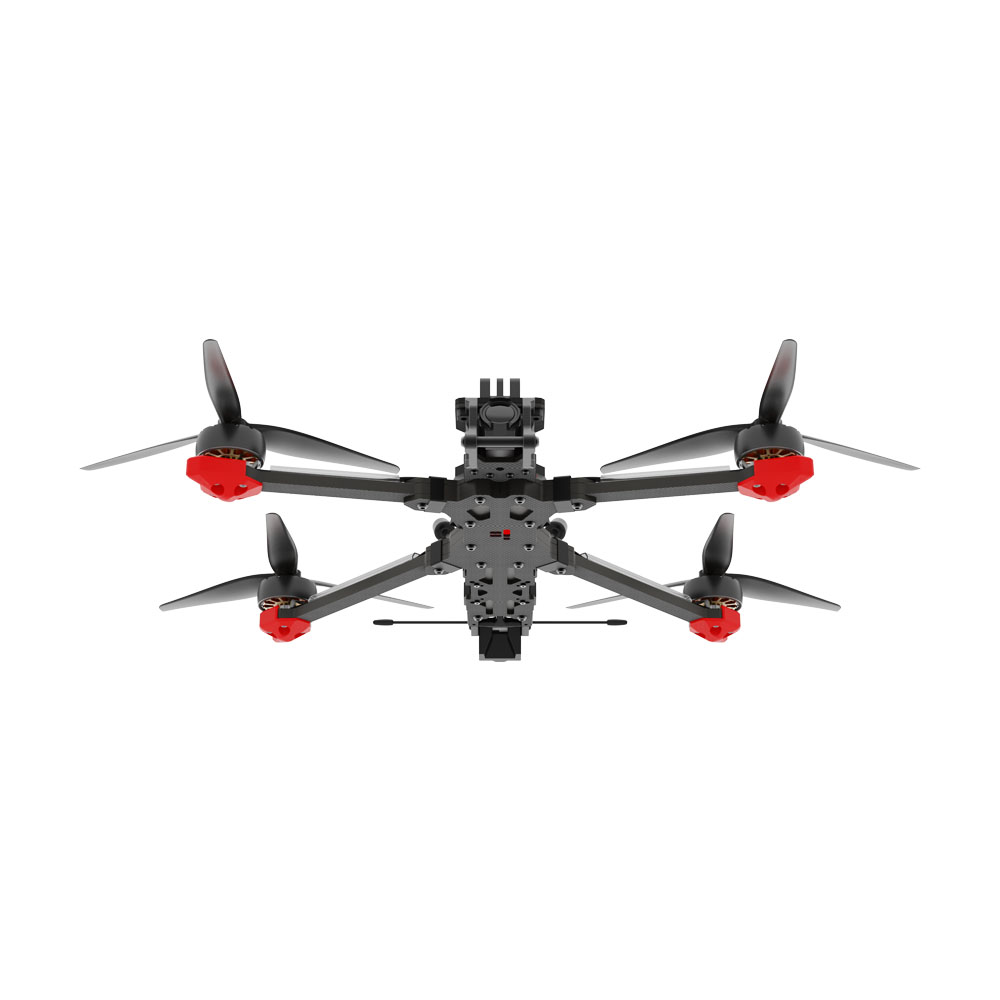

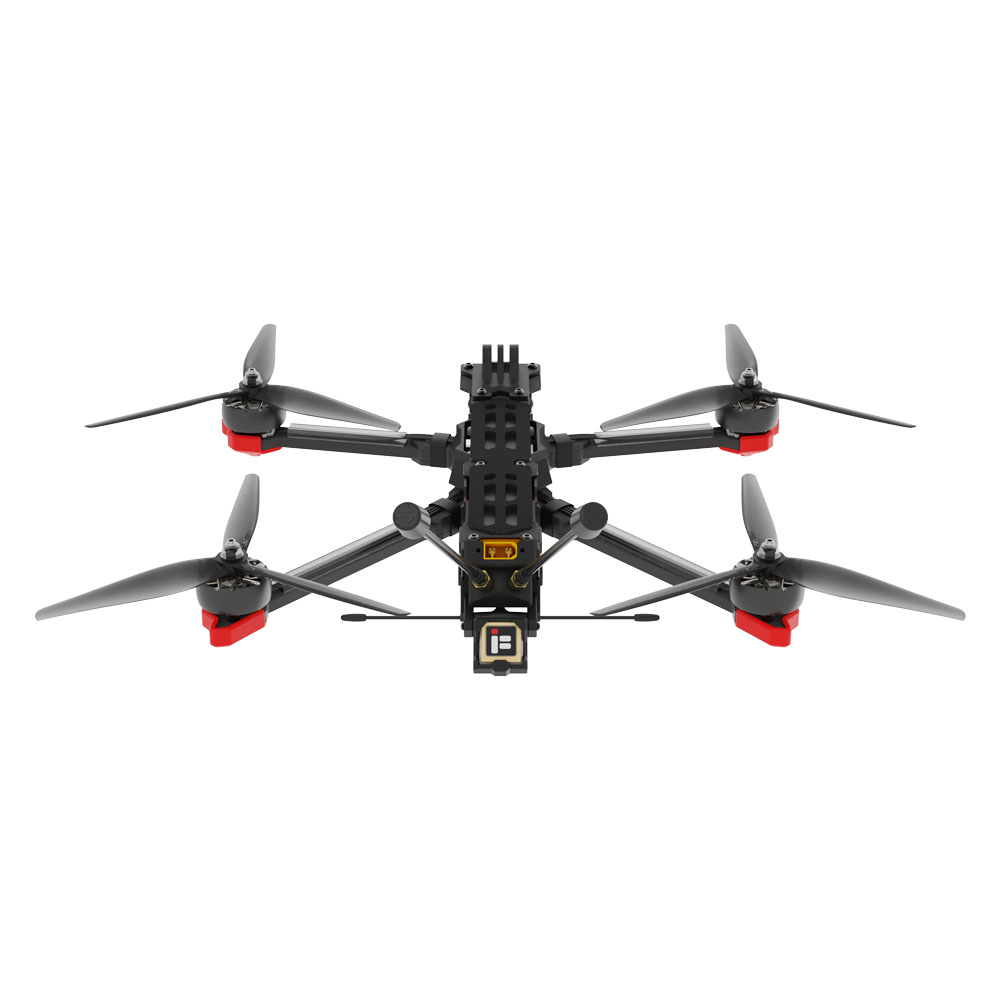

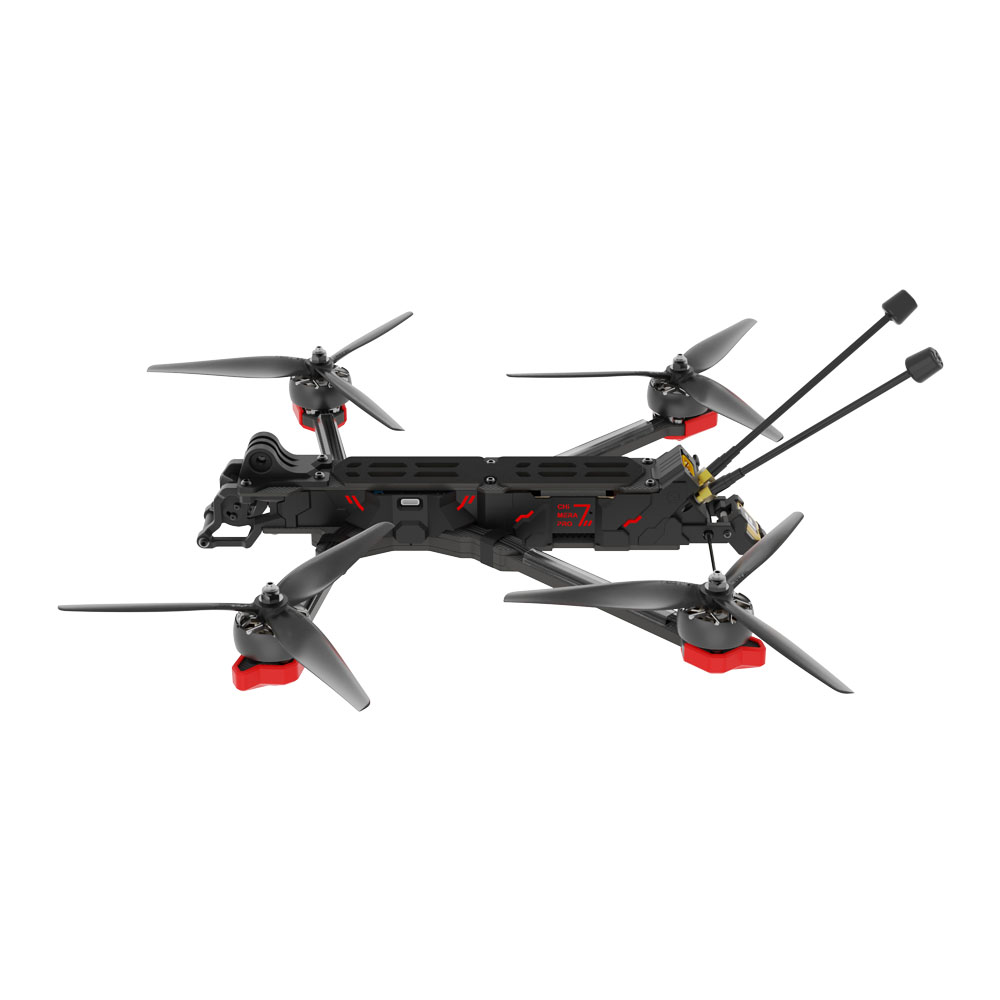

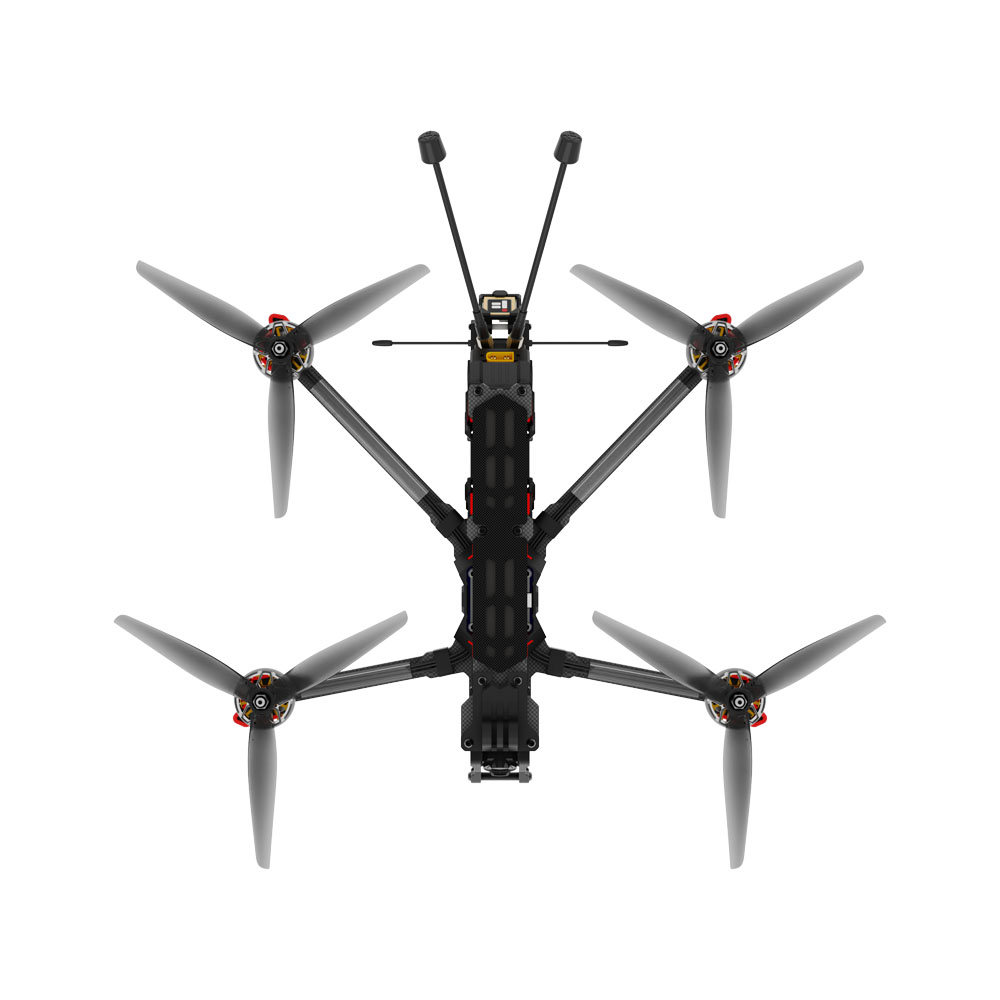

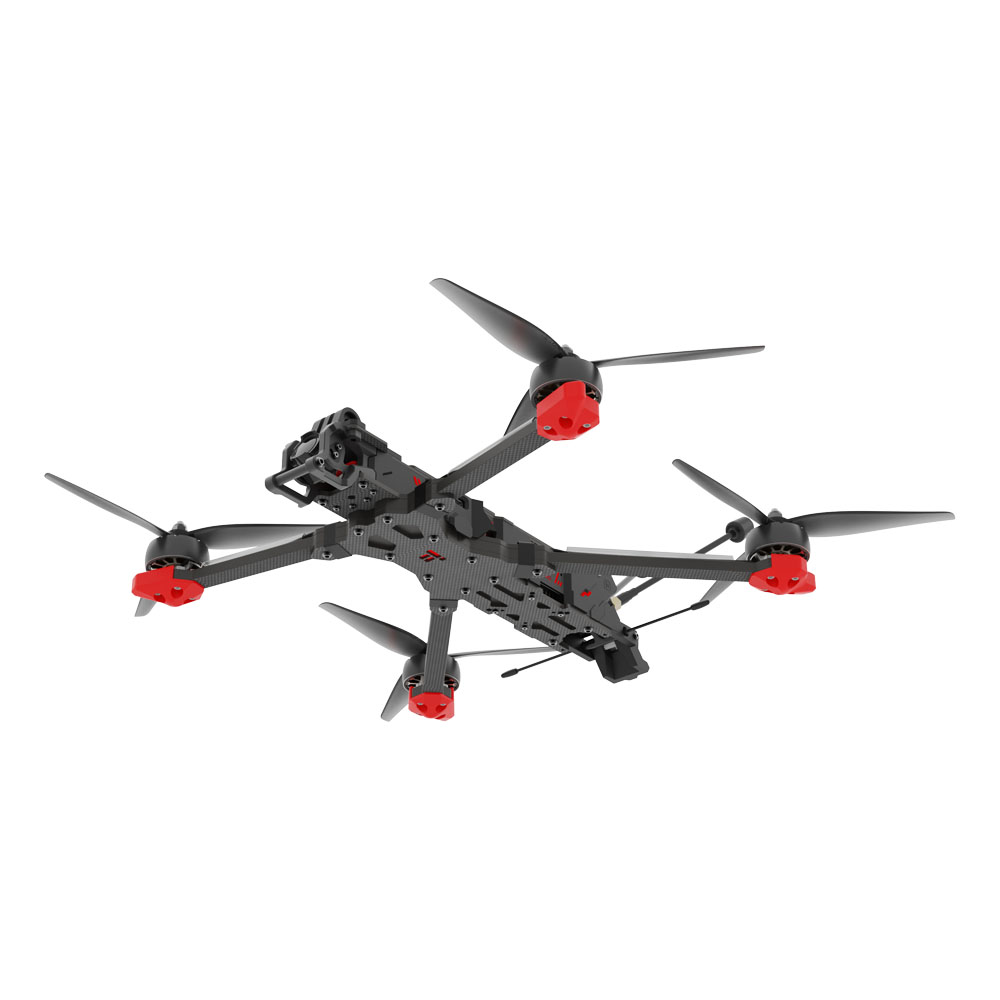

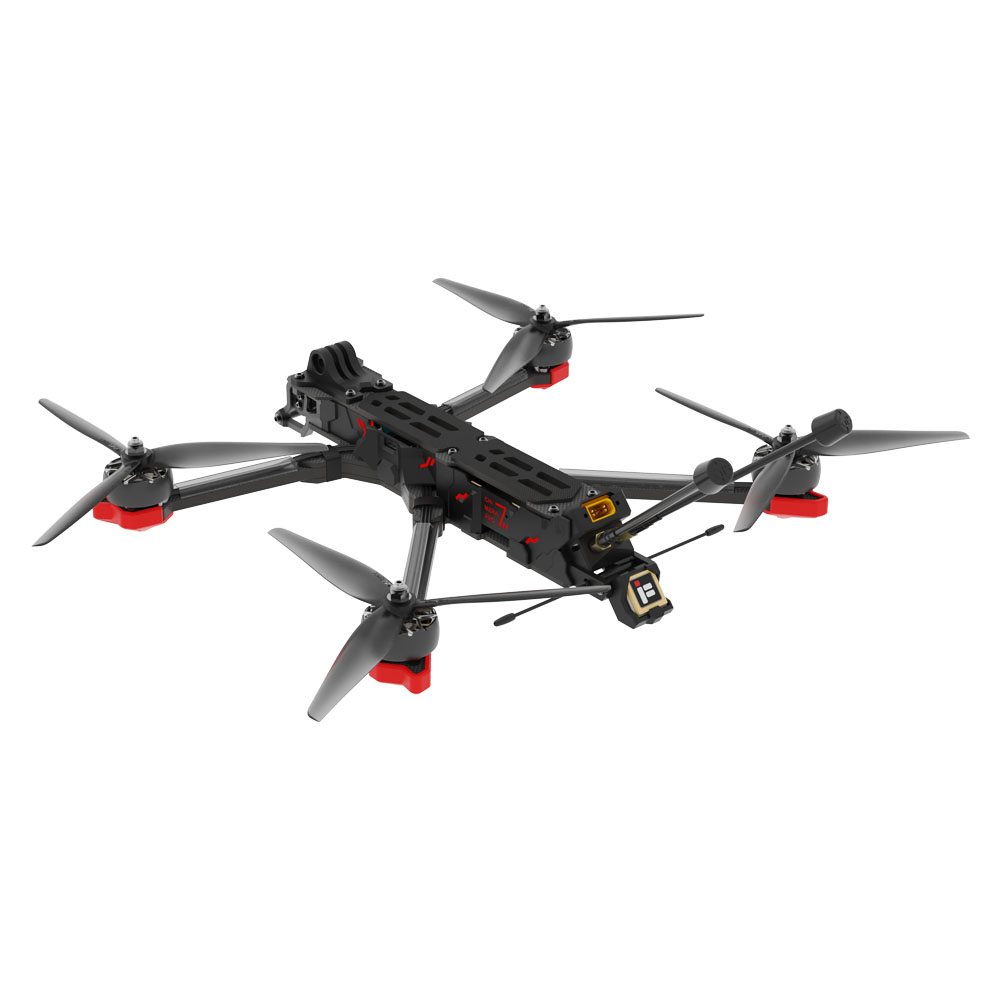

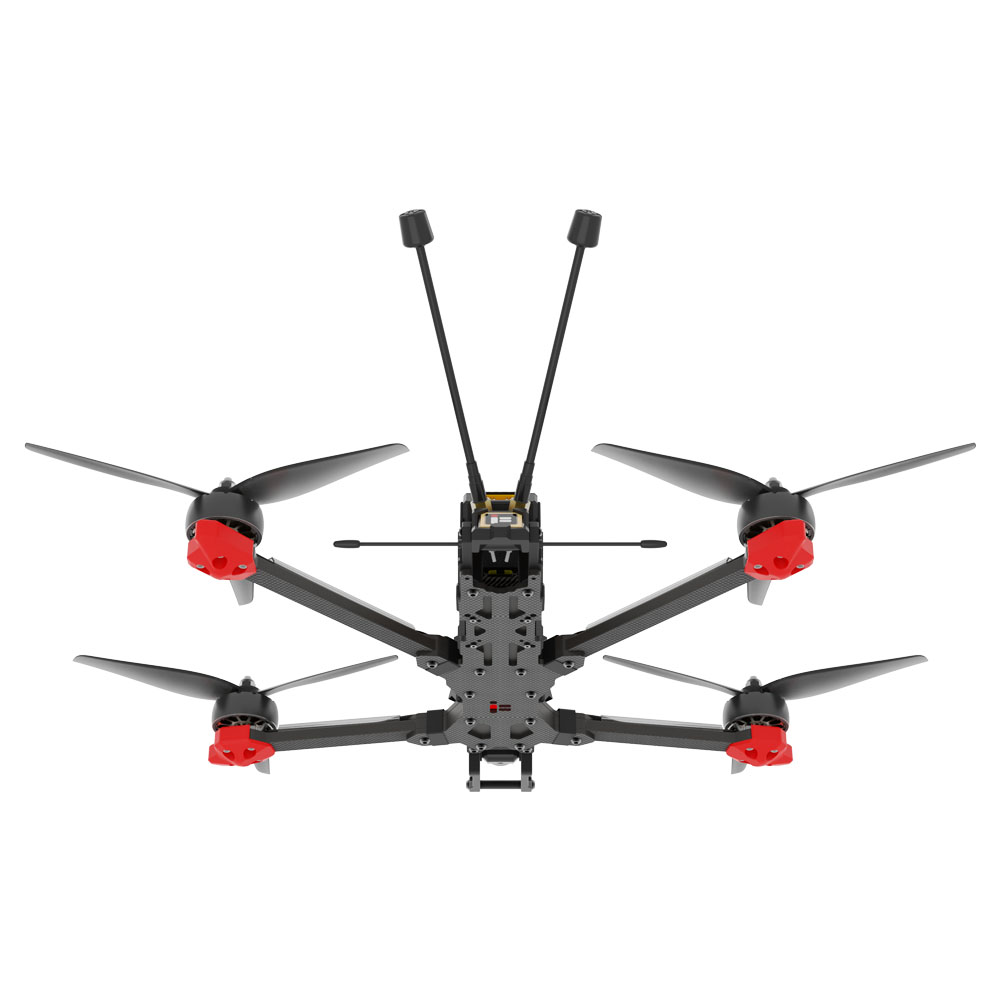

Pictures

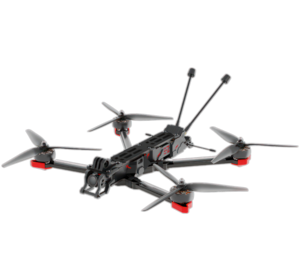

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Chimera7 Pro V2 6S HD in particular but at least we know they do distribute iFlight.

Wingspan: 199mm (7.8 in)
Length: 270mm (10.6 in)

Weight: 750 g (1.7 lbs)
  • C: BLITZ F722 Flight Controller
  • ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
  • Video Transmission: DJI O3 Air Unit
  • Frame: 327mm wheelbase
  • Motor: XING2 2809 motors
  • Prop: 7.5X3.7X3 propellers
  • Weight: 695g
  • Model: Chimera7 Pro
  • Takeoff Weight: Approx.  750g
  • Dimensions (L×W×H):270x199x34mm
  • Max Ascent Speed: 6 m/s (Normal Mode, Sport Mode)
  • Max Descent Speed: 6 m/s (Normal Mode, Sport Mode)
  • Max Speed: 27 m/s (Manual Mode)
  • Maximum Takeoff Altitude: 7000 m
  • Max Hover Time: Approx. 30 mins
  • Max Flight Distance: 18 km
  • Max Wind Speed Resistance: 130 Km/H (Level 5)
  • Operating Temperature Range: -10° to 40° C (14° to 104° F)
  • Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm
  • Antennas: Dual Antennas
  • GNSS: GPS + Galileo
