Defender 20 3S HD from iFlight

Details

iFlight Defender series features a better flying experience and performance with the next upcoming innovative step. Now is the time to take a step forward, let's meet the Defender 20. With the integrated All-In-One design and extremely convenient user experience, the new Defender has created a new standard of FPV drones. Upgraded quick-release battery and charging adapter to support Type C fast charging and battery storage mode, making everything as easy as it can be. One-button power switch with inbuilt programmable RGB light, yes we can be stylish and functional.

Features:

  • Remarkably Lightweight And Portable: The palm-sized, compact Defender 20 is just as portable as it can be. The whole frame is injection molded for durability and lightweight, equipped with a naked DJI O3 air unit (Supplied by DJI). It's not only regulation-friendly, but also the safest in its series, allowing you to fly anywhere and whenever.
  • One-button Functional Power Switch: Better operation through one physical button, not only just power on and off but also inbuilt programmable RGB light colors and modes to visually display the battery power. We’ve added a protective circuit to extend the lifespan of the battery connector and prevent rapid voltage or current spikes which can protect your electronics from damage.
  • Innovative Quick-Release Battery with Type-C Charger: The Defender 20 comes with a stock 3S 900mAh providing up to 7min flight time. Crash protected battery shell and innovative quick-release structure for easy replacement. Upgraded plug and play Type-C charger for user-friendly fast charging, get 80% charge in just 18 minutes. The battery has an inbuilt auto-discharge module, it will discharge itself when not in use, making it safe and worry-free.
  • Extremely Convenient User Experience:
    • No fear of dust, take off boldly. By using dustproof port plugs to isolate the interface from the outside, ensure function properly. Extend the life of the interface.
    • The drone can be disassembled with only 6 screws, making it much more convenient for maintenance and repair.
    • Full plug and play high performance AIO, 30% increase in redundancy to cope with extreme operations. Integrated beeper for quick retrieval of accidental loss.
    • All ports and buttons are easy to access.
  • Countless easy-to-use features let you get started right away:
    • No soldering is required for the whole drone, motors, and propellers adopting the plug-in mounting method.
    • A dedicated VTX mount bracket with a central grille opening, together with the air duct design in the drone, can dissipate heat when flying.
    • USER1 preset as video transmitter power supply switch, used to manually turn off the VTX when idle to safe power and prevent overheating.
    • Customized vibration damped O3 camera mount to keep your raw footage as smooth as possible, as well as ensure good Gyro Data for the in-built or in-post camera stabilization, jello free.

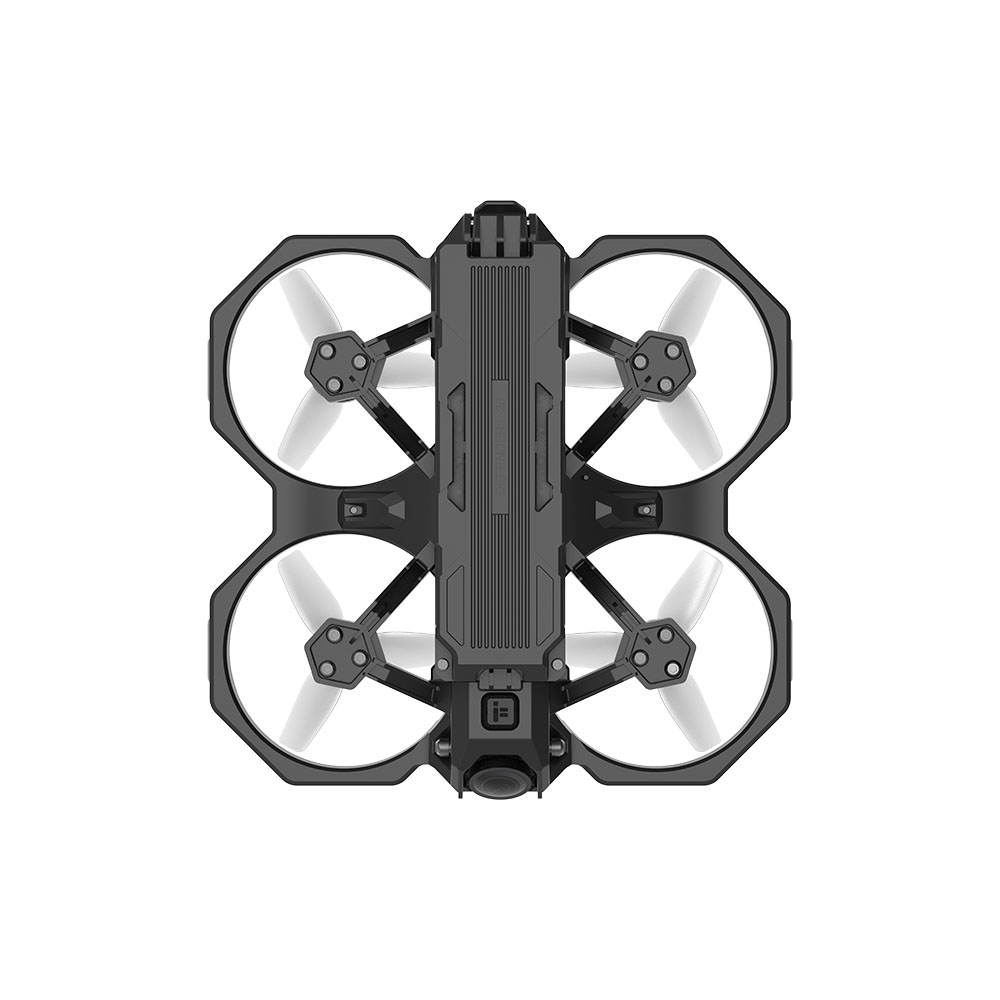

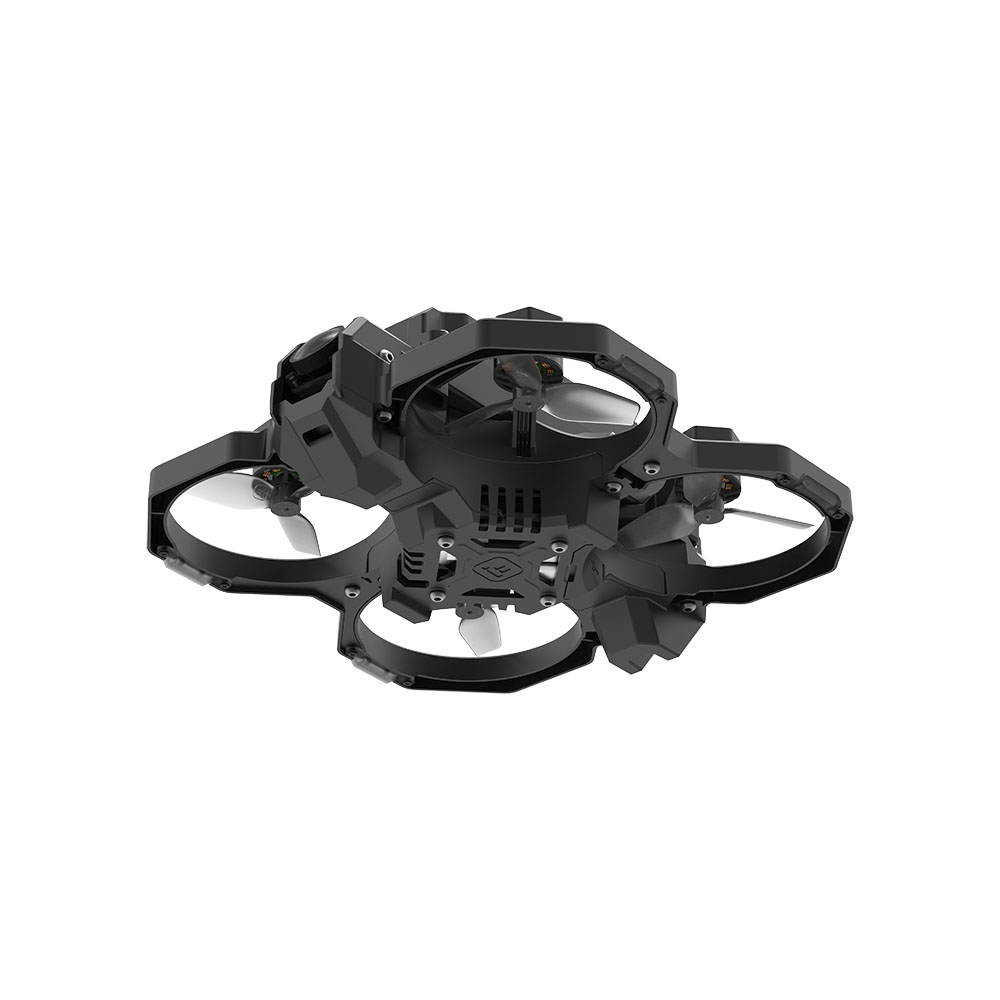

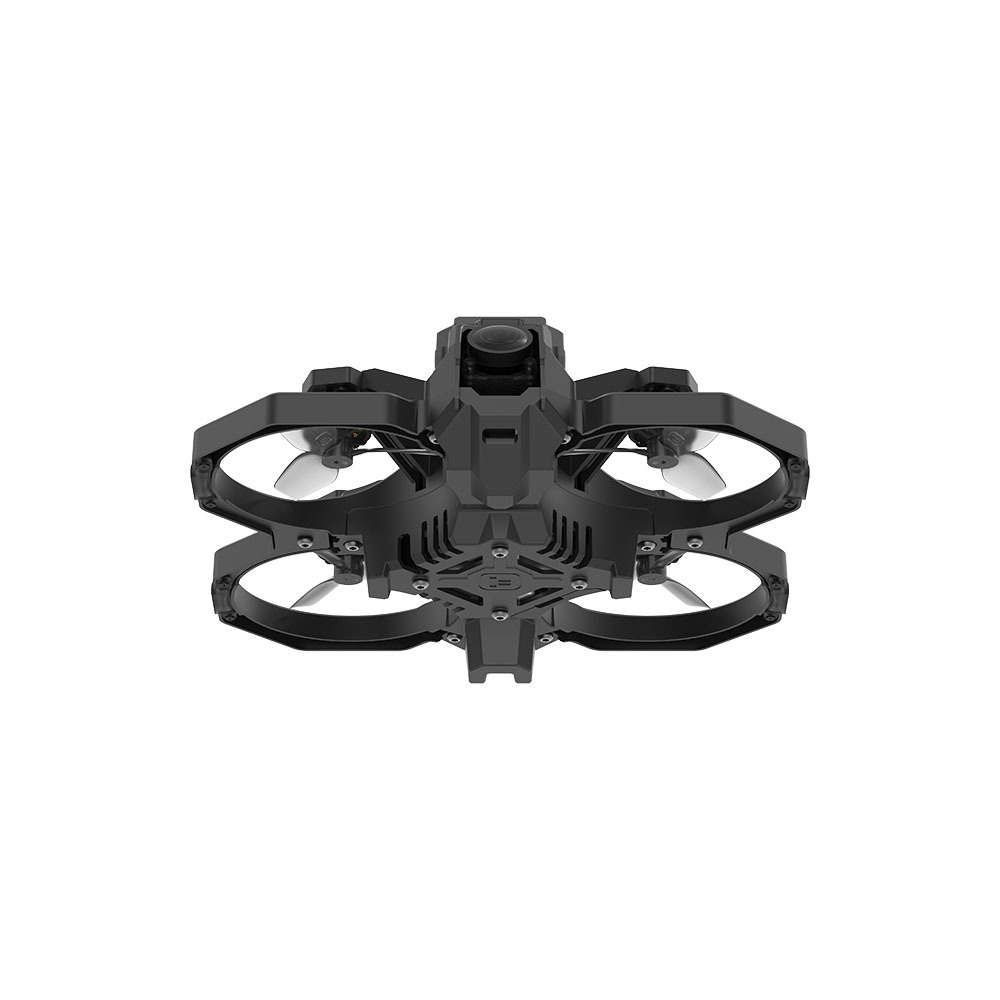

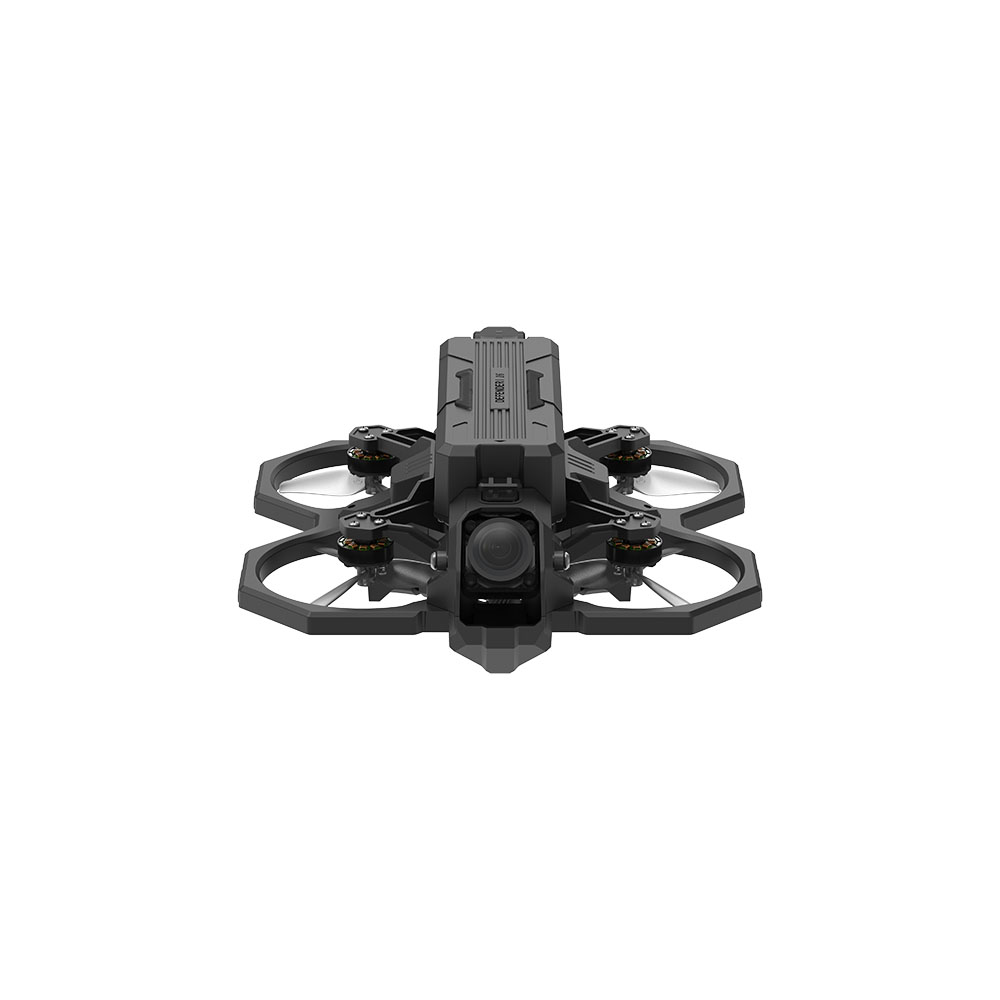

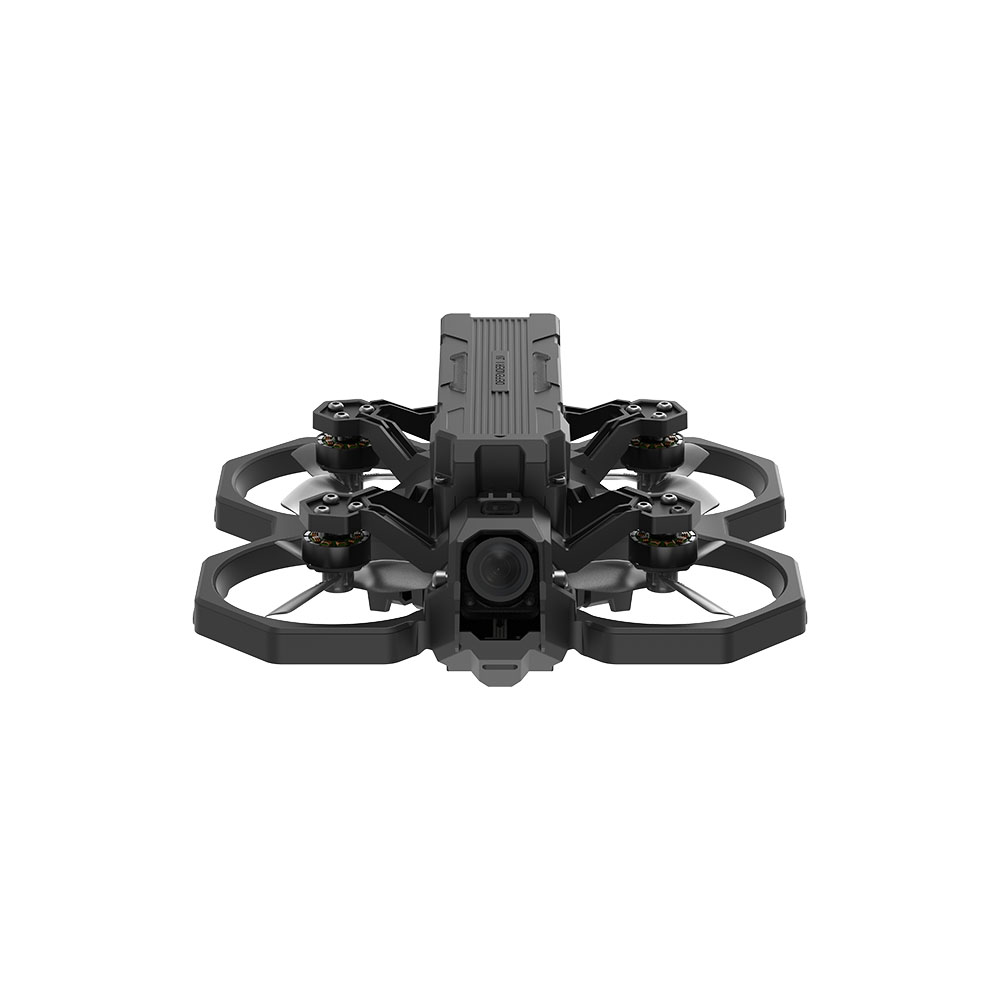

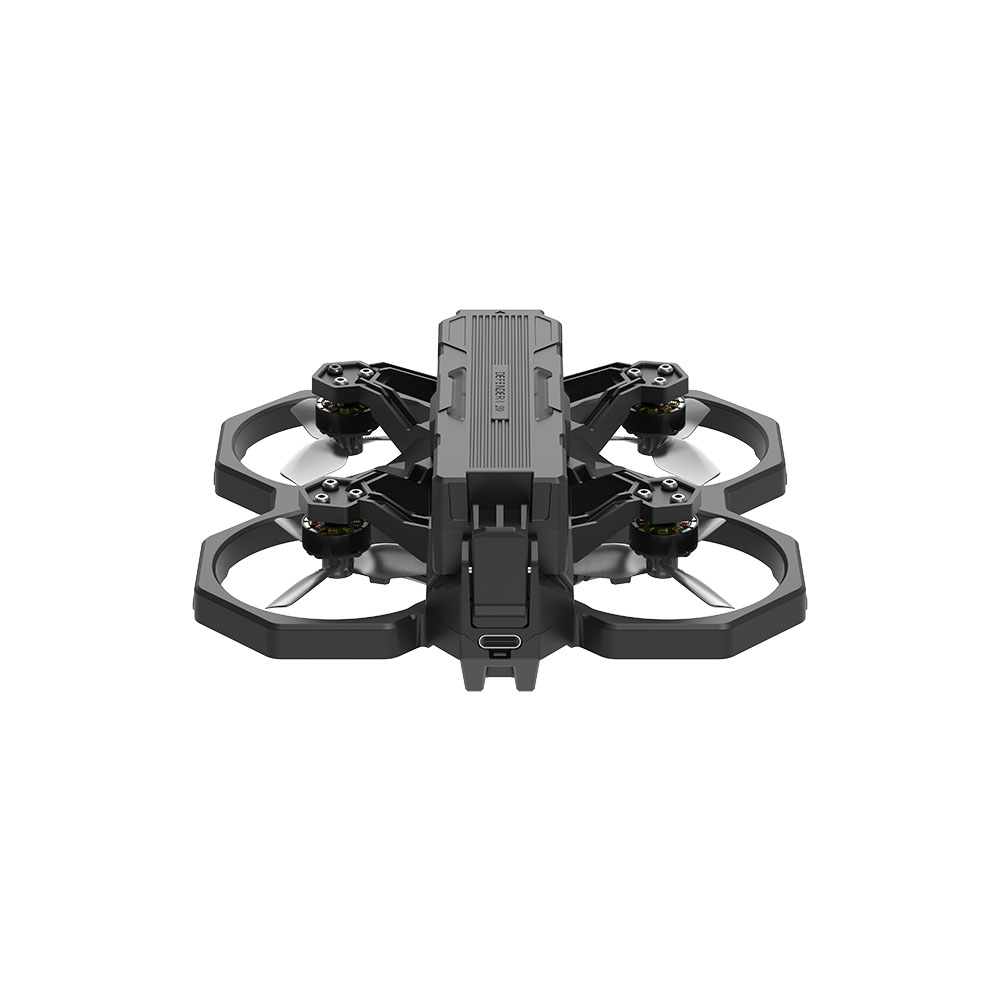

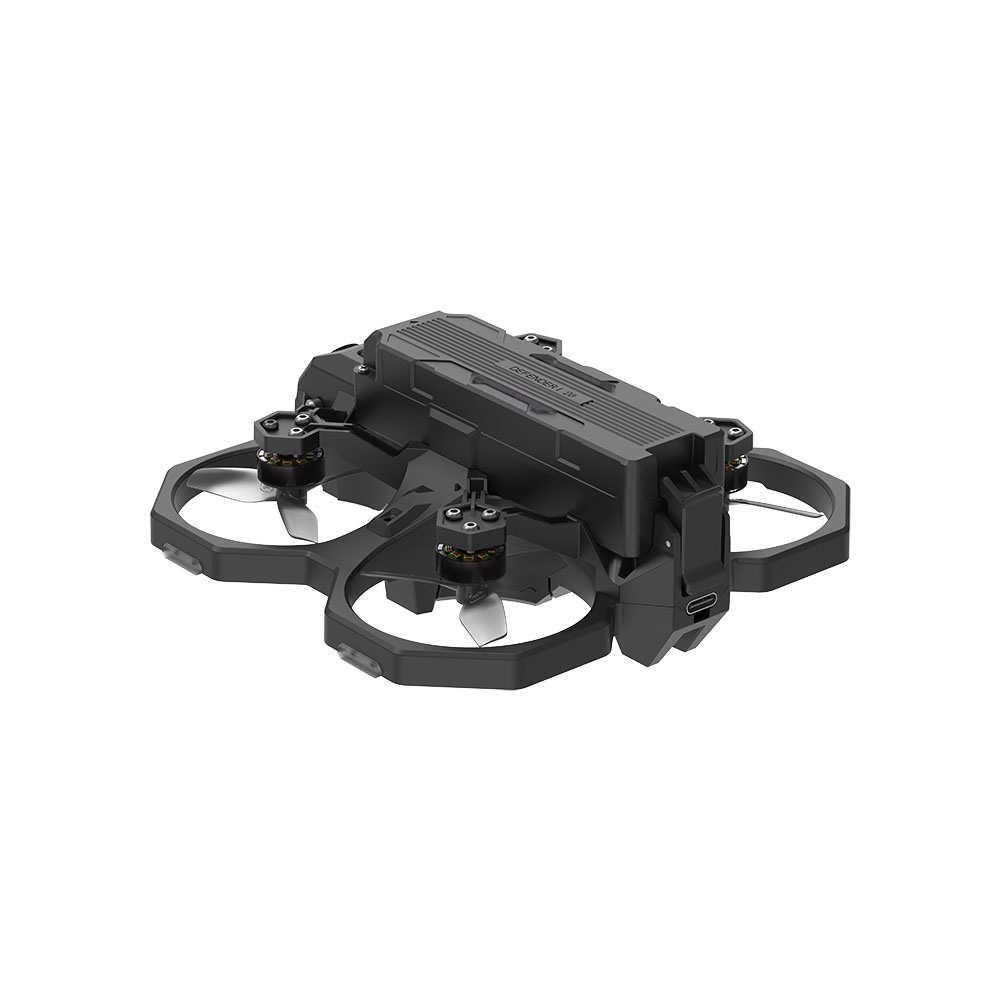

Pictures

Radio icons

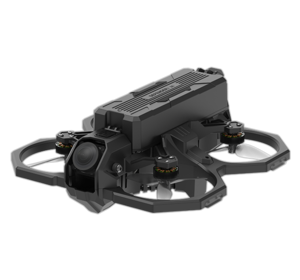

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Defender 20 3S HD in particular but at least we know they do distribute iFlight.

Wingspan: 97mm (3.8 in)
Length: 97mm (3.8 in)

Weight: 178 g (6.3 oz)
  • Product Name: Defender 20 O3 3S HD
  • Flight Electronics: Defender 16/20 F411 AIO
  • Video Transmission: DJI O3 Air Unit (Naked version)
  • Frame wheelbase: 97mm
  • Motor: Defender20 1204 motors
  • Prop: Defender20 2020-3 props
  • Takeoff Weight incl. 900mAh battery: 178g
  • Dimensions (L×W×H):135x136x52mm
  • Max Speed: 75Km/H (Manual Mode)
  • Maximum Takeoff Altitude: 2000 m
  • Max Hover Time: Approx. 7.5 mins(with 3S 900mAh battery)
  • Max Wind Speed Resistance: Level 3
  • Operating Temperature Range: -10° to 40° C (14° to 104° F)​
  • Antennas: Dual Antennas

Video Transmission:

  • Product Name: Naked DJI O3 Air Unit
  • Communication Bandwidth: Max 40 MHz
  • FOV (single screen): 155°
  • Communication Frequency: 2.400-2.4835 GHz (RX only);5.725-5.850 GHz(RX and TX)
  • End-to-End Latency
  • With DJI FPV Goggles V2:
    • 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
    • 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
  • With DJI Goggles 2:
    • 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
    • 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
  • Max Video Transmission Bitrate: 50 Mbps
  • Max Video Transmission Range:10 km (FCC), 2 km (CE), 6 km (SRRC)
  • Operating Temperature Range: -10º to 40º C (14° to 104° F)​
  • Power Input: 7.4-26.4 V
