IH2 HD from iFlight

Details

The iH2 BNF from Iflight is equipped with the HD Vista system from Caddx. This Whoop HD accepts 2 inch propellers with ducts but also 2.5 inch propellers without ducts. Uses the DJI camera for the best current video available.

Features

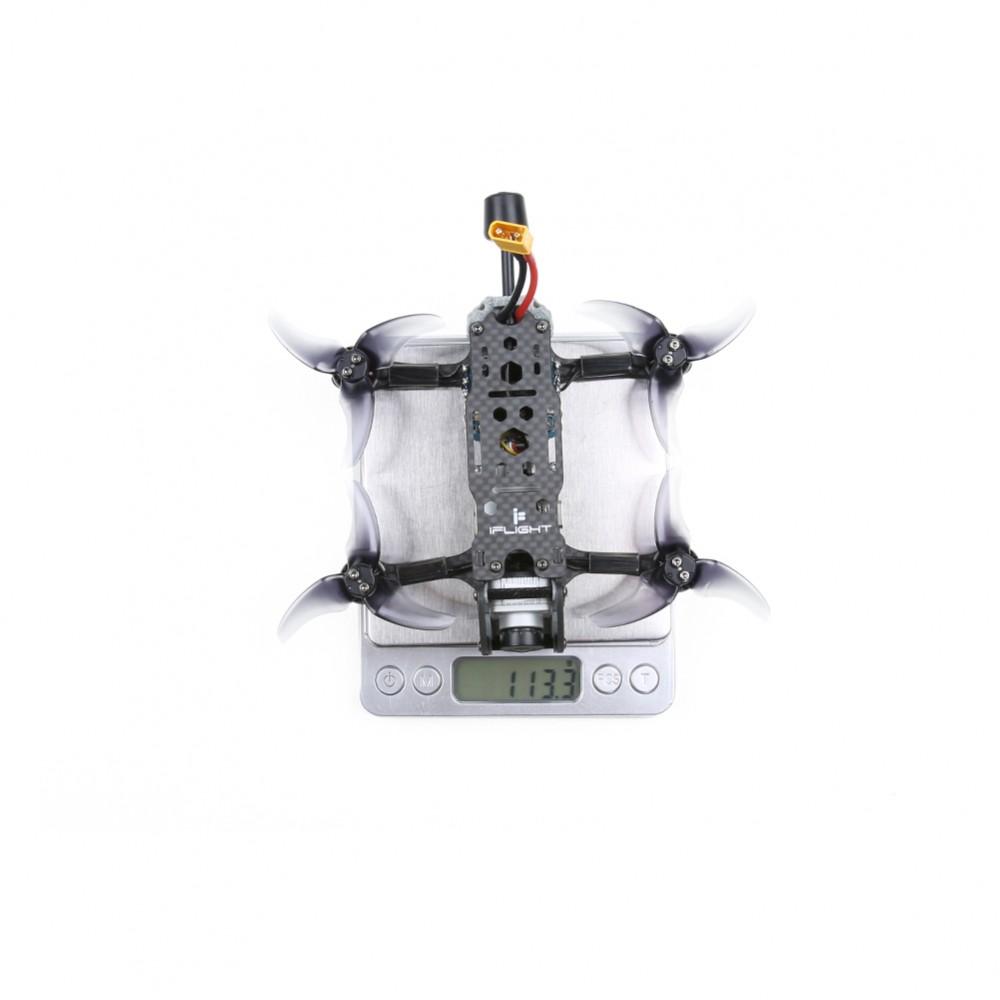

  • 126.5 grams without battery
  • Butter smooth XING-E 1204
  • Duct prop guards to protect the sensitive environment or yourself
  • Pre-tuned with smooth freestyle settings

Pictures

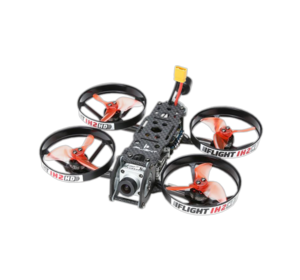

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the IH2 HD in particular but at least we know they do distribute iFlight.

Wingspan: 120mm (4.7 in)
Length: 120mm (4.7 in)

Weight: 127 g (4.5 oz)

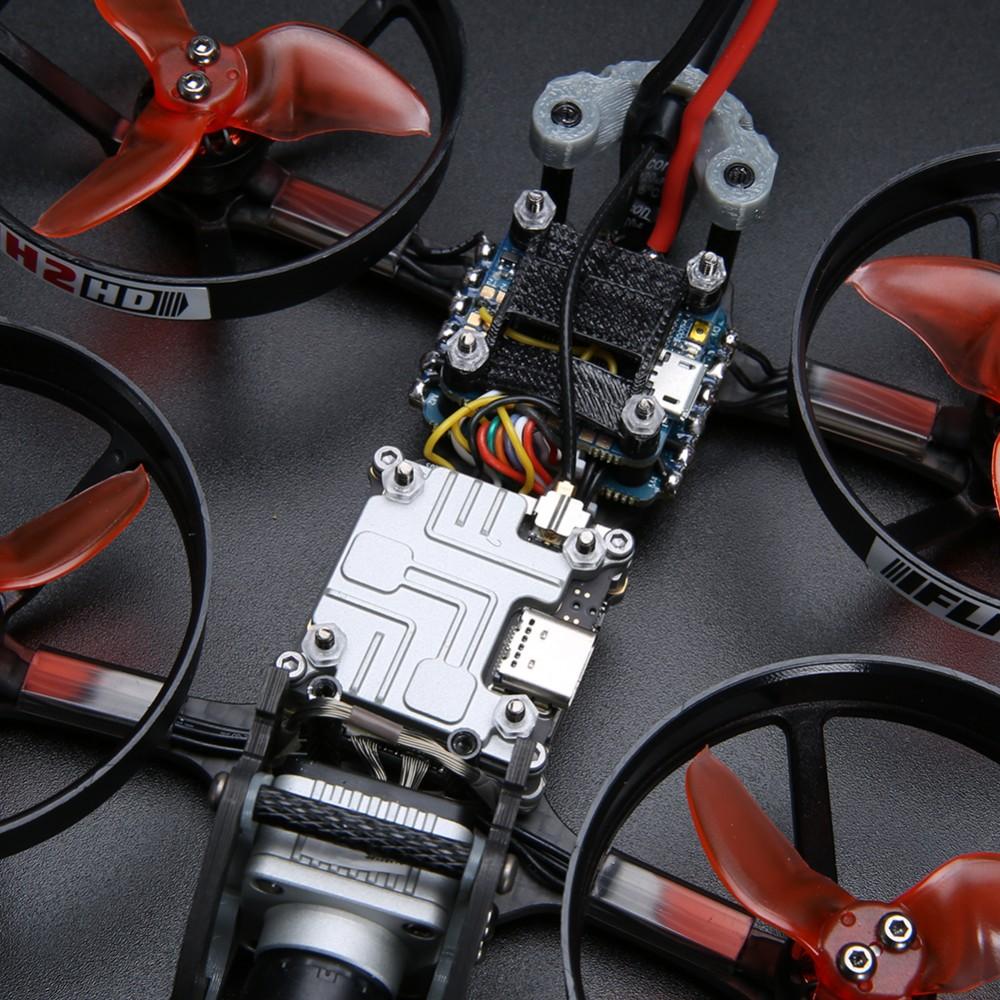

  • SucceX-E mini F4 + mini 35A stack
  • Motor: XING-E 1204 4500KV
  • Wheelbase: 120mm
  • Body size: 100*68mm
  • Bottom plate thickness: 2.5mm
  • Top plate thickness: 1.5mm
  • Top and bottom plate spacing: 22mm (aluminum column height 25mm)
  • Ducted propeller size: 2 inch
  • Maximum propeller size without ducts: 2.5 inch props
  • FC pattern: 20*20mm,16*16mm
  • FPV cam spacing: 19mm
  • Weight: 126.5g (without battery)
  • Flight time: 5-6 min cruising
