Nazgul XL10 V6 S from iFlight

Details

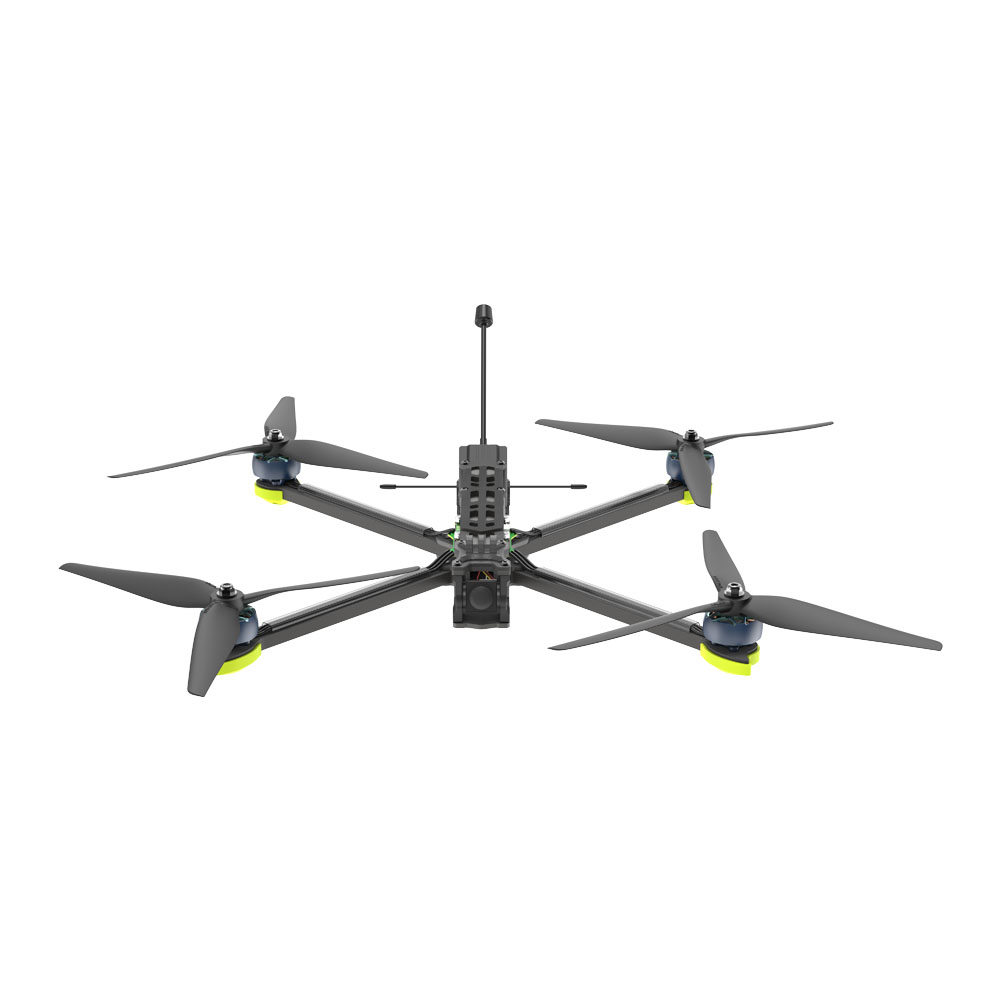

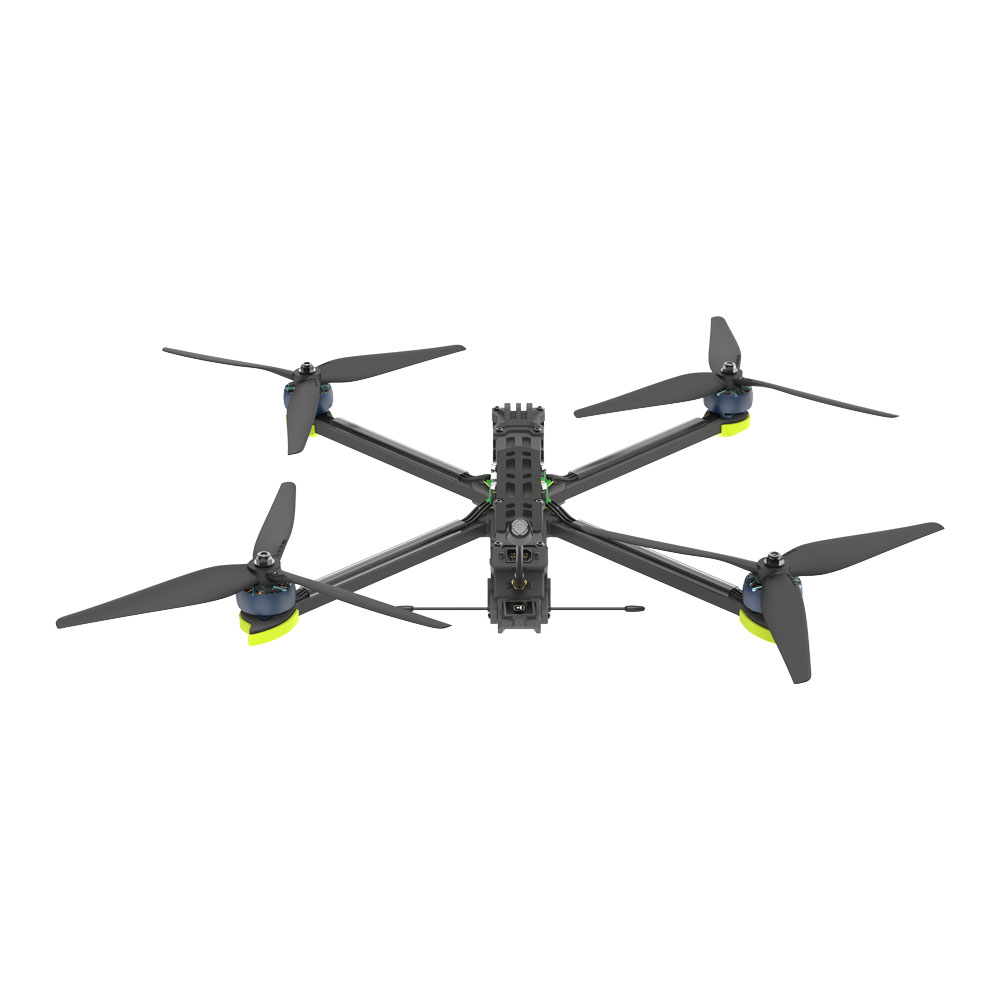

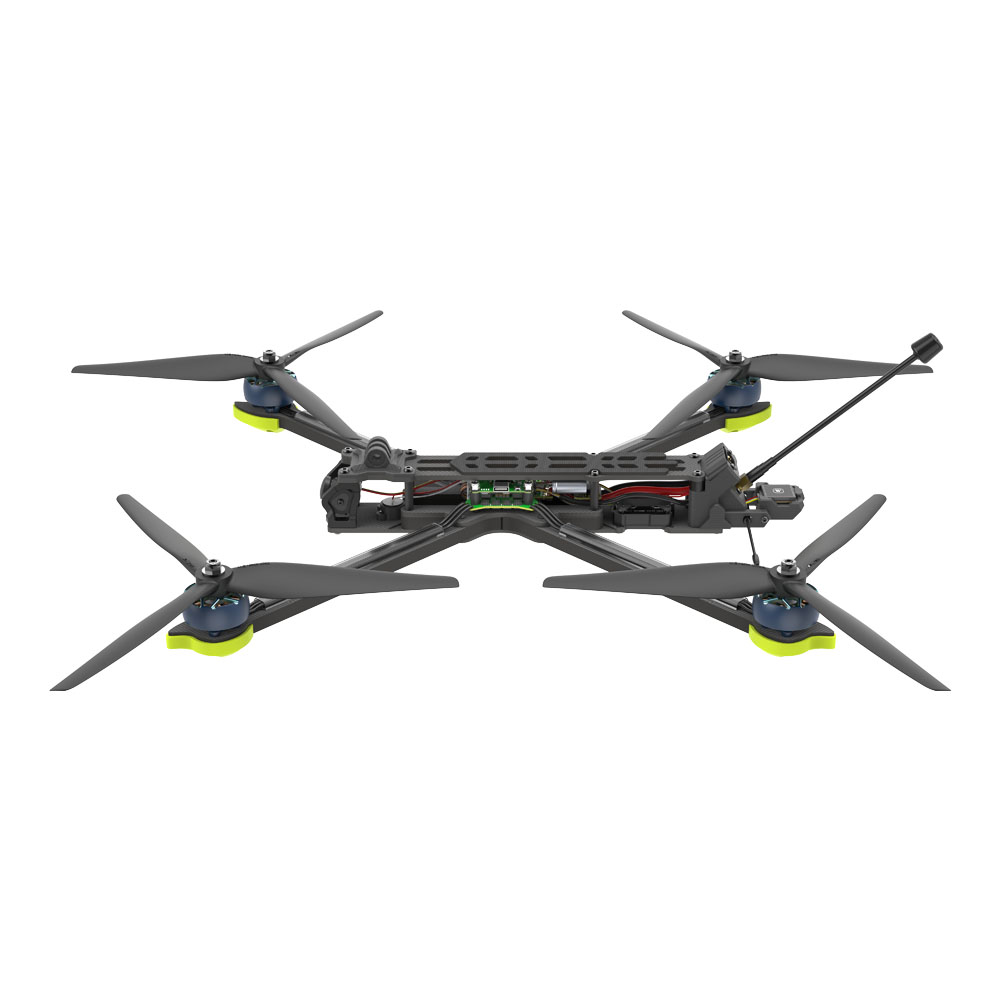

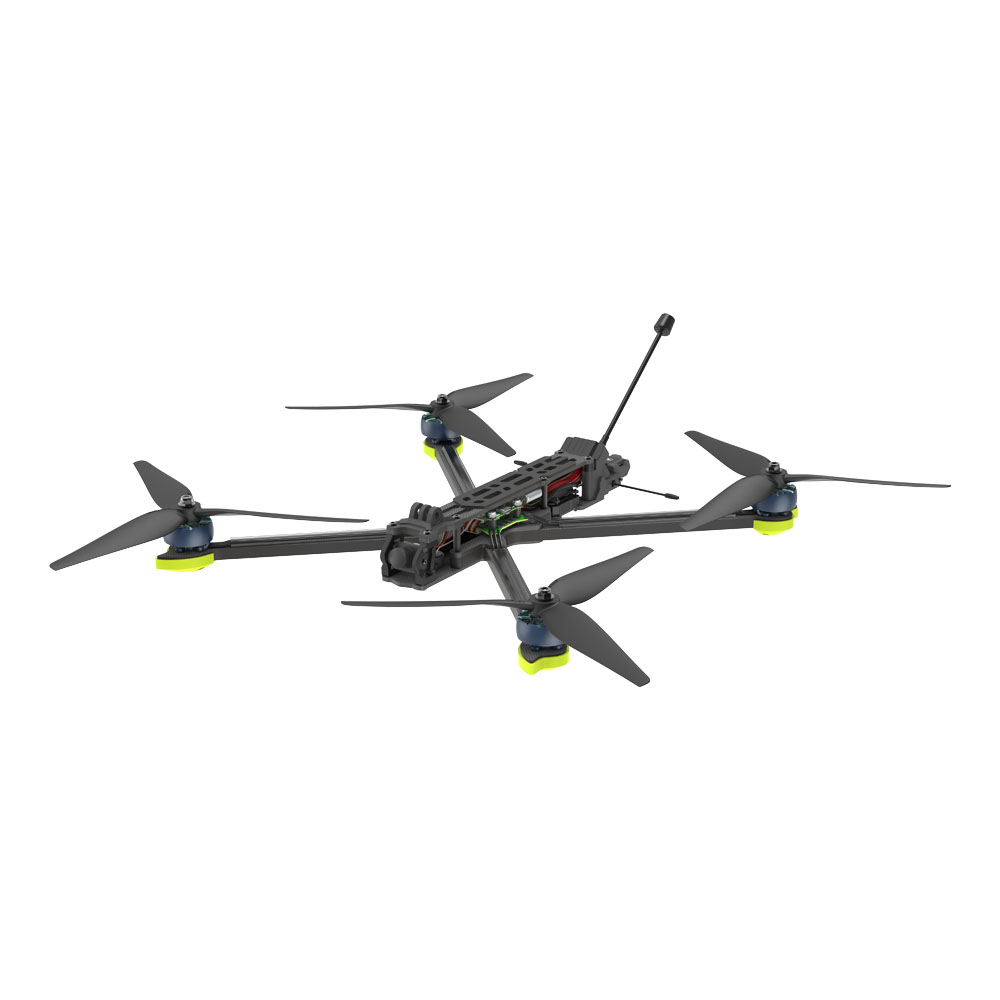

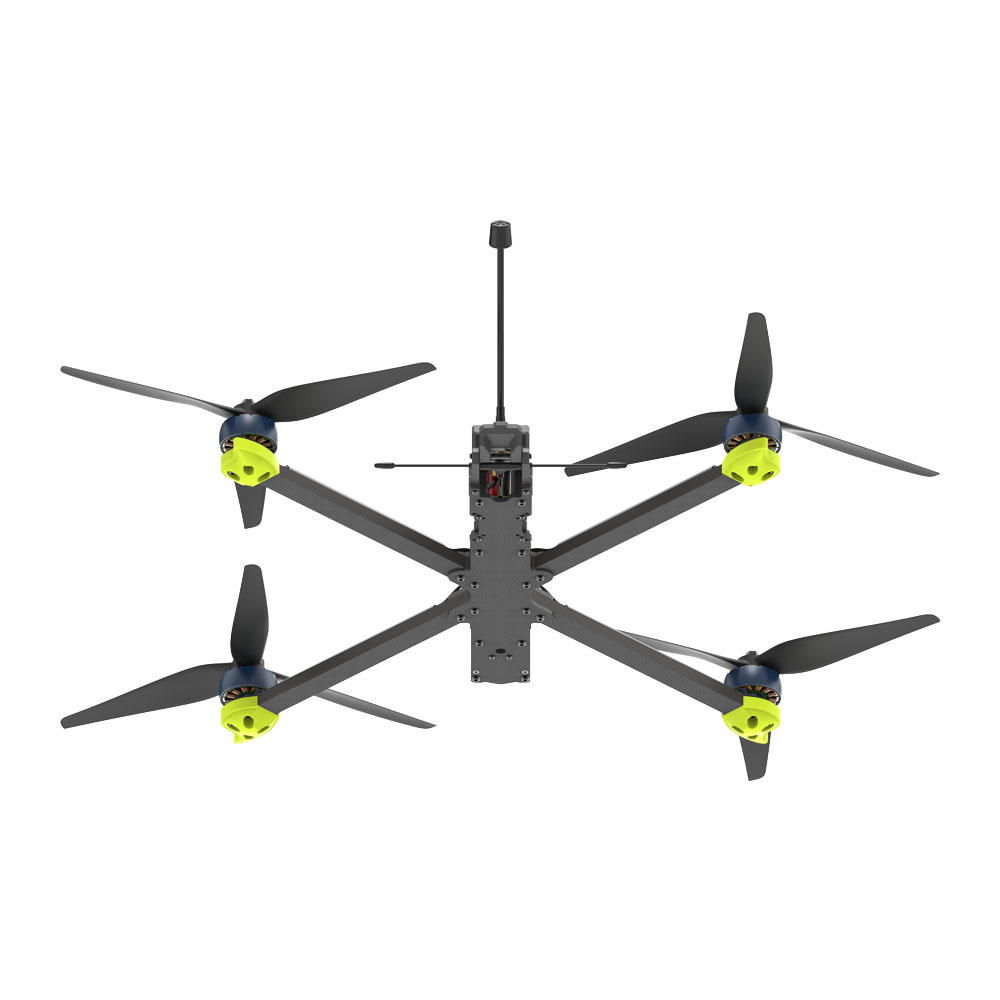

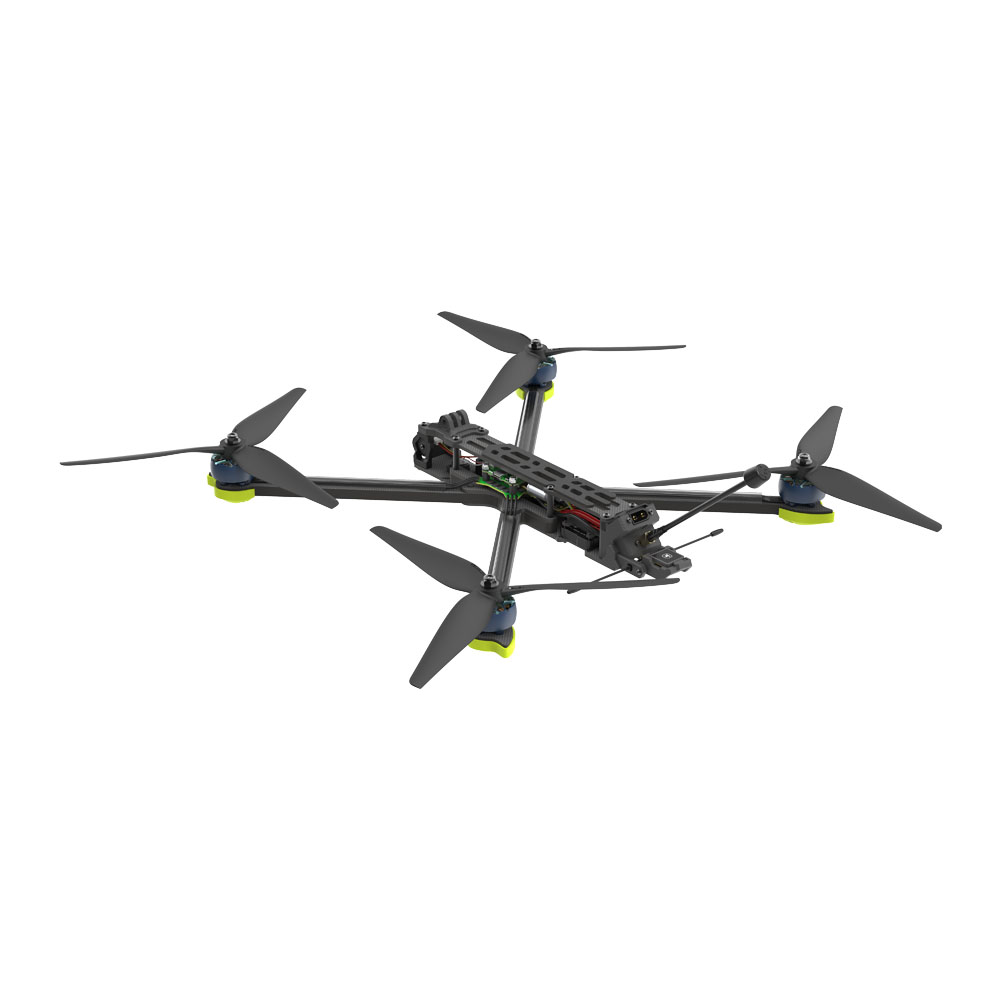

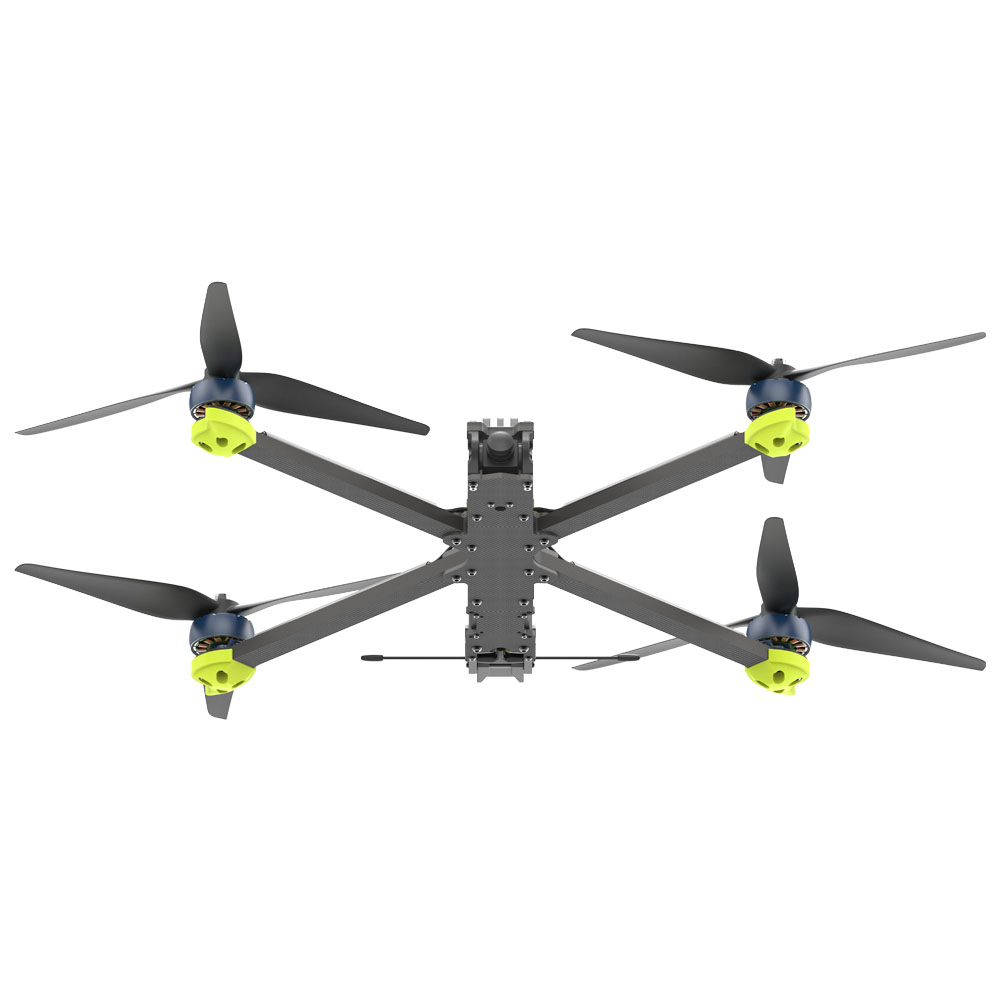

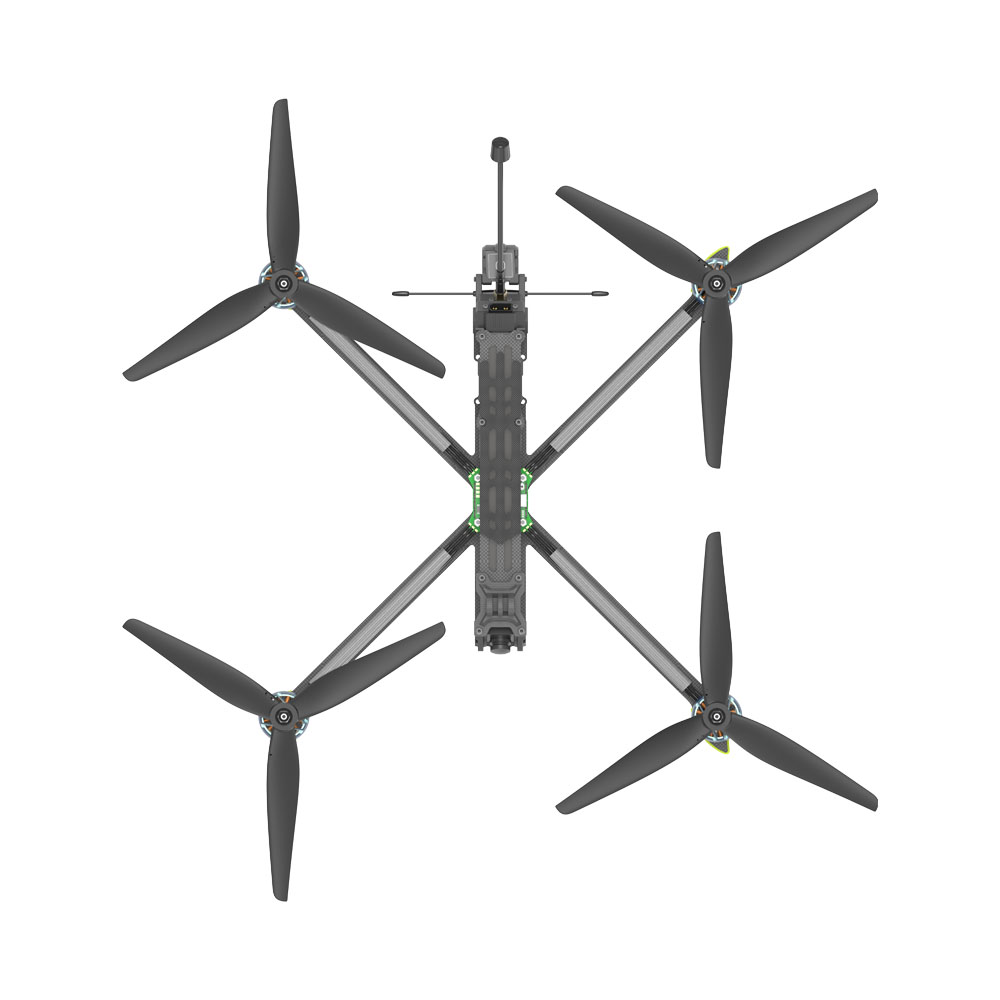

The XL10 V6 6S Analog is a 10" BNF quadcopter that comes with the BLITZ Whoop 1.6W VTX Video Transmission System, and HQ 10" 3-Blade propellers. The XL10 V6 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING2 3110motors, BLITZ F7 Flight Controller, and the BLITZ E55 4-IN-1 ESC, which make this quad a must-have!

The XL10 V6 BNF fly is balanced because of the true X configuration and wide stance. These main changings make flight stable in the air.

Features:

Full 3K Carbon Fiber airframe
Popular True-X configuration
Big size XING2 3110 with extreme lift and flight performance
GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)

Pictures

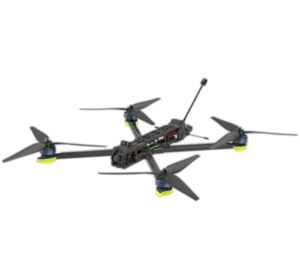

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Nazgul XL10 V6 S in particular but at least we know they do distribute iFlight.

Where to buy

China
iFlight RC
check web site
Ship to: Worldwide

USA
getfpv
check web site
Ship to: USA

Australia
Next FPV
check web site
Ship to: Australia

USA
Grayson Hobby
check web site
Ship to: USA

Wingspan: 297mm (11.7 in)
	Length: 297mm (11.7 in)
Weight: 860 g (1.9 lbs)

See more Details

FC: BLITZ F722 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: BLITZ Whoop 1.6W VTX
Frame: 420mm wheelbase
Motor: XING2 3110 900KV motors
Prop: 10X4.5X3 propellers
Weight: 860g (Without Battery)
Dimensions (L×W×H)：297x297x35mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 6000 m
Max Hover Time: Approx. 40 mins (with 6S2P 8000mAh no load)
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: GPS + Galileo

Video Transmission:

Product Name: BLITZ 1.6W VTX
Output Power: 0-25-400-800-1600mw
Input Volts: 12V
Working Current: ≤pit @40mA，≤25mw@150mA，≤400mw@330mA，≤800mw@460mA，≤1600mw@660mA
Transmission frequencies: 40CH(A-B-E-F-R)
Antenna Interface: IPEX
Mounting Hole: 25*25/φ1.6mm
Weight: 16.5 grams (Without antenna and cable)
Dimensions: L37mm*W31.5mm*H10mm
