Nazgul5 V3 O3 from iFlight

Details

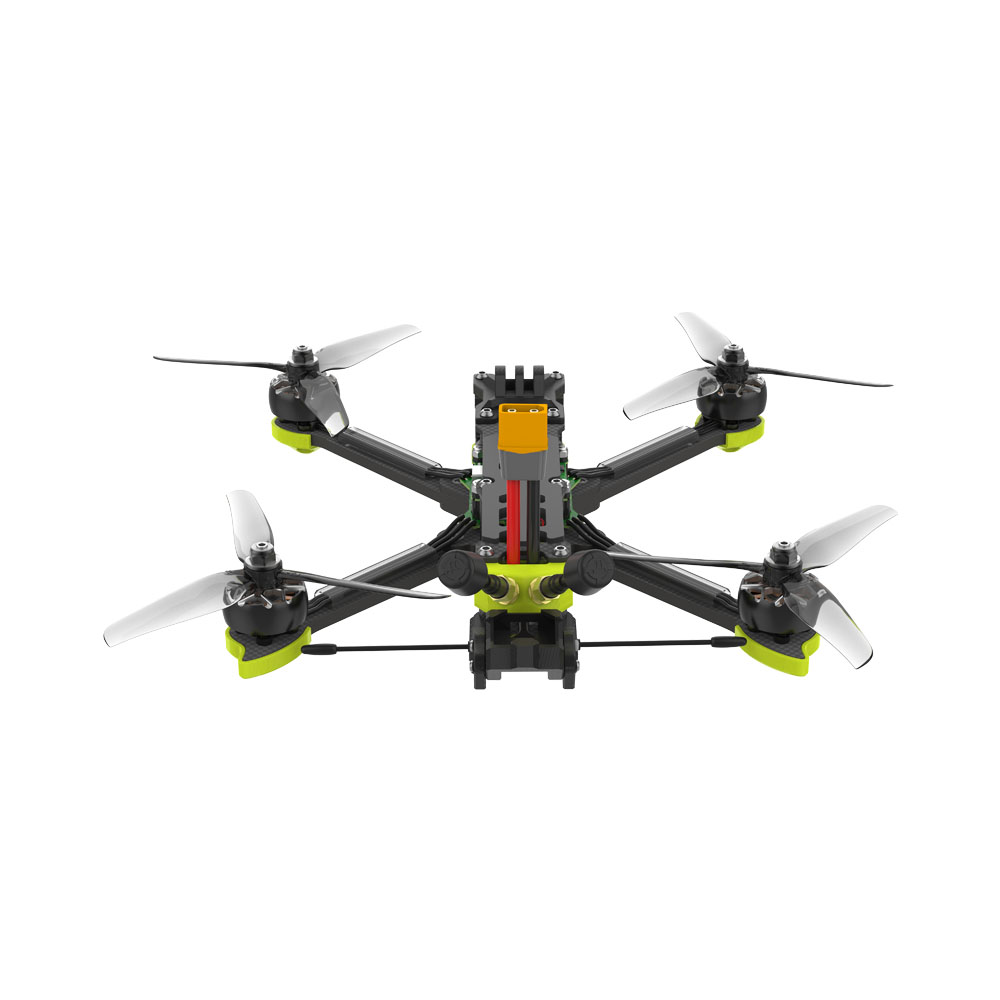

This Nazgul5 V3 HD is a 5" RTF/ BNF (Bind-and-Fly) quadcopter that comes with the DJI Newest O3 Digital HD System, and Nazgul 5" 3-Blade propellers. The Nazgul5 V3 HD has been pre-tuned and set up with everything you need, all youneed to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 2207 6S motors, BLITZ F7 Flight Controller, and the BLITZ E45S 2-6S 45A BLHeli32 4-in-1 ESC, which make this quad a must-have!

Features:

  • XING-E 2207 motors and NAZGUL 5140 props
  • 5" version also fits 5.1" style propellers
  • Fits both 30.5x30.5 and 20x20 stacks
  • DJI O3 HD System
  • 5mm arm design for more durability
  • Popular True-X configuration
  • LED illuminated Logo
  • TPU crash-guards
  • Easy-Swap arms

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Nazgul5 V3 O3 in particular but at least we know they do distribute iFlight.

Wingspan: 255mm (10 in)
Length: 255mm (10 in)

Weight: unknown
  • FC: BLITZ F722
  • ESC: BLITZ E45S 45A 4-IN-1 ESC
  • Video Transmission: DJI O3 Air Unit
  • Frame: 255mm wheelbase
  • Motor: XING-E Pro 2207 motors
  • Prop: Nazgul 5 inch propellers
  • Takeoff Weight: Approx. 620 g
  • Dimensions (L×W×H): 173×173×34±2 mm
  • Diagonal Distance: 245mm
  • Max Speed: 130 Km/h (Manual Mode)
  • Maximum Takeoff Altitude: 5000 m
  • Max Hover Time: Approx. 8 mins
  • Max Flight Distance: 5 km
  • Max Wind Speed Resistance: 130 Km/H (Level 4)
  • Operating Temperature Range:-10° to 40° C (14° to 104° F)
  • Antennas: 2 Antenna
  • GNSS:N/A
