Protos 800X Evo from MSH Model

Details

The MSH Protos 800X Evoluzione impresses with its extraordinary design and its well thought-out construction.
The slim hood with its generously designed ventilation holes ensures, in addition to good visibility, that the engine is well cooled. The magnetic hood holder included in the kit enables simple, secure assembly.
The design is rounded off by a sturdy tail boom which does not require any struts.
The helicopter, driven exclusively by belts, is extremely quiet and easy to maintain.
The tail rotor belt is tensioned by an automatic belt tensioner.

Pictures

Radio icons

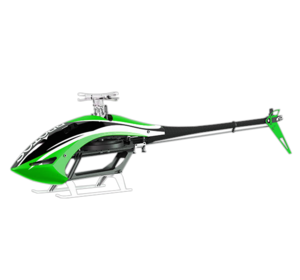

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Protos 800X Evo in particular but at least we know they do distribute MSH Model.

Wingspan: 1600mm (63 in)
Length: 1857mm (73.1 in)

Weight: unknown
Frame Support frame made in carbon fiber 2.5mm and aluminium.
Bottom frame made in one-piece high quality thermoplastic material
System trasmission (motor - main rotor) 15mm Belt
Usable main blades 716mm (with short boom)
up to 800mm (with long boom) optional
Battery usable LiPo from 10s to 14s 4000/5500mAh
Battery compartment dimensions 70mmx60mmx360mm
Suggested battery Lipo 12s 5000mAh
Main rotor diameter 1577mm (with 700mm blades)
1777mm (with 800mm blades)
Tail rotor diameter 286mm (with 105mm tail blades)
Total lenght without blades 1371mm
Total lenght with blades 1757mm (with 700mm blades)
1857mm (with 800mm blades)
Main shaft diameter 12mm totally hollow
Tail shaft diameter 6mm
Fully height 365mm
Swashplate servos 3x standard servos
(to use the servo horn present inside the kit is necessary that servo shaft is like Futaba, MKS or Savox)
It's available as upgrade also JR horn
Tail servo 1x standard servo
Maximum dimension of main blade root 14mm M5 screw
Maximum dimension of tail blade root 5mm M3 screw
Teeth pinion 20T included. (18T 19T 21T 22T 23T optional)
Main pulley teeth 190T
Autorotation pulley teeth 143T
Tail pulley teeth 30T
Tail boom diameter 27mm
Spindle diameter 10mm
Main head and tail box construction material Al 7075 (Ergal)
Main shaft construction material Steel
